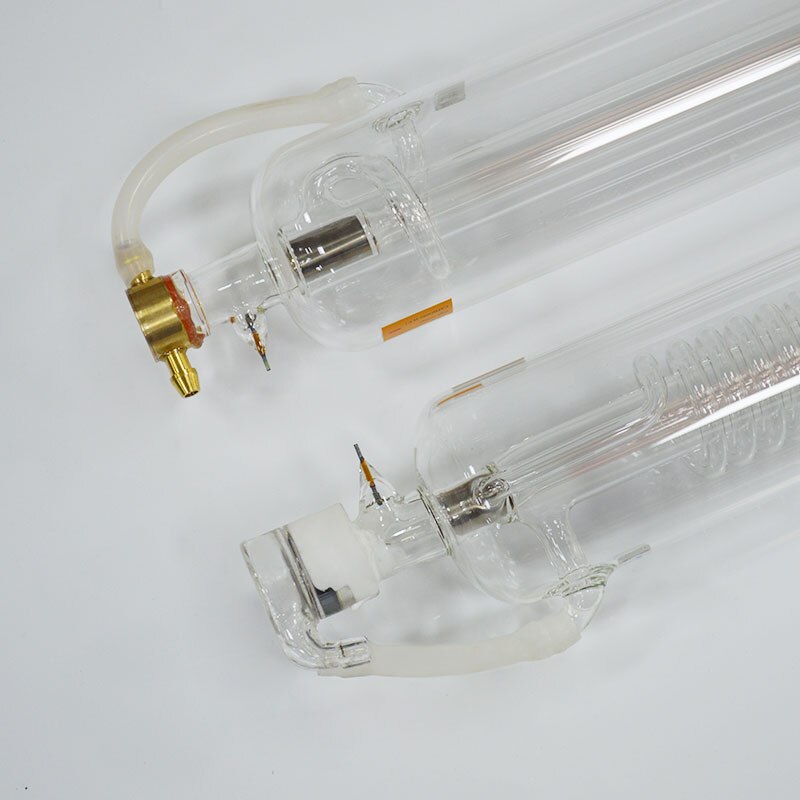

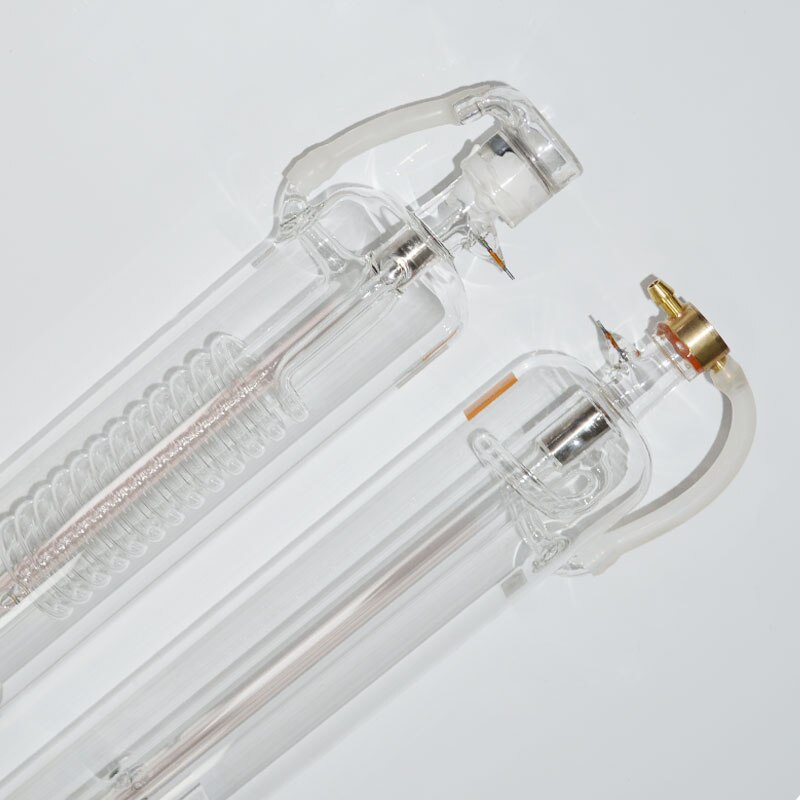

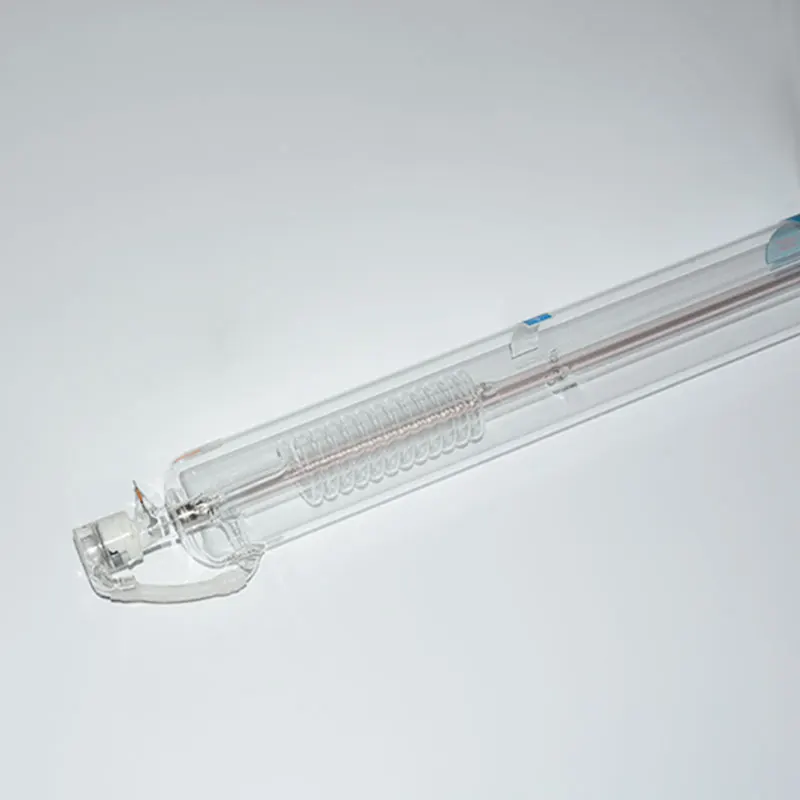

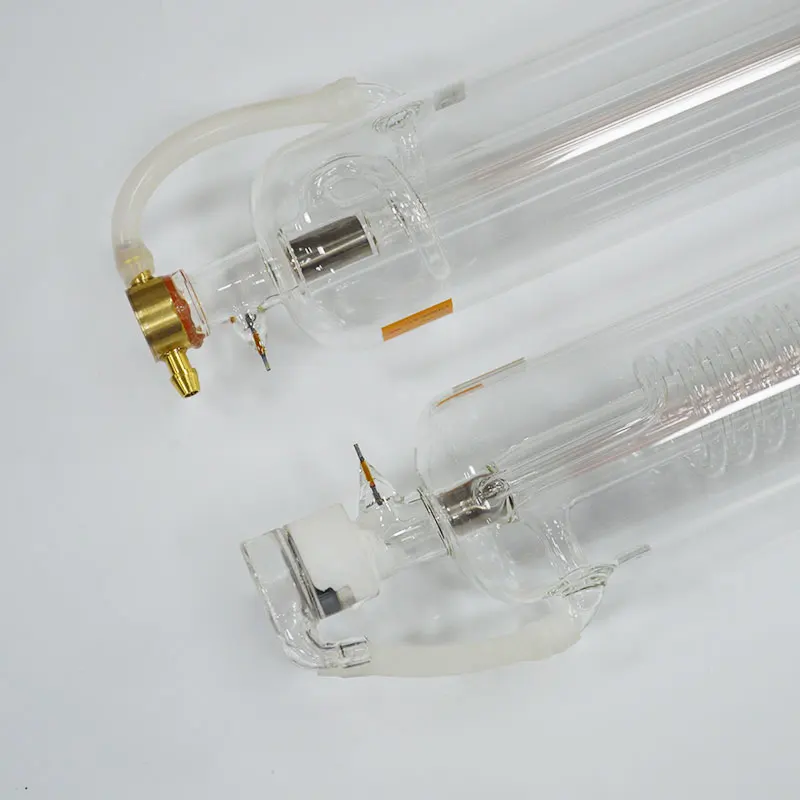

80W  Laser Tube Co2 for Glass Laser Engraving Machine



Mactron Brand Water-Cooled Laser Tube Series working life is up to 8000hours, the single tube power is up to 180W. The laser output is stable. The discharge tube is catalyst coated,the working life is much increased. Compared to similar product, the tube body length is shorter, the laser beam mode is better, the cutting speed is higher.



1. Stability: the discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00. The power is table. It is competitive for industrial application.



2. Power: The power is 30% higher than other laser tube with same length.



3. Long Life: the catalyst coating on discharge tube with unique electrode processing makes the laser out put is more stable, avoid power weaken during long time working.



Rated Power (watts)	80	100	130	150
Max. Power (watts)	90	120	150	180
Full Length (mm)	1200	1400	1650	1850
Diameter (mm)	80	80	80	90
Catalyze	Yes	Yes	Yes	Yes
Triggering Voltage (KV)	20	24	28	30
Operating Current (mA)	27	28	29	30
Span Life (hours)	8,000	8,000	8,000	8,000
Warranty Period (months)	6	6	6	6



About US

Mactron Technology Co., Limited is a modern professional Hi-Tech enterprise, specializing in R&D, manufacturing, marketing of laser laser cutting and engraving machine and laser accessories for more than 10 years.



Mactron scopes of supply include: Co2 Laser Tube, co2 laser power supply,Laser Focus Lens, Laser Reflector Mirror, Industrial Water Cooler Unit, Laser Control System, Laser Cutting Head and other accessories etc.

Mactron's business tenet: "Win the market with advanced technology, Redound upon customer with the best service"

1. Quality

Mactron Technology Co,.ltd has passed ISO9001/2000 quality certificationhe. All of our products have CE Certificate, FDA Certificate and RoHS Certificate.

2. Price

Striving to improve efficiency and reduce costs, we have absolute predominance in price by selling products directly to end users on Aliexpress as a manufacture .

3. Service

For international custmer, we provide professional technician support on all our products by Trademanager whine 24 hours. Any problems about products, we will provide the step by step instruction for you.

4. Warranty&Return

We are happy to replace or refund money and aim to resolve issues quickly to meet your satisfaction.If goods arrive defective or damaged, you have 7 days from date of receipt to contact us. Please kindly provide evidence to us. Such as picture,video and documents.We will replace you a new one or refund you full money!

5. Shipping

With professional packing to avoid the damage, We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. once receiving payment, we post the goods and provide the airway bill number for on-line tracking within 24 hours, including the weekend.



6.Feedback



Your satisfication and positive feedbck is very important to us. If you satisfy with our products and service, please kindly leave us 5 Star. If you have problems, please kindly contact us before leave any negative feedback, we would like to try best solve any problems for you!



How To Judge Co2 Laser Tube Quality Problem



(1) Laser engraving and cutting depth is not enough when the laser tube start to work

Please kindly check the laser tube installing fixture is prober or not. Light path is correct or not. Focusing distance setting is correct or not. Mirror and focus lens face is clean or not. If it has scratch, if all is ok, we judge it is the laser tube problem.

(2) Laser engraving and cutting depth is not enough after laser tube working a while.

Please kindly check the laser tube installing fixture is prober or not. The laser cooling water temperature is higher than 30 degree or not. The focus lens and mirror is hot or not. The volume and pressure of the cooling water is normal or not.If all is ok, we judge the laser tube have quality problem.

(3) High voltage spark and discharge

Please kindly check positive connector is dirty and wet or not. It is near to machine metal body or not. For laser power supply positive connector is connected or not. the high voltage cable is break or offline or not. If all is no problem, we adjust the laser tube is quality problem.

(4) CO2 Laser tube break off, crack, laser head fall off.

(a)The cooling water temperature is controlled between 25-30 temperature or not. In cold area, the water cannot stay in laser tube for freezing.

(b)The laser tube working is understand laser water protective controlled or not. (Test the laser beam occur or not once the water protective stop work)

(C)The laser tube has bubble or not.

(d)Laser water pressure and volume is normal or not. And the direction of laser water flow in laser tube is from lower to higher point.

(e) The water pipe is knotted or not.

If all is ok, the laser tube have quality problem, we need to replace a new co2 laser tube.

How To Install Co2 Laser Tube



(1) Firstly, connect the water pipe to laser water chiller, adjust the outlet water pipe position according to the principle of laser water flowing from lower position to higher position direction. Ensure the laser water is full of the laser tube and donrsquot have bubble. Then, open the laser power supply.

Notice:

(a) The laser cooling water is distilled water or pure water, the temperature should be 20-30. In summer, the water temperature is high, should change the laser water chiller or stop the machine for a while. In cold area, donrsquot let the water freezing, especially donrsquot let the water stay in laser tube if the laser machine not work. (Attentions: customers who use alternating current must let the water box grounded).

(b) The two fixture should be installed in the 1/4 position of laser tube head. And the volume of water flowing is 2L-4L/min, if not, the cooling water effect is not good. It will let the coating of the tube easy fall off. Beams not focused and decrease the laser power. The nozzle of cooling water in chiller must be covered underwater. If not, the laser tube cannot full with water when next start.

(c) Please pay attention to protect the laser output window to avoid smoke sputtering during working as well as adjusting light path. When the laser output window is polluted, the laser power will be decreased. So please use absorbent cotton or cloth dipped in alcohol without water to clean the surface of laser output window.

(d) Please use laser tube reasonably. The laser tube is used by the right ways, which will save laser power. In fact, the optimal laser power is only 80% for itself.

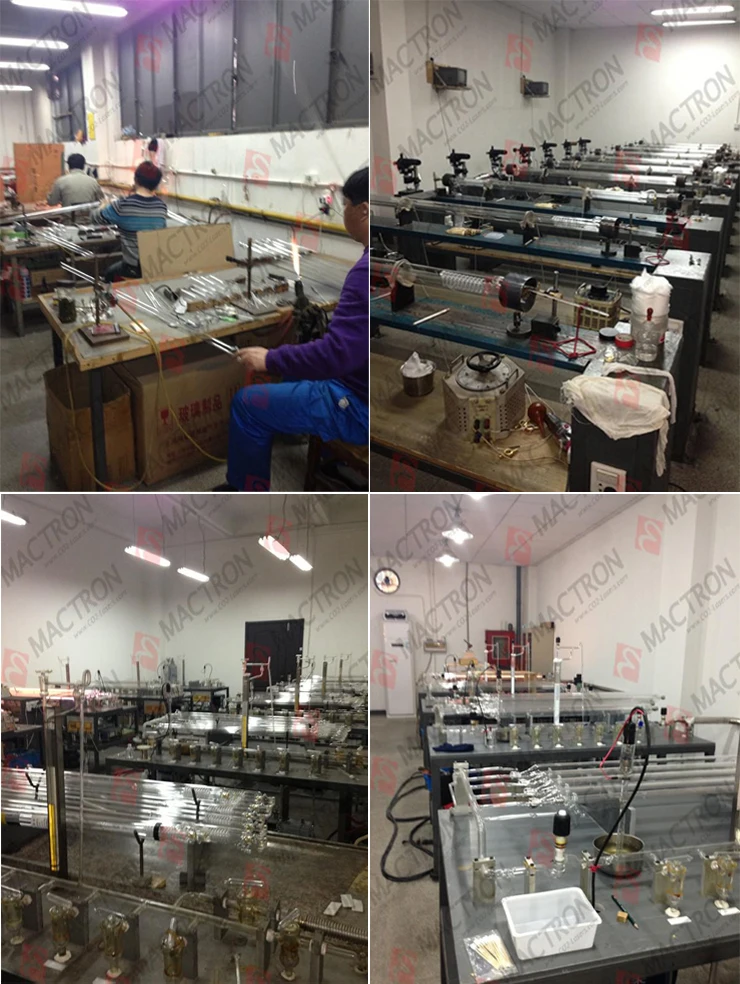

Working Shop Review
