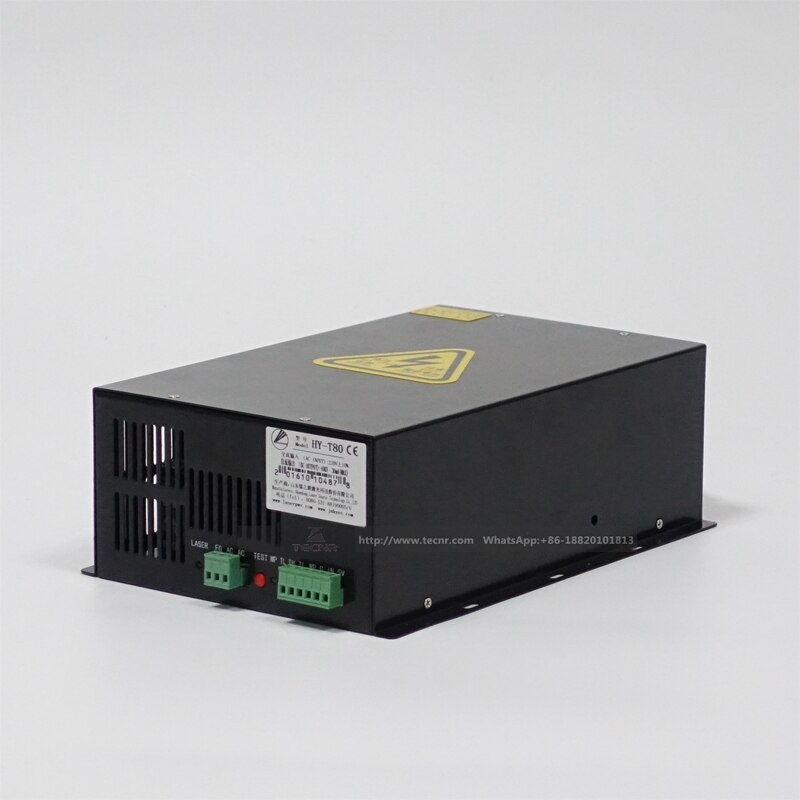

Description
Input |
Input Voltage |
AC220V or AC110V(to be specified when placing order) |
|
AC frequency |
47—440HZ |
||
Cold Surge Current |
≤60A(AC220V Input) |
≤30A(AC110V Input) |
|
Current Leakage |
≤0.7mA(AC220V Input) |
≤0.4mA(AC110V Input) |
|
Output |
Max Output Voltage |
DC 40KV |
|
Max Output Current |
DC 28mA |
||
Efficiency |
≥90%(full load) |
||
Mean Time Between Failure (MTBF) |
≥10000H |
||
Response Speed |
≤1ms(from the switch Signal is given to the output current up to 90% of the setting current) |
||
Control Interface |
TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification) |
||
Pressure-proof |
Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. |
||
Protection |
can work in open-circuit condition for a short time(Require a good protective earthing and avoid arc between the positive and the machine shell) |
||
Environmental |
Operating Temperature:-10~40°,Relative Humidity (RH):≤90% |
||
Cooling Way |
Force-Air Cooling (FAC) |
||
Dimension |
L×W×H=280*173*97(mm) |

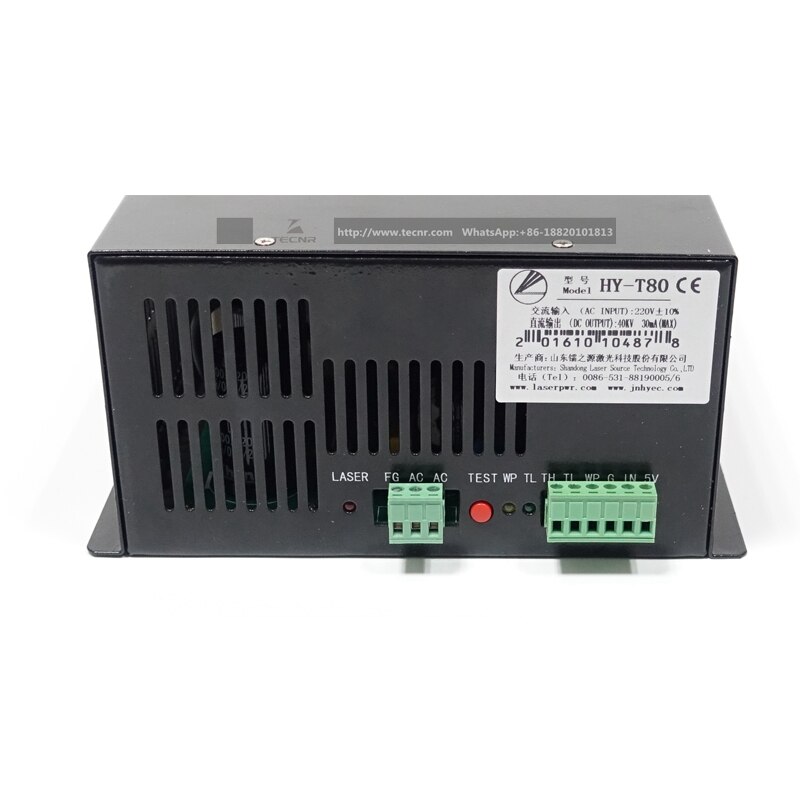

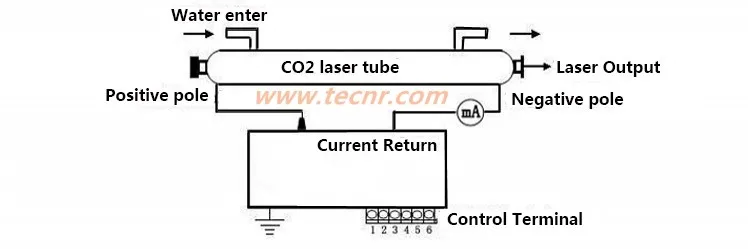

Terminal Definition
1 |
2 |
3 |
4 |
5 |
6 |
TH |
TL |
WP |
G |
IN |
5V |

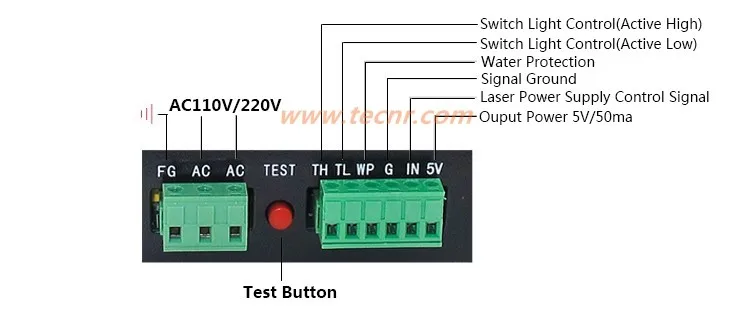

Terminal definition as follow
TH |
Input Signal |
Switch Light Control,High Level(>=3V)-Bright dipping,Low Level(<=0.3V)-No Light Dipping |
TL |
Input Signal |
Switch Light Control.High Level-No light Dipping,Low Level(<=0.3V)-Bright Dipping |
WP*1 |
Input Signal |
Switch Light Control,High Level(>=3V)- No light Dipping,Low Level(<=0.3V)-Bright Dipping |
G |
Signal Ground |
The foot must connected with laser machine’s enclosure and ground properly. |
IN*2 |
Input Signal |
Laser Power supply control terminal can use 0-5V Analog Signal Control,also can use 5V PWM Signal to Control |
5V |
Output Power |
5V,Max output Current 20mA |
