Description



TECHNICAL PARAMTERS

Measure subject :

Intense pulsed light (IPL) , OPT, DPL , LED，Diode laser 755nm,

Diode laser 808~810nm, Diode laser 1064nm, etc…

Measure window size :

60mm*60mm

Measure wavelength range  :

350nm~2500nm (from UV to NIR)

Measure energy range  :

1J~300J ( means : not J/cm², total square area)

Measure energy tolerance  :

±2%

meter power supply  :

DC-9V



Q and A :

Q1. can this meter measure diode laser hand piece?

A1: yes , this energy meter special design for IPL hand piece and Diode laser hand piece ,

Include : IPL hand piece , OPT hand piece , DPL hand piece, SHR hand pieces , LED .

diode laser 808~810nm , diode laser 755nm , diode laser 1064nm , etc..

​

Q2. can I only order the energy collect part not order the multimeter part ?

because I have the same multimeter ?

A2: no , because the multimeter before shipping ,we adjusted it with the energy collect part ,

they suitable with each other , if you use your own multimeter , the standard is changing,

the same meaning we make sure same handle , test by different meters will shows the same energy .

the tolerance is ±2% .



​Q3. I received the products , but without battery , why ?

A3: because the product need ship by airplane , the battery can not shipping by air ,

so , before shipping , we take the battery out .



​Q4. how long is the delivery time ?

A3: we usually send you the products out in 24 hours after your payment ,

as Aliexpress is free shipping , it may take 25~35 days .

if you are in hurry , you can choose Fedex ,Dhl, ups , tnt , etc…

you need pay for the shipping cost yourself .



How to use it ?

​

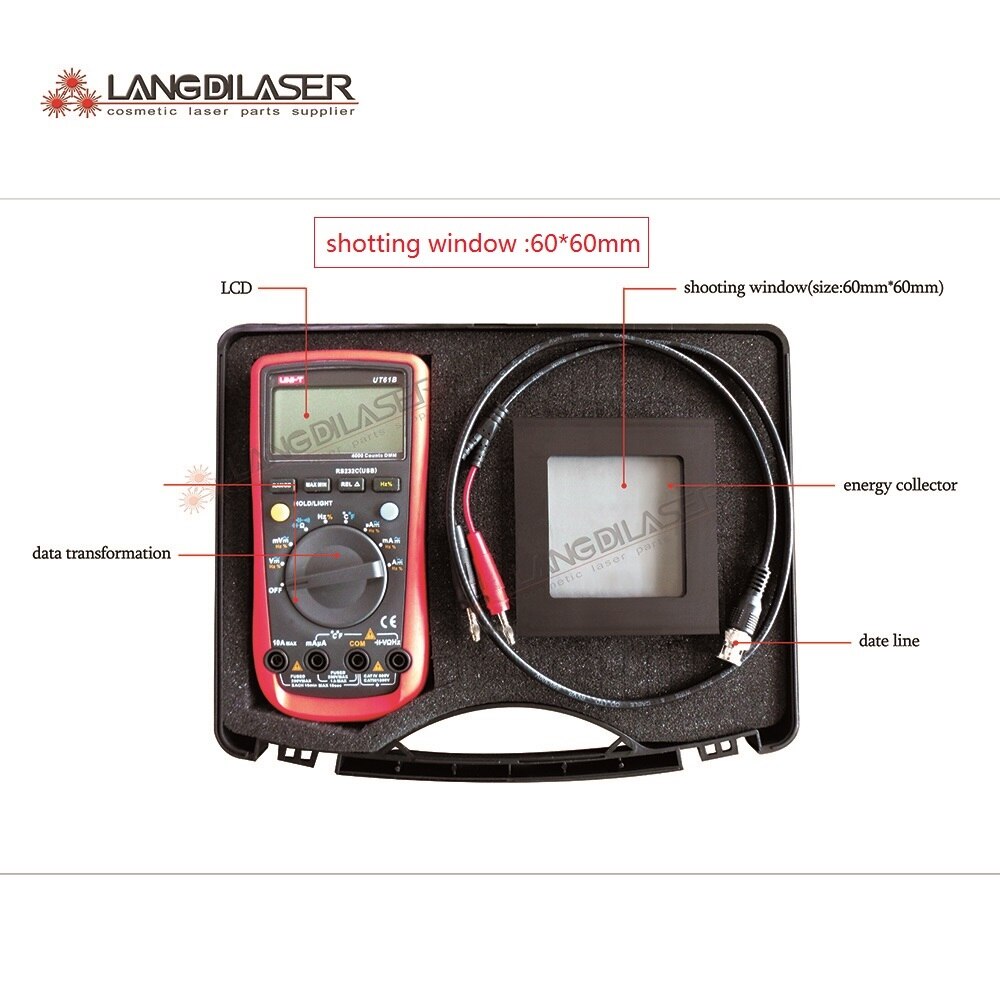

Step 1 : link each parts as picture above

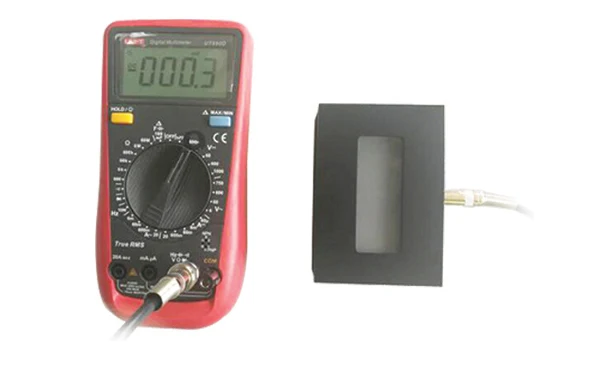

Step 2 : turn on it as V－(600m) , then the LCD will display environment ‘s energy , it usually display 000.0 ~001.0

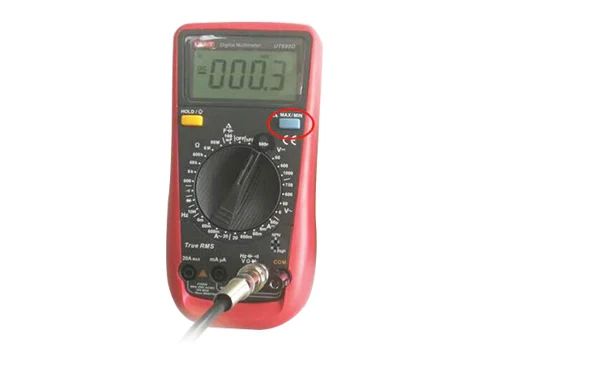

Step 3 : when the environment ‘s energy is fixed (as above it display 000.3, means the environment ‘s energy now is 000.3 J ) , we then press MAX MIN ( red circle ) ,

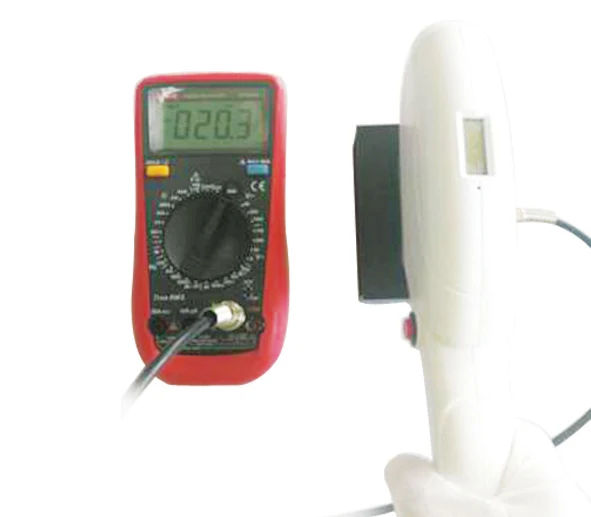

Step 4 : measure your laser handpiece , when the numerical is fixed , it means the MAX energy now is 20.3 J ,

Step 5 : press MAX MIN ( red circle ) twice time , the LCD will display your laser handpiece’s last shoot, the MAX energy is :21J .

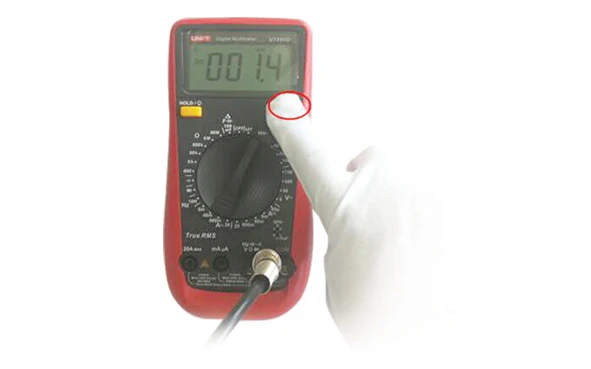

Step 6 : press MAX MIN ( red circle ) and keep it more than 3 seconds , then the LCD will display environment ‘s energy again , we then can have the next measure ,
