Description
Features:

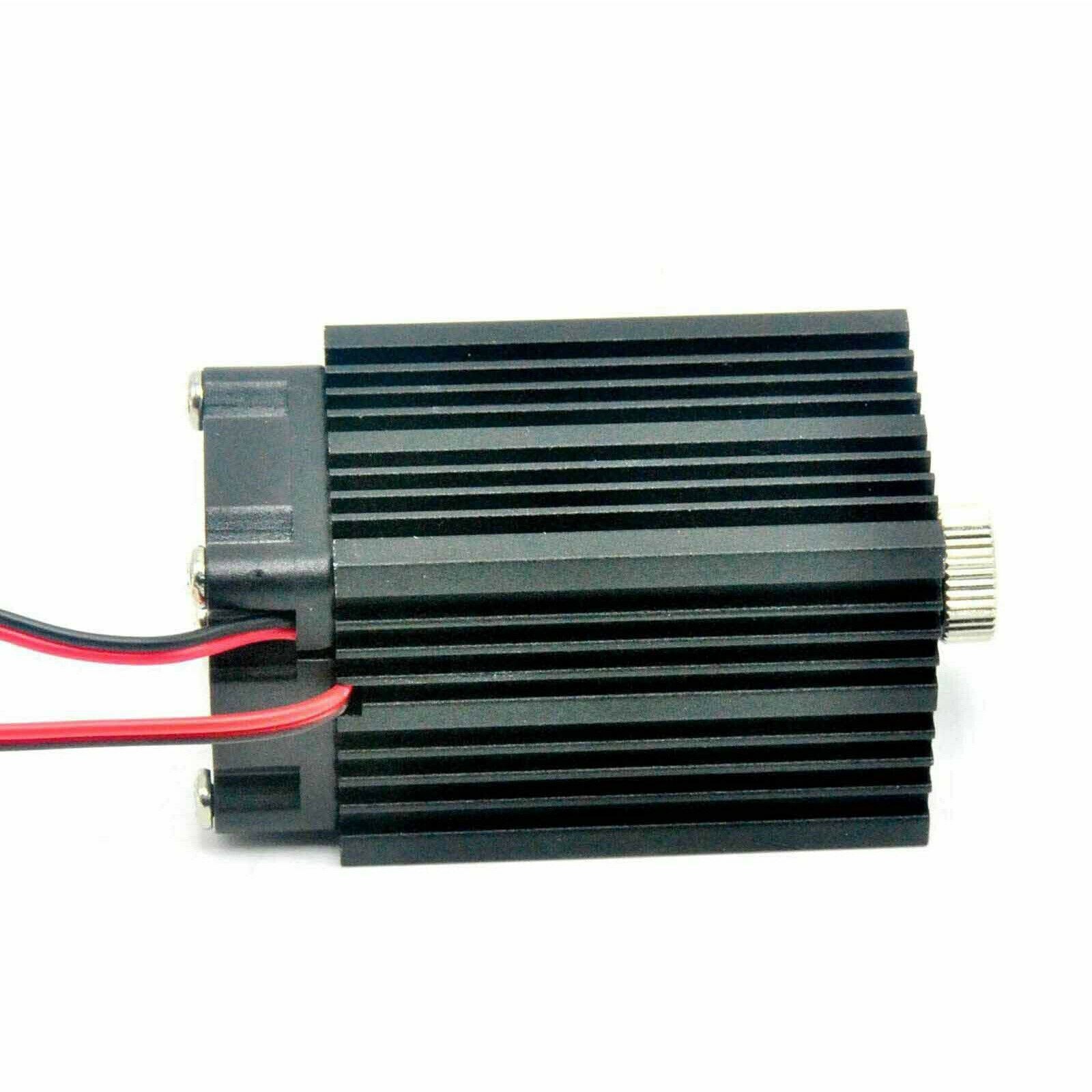

Laser head size: 50mmx33mmx33mm

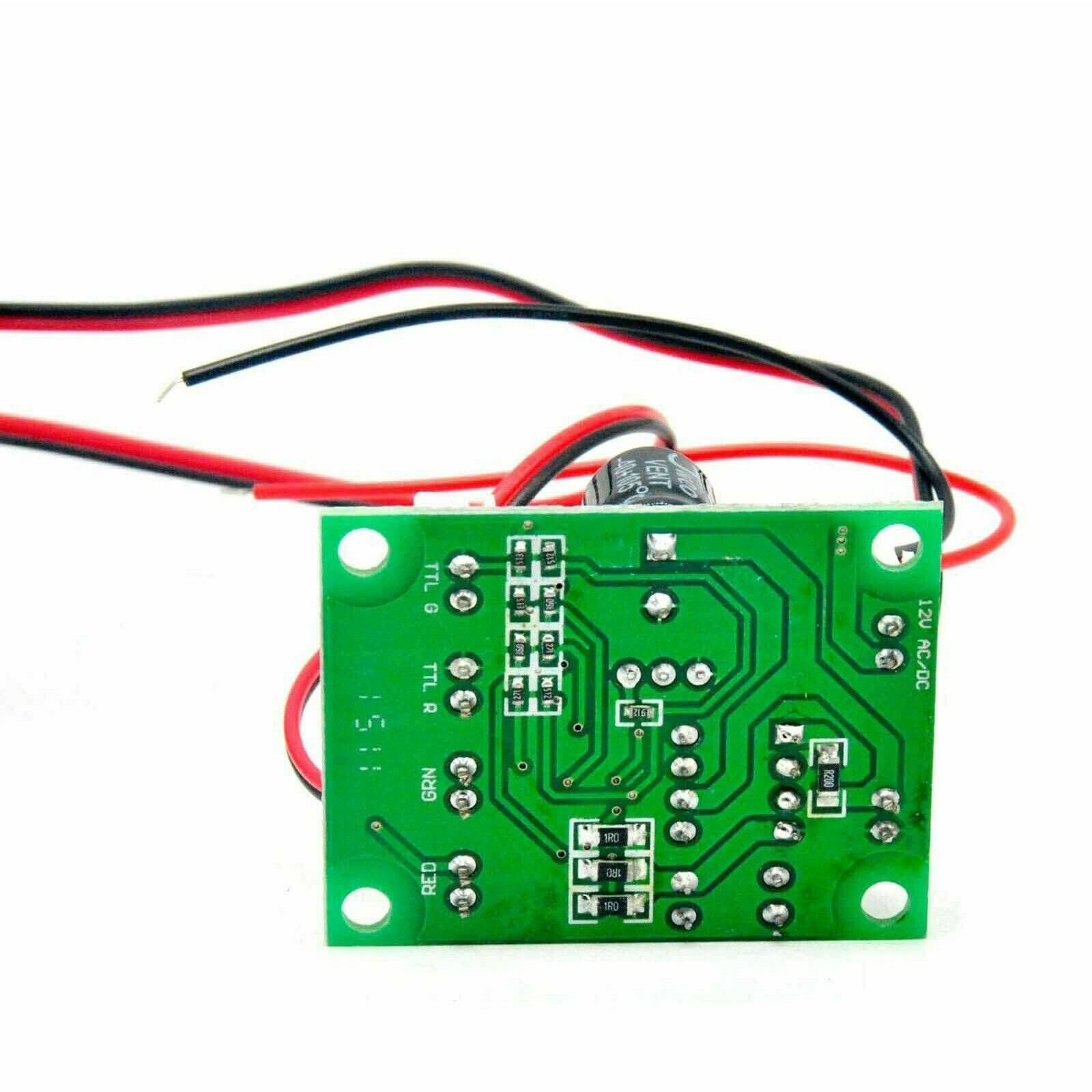

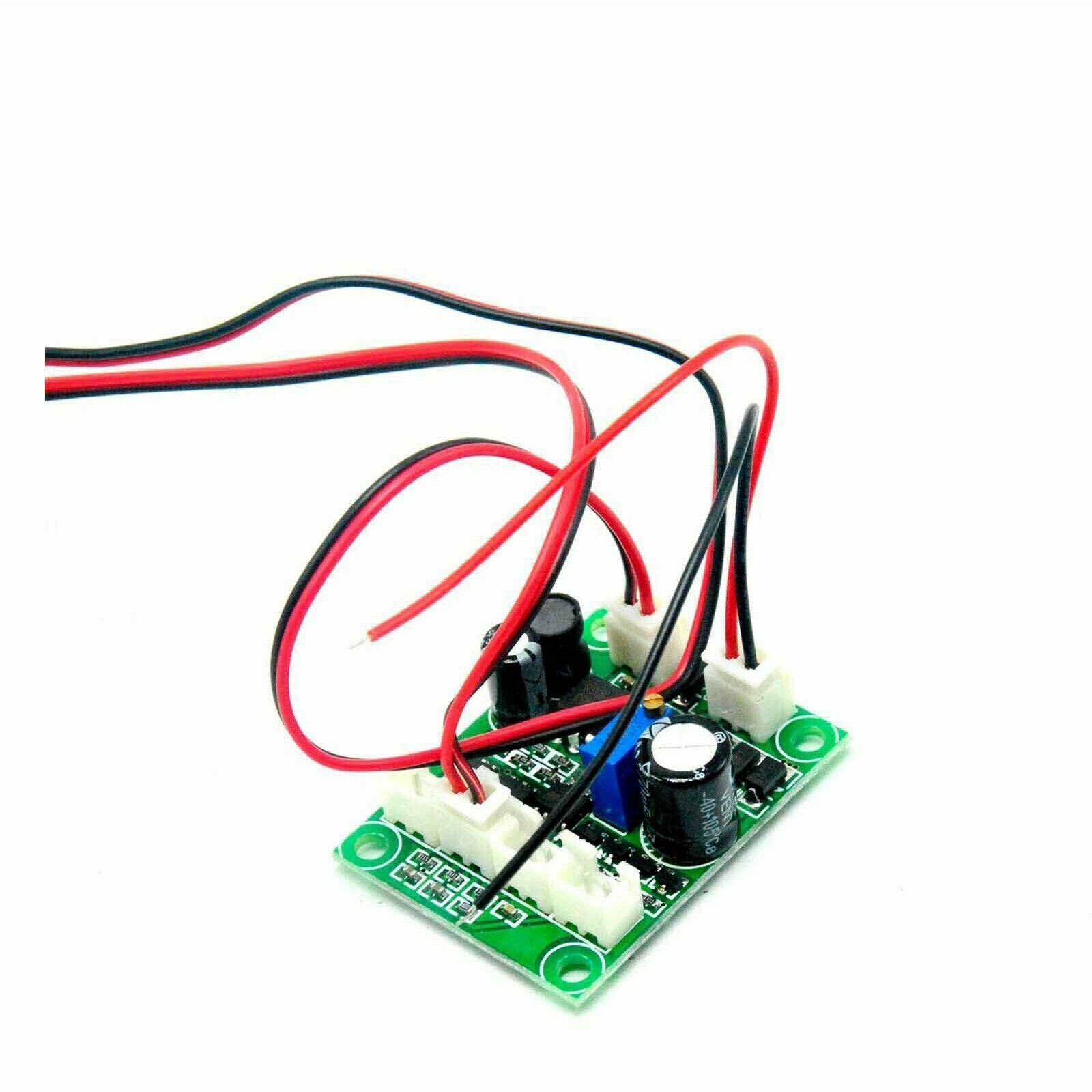

Circuit Board size: 45mm * 34mm
Wavelength: 808 nm
Output power: <500mW
Laser shape: Dot
Focusable: YES
Modulation frequency: Adujstable TTL modulation
Working: Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Working current: I<650A
Warm-up time: None
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃
Note:
808nm is IR lasers which can only seen a weak red light. It’s normal. Please test it by DDC / infrared camera,
The light will be expander and the beam spot is rectangular, make sure you know it before order. Thanks！
Package:

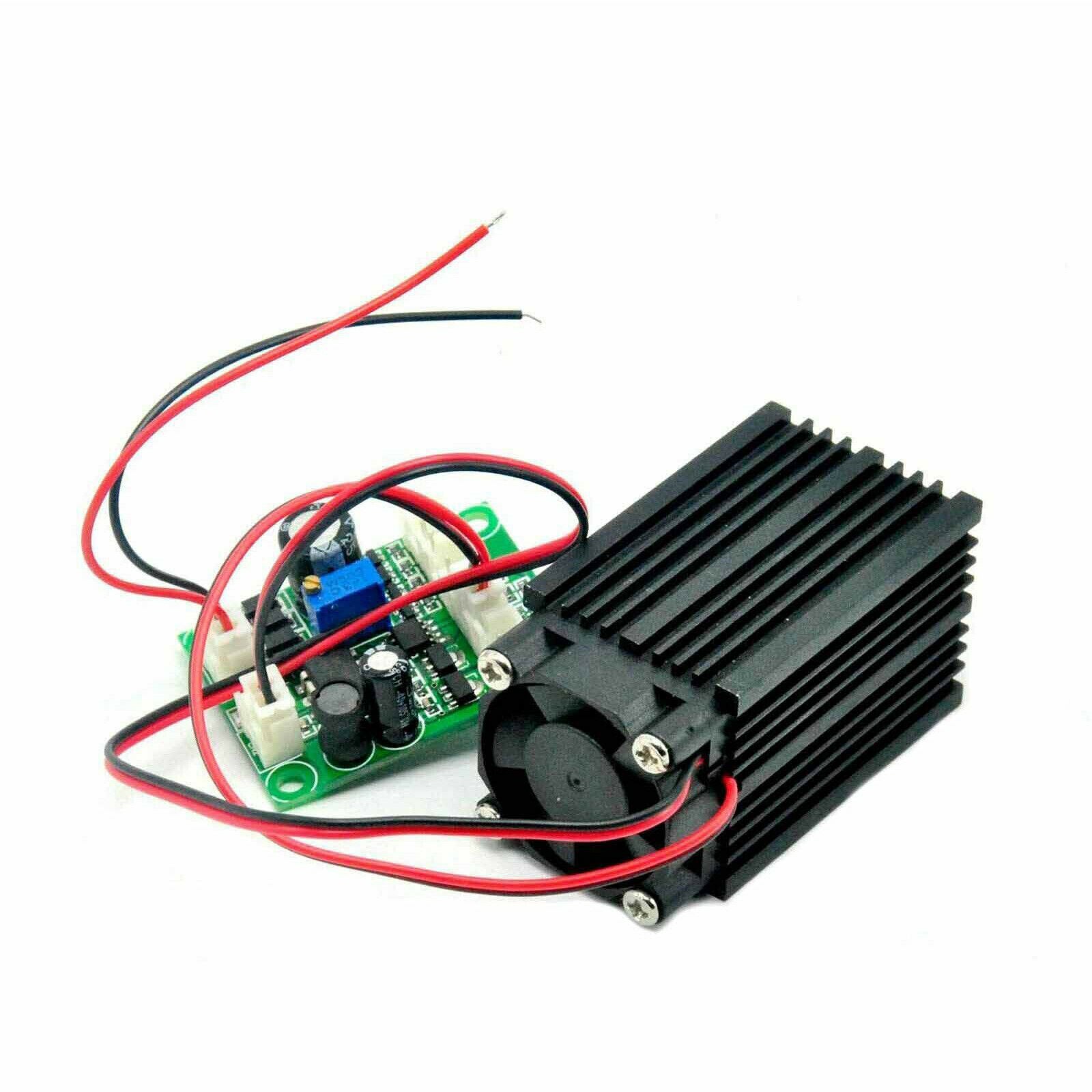

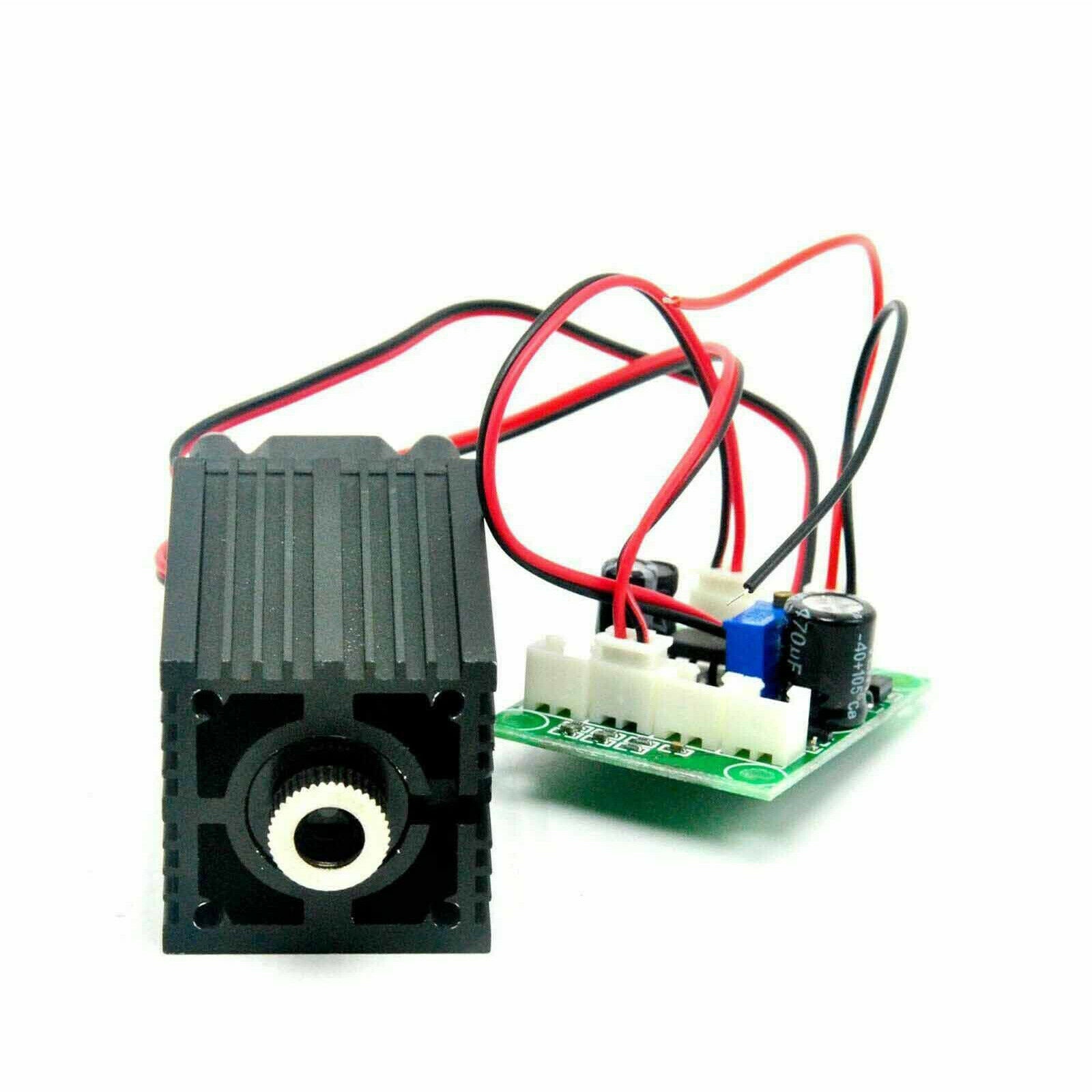

1pc 808nm 500mW Dot IR Laser Module
