Description
Features:
Laser head size: 50mmx33mmx33mm

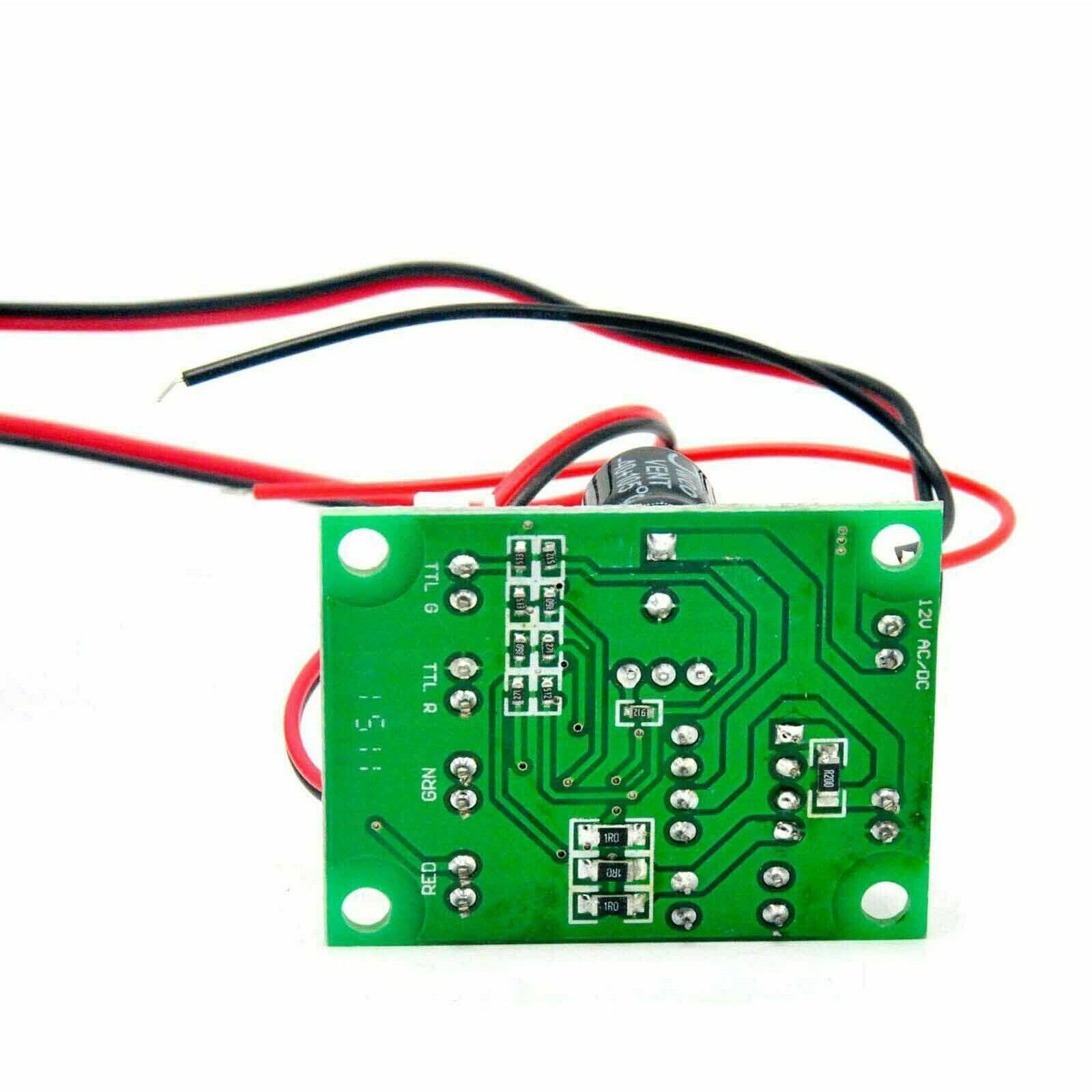

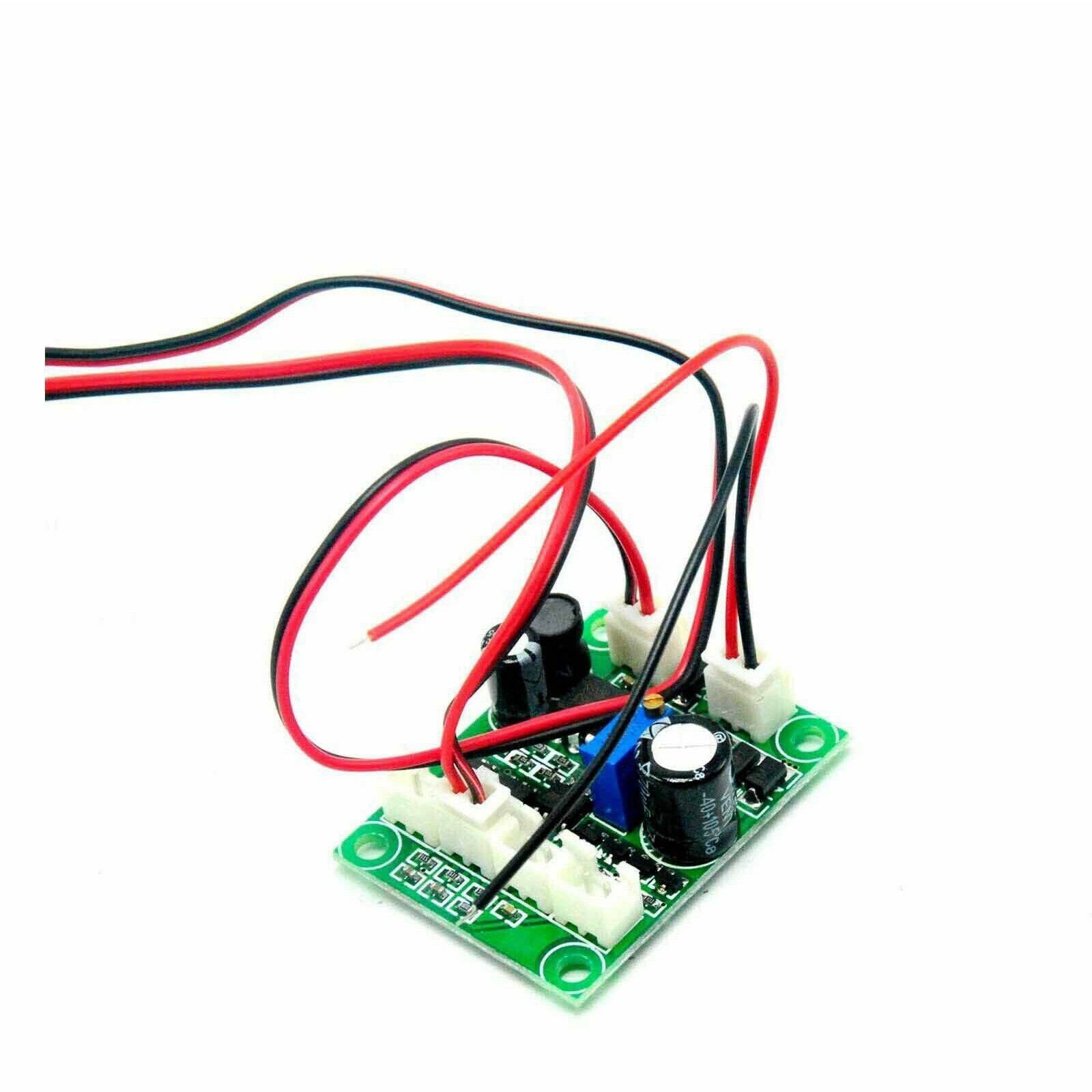

Circuit Board size: 45mm * 34mm
Wavelength: 808 (± 5 nm)
Output power: 300 (mw)
Operating voltage: 12.0 (VDC ADC)
Working current: 400 (mA)
Working temperature: -10 ℃ ~ 40 ℃
Storage temperature: -20 ℃ ~ 80 ℃
Spot mode: point-like (fixed focus)
Operating mode: continuous laser with TTL modulation 0-20KHz
Start-up time: ≤0.01
Note:
808nm is IR lasers which can only seen a weak red light. It’s normal. Please test it by DDC / infrared camera,
The light will be expander and the beam spot is rectangular, make sure you know it before order. Thanks！
Package:

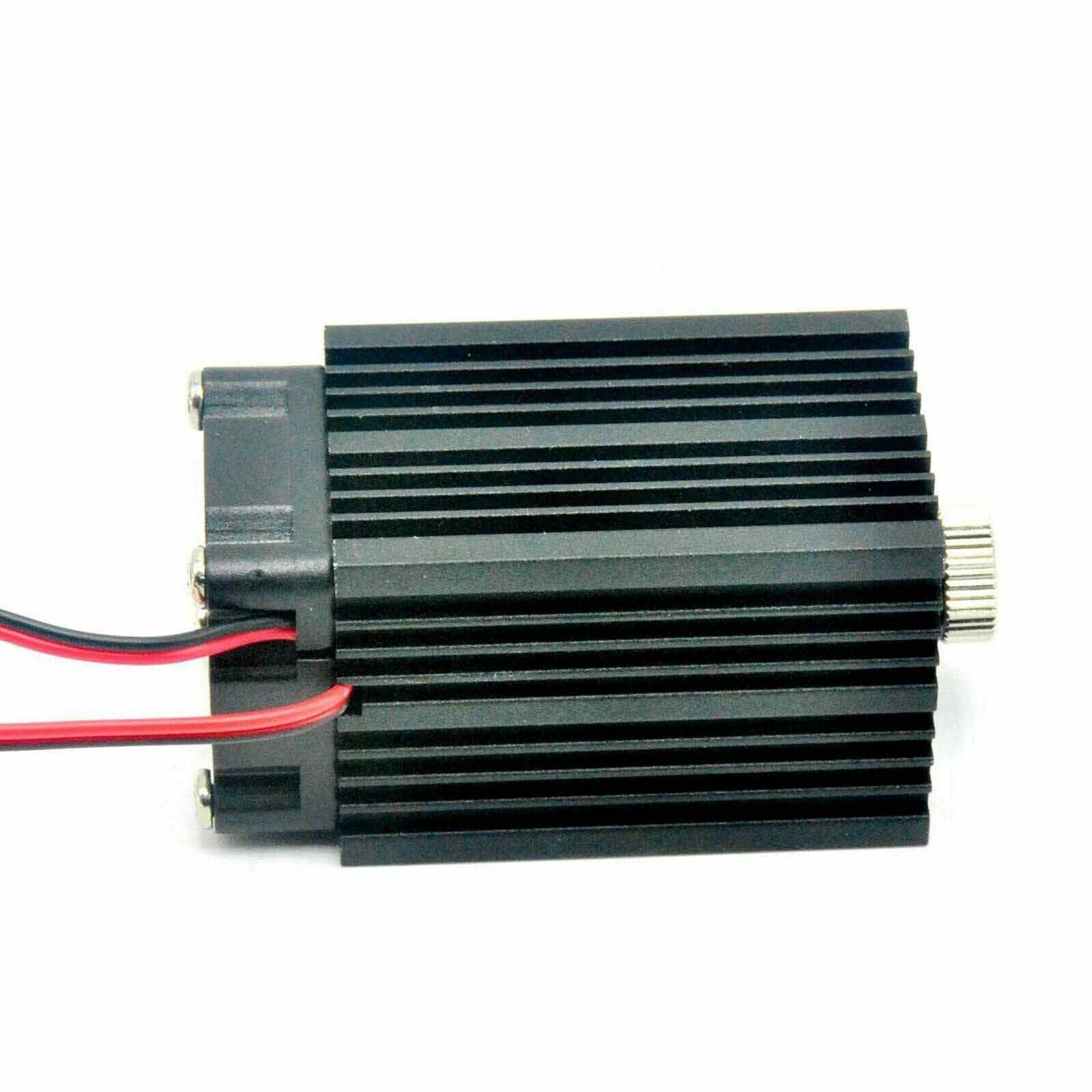

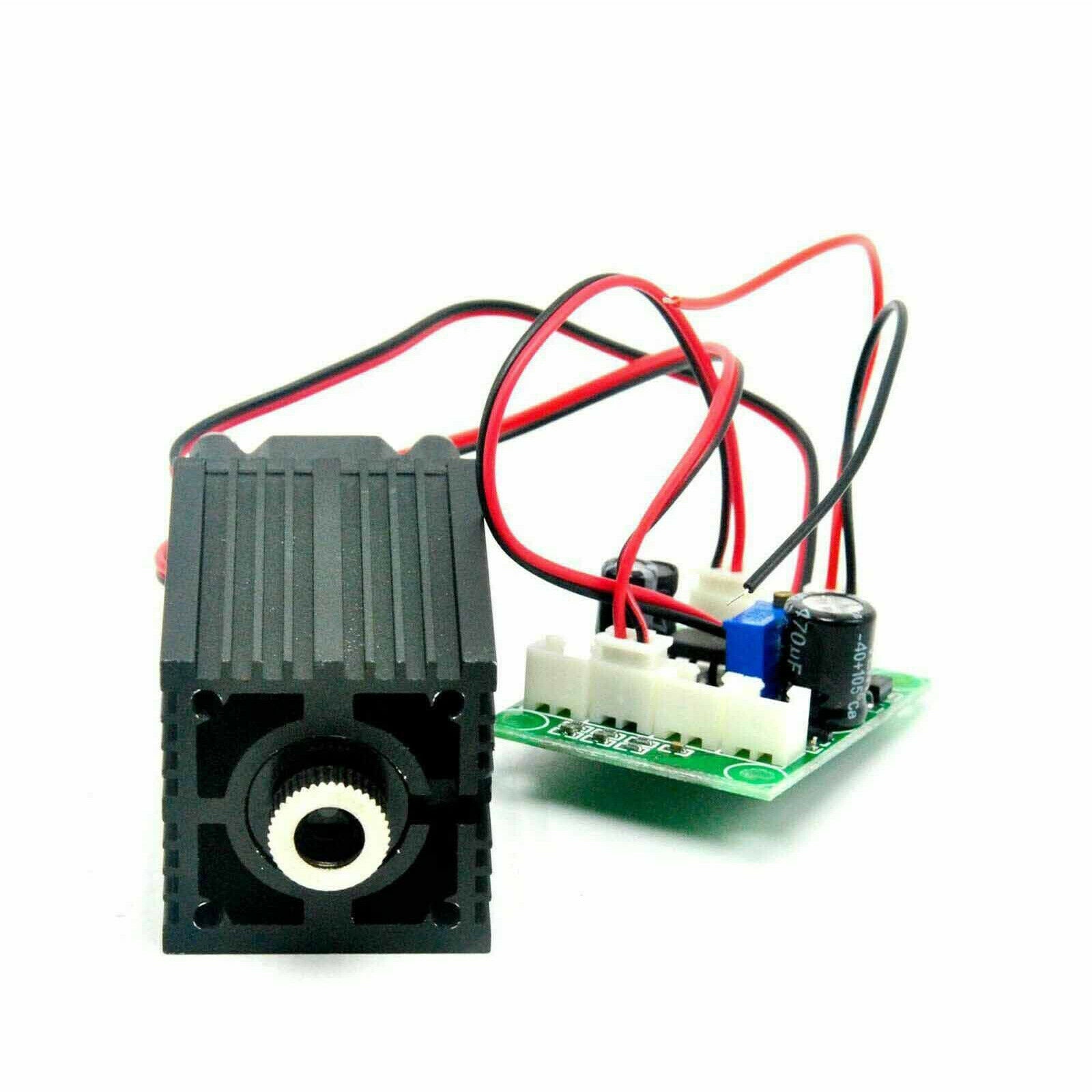

1pc 808nm 300mW IR Diode Laser Focusable Infrared Dot Module 12V+ TTL+ Fan Cooling
