Specification:

Main applications: metal carving, deep carving, simple cutting, etc.

Wavelength: 450nm

Radiator size: 30 * 60mm

Material: Copper + Aluminum

Weight: 116g/210g (20w)

Interface specifications: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)

Drive position: built-in

Adjustable power: PWM adjustable

Drive protection: surge protection, overvoltage protection

Input power: about 12V, 750ma does not include fan power

Cable length: 300mm

Control line installation method: pluggable

Fan size: 30 * 10mm

Fan speed: 10,000 rpm/15,000rpm

Controllable temperature: less than 60 degrees Celsius

Focus range: 5-50mm

Best focal length: 10mm from the light exit

Safety warning: Please apply this module under the premise of safety protection!

Recommended application machine: NEJE Master

Packing list:

1 module

2 screws

2 x gasket

1 x control line

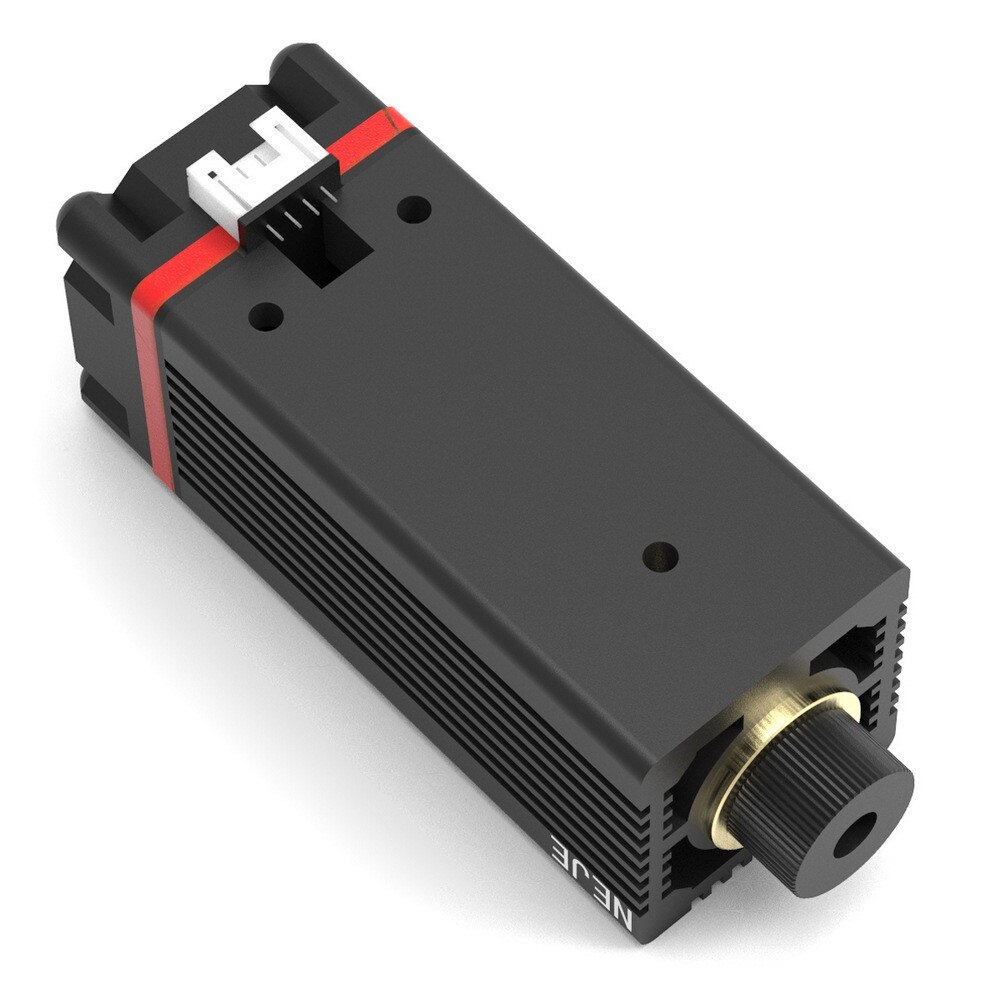

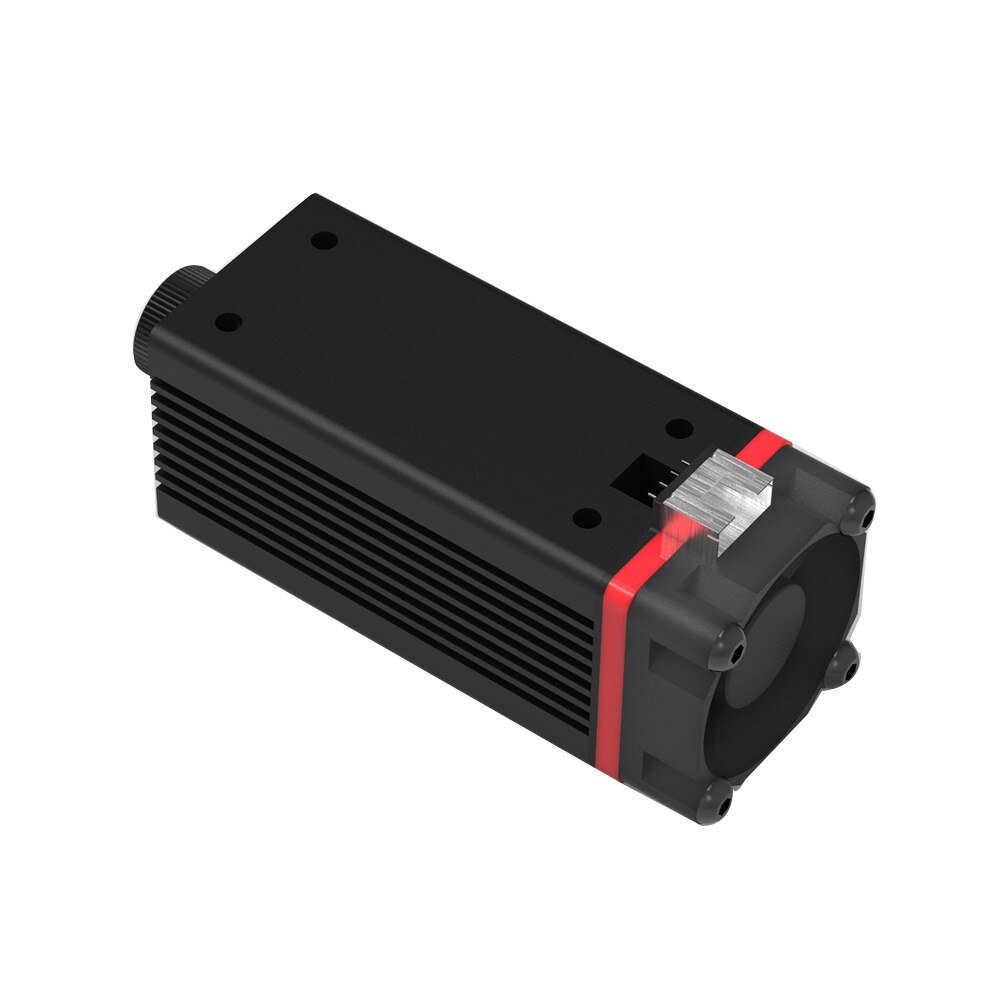

Product Display:
