Description

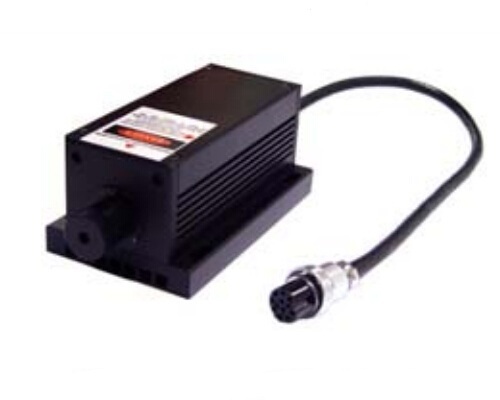

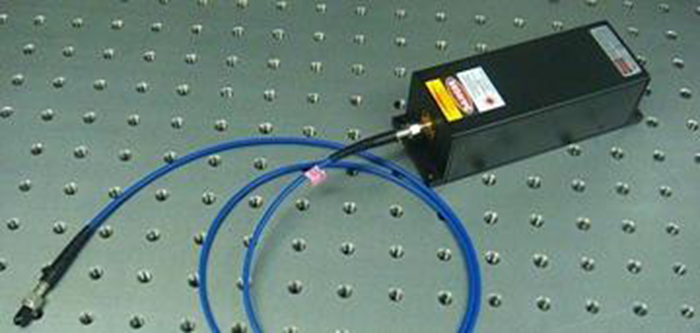

793 nm Multimode Fiber coupled lasers

High quality infrared laser system at 793nm. It can be customized to low noise and fiber coupled. It’s 200mW output power, contact us if you need other customized output power.

Adjustable Power, easy to operate;
Use of imported top quality laser diodes, reliable performance and longest life time;
Power supply comes with thermal, overcurrent protection circuit, can be an external high-speed modulation;
High quality multi-mode fiber coupling output fiber removable, easy to maintain;
Applications: Spectroscopy, materials analysis, bio-engineering, photoelectric detection, medical and so on.,

Wavelength(nm)： 793±5
Output power(mW)： 200mW ( Adjustable output power 0-200mW)
Transverse mode： Near TE00
Operating mode： CW
Fiber core diameter: 200um
Numerical aperture: 0.22
Length of Fiber: 100cm
fiber connector:SMA905
Power stability (rms, over 4 hours)： <1% or 3% Cooling System:TEC Operating temperature(℃)： 0~40 Power supply：90~240VAC@50Hz Expected lifetime(hours)： 10000 Warranty： 1 year Laser Head Dimensions (L×W×H, mm):102 x 35 x 35 Laser Head Net Weight (kg):0.3 Power Driver Dimensions (L×W×H, mm):150 x 110 x 56 Power Driver Net Weight (kg): 0.6
