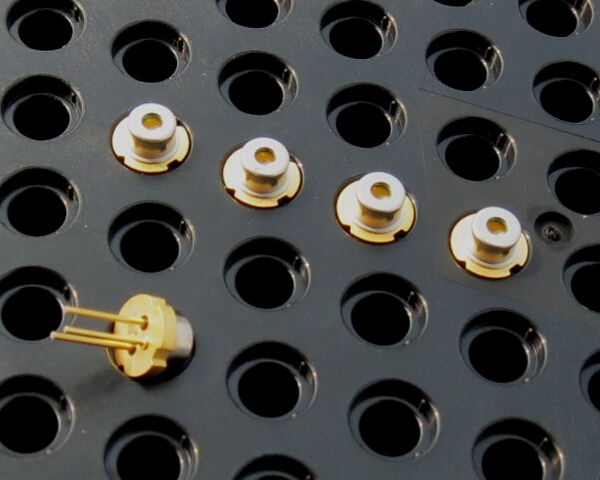

Brand new 780nm infrared laser diode modules with 200mW CW output (the pulsed output power as high as 350mW). You can review the datasheet in the following pictures.

Wavelength: 780nm

Light Output: 200mW CW (Pulse 350mW)

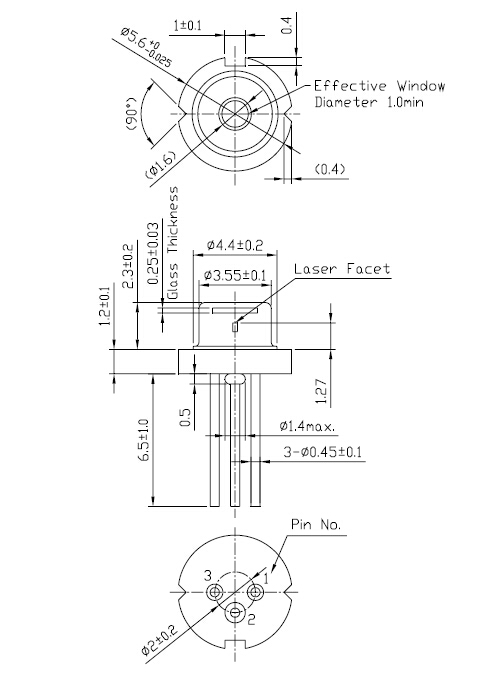

Package Type: TO-18(Φ5.6mm)

Absolute Maximum Ratings (Tc=25℃)

Parameter Symbols Ratings Units

Optical Output

Po(CW) 200 mW

Po(Pulse) 350 mW

Reverse Voltage Vr 2 V

Operating Temperature Top -10 ~ +70 ℃

Storage Temperature Tstg -40 ~ +80 ℃

Push Width 0.1us , Duty 50%

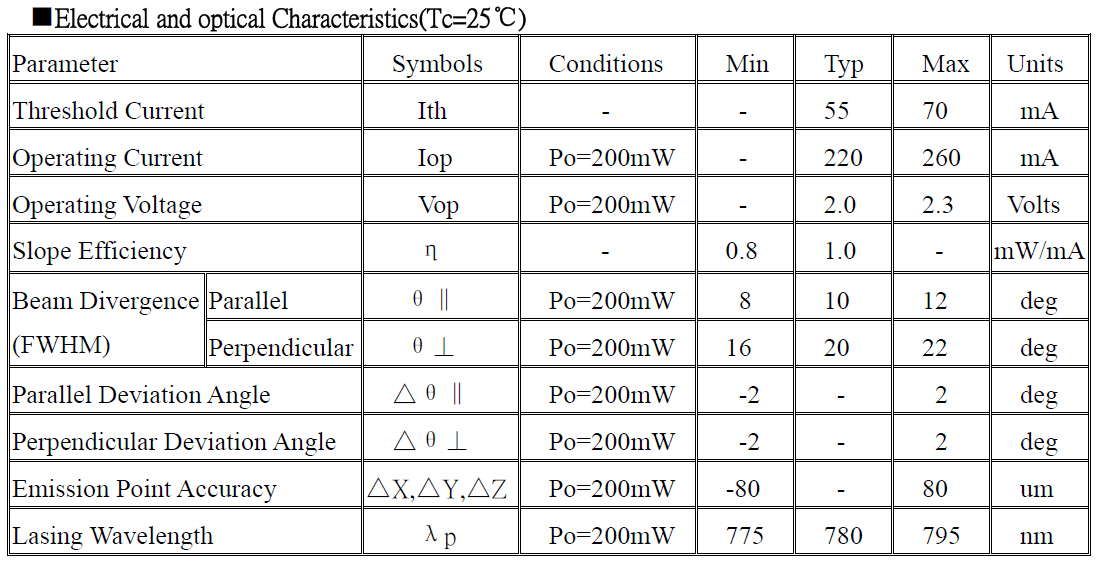

Parameter Symbols Conditions Min Typ Max Units

Threshold Current Ith – – 55 70 mA

Operating Current Iop Po=200mW – 220 260 mA

Operating Voltage Vop Po=200mW – 2.0 2.3 Volts

Slope Efficiency η – 0.8 1.0 – mW/mA

Beam Divergence

(FWHM)

Parallel θ‖ Po=200mW 8 10 12 deg

Perpendicular θ⊥ Po=200mW 16 20 22 deg

Parallel Deviation Angle △θ‖ Po=200mW -2 – 2 deg

Perpendicular Deviation Angle △θ⊥ Po=200mW -2 – 2 deg

Emission Point Accuracy △X,△Y,△Z Po=200mW -80 – 80 um

Lasing Wavelength λp Po=200mW 775 780 795 nm
