Description
650nm100mW 10 parallel line laser module multi-line parallel laser projector
Name: 10 parallel lines 650nm laser module
Model: ZLM100PXX650-10-16GD
Output wavelength: 650nm
Die power: 100MW
Operating Voltage: DC 2.8V to 5.2V (customizable)
Operating current: <200mA

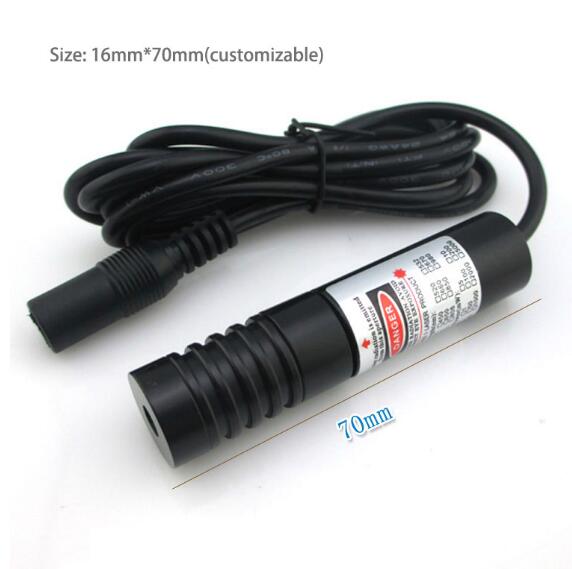

Dimensions: 16*70mm (customizable)
Optical lens: grating sheet 47 degrees (imported from Germany)
Spot size:
At 50 cm: the length of the line is 46.2 cm, the width of the 10 parallel lines is 47.7 cm, and the distance between the lines is 5.3 cm
At 100 cm: the length of the line is 92.4 cm, the width of the 10 parallel lines is 95.4 cm, and the distance between the lines is 10.6 cm
Merit:
1 Indoor use, clear brightness, not dazzling
2 Parallel line width adjustable to meet your different usage requirements
3. The shell is made of aviation aluminum-plated insulating paint, which can not only fully dissipate heat, but also shock-proof, anti-drop and anti-static
4. The imported laser diode directly emits light and has a particularly high stability and can work 24 hours a day
5 Intelligent driver board with imported IC can supply 2.8-5.2V ultra-wide range of power supply (other voltages can be customized)
6 High temperature resistant corrosion resistant DC plug cable is suitable for all-weather and all-environment use
7. Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements

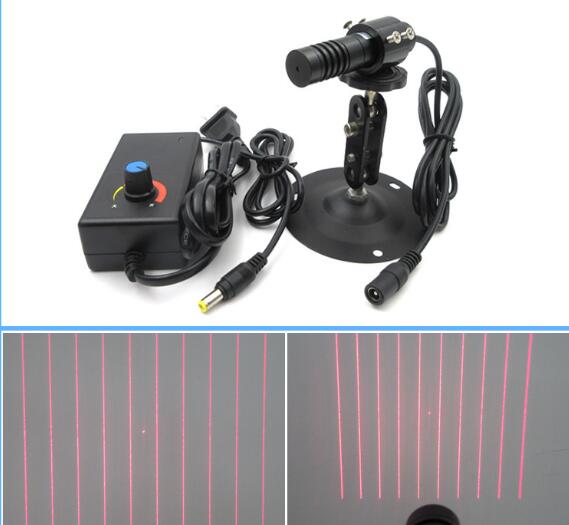

Package includes:
1* laser module;
1* laser bracket;
1* adjustable power supply.
