Description
Specifications:
Output Power 30mw
Wavelength 650nm
Working Voltage 5V
Working Temperature +10 ℃~＋40 ℃
Laser Shape Dot
Working Current 18mhA
TTL modulation Voltage 0-5V Off low, high open, normal status open
TTL frequency 0-20KHz
Focusable Yes
Material and Color Metal
Lens Plastic
Dimensions 12x35mm or 12x40mm
Material: Metal
Color: Silver
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive
Details:
1.Please keep the lens clean to make the laser beam clear and bright.
2.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.
3.Be sure the operator has experience in optics DIY or testing.
4.Please protect your eyes when you work with this red module.
Package:

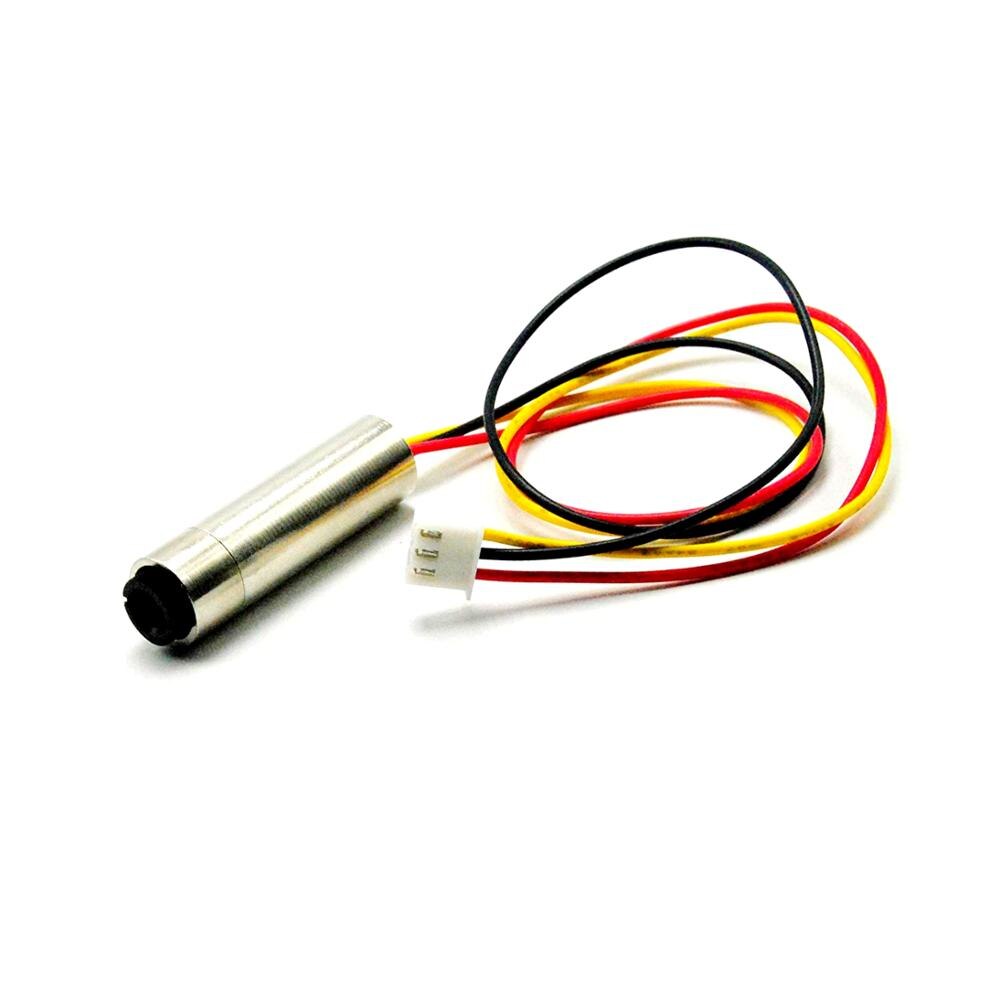

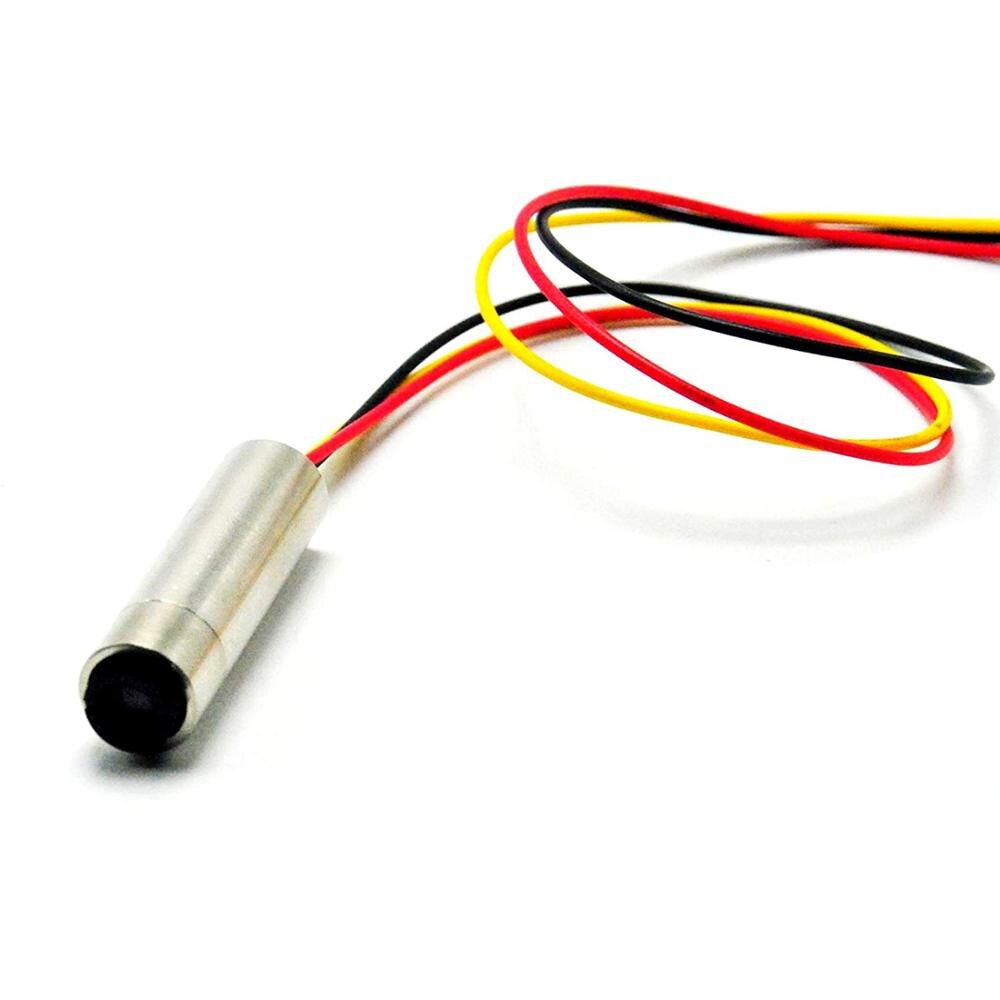

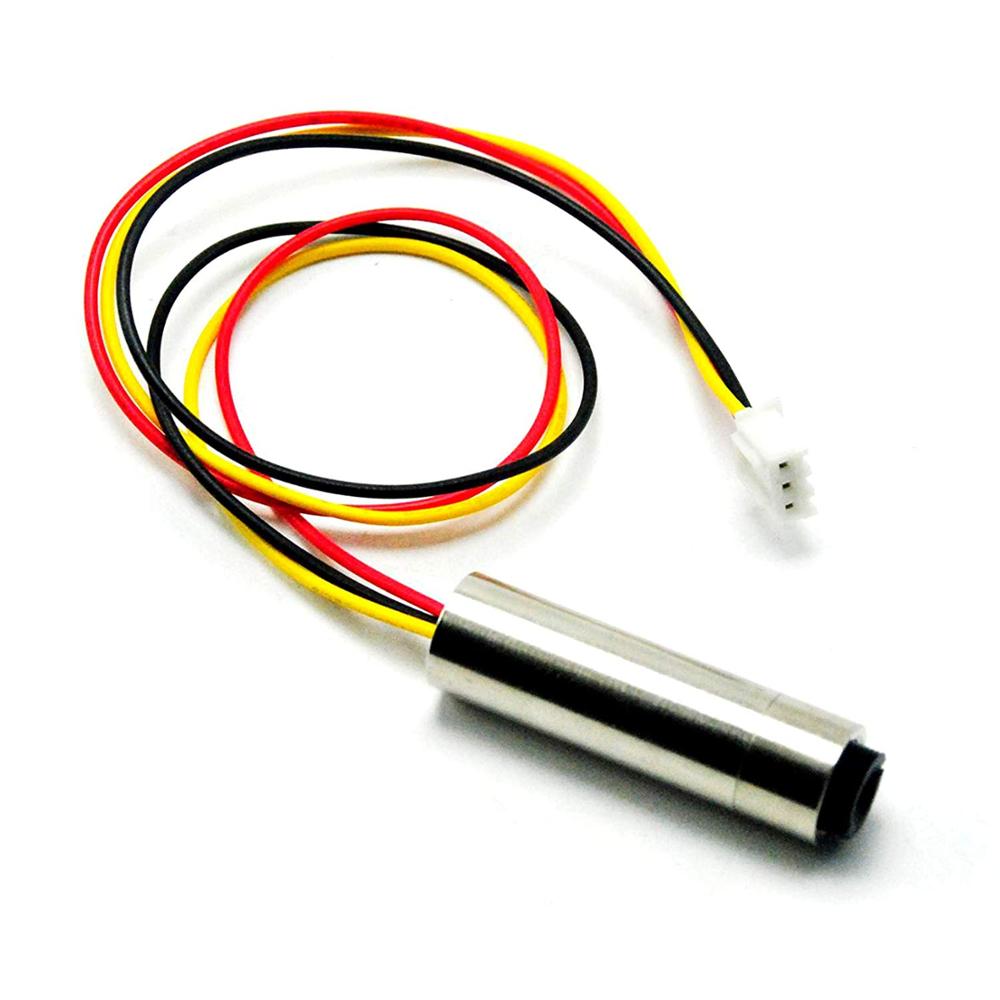

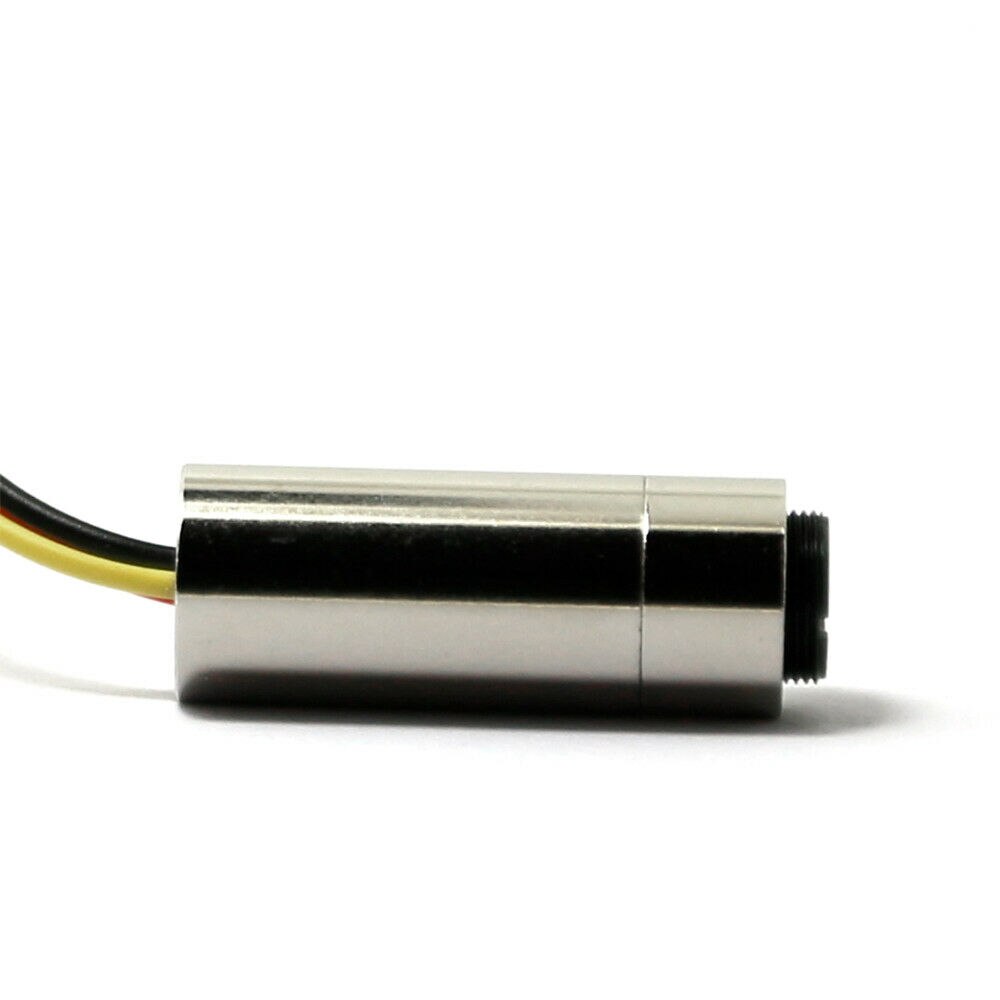

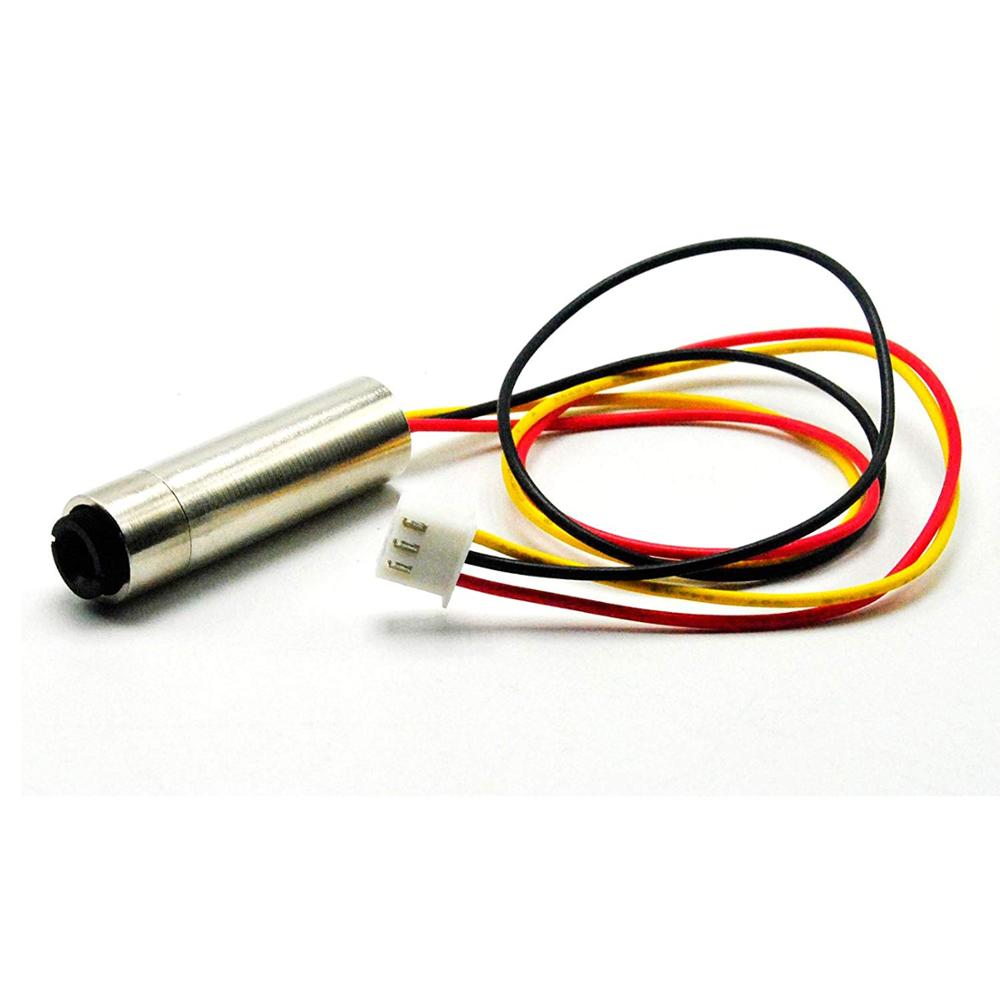

1x 650nm 658nm 30mW Red Laser Dot Diode Module with TTL 12x40mm Focusable New
