Product Details

Introduction:

The principle of laser emission and the particularity of the production process determine that the laser has three characteristics (good monochromaticity, good coherence, good directionality) and high (high brightness) which are not available in ordinary light.
With the good brightness of the laser orienter, Gaoke is widely used in various occasions. It is convenient, intuitive, easy to install, stable and reliable.
Product Usage:

1. Can be used for line of sight positioning

2. Can be used for laser test tools

3. Can be used for concentric positioning

4. Can be used to make signal devices
Product information (point):

Red dot laser tube, laser module

Wavelength: 650nm

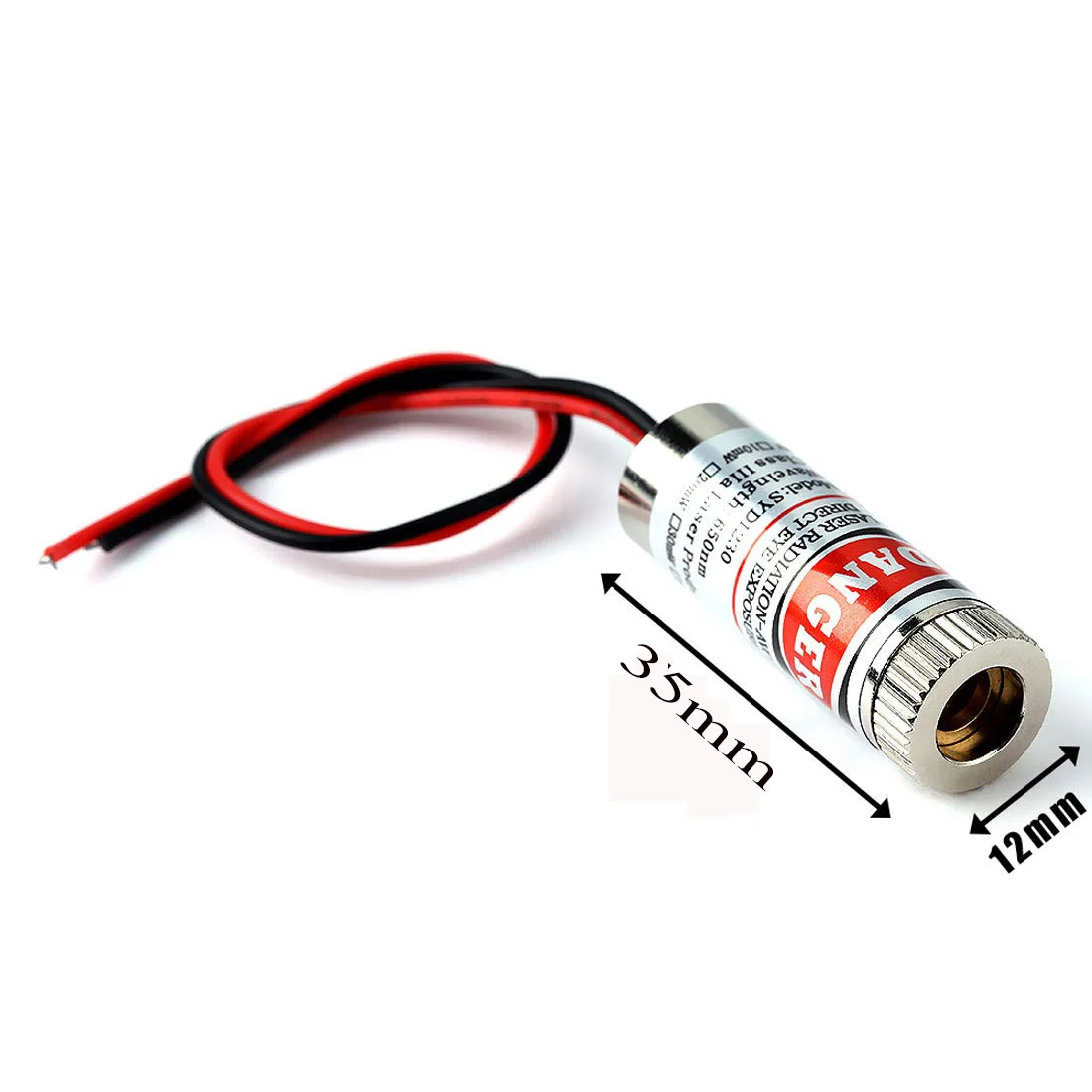

Diameter: 12MM

Weight: 13.5 grams

Length: 35MM

Maximum power: 5MW

Voltage: DC3V-6V

Maximum current: 40MA

Drive circuit: APC
Product information (row):
Red (adjustable line) laser tube, laser module

Wavelength: 650nm

Diameter: 12MM

Weight: 13.5 grams

Length: 36MM

Power: 5 MW

Voltage: 3V-6V

Current: 30-50MA
Product Information :

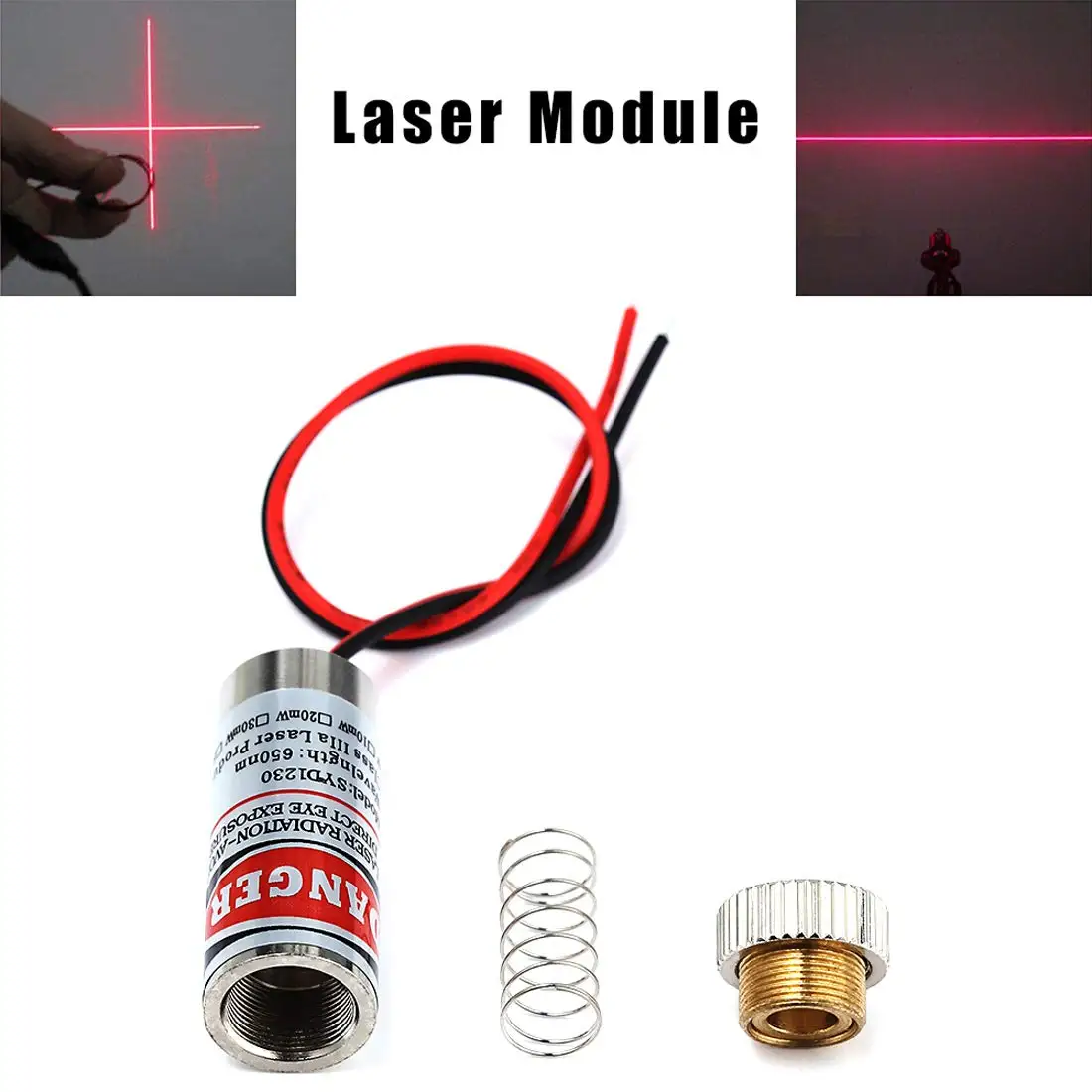

Red crosshair laser tube, laser module

Diameter: 12MM

Weight: 13.5 grams

Length: 36MM

Power: 5 MW

Voltage: DC3V-6V

Current: 25-50MA
