Description
650nm 5mw adjustable red Line laser Module for Laser marking machine woodworking infrared positioning light distance 2.5M
Description:

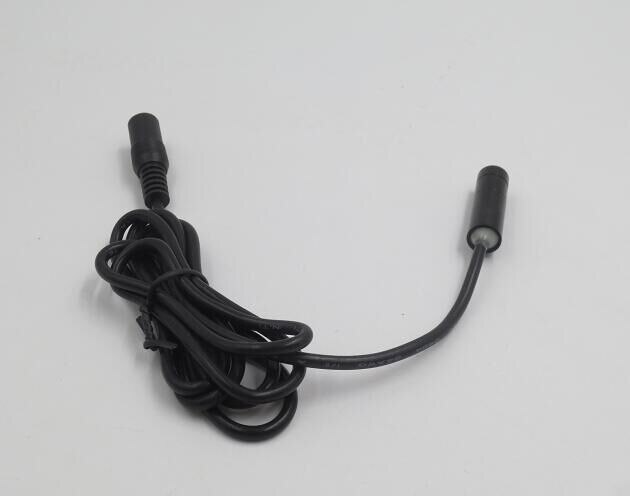

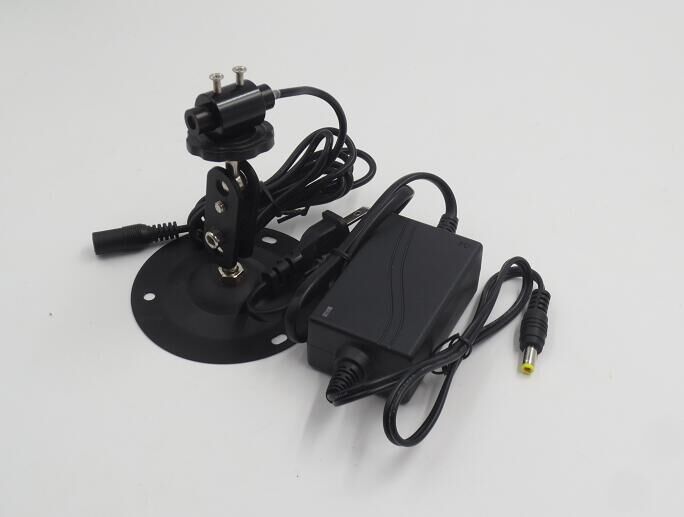

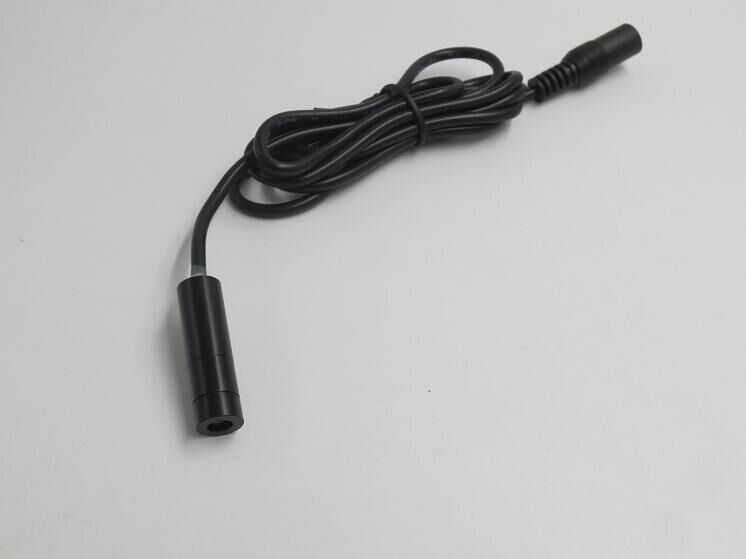

650nm5mw external red cross-line laser (model FU6506AC5-GD1035)
This product for my new research and development, the use of imported glass cylindrical mirror and laser diode, hit the cross
In the indoor working environment can reach more than 1.5 meters (cross-line vertical and horizontal lines were 1.5 meters long)
Red line fine and uniform, collimation and stability is very high
Installation height of 0 meters – 1.5 meters can be used
Features:
Wavelength: 650nm
Supply voltage: DC 2.8-5.2 (V) (customizable)
Spot mode: dot / word line / cross line optional
Dimensions: φ10 * 35mm (can be customized)
Incentive mode: electric excitation laser
Output power: can be adjusted according to customer needs
Working current: ≤35mA
Line width and line length: adjustable
Output band: Visible laser
Working medium: semiconductor lasers
Features: High quality laser diode + metal housing + high quality lens + constant power circuit board + wire
