Description

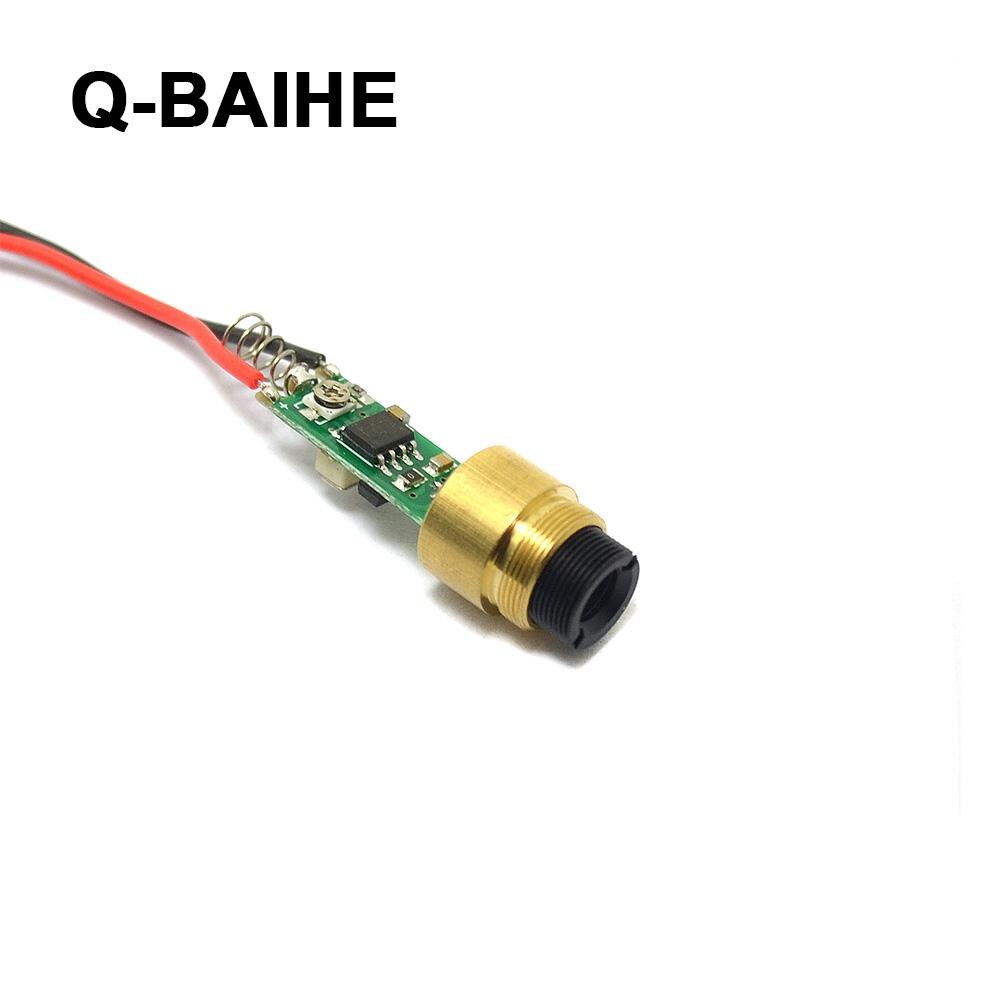

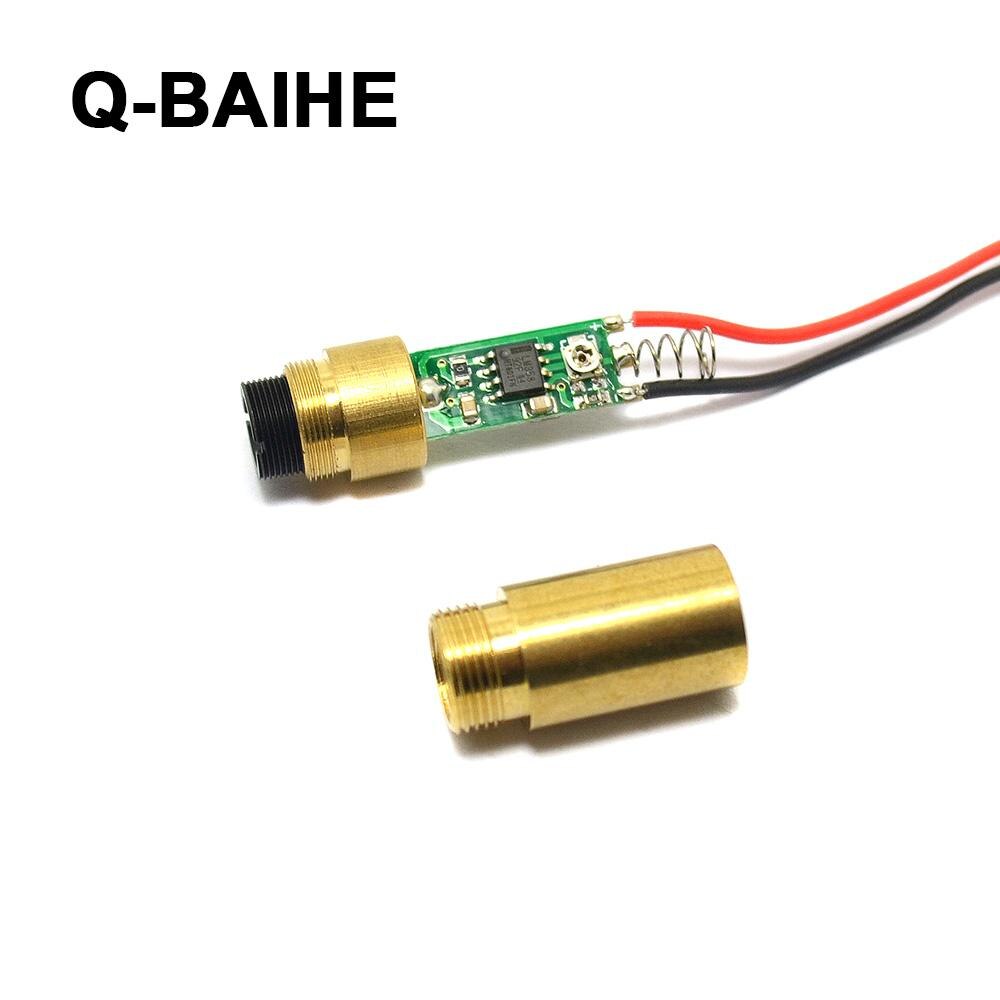

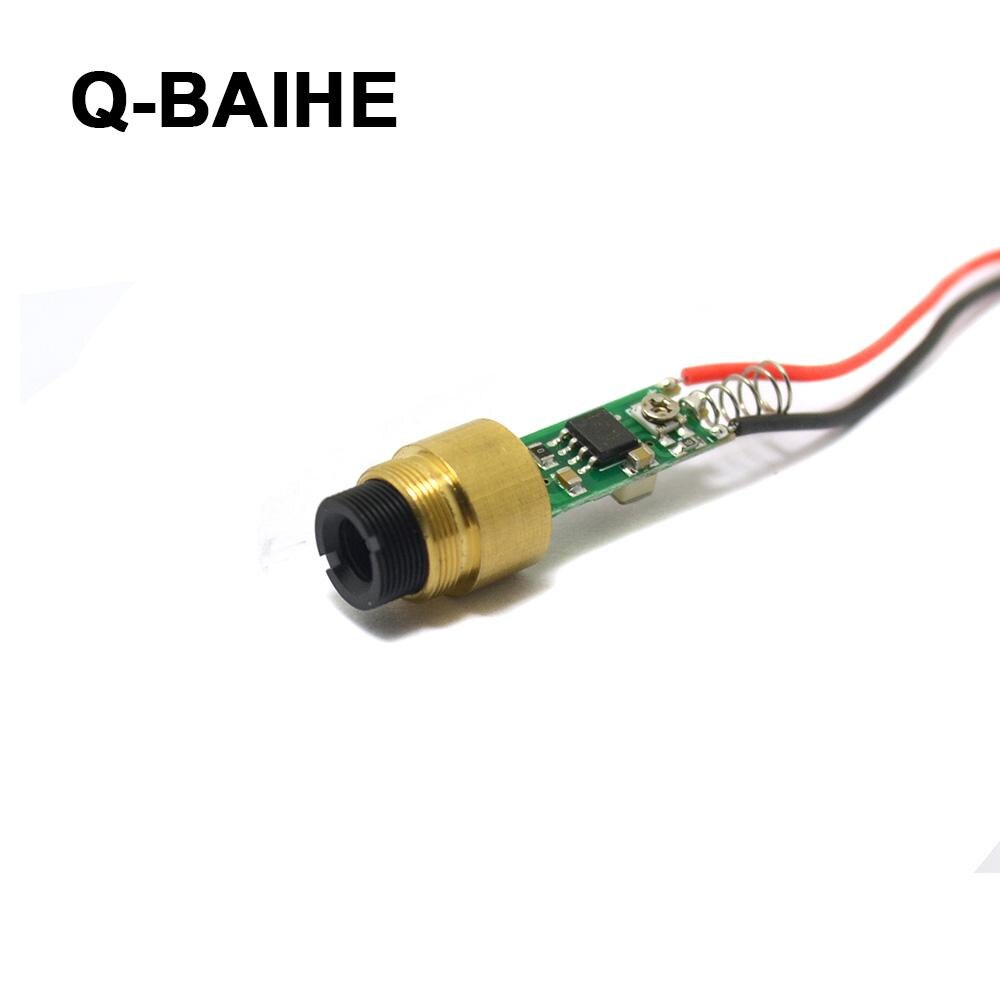

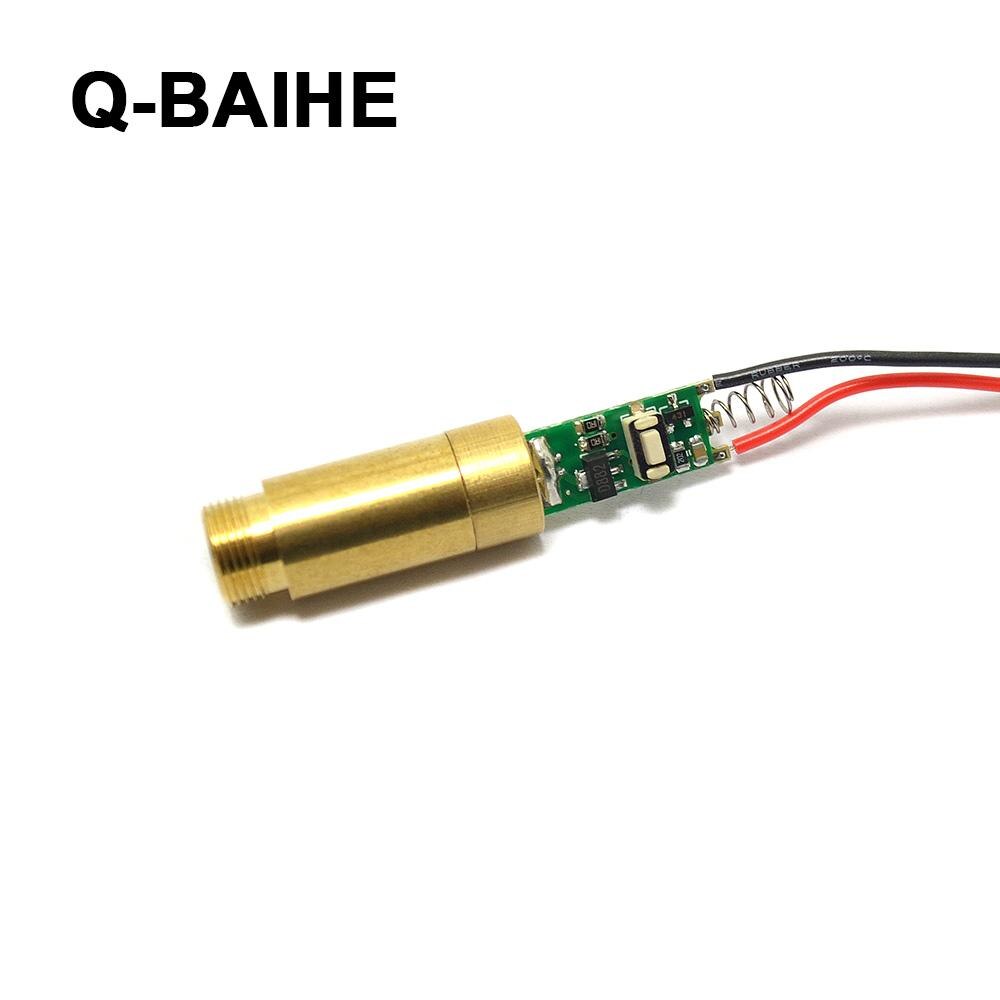

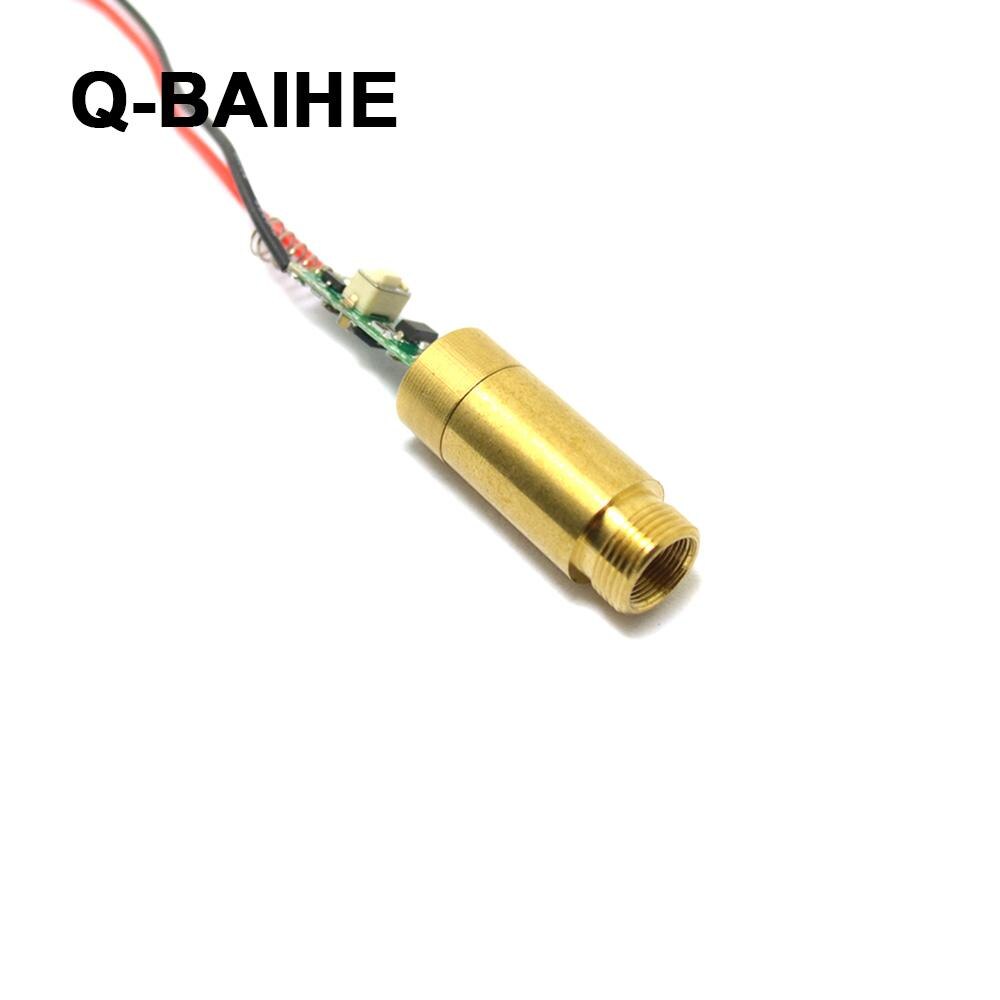

 650nm 200mW Red Laser Diode Module 3.0V-3.7V DC



Specification:
Output Power 200mw
Wavelength 650nm
Working Voltage 3.0V-3.7VDC
Working Current 330-340mA
Working Temperature +10 degrees C~+35 degrees C
Duty Cycle 45 seconds on, 15 seconds off
Laser Shape DOT
Material and Color Brass
Dimensions 12×34mm(brass length)

Feature
It is 650nm 200mw red high-power laser module! Please add suitable heatsink when you work on this module.
For the proper heatsink:

This module cannot work for a long time if there is no cooling device to keept its working temperature under 35 degrees C
Please avoid direct eye exposure to the laser beam and wear 650nm protection glasses when your operate this laser module.

Package:
1 x New 3.0-3.7V 650nm Red Laser 200mW Module Diode Lazer
