Description

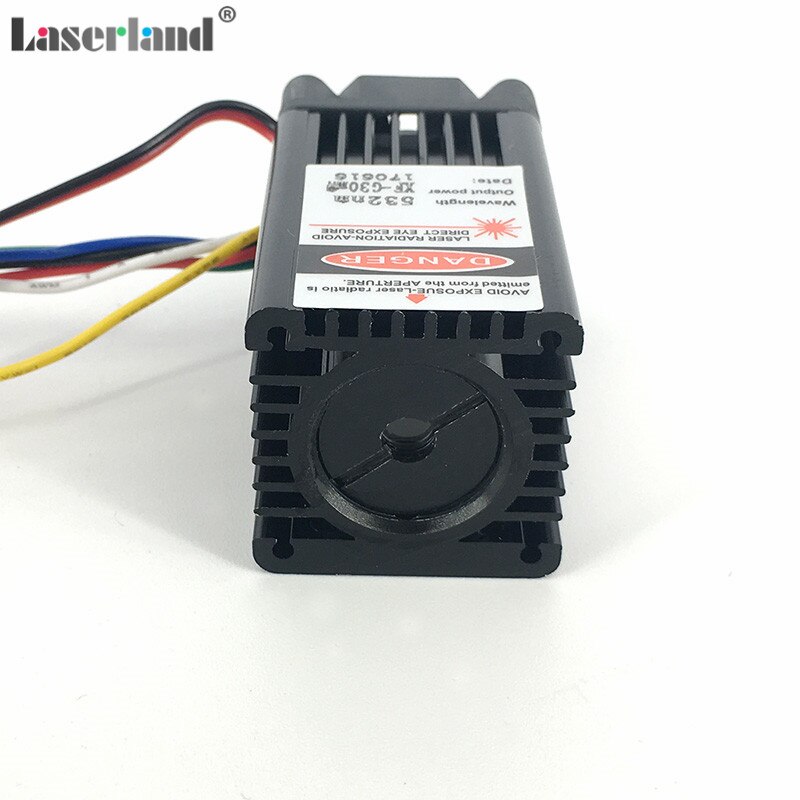

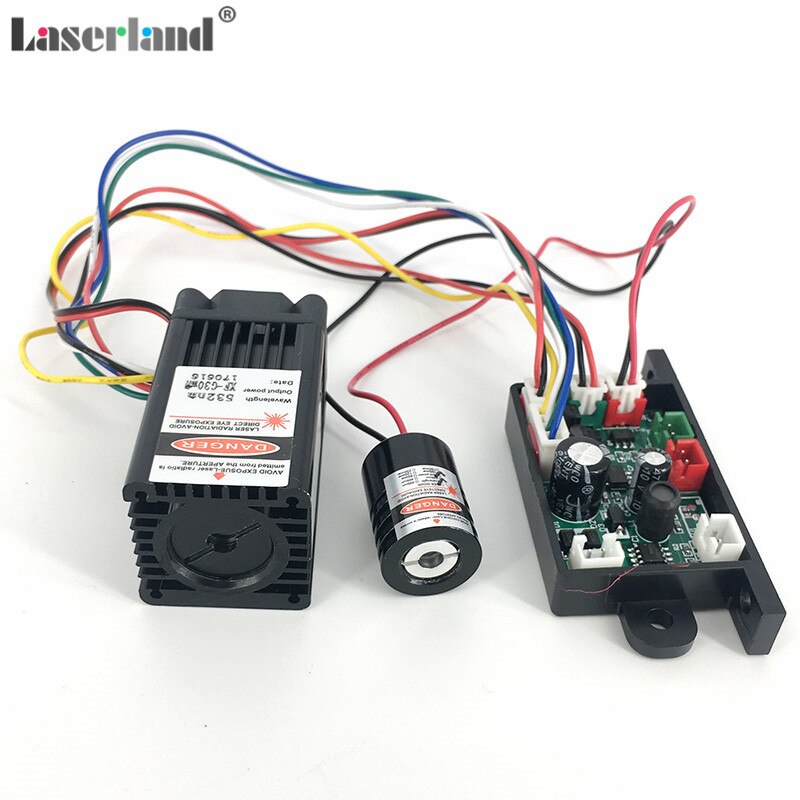

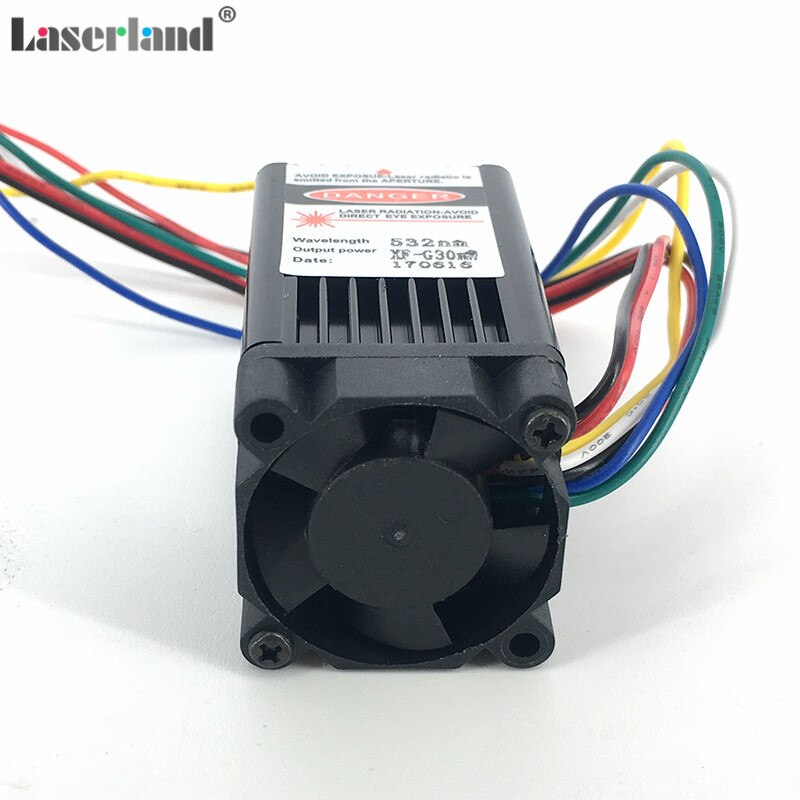

650nm 100mW Red + 532nm 30mw Green Laser Module Diode TTL TEM Stage Lighting
Specification
wavelength: 532nm 30mw + 650nm 100mw
laser modeļ¼ green laser TEM00
red laser TEM01
laser beam output at the beginningļ¼ both <1.5mm
degree: <1.5mrad
working temperature: 12-32 centigrade
TTL: 0-20khz DC5V
working voltage: 12vdc/ac
stability: +- 5%
working mode: CW
working life: 5000hr
TEMP. control: yes
size: green: 30x30x38mm
red: 18x22mm
mount hole: 22mm
driver: 35x39mm
mount hole: 30mm and 34mm
package: combine laser module
