Description
Specifications:
Wavelength 650nm
Output Power 100mw
Working Voltage 3-5 V
Working Temperature +15 ℃~+35 ℃
Laser Shape line
Divergence Length 1-3m at 1m; Width <2mm at 1m
Focusable Yes
Material and Color Metal
Lens Glass
Dimensions 14.5 x 45mm
Note:
Please keep the lens clean to make the laser beam clear and bright.
Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.
Be sure the operator has experience in optics DIY or testing.
Without heatsink,this module has to be stopped for 15 seconds after you work on it for 45 seconds.Or it will be damaged.
Package:

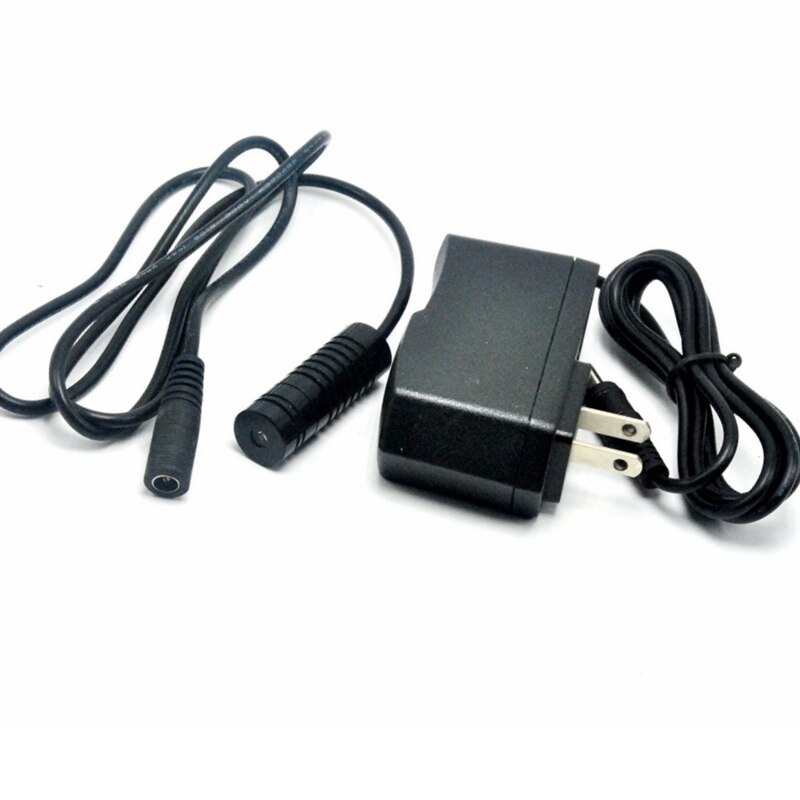

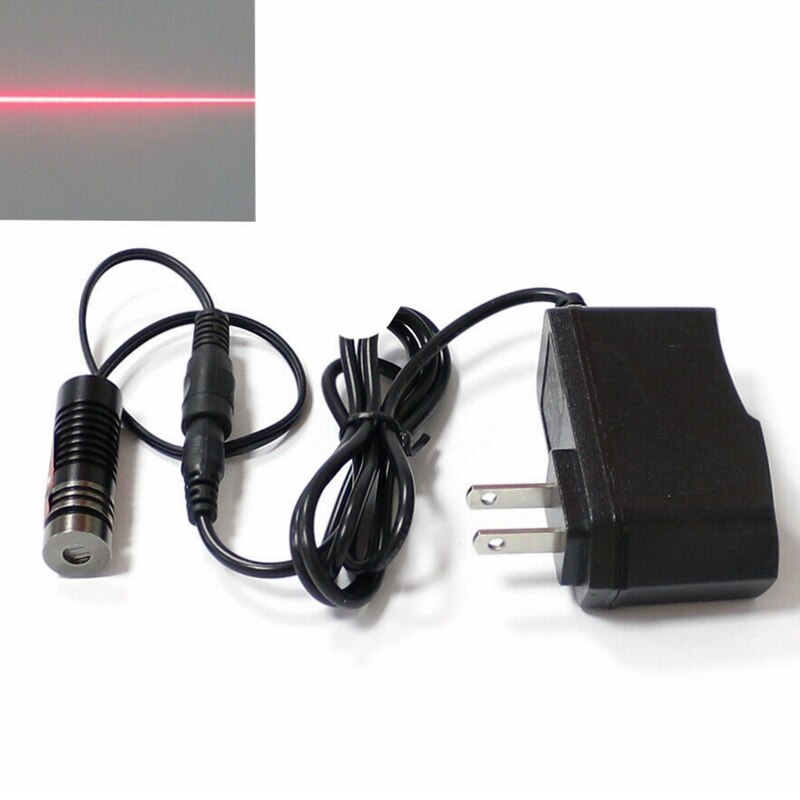

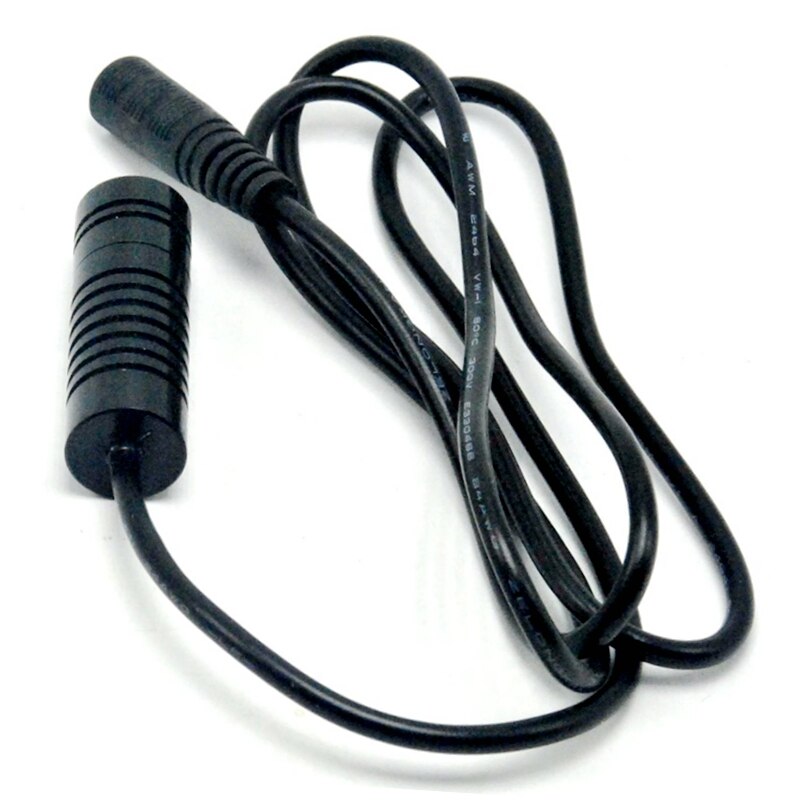

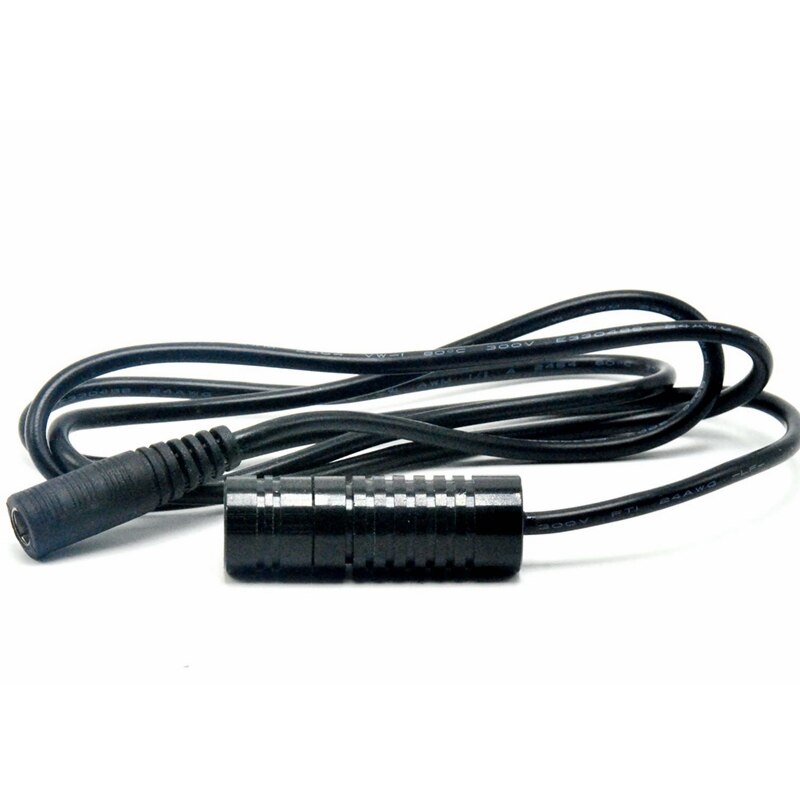

1pc x Red Laser Line Diode Module 650nm 100mw 3-5V 14.5x45mm with Adapter
