Description
635nnm High light red laser Cross Module light distance 5 meters for Laser marking woodworking
Cross
Cross
infrared position

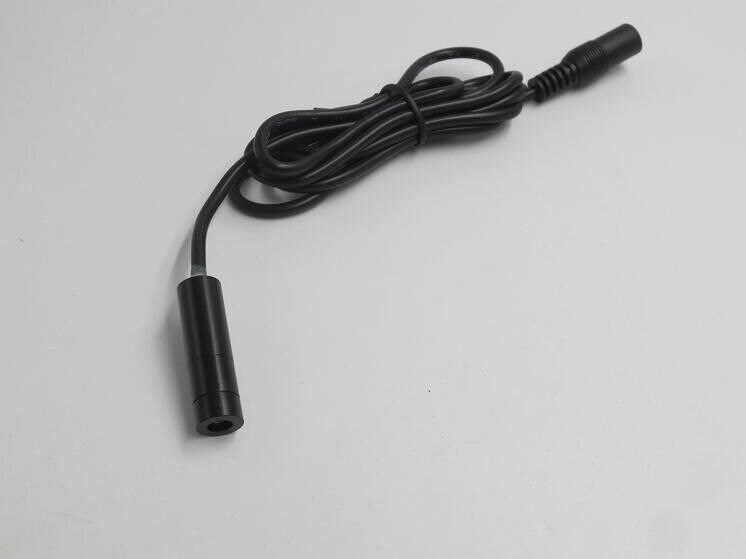

Seiko 12mm Outside diameter 635nm cross-line laser (model FU635ACX-GD1240)
This product for my new research and development, the use of imported glass cylindrical mirror and laser diode, hit the cross
In the indoor working environment can reach more than 2.5 meters (cross-line vertical and horizontal lines were 2.5 meters long)
Red line fine and uniform, collimation and stability is very high
Installation height of 0 meters – 2.5 meters can be used
Features:
Wavelength: 635nm,650nm is available
Supply voltage: DC 2.8-5.2 (V) (customizable)
Spot mode: Cross
Dimensions: φ12 * 40mm (12x50mm)(can be customized)
Working Current: ≤ 500mA
Incentive mode: electric excitation laser
Output power: can be adjusted according to customer needs
Line width and line length: adjustable
Output band: Visible laser
Working medium: semiconductor lasers

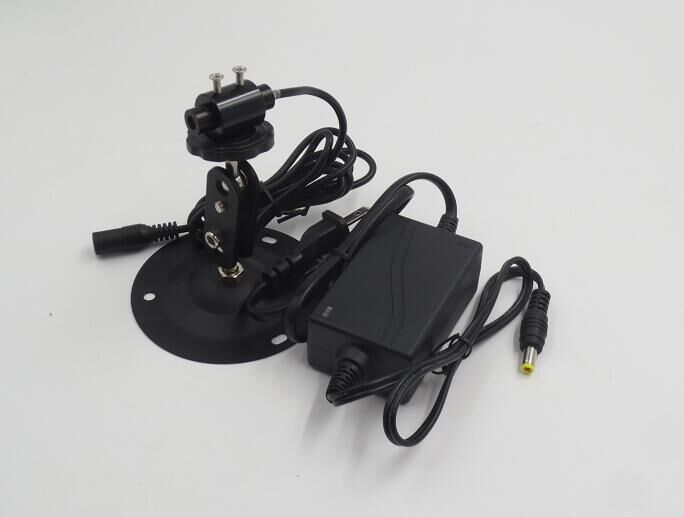

Features: High quality laser diode + metal housing + high quality lens + constant power circuit board + wire
