635nm 650nm 808nm 980nm TTL Laser Diode Driver Board Drive 5V Supply 50-300mA Integrated Circuits S927
Description:

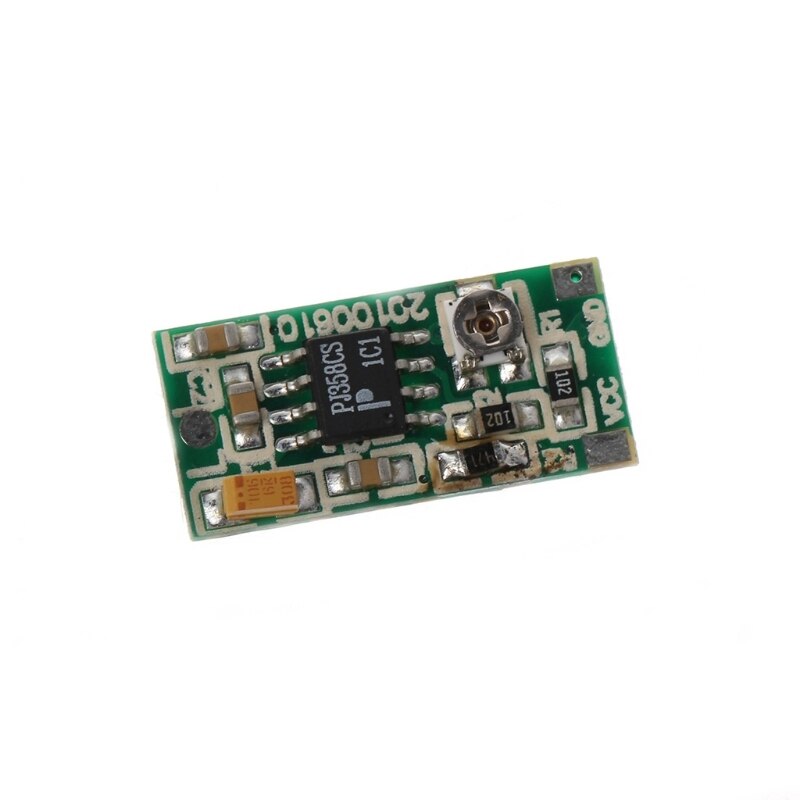

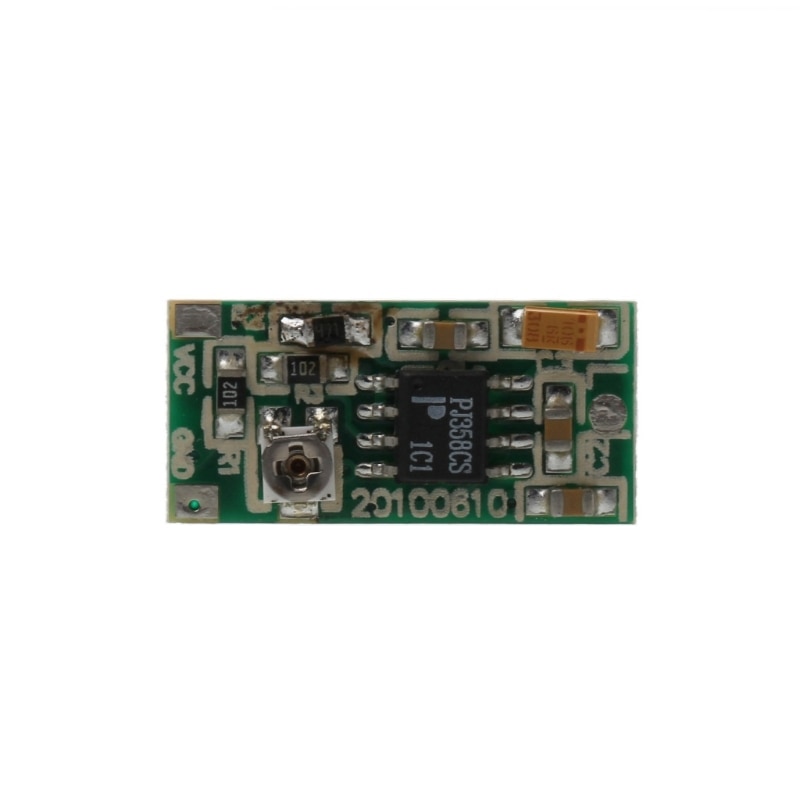

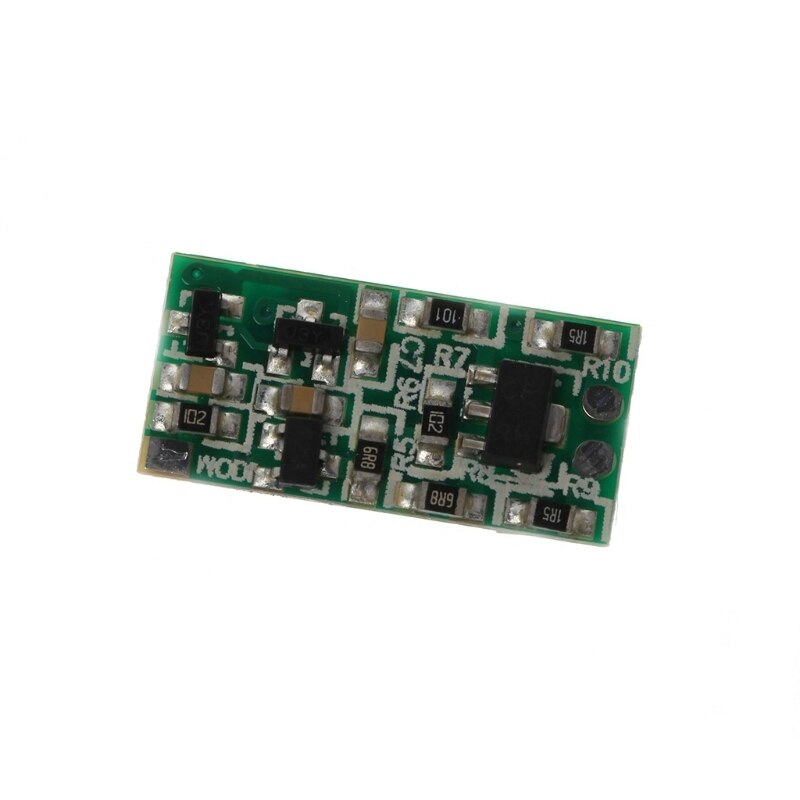

Laser diode driver board
Voltage: 5V
Current: 50-300mA (Can only drive power at 20-200mw, less than 10mW will burn the pipe)
Suitable laser Diode: 50-300mW 660nm 780nm 808nm 850nm 980nm

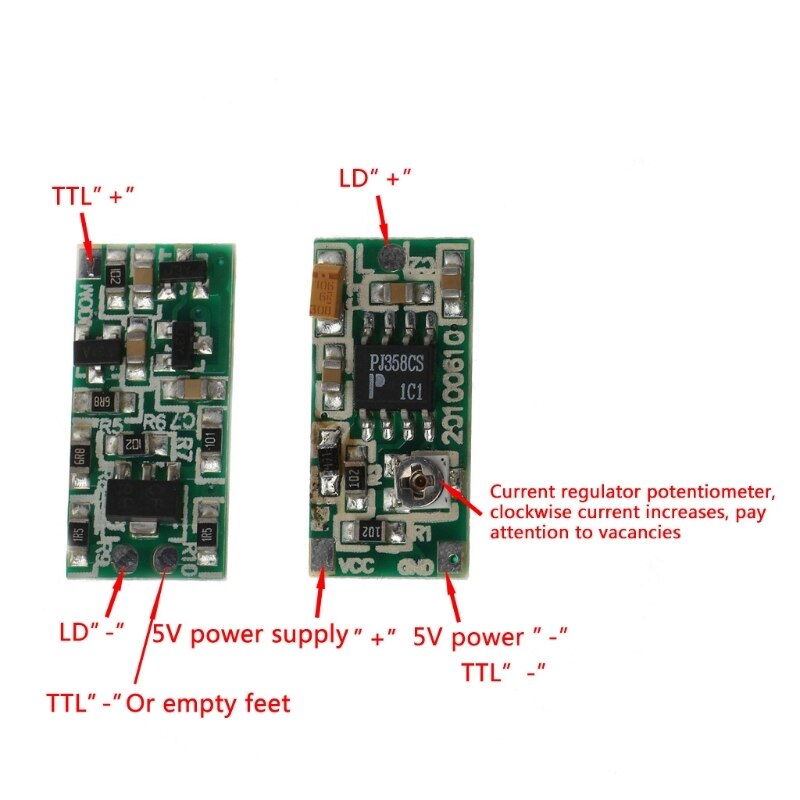

Tips: if you do not need TTL function, you need to short circuit power”+”,and TTL”+”

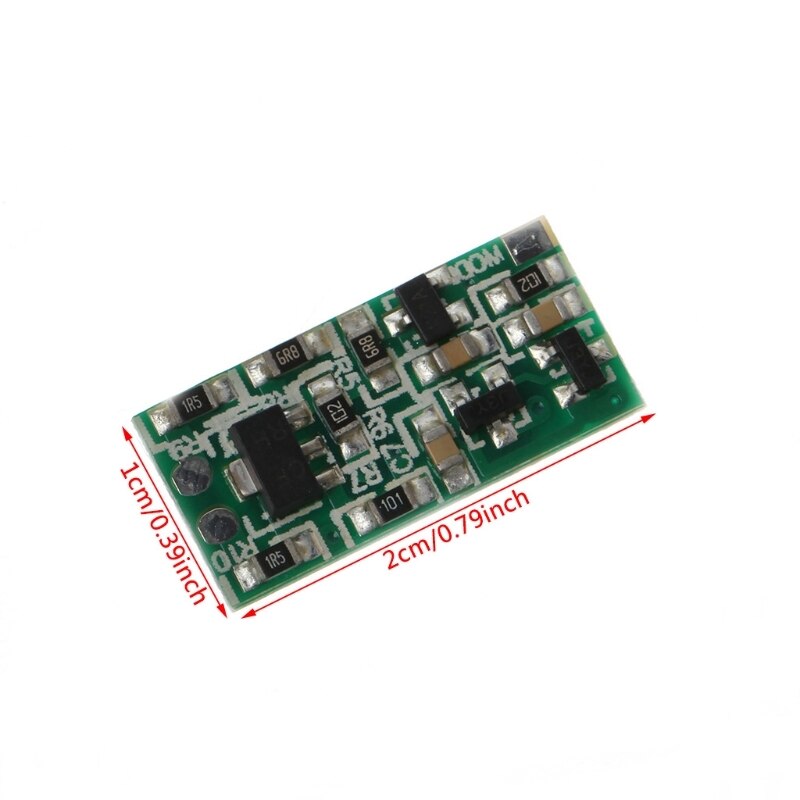

Size: 2x1cm/0.79×0.39inch
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1x Laser Diode Driver Board
