Description

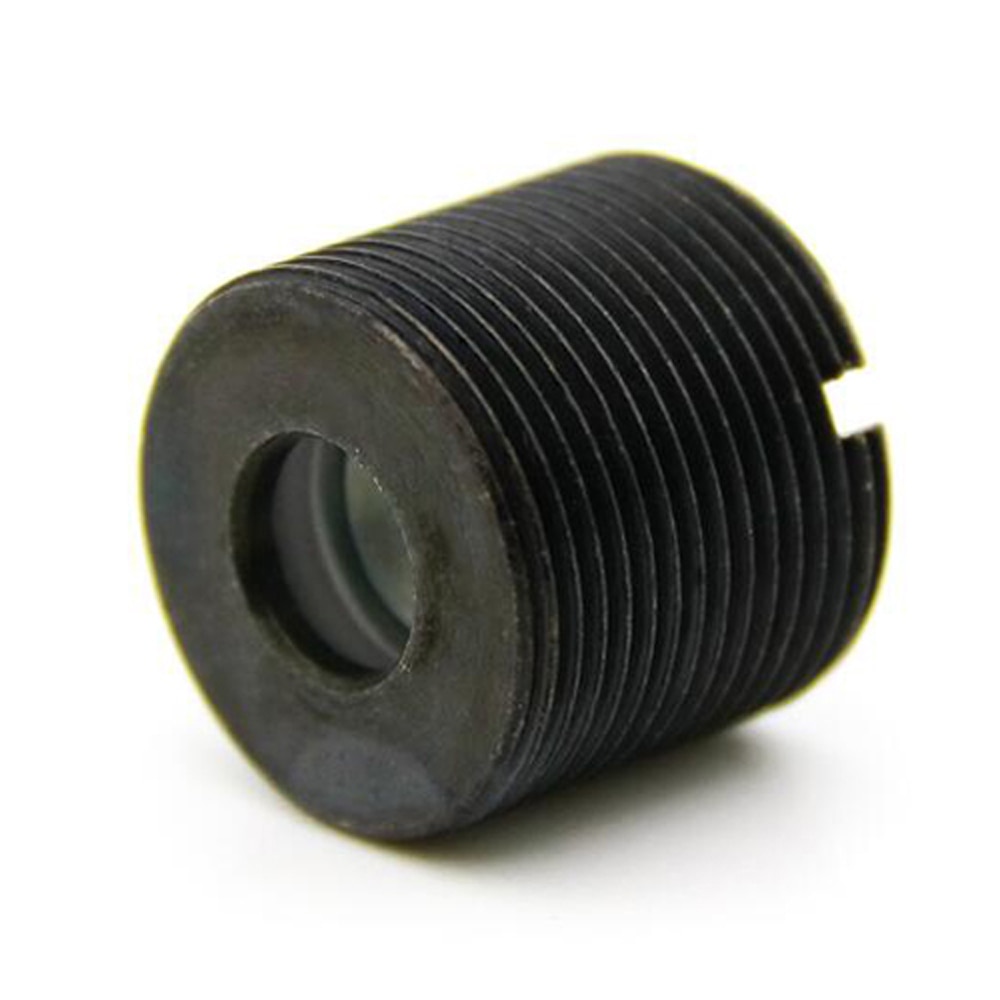

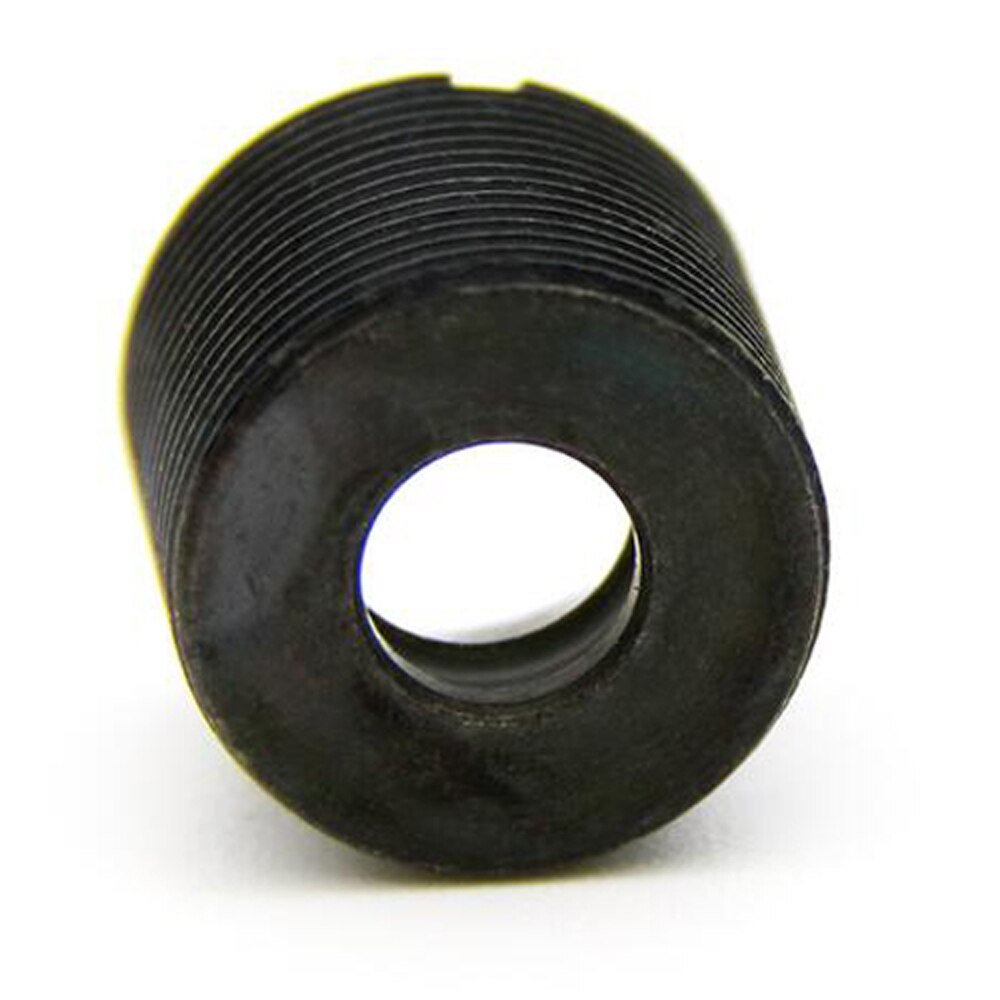

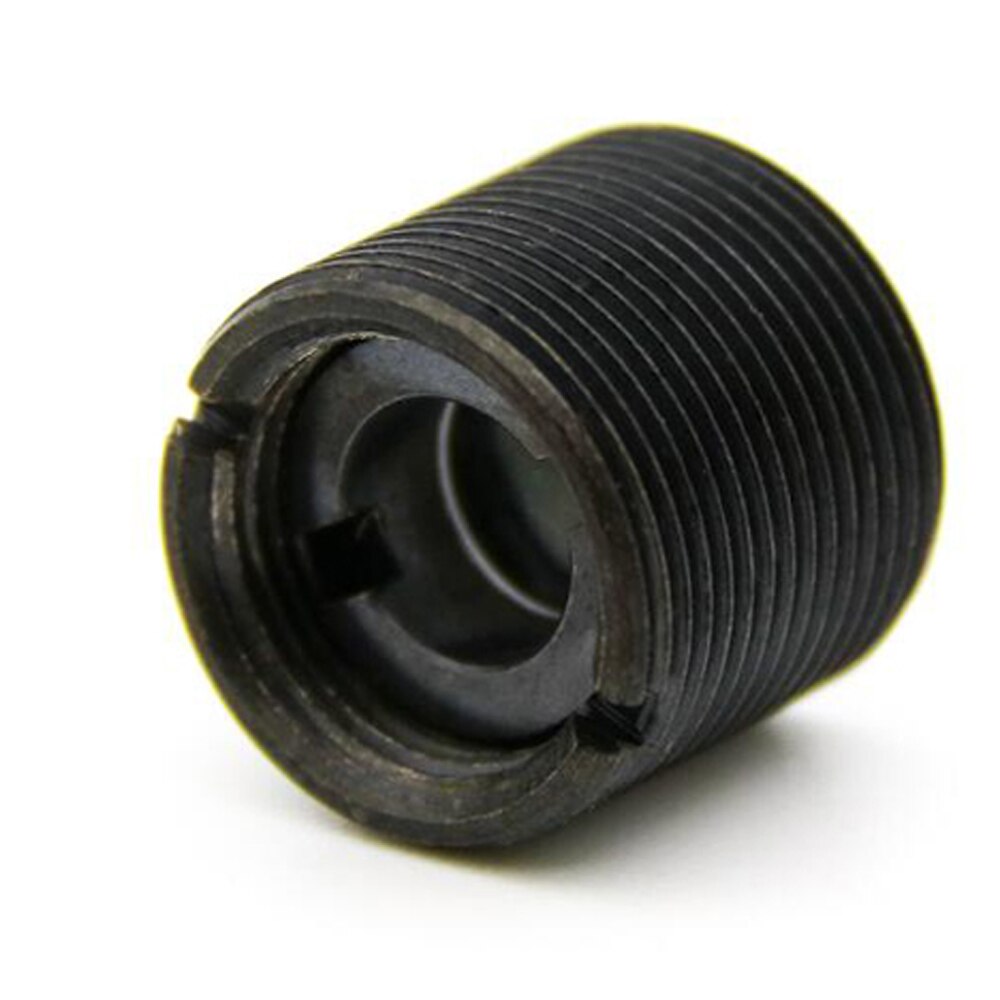

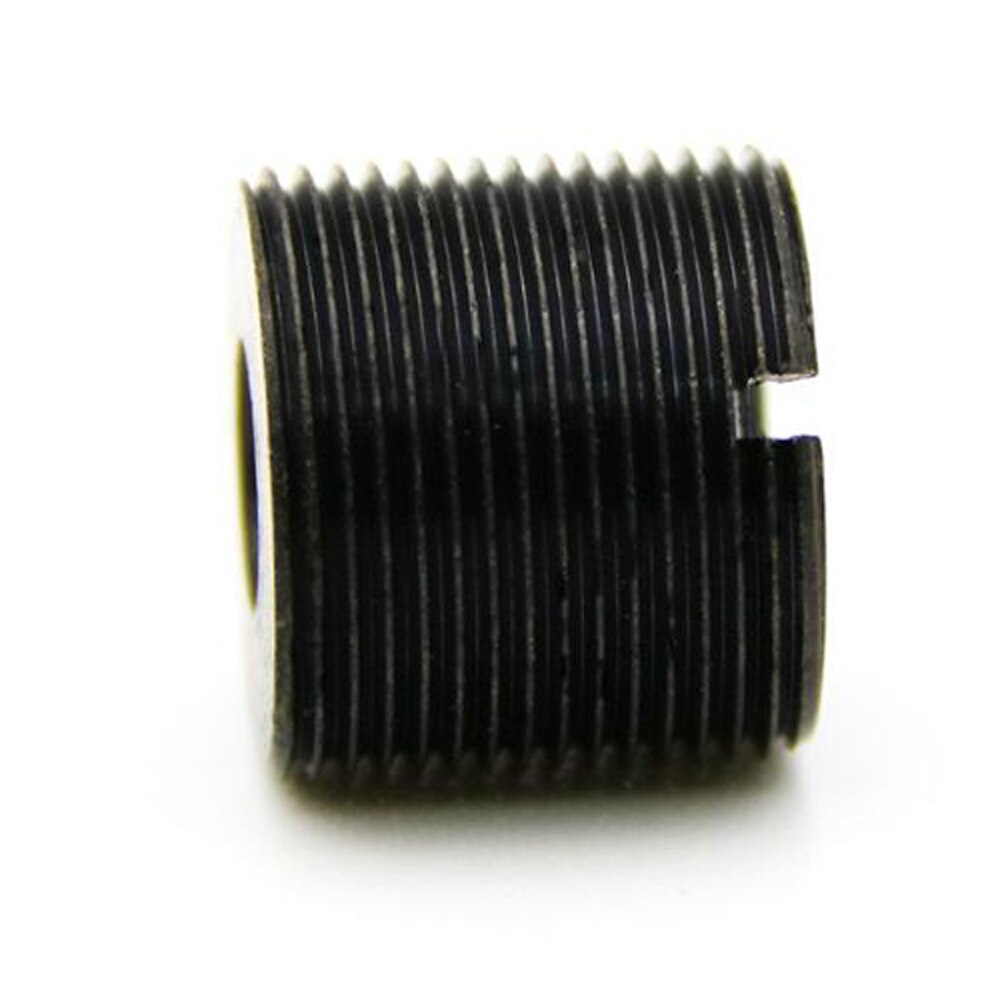

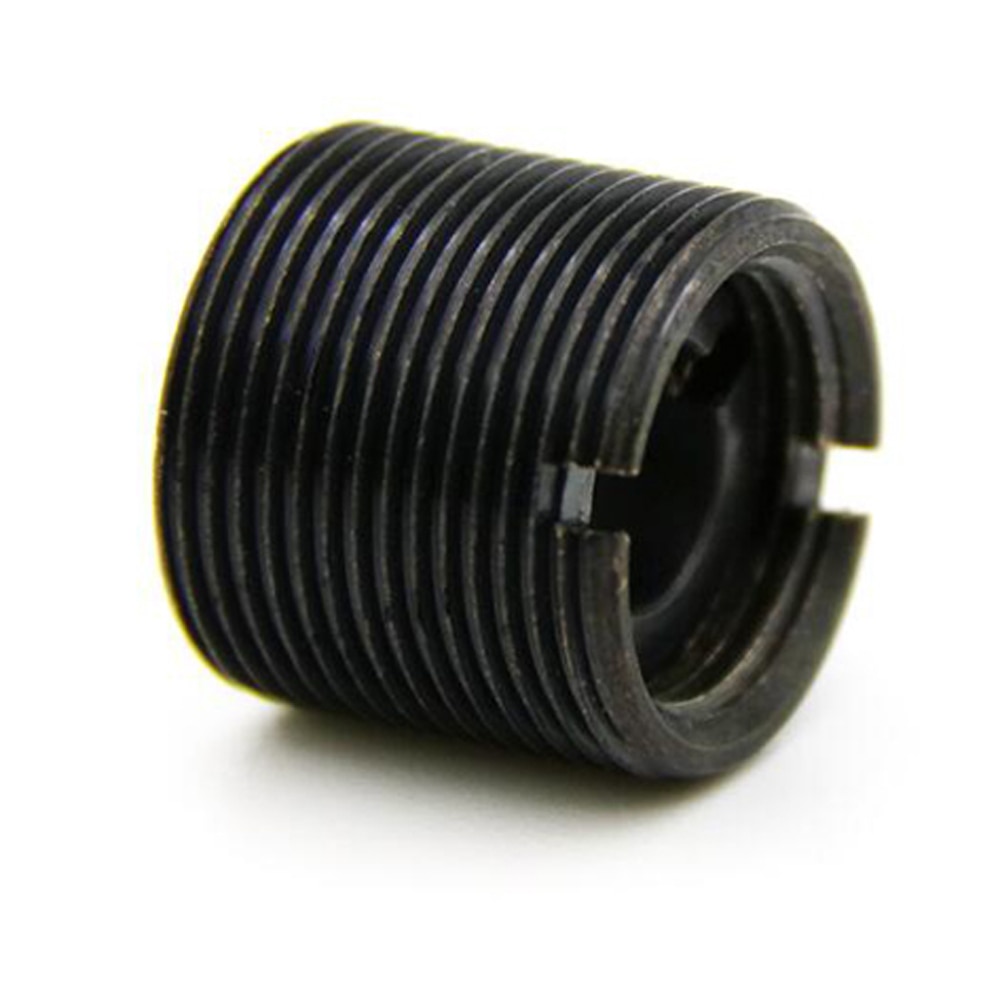

635nm～830nm 4.39mm Focal Length Optical Glass Spherical Laser Collimating Lens
| Title： | 635nm～830nm 4.39mm Focal Length Optical Glass Spherical Laser Collimating Lens | ||
| M (Thread Diameter): | M7 × P0.5mm | EFL (Effective Focal Length): | 4.39mm |
| SD (Diode To Lens Distance): | 3.1mm | ET (Housing Height): | 7.5 mm |
| Incident Aperture: | 3.05 mm | Output Aperture: | 4.4mm |
| Numerical Aperture: | 0.45mm | Coating: | 635nm ~ 830nm |
| Package: | 1*Optical Glass Spherical Laser Collimating Lens | ||
