Description
Technical parameter
Operating voltage: <100V

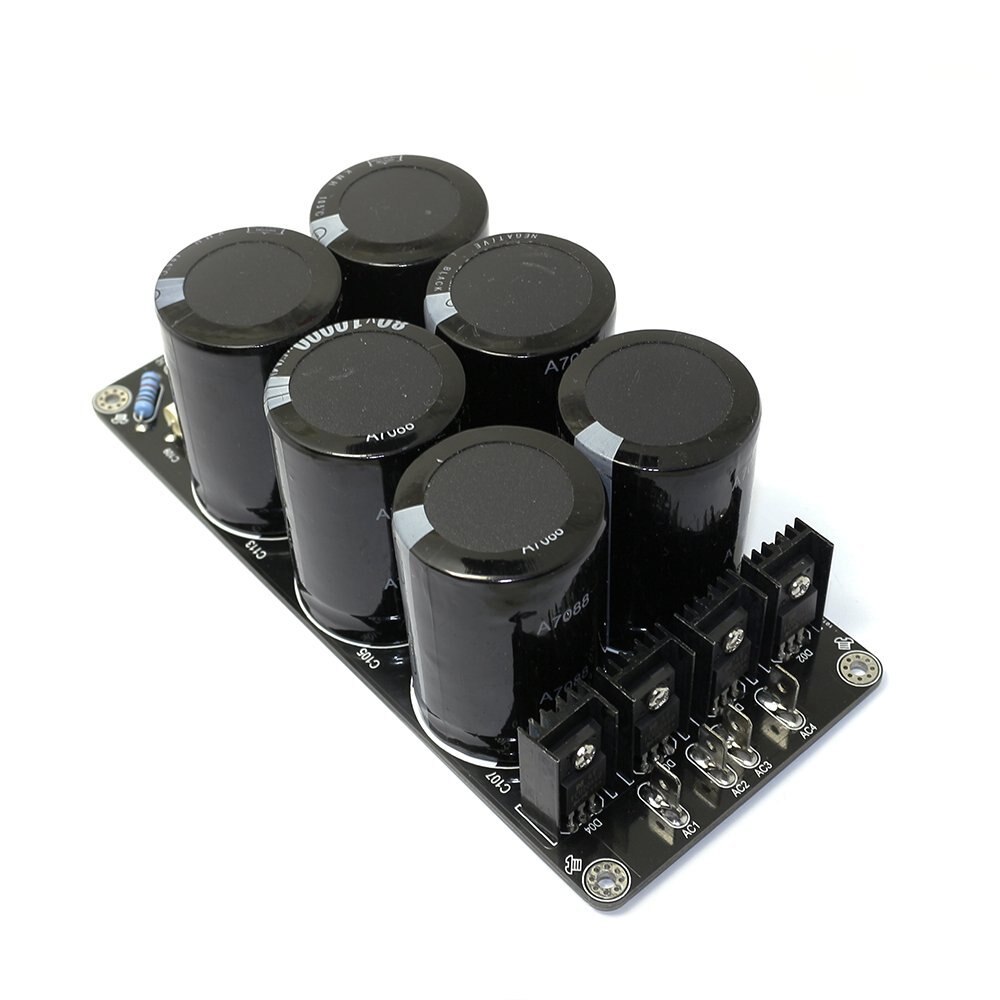

Capacitance: the six 10000uF/80V Black Edition capacitor,
two ERO Germany 0.1uF audio capacitor
Rectifier: 4 MUR806T high-speed rectifier diode, and each rectifier with a heat sink

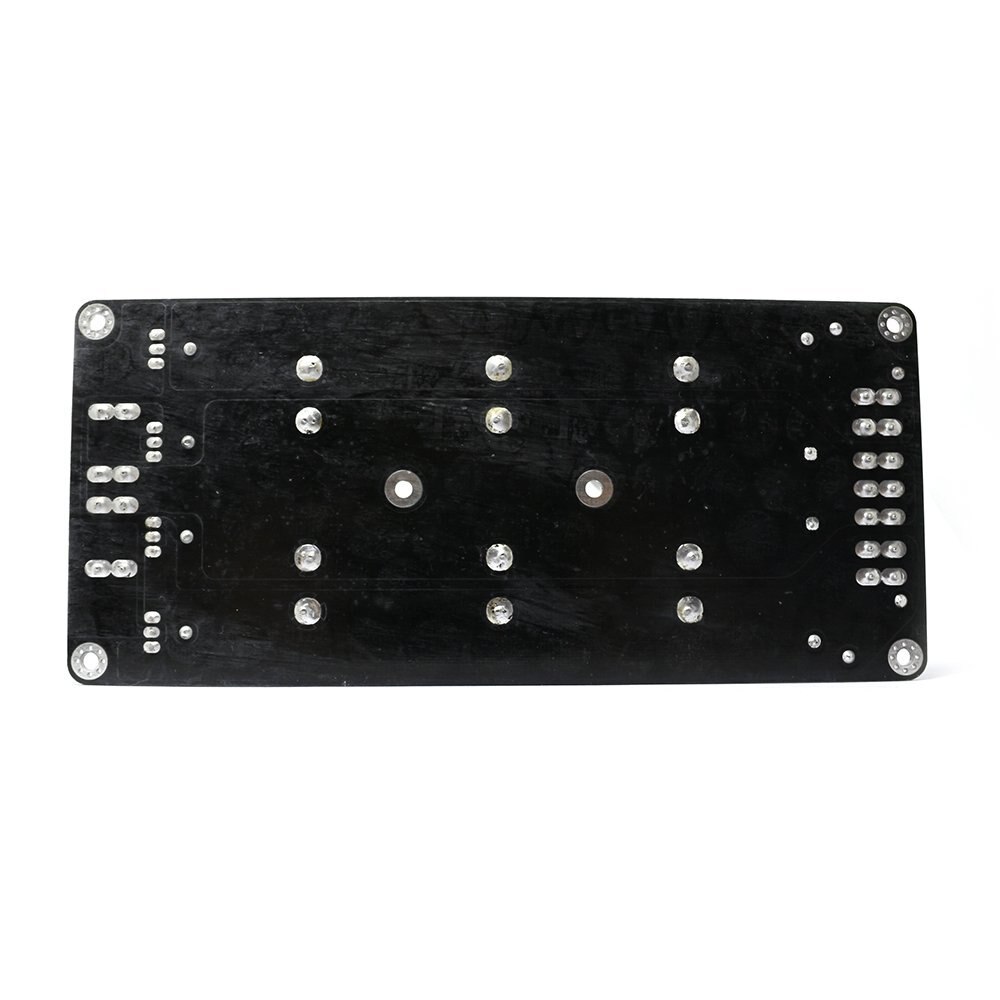

PCB board: 2MM thick FR4 imported sheet, copper foil thickness of 2 oz
PCB size: 145 * 72.5mm

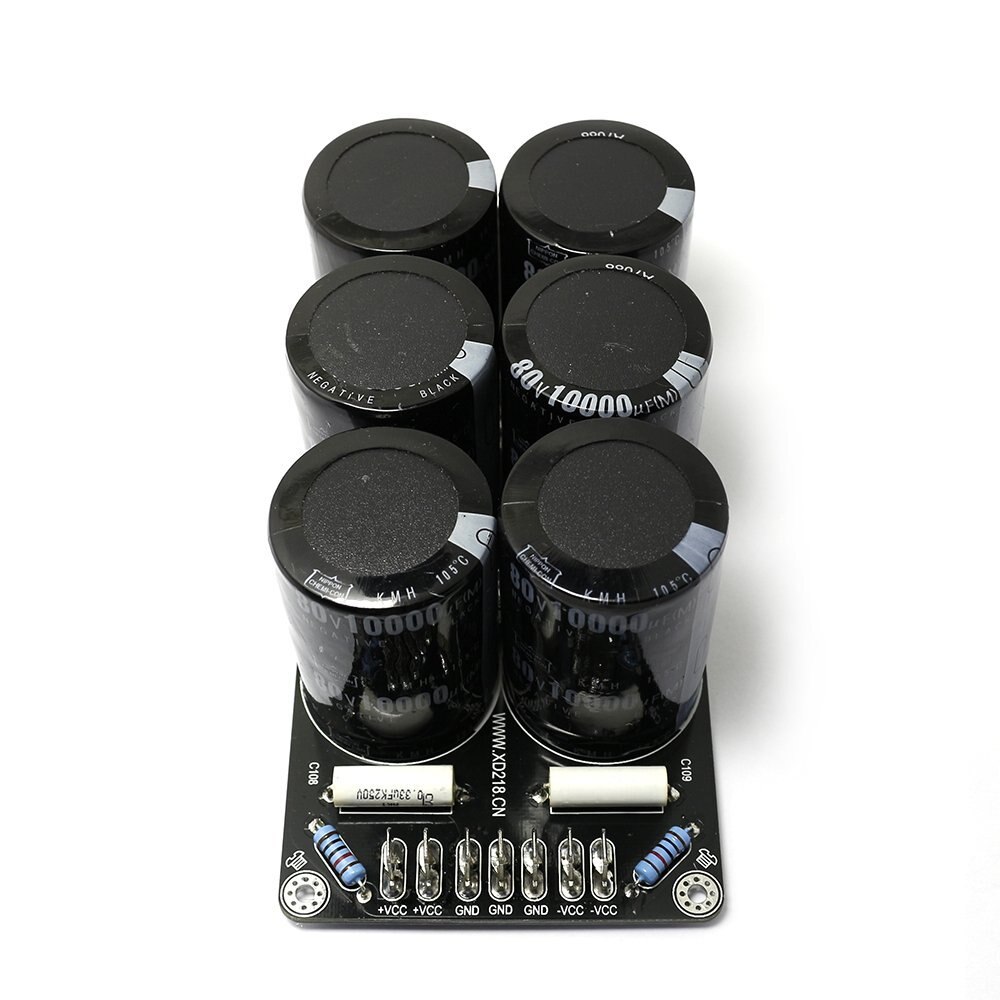

Two parallel output voltage terminal
Product Weight: 0.65kg

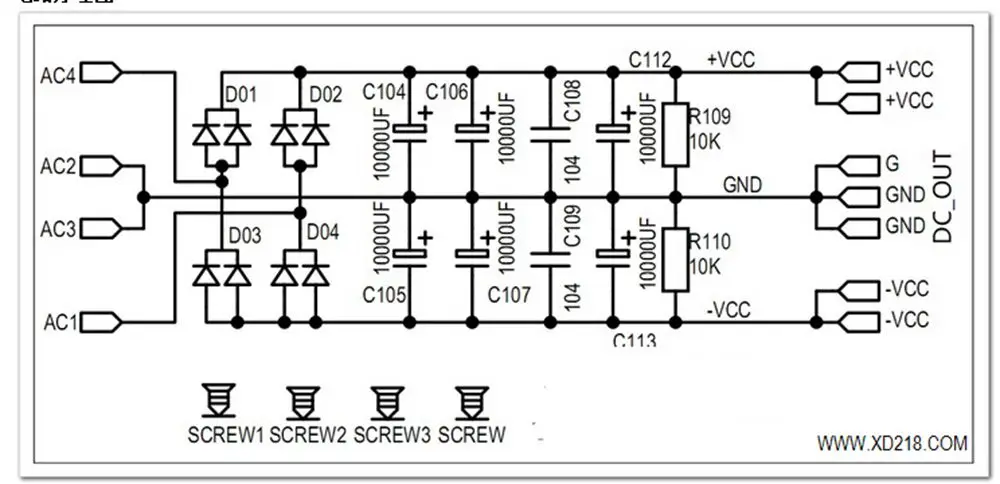

Schmatics:
Package
1pc 6*10000uF/80V high quality power amplifier supply board
