60*20*15mm Zinc Selenide Diamond Prism Zinc Selenide Prism Infrared Prism for Infrared Spectroscope
Product Description:
|
Skills requirement |
Commercial grade |
Precision grade |
High precision |
|
Size range |
1-300mm |
2-300mm |
2-300mm |
|
Diameter tolerance |
Soil 0.1mm |
Soil 0.025mm |
Soil 0.01mm |
|
Thickness tolerance |
Soil 0.1mm |
Soil 0.025mm |
Soil 0.01mm |
|
Angle tolerance |
±5 ´ |
±10 ´´ |
±2 ´´ |
|
Surface Quality |
60-40 |
40-20 |
20-10 |
|
Surface accuracy |
1.0λ |
λ/10 |
λ/20 |
|
Coating |
AR/AR 7-12 μ m / 10.6 μ m /2-13 μ m |
||
|
Bevel |
0.1-0.5mm*45° |
||
|
material |
Zinc selenide |
||
The prism is composed of the entrance and exit light surface and two perpendicular reflection surfaces perpendicular to each other. The incident light enters from the round surface, forms two total reflections on the roof surface, and then returns. Regarding whether the product is in stock or needs other sizes, please Contact the sales department.

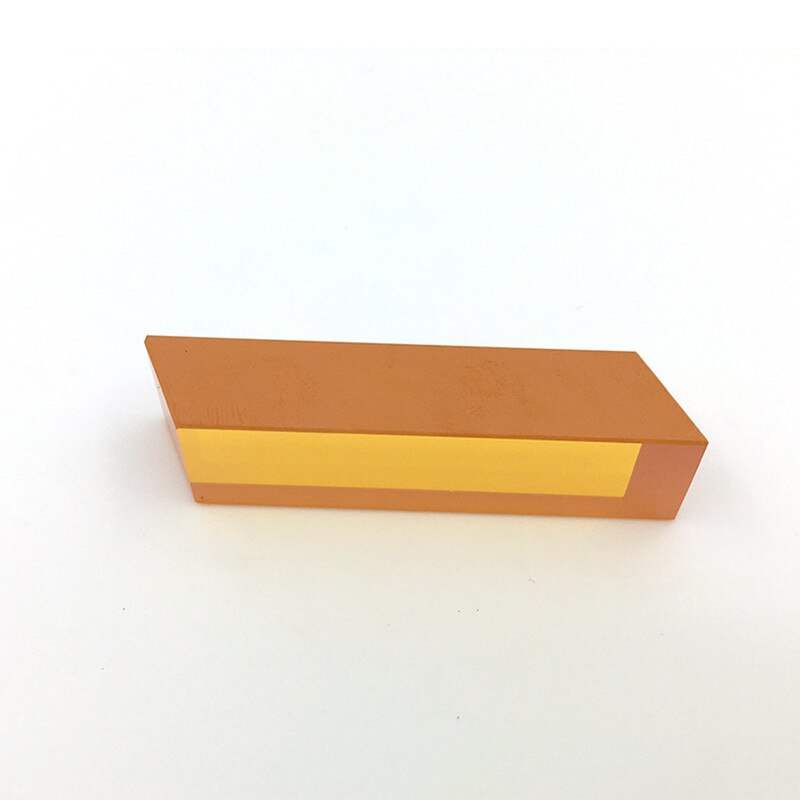

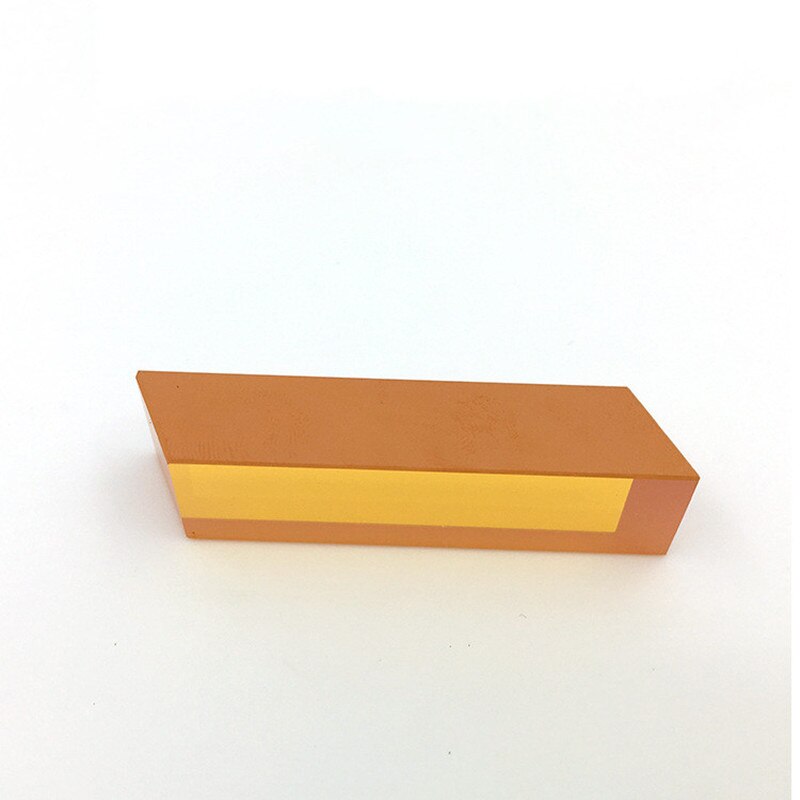

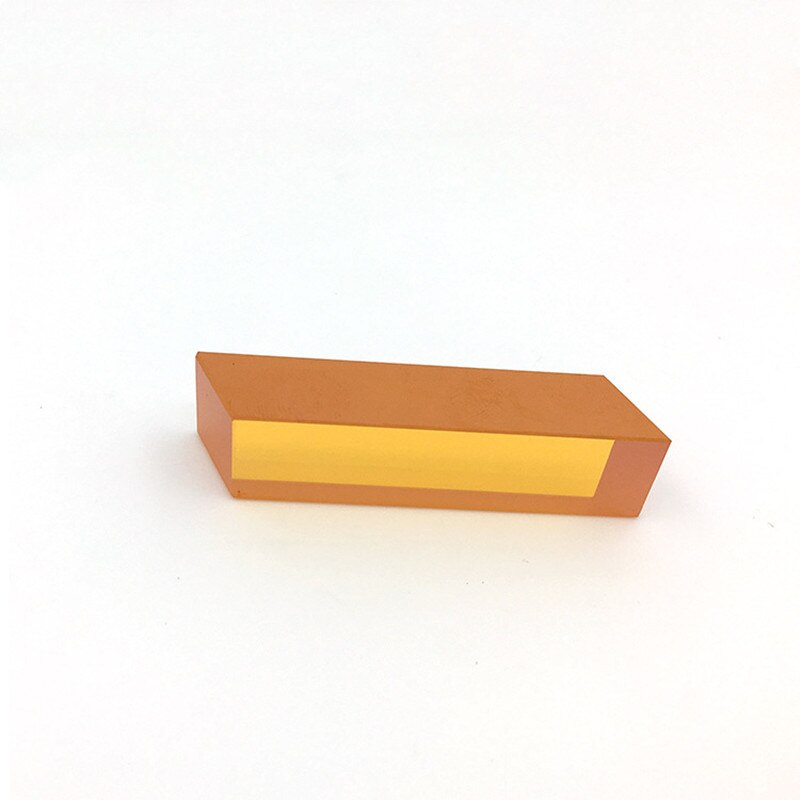

Detailed Images:
