Description
- Model Number: 15W
Precautions:
The laser is an industrial laser module, laser class 3B, and must be used correctly in accordance with industrial laser procedures and methods (with active or passive protection).
1: Products that are compatible with the laser must have active or passive protective measures.
2: The products using this laser should be marked with safety signs and instructions for use according to the national (different country) safety signs and guidelines. This product must be stored in a location that is not accessible to unrelated people or children.
3: The use of this product must be used in accordance with the requirements of national laser safety products. If it is not used according to the full specifications, it may cause personal injury or fire. The consequences are at your own risk.

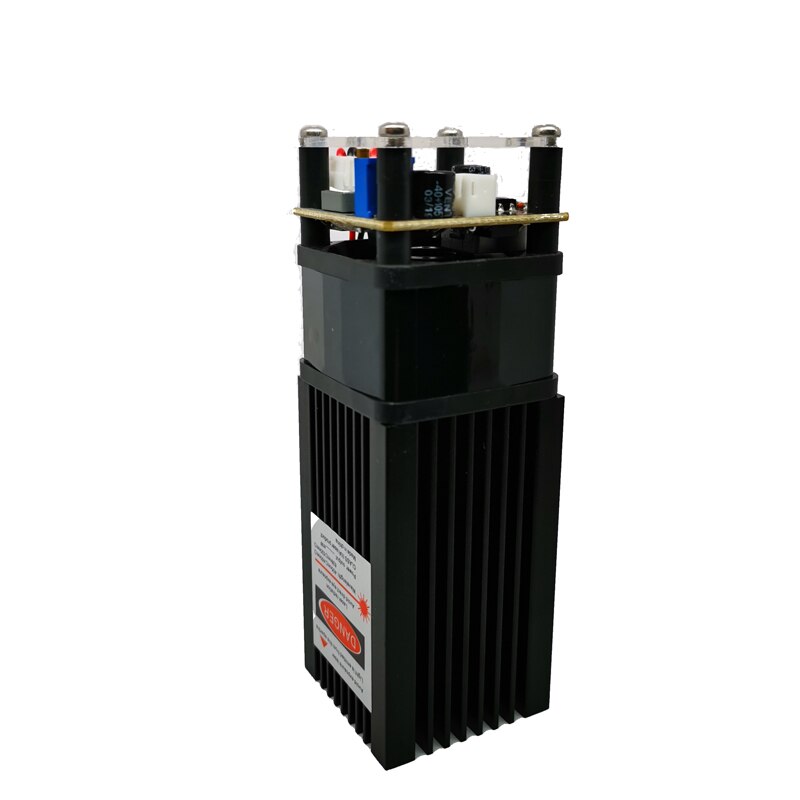

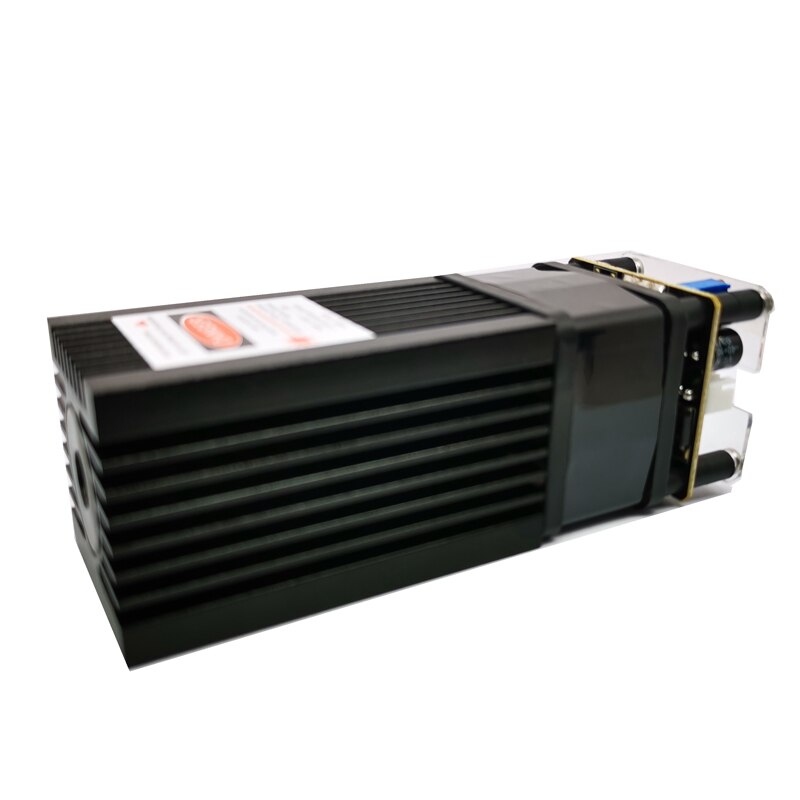

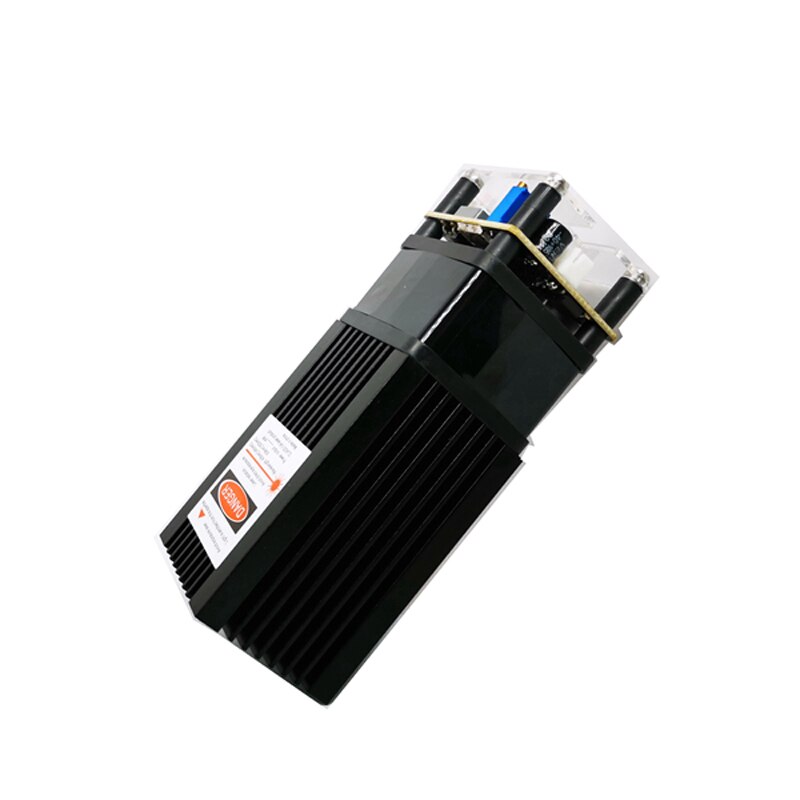

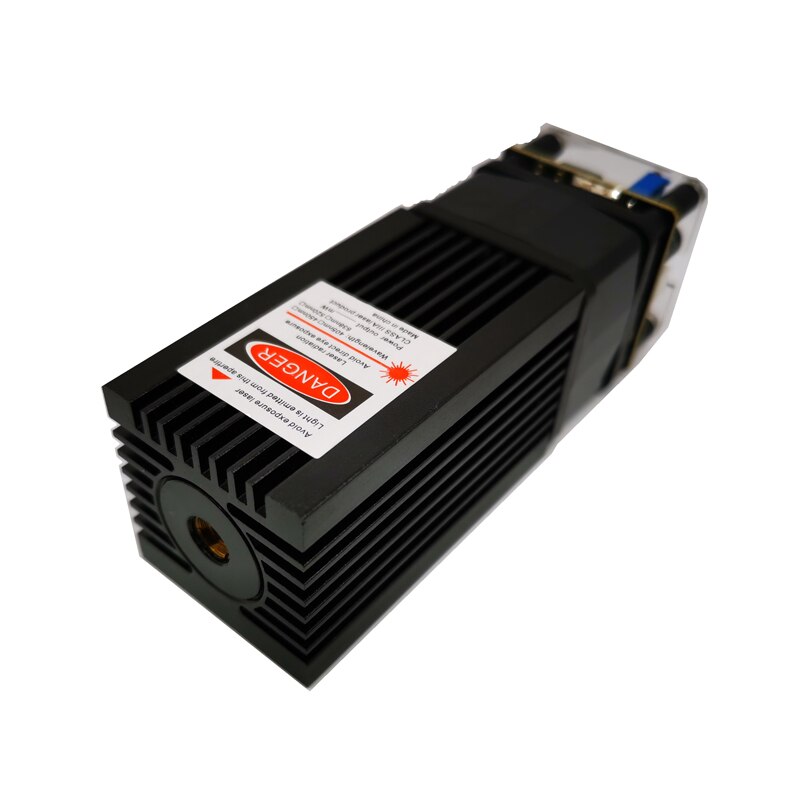

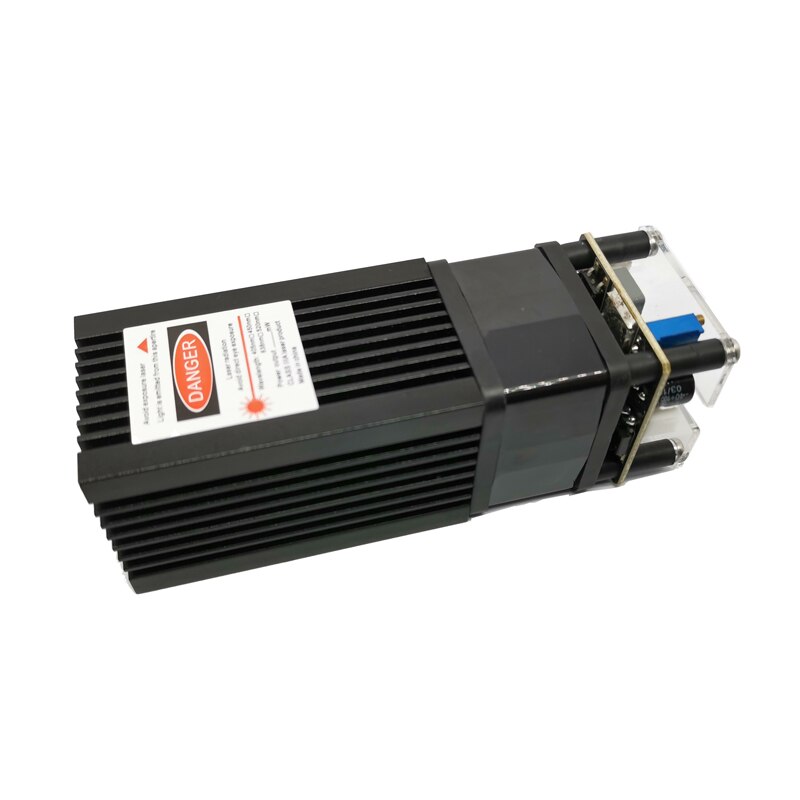

The 15W fixed-focus laser module can be engraved on stainless steel surfaces and anode colored aluminum alloy surfaces.
Product parameters:
Laser wavelength: 445nm (blue light)
Output power: 5W/10W/15W
Cooling method: forced air cooling
Operating voltage: 12 V
Material: aluminum, surface anodized
Material form: copper
Laser focal length is not adjustable, focal length is 1.8cm
Working temperature: -40-75 degrees Celsius
Control: PWM control mode
Light output form: point shape
Lens material: optical glass plated high anti-reflection film
Shell material: module copper, shell aluminum anode black
Cooling method: forced air cooling
Working mode: continuous light can work for a long time.
