Description

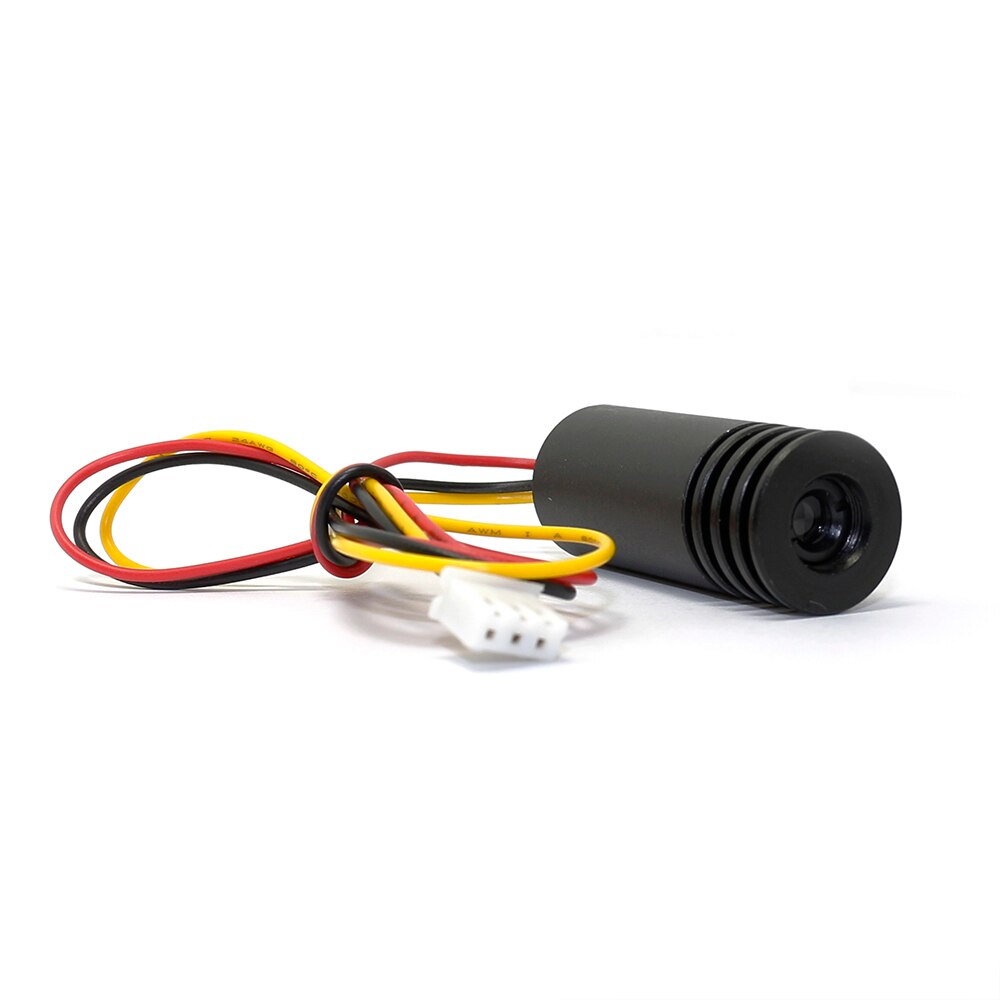

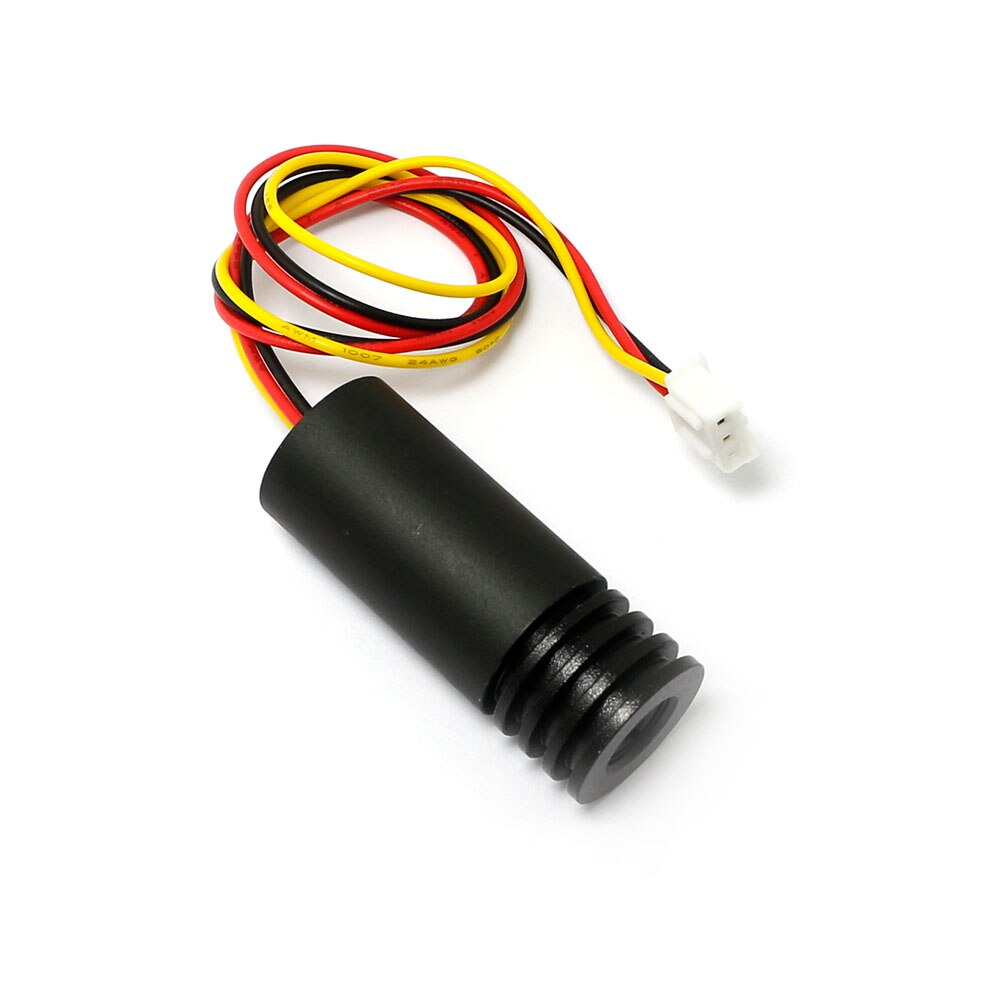

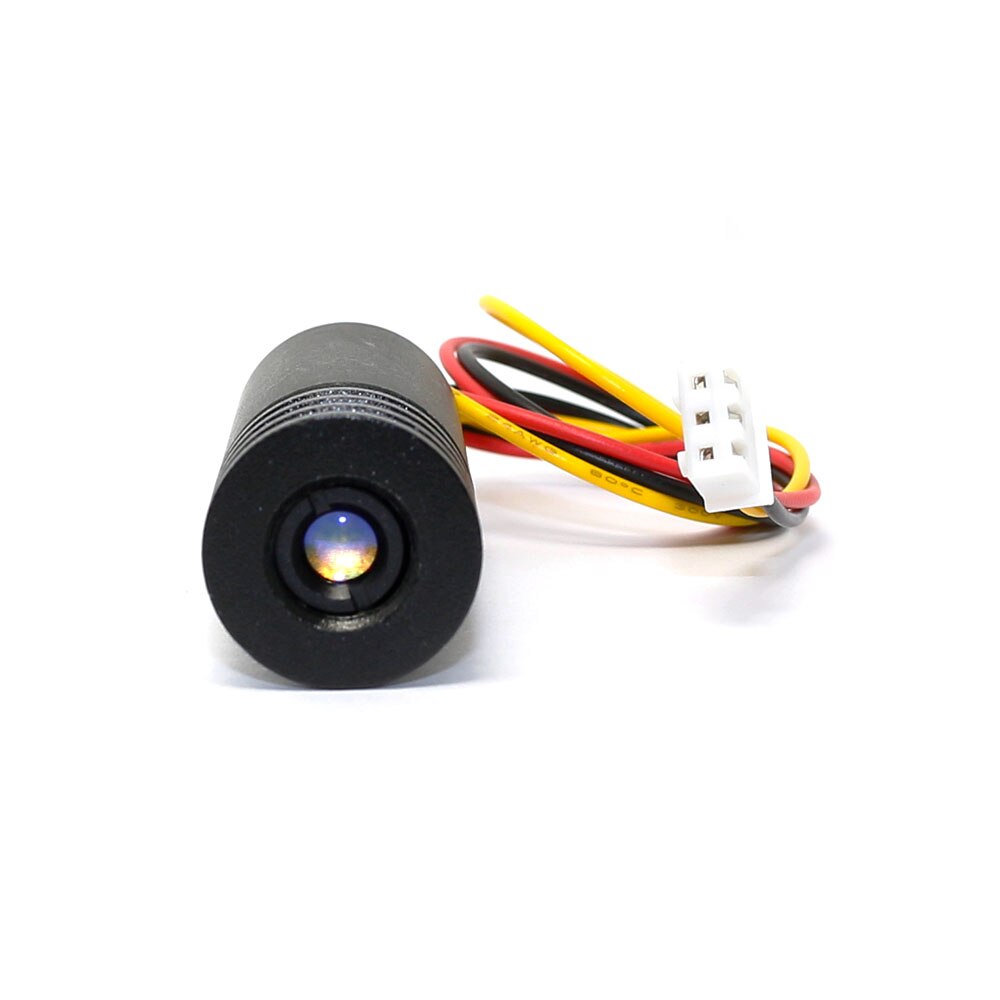

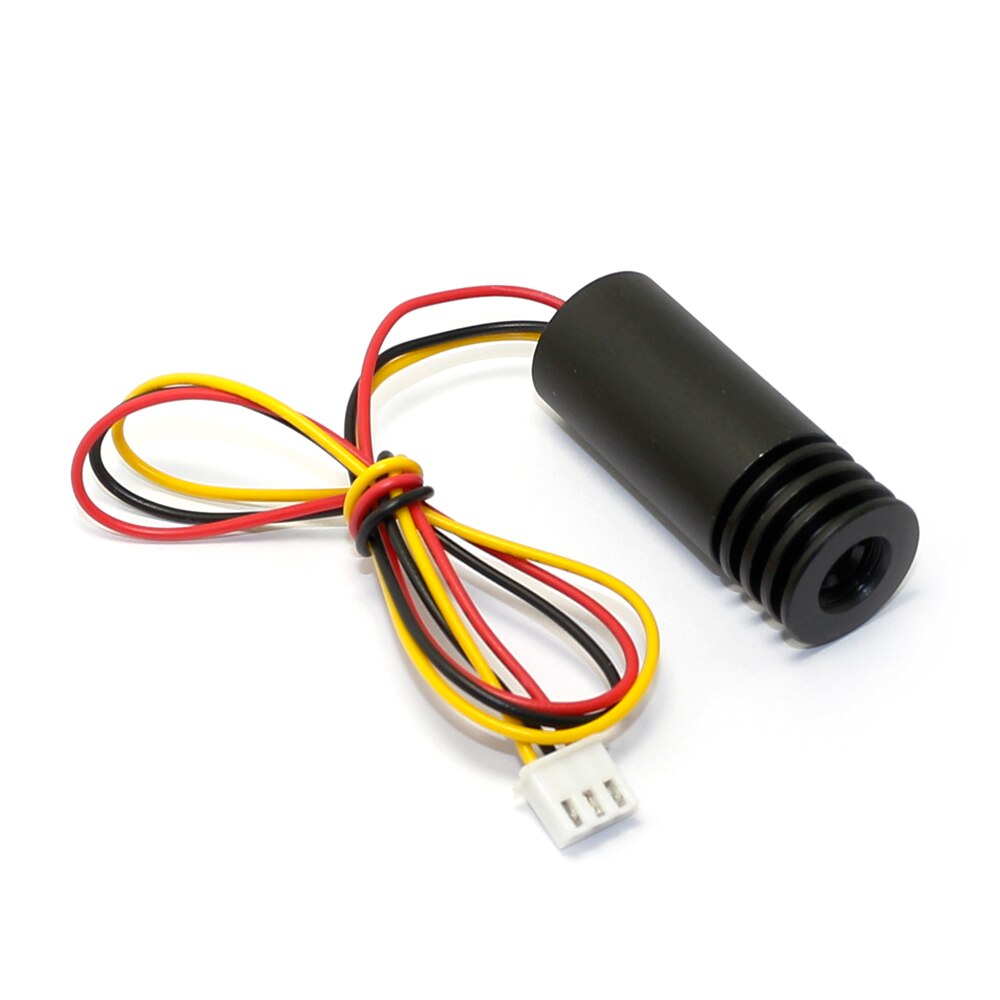

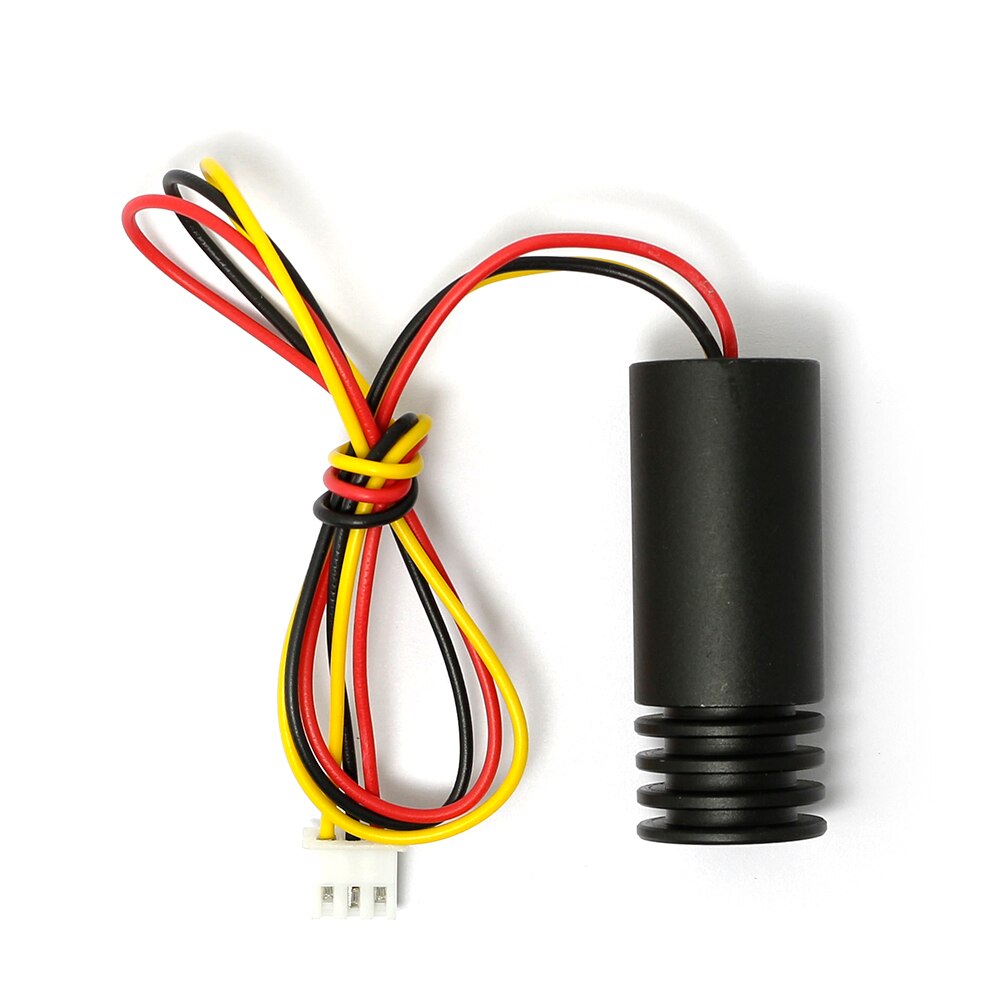

5V DC 905nm 30mw IR Laser Module TTL 0-15KHz DIY Lab High Quality

Specification:
Wavelength 905nm
Ouptut Power 30mW
Current <100mA
Power supply 5.0VDC
TTL modulation Voltage 0-5V
TTL frequency 0-15KHz

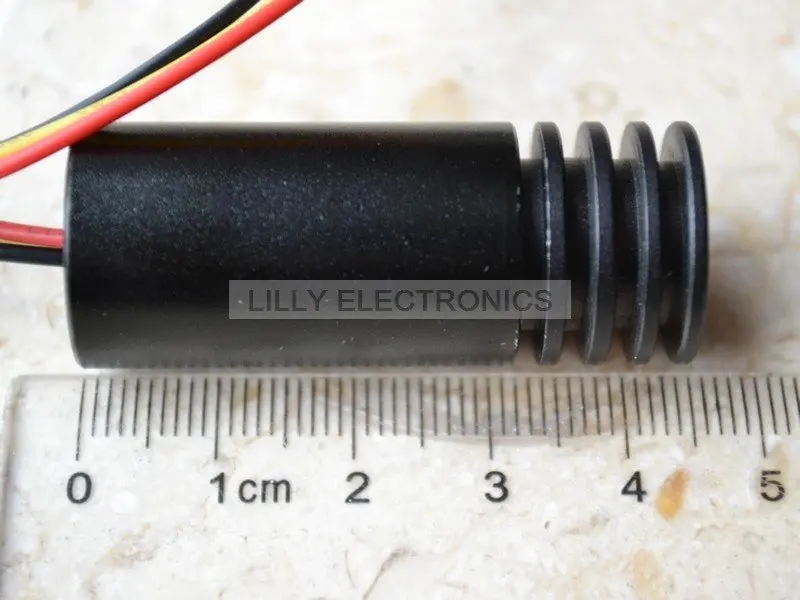

Dimension: 18mmx45mm

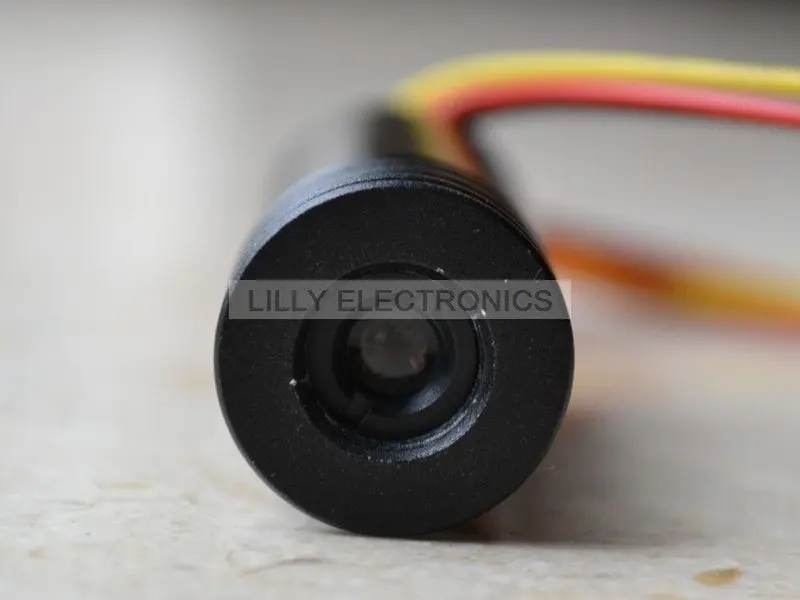

The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.
Off low, high open, normal status open
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive

Feature
This 905nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.
The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.

Package:
1 x 905nm 30mw Infrared IR Laser Dot Module w/TTL 0-15KHz
