5v 1 2 4 8 channel relay module with optocoupler. Relay Output 1 2 4 8 way relay module for arduino

Product description:

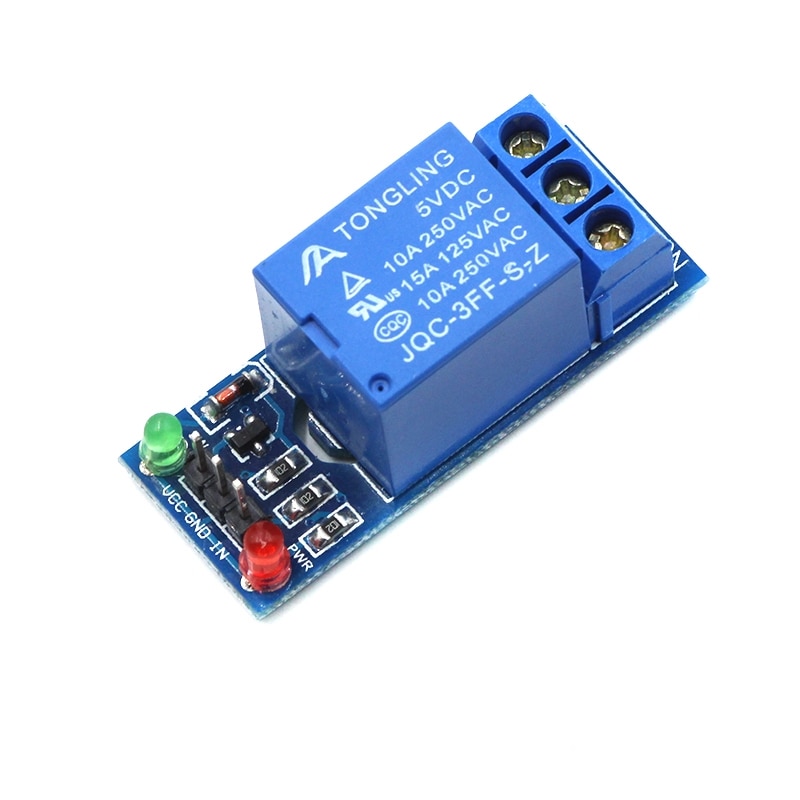

1 channel relay module

• Maximum load: AC 250V/10A, DC 30V/10A
• Trigger current: 5mA
• Working voltage: 5V
• Module size: 50 x 26 x 18.5mm (L x W x H)
• Four mounting bolts holes, diameter 3.1mm
• DC+: positive power supply (VCC)
• DC-: negative power supply (GND)
• IN: can be high or low level control relay
• NO: normally open relay interface
• COM: Common Interface Relays
• NC: normally closed relay interface
• 2 channel relay module
•
  1 Dimensions: 50.5mm (length) * 38.5mm (W) * 18.5 (H)

  2 Weight:. 31g

  3.PCB Color: Black

  4 board four weeks with four screws holes, hole diameter 3.1mm, easy to install and fixed

  5 relay of high quality loose music relays SPDT. A common terminal, a normally open, one normally closed terminal

  6 optocoupler isolation, good anti-jamming


  7 low pull, high release. Energisation status indicator light, release status LED is off

  8.VCC of system power, JD_VCC relay power. You can plug in jumpers

  Electrical parameters:
  Supply voltage: 5VDC, 12VDC
  Current: more than 100mA
  Load: 250V 10A AC or 30V 10A DC


  Wiring:

  VCC: positive power supply system

  GND: System power negative

  IN1 – IN2: relay control ports

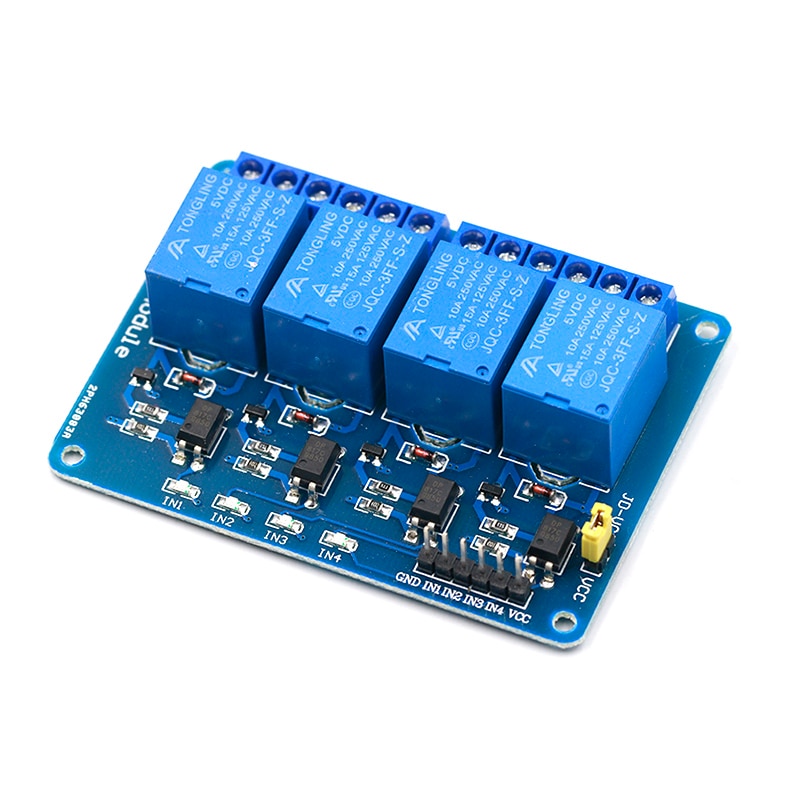

• 4-channel relay output modules, relay output contacts 250A 10A. Input IN1, IN2, IN3, IN4, the signal line LOW effective. VCC, GND power input, can relay a separate power supply relay power input of JD-VCC.

  Uses:

  1, support all MCU control.

  2, the industrial sector;

  3, PLC control;

  4, smart home control

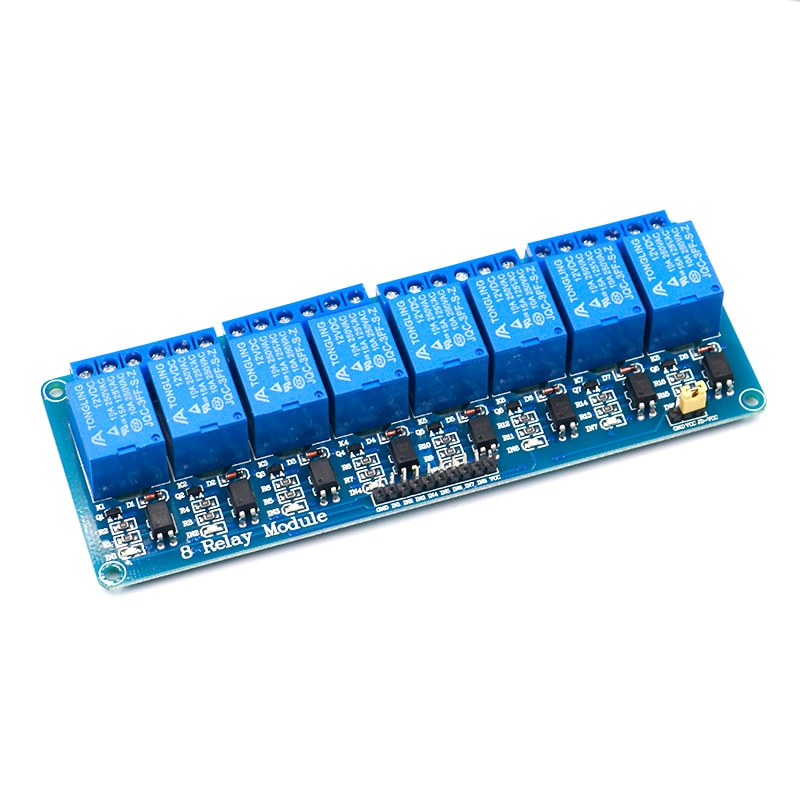

• 8 channel relay module

• Features

  Using high-current relay , AC250V 10A DC30V 10A

  Contact some independent wiring , safe and reliable

  Standard interface , can be extended in a variety of development board

  With fixed screw holes for easy installation

  Suitable for a variety of platforms such as 51/AVR/AVR/ARM





  Module Description :

  1 , the module complies with international safety standards , the load control area and regional isolation tank ;

  2, using double-sided FR-4 circuit board design, high-end chip production process ;

  3, using loose music authentic relay control ;

  4, with the relay instructions , pull off, disconnect does not shine ;

  5, the signal input has a low signal , often beginning with a common terminal will be turned on ;

  6 , the relay can control the various devices and the load ;

  7 , 8 and 8 normally open normally closed contact ;

  8 , blue KF301 terminals to the control line is more convenient.

  9 , Module size : 138m * 56mm * 18.5mm ( L * W * H ) , Weight : 120g

  10 with 4 fixing bolt holes , hole 3.1mm, pitch 131mm * 49.5mm

  11 , finished by 100% functional testing and stability testing

  Two module interface :

  1, VCC: 5V power supply connected to the positive

  2, GND: 5V power supply connected to the negative

  3, IN1-IN8: trigger signal , active low

  Relay outputs : a 12- line interface, the interface can be directly connected to all leads , user-friendly

  1, NO1 – NO8: normally open relay interfaces , relay before the vacant after the pull shorted with COM

  2, COM1 – COM8 Relay Common Interface

  3, NC1 – NC8: normally closed relay interface relay shorted with COM ago , after the pull- vacant


  Tips: choose the same channel, and will pay less freight
