Noted (please read it before make a order):

1. The tracking number of China Post Ordinary Small Packet Plus only can track the goods have left China or not.There will be no more information after it leave China.
If you can not accept the shipment without tracking information in your country, pls do not choose it.
You can choose China Post Registered Air Mail or other Express, they have full tracking information.

2. Welcome to send us your RFQ or BOM list, we will give you our best price!
You can leave us message or send email, we will reply you asap!

You can find other WH148 Potentiometer in the following link
WH148 3PIN 15MM	5pcs/lot click here	30pcs/lot click here	100pcs/lot click here
WH148 6PIN 15MM	5pcs/lot click here	30pcs/lot click here	100pcs/lot click here
WH148 3PIN 20MM	5pcs/lot click here	10pcs/lot click here	100pcs/lot click here
WH148 6PIN 20MM	5pcs/lot click here	100pcs/lot click here
WH148 AG2 KNOB	20pcs/lot click here	30pcs/lot click here	1000pcs/lot click here
WH148 AG2 KNOB KIT	5colors*6pcs=30pcs click here

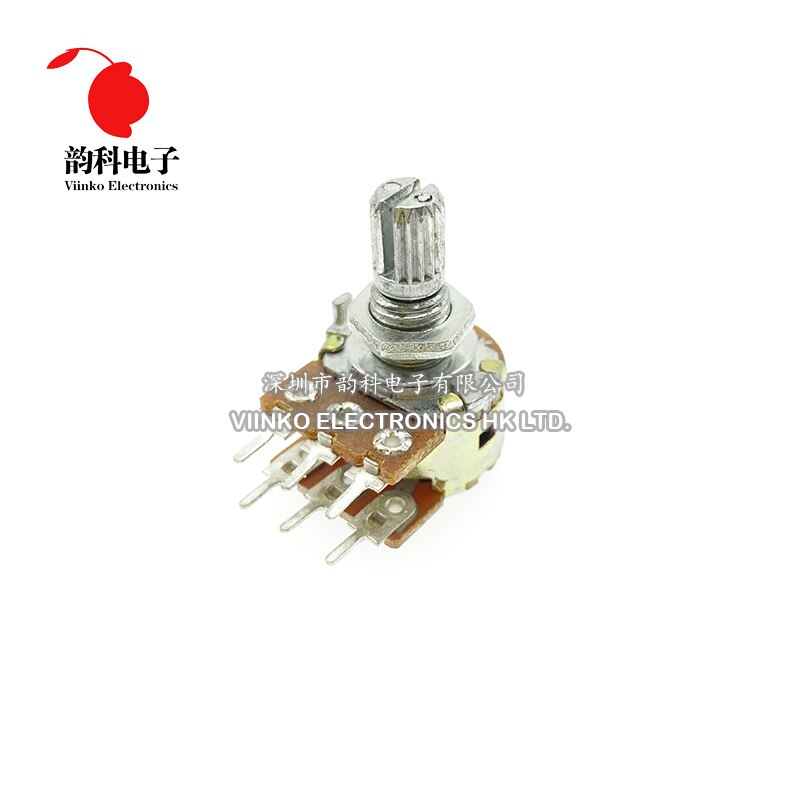

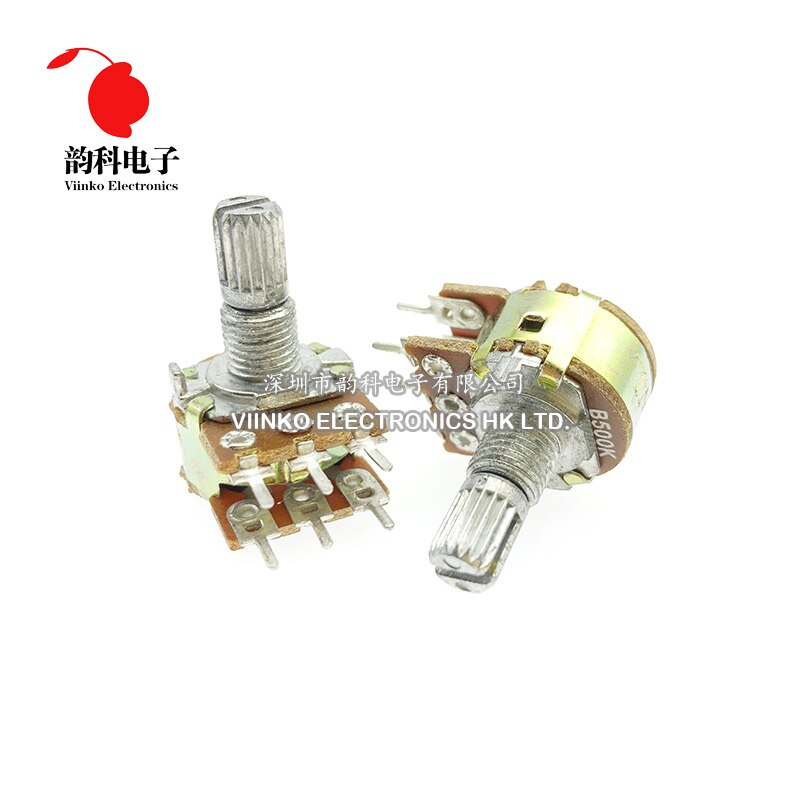

WH148 6PIN Single potentiometer

Resistance range(Ohms): 1K-1M

Resistance deviation: plus or minus 20%

Resistance change feature: B

Maximum service voltage: AC150V

Rated power: 0.125W

Rotation noise: <47MV

Residual value: Term. 1-2 <20Ω

Term 2-3 < 20Ω

Insulation resistance: wining 100m Ω at DC500V

Synchronous error: plus or minus 3

Rotation Angle: 300° + 5°

Rotation moment: 20gf.Cm – 200gf.Cm

Stop torque: 5 KGF.Cm Min

Shaft handle pull-out strength: 6.0 KGF.Cm Min

Rotation life: 10,000 cycles

If you want to buy more than 1 item, you can add them into your cart.

Then following the introduction below to ask us to reduce the shipping cost for you.
