Description

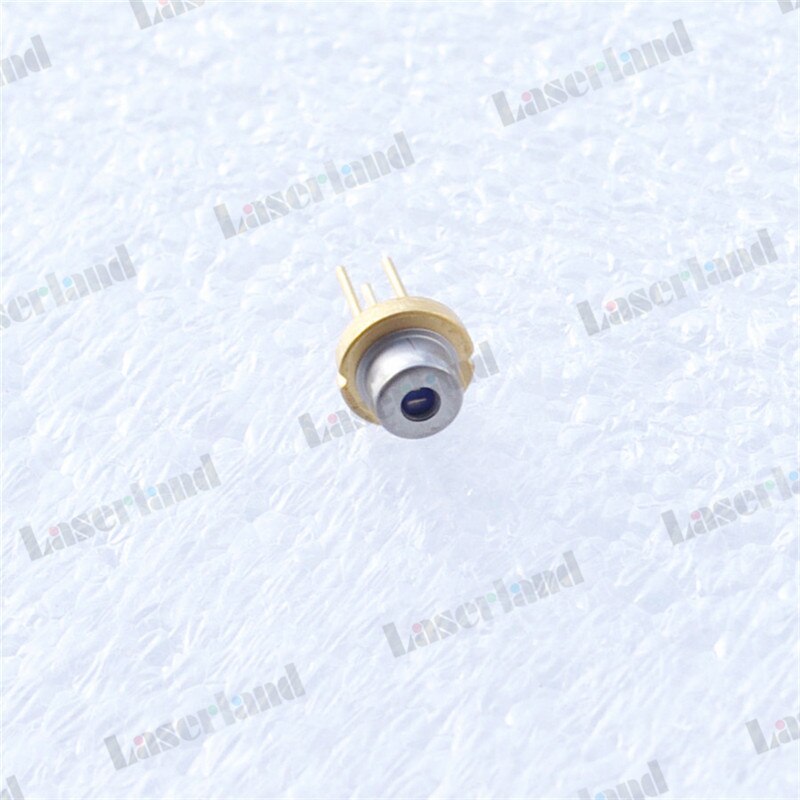

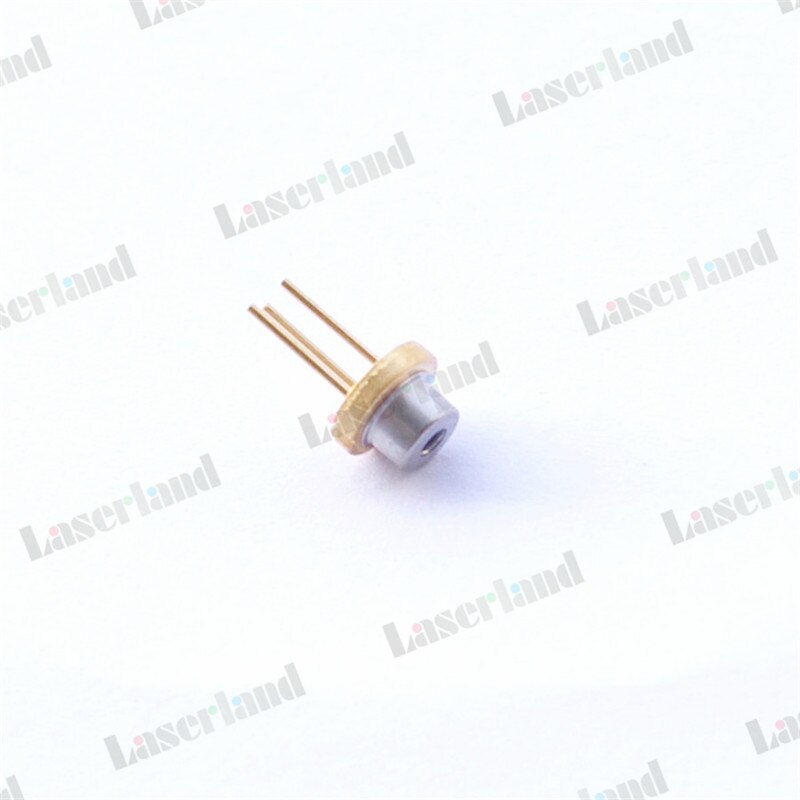

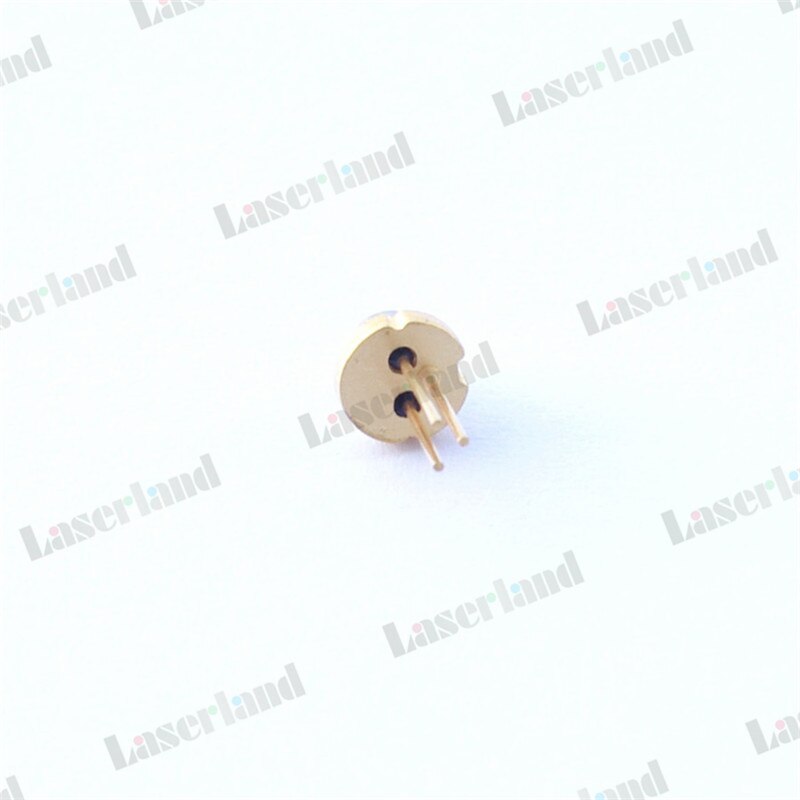

Sanyo DL-3147-065 650nm Red Laser LD Diode 5mw 70 deg N-type 5.6 mm TO18
Main Features:
Diameter: φ 5.6 mm TO18
Life-Span: > 6000 hours
Wavelength: 650nm
Output: CW 5mW
Working temperature: 0-70 centigrade
• Short wavelength : 650 nm (Typ.)
• Low threshold current : Ith = 25 mA (Typ.)
• High operating temperature : 5 mW at 70°C
• Low threshold current : Ith = 25 mA (Typ.)
• High operating temperature : 5 mW at 70°C
• TE mode
Applications
DVD-ROM/PLAYER
Datasheet of Sanyo Sanyo DL-3147-065:
Note:
1. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.
2. Be sure the operator has experience in optics DIY or testing.
3. Don’t operate when the power is connected.
