Description
- Condition: New
- Technology: Thin Film
- Model Number: 3386P-103
- Type: Trimming Potentiometer
- Resistance Tolerance: ±20%
- Rated Power: Please Check Description
- Max. Operating Voltage: 300V
- Operating Temperature: Please Check Description
- is_customized: Yes
- Brand Name: diymore
Feature:
Rotation Angle: 300° ±10°
Gyroscopic Moment: 10-200gf.cm
Rotational Stopper Strength: 3Kgf.cm
Push-Pull Strength: 8kGF Max
Shaft Wobble: 0.6xL/20MM p-p Max
Total Resistance Tolerance: ±20%
Residual Resistance: R less than or equal to 10K Ohms 10 Ohms
Withstand Voltage: 1 minute at 300V AC
Rotation Life: 10000 times

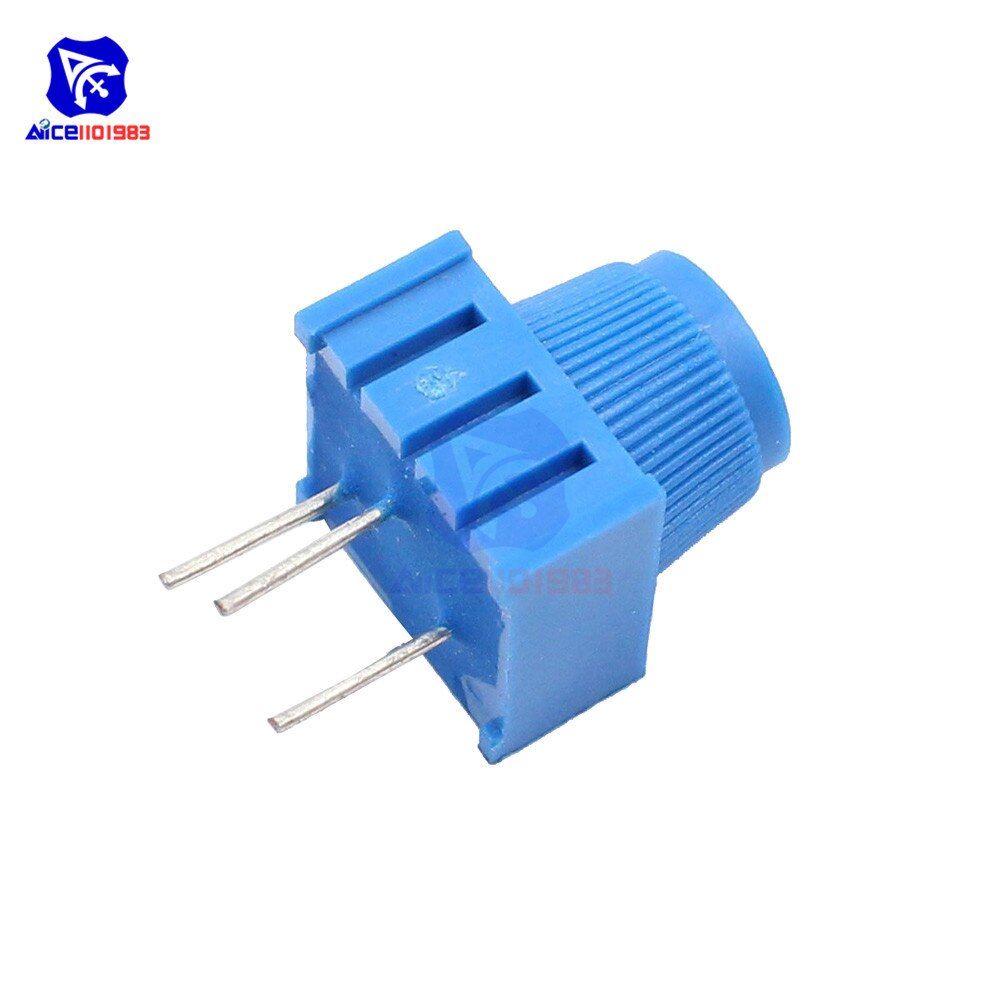

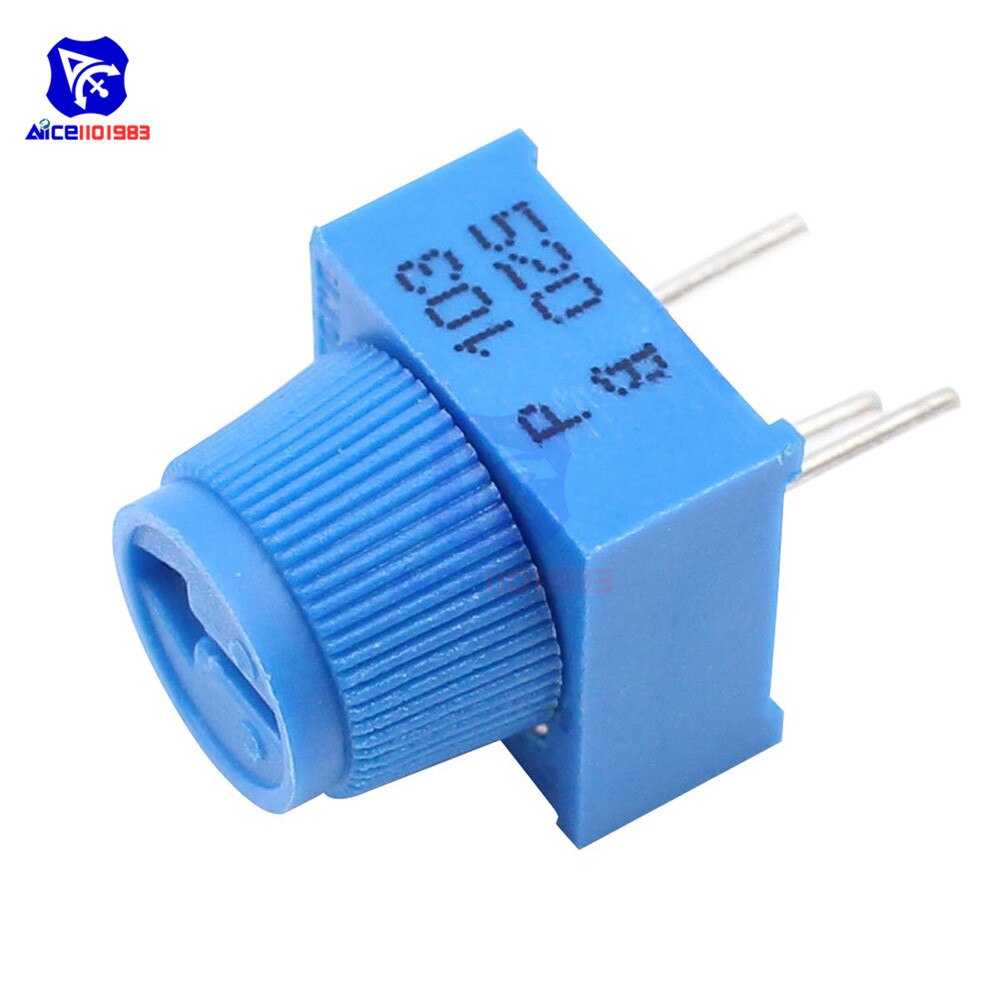

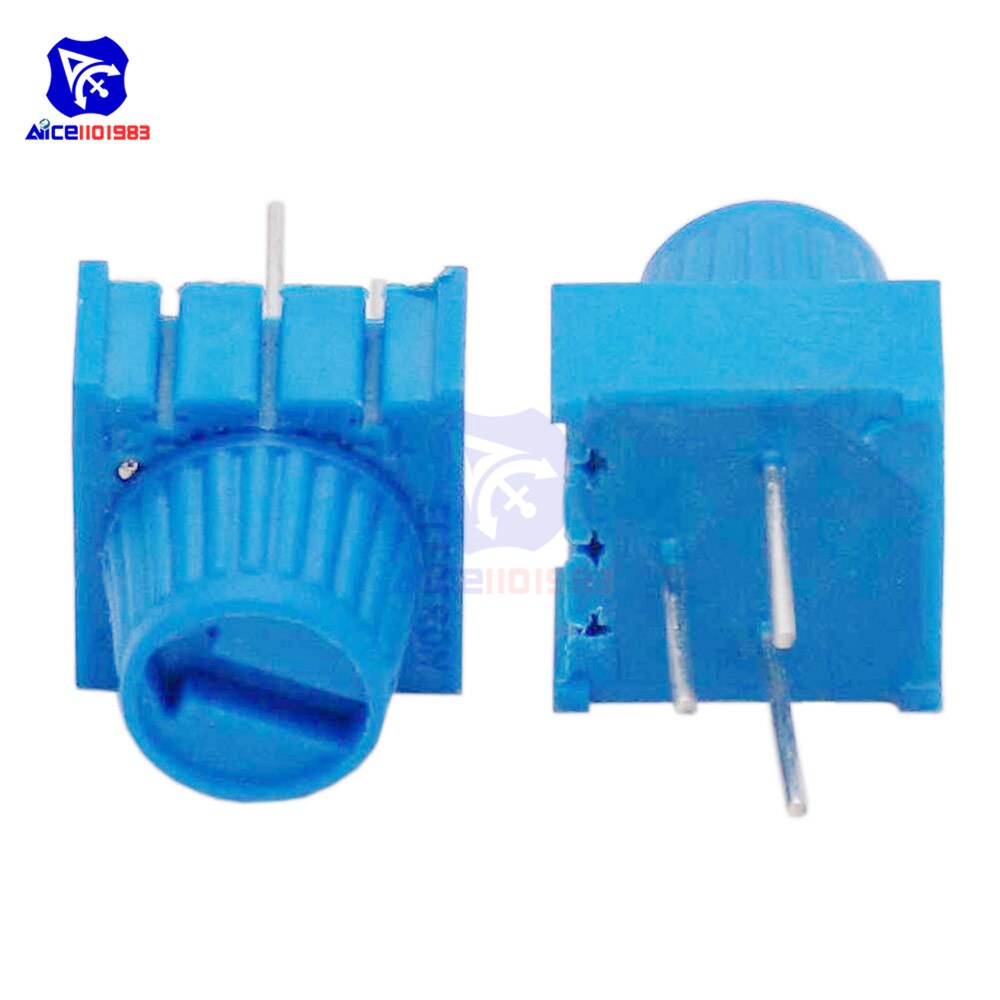

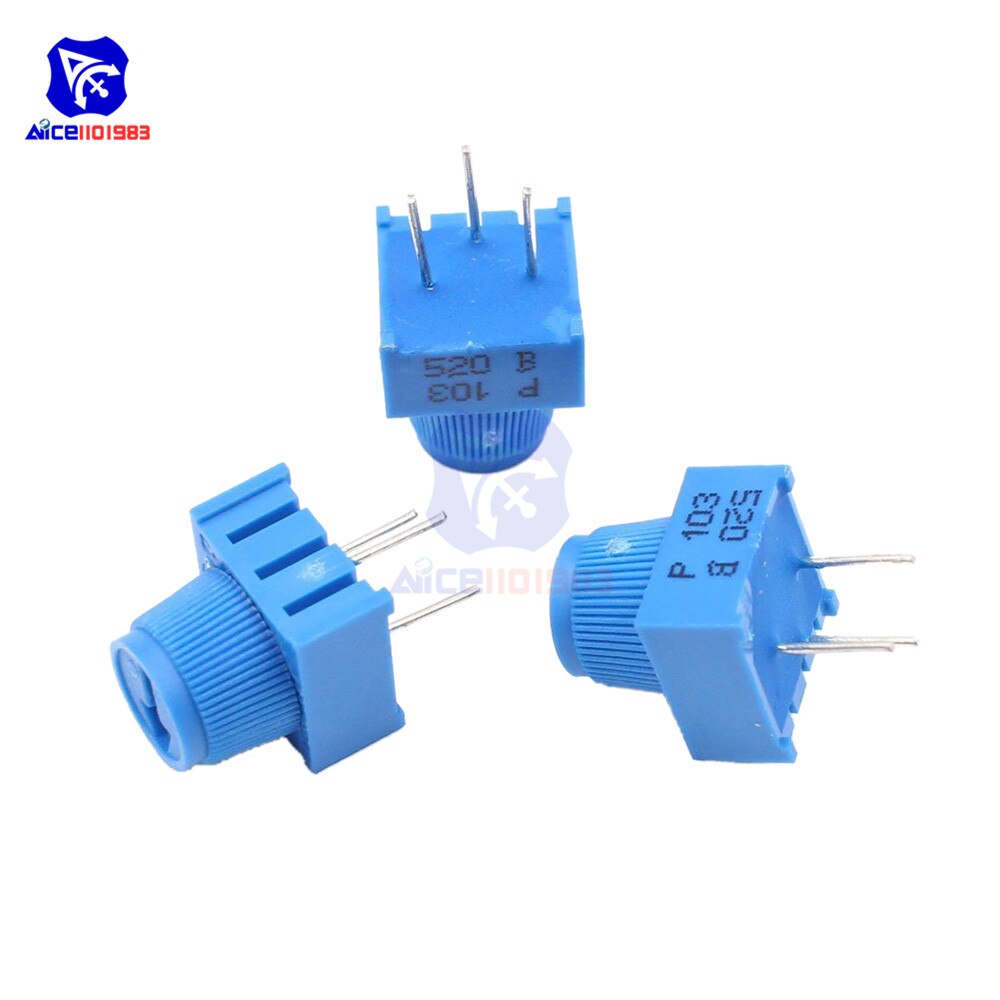

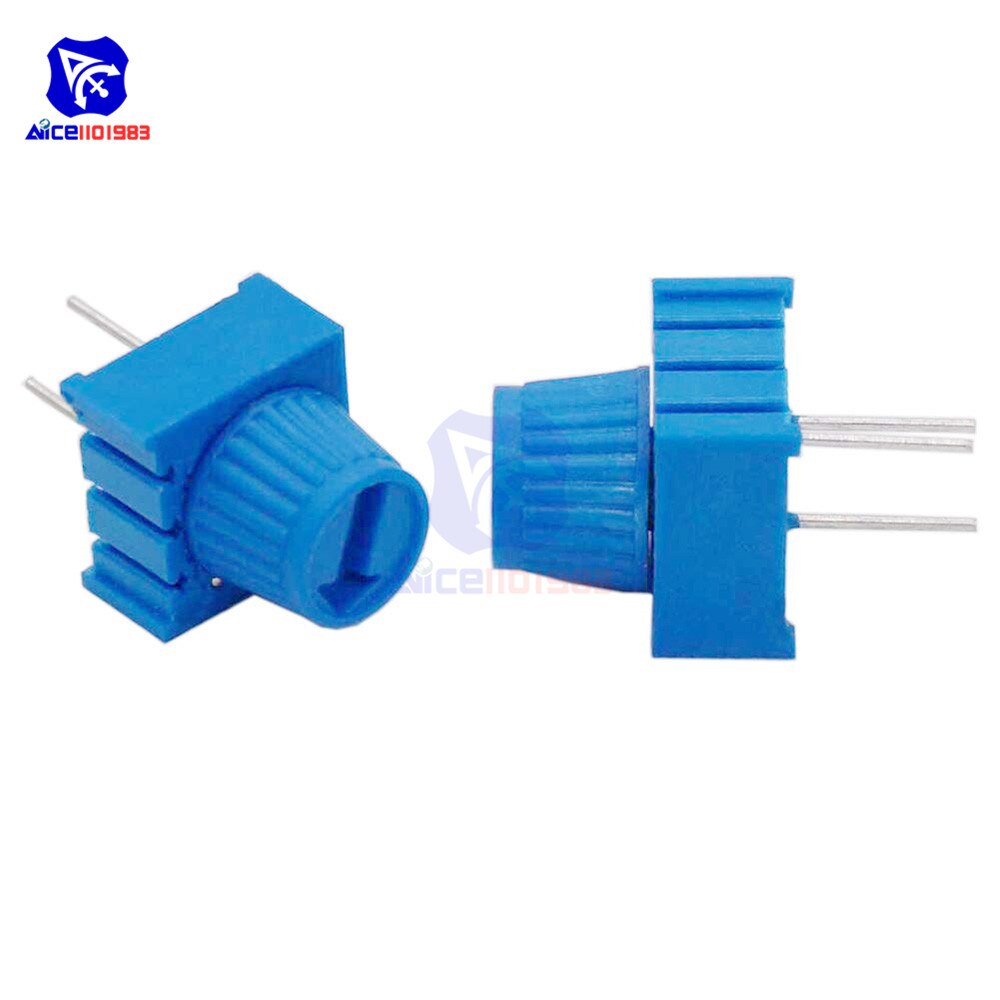

High quality potentionmeter, with knob, easy to operate, 3 Pins can easily insert into breadboard or universal board, simple installation, specially suitable for Arduino etc. projects.
Package List:
5 * 3386P-103 Trimpot 10K Ohms High Precision Trim Potentionmeter
