Description
- Brand Name: MS-moto
- Origin: CN(Origin)

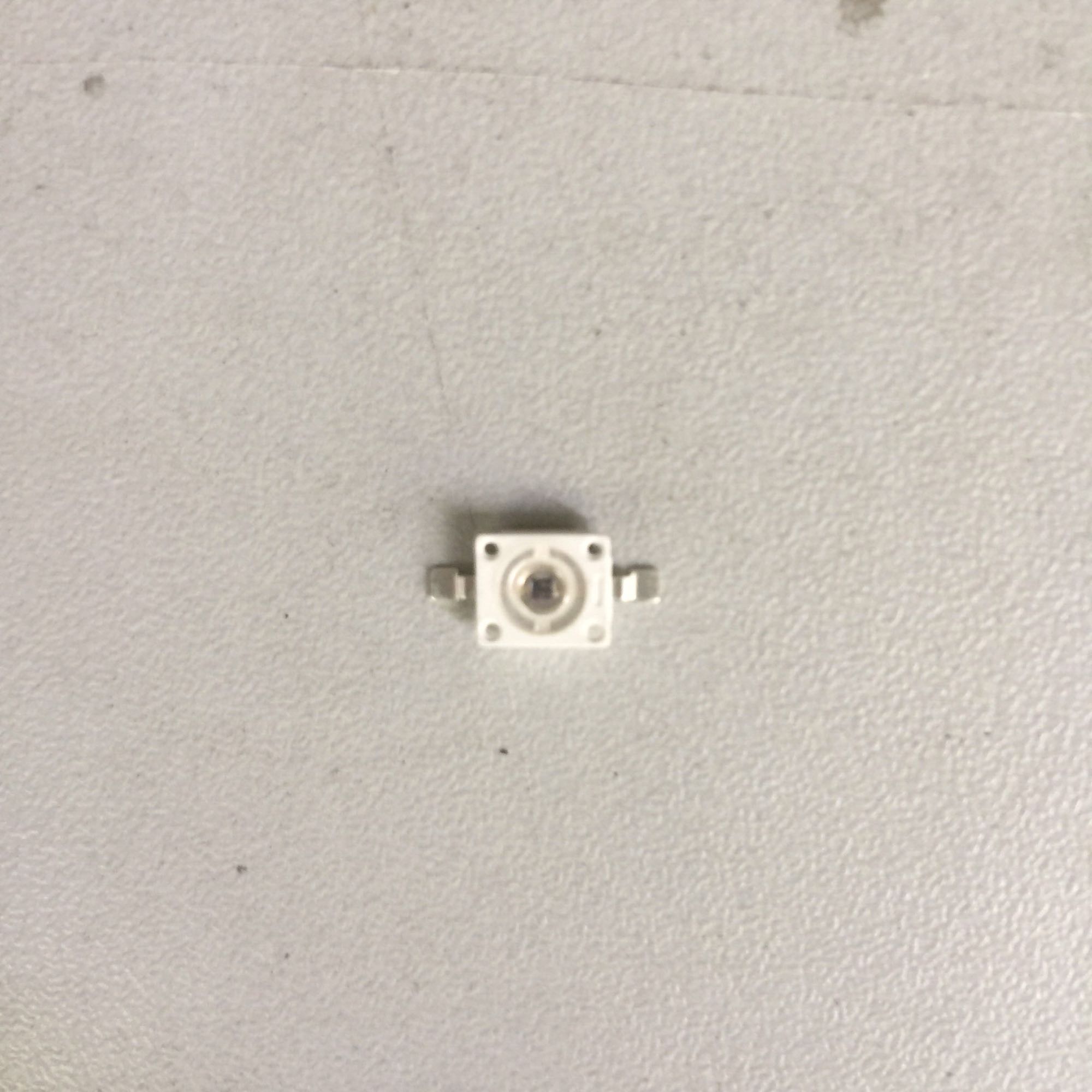

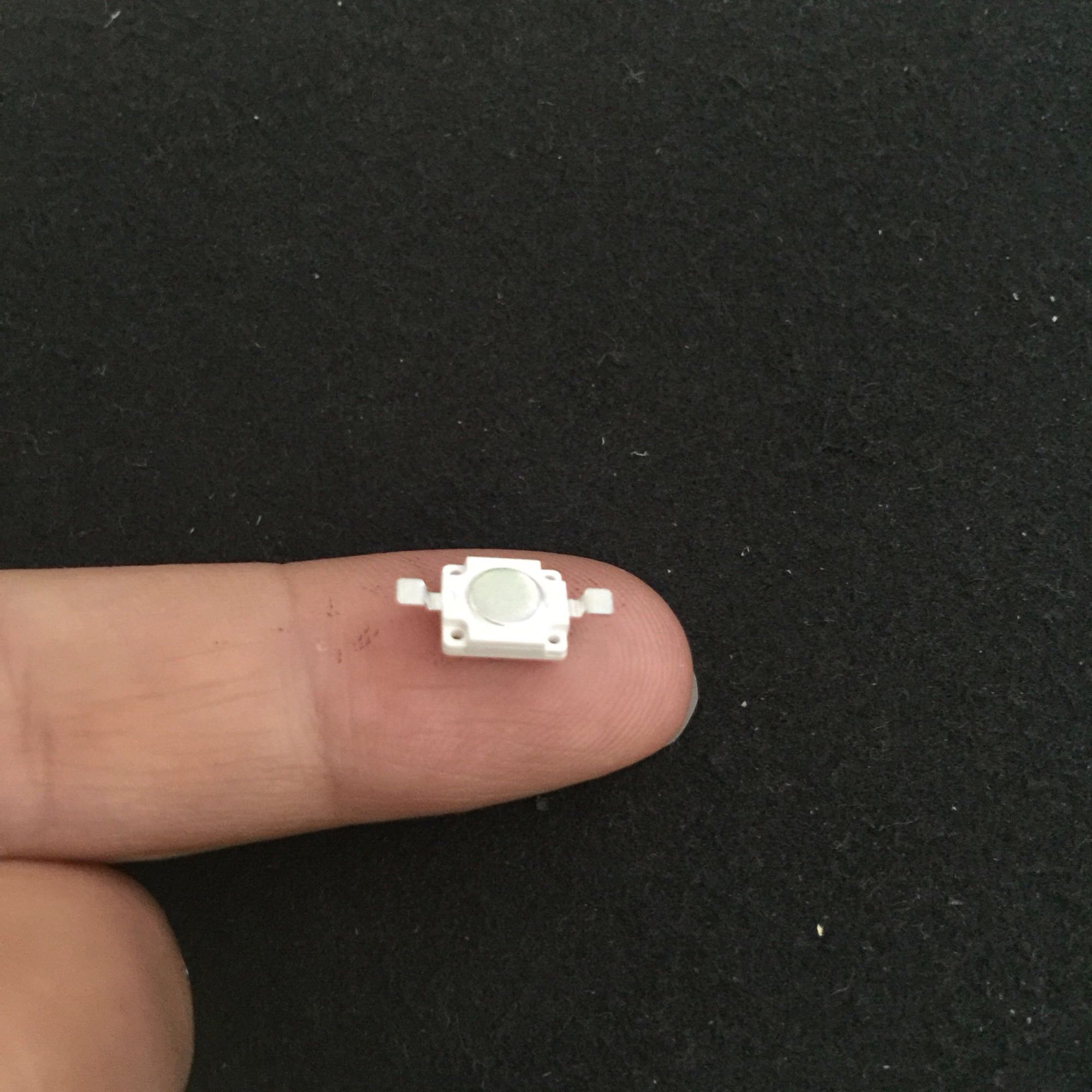

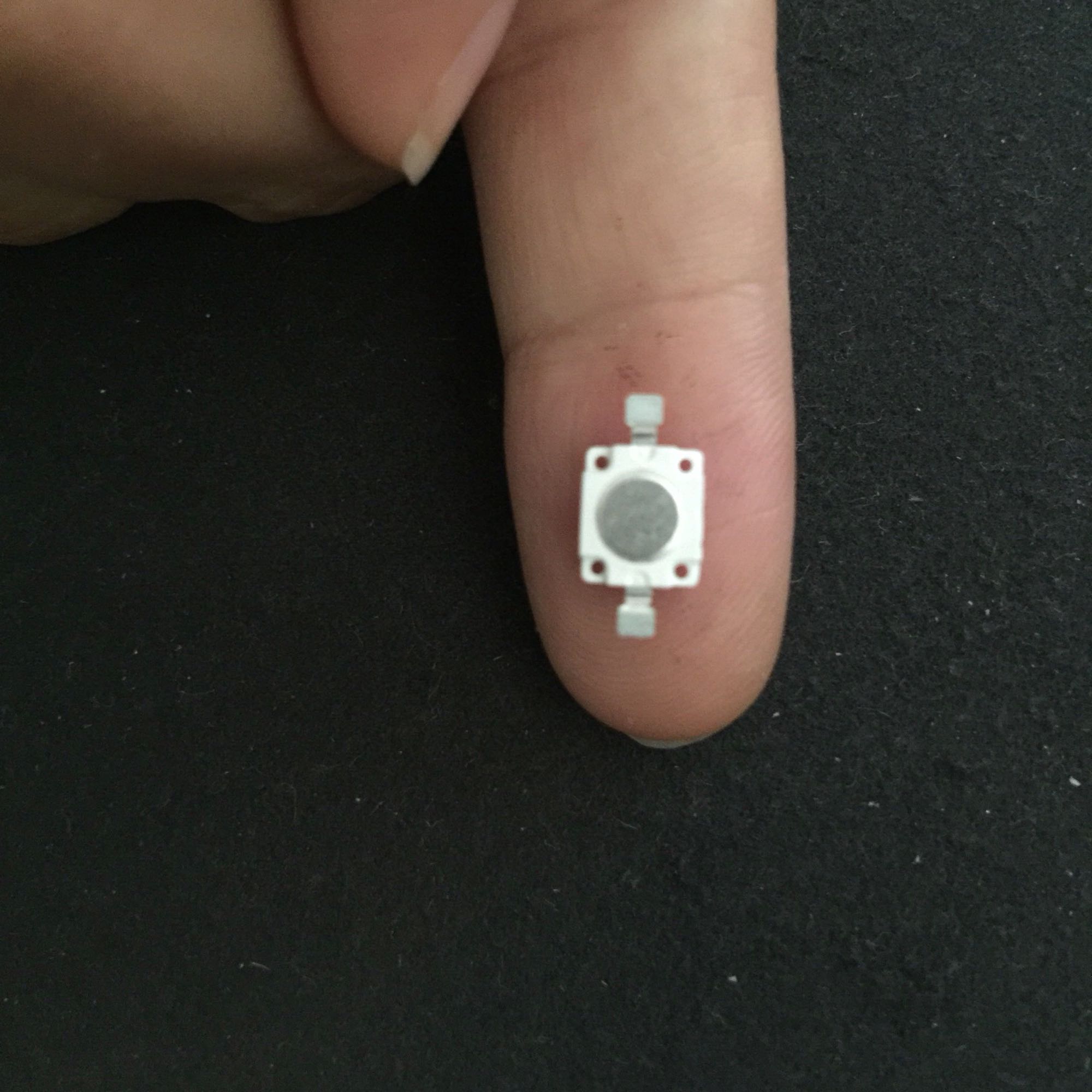

- Model Number: SD-7060C9
- Wavelength: 940nm
- Condition: New
- Dimension: Top
- Max. Forward Voltage: 1.4-1.6V
- Max. Reverse Voltage: 5V
- Max. Forward Current: 1000mA
- Size: 7*6*1.8mm
- Viewing Angle: 140 degree
- Chip Size: EPISTAR
- Colour: infrared light
- Power dissipation: 2000mW
Applications: The best light surveillance cameras
Features:
1.Dimension: Top
2.Excellent heat conductive assembly
3.High radiant intensity
4.Wide viewing angle: 140 degrees
5.Soldering methods: IR reflow soldering
6.The product itself will remain within RoSH
Peak wavelength:λp=940nm
High reliability
Chip Material: GaAlAs Source Color: Infrared
-
Electrical / Optical Characteristics at TA=25℃ Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Φ 2000 mW IF =3200mA Viewing Angle 2θ1/2 140 deg IF =3200mA Domain Wavelength Tc K IF =3200mA Spectral Line Half-Width Δλ 850 nm IF =3200mA Forward Voltage VF 1.40 1.60 V IF =3200mA Reverse Current IR 5 μA VR = 5V Absolute Maximum Ratings at TA=25℃ Parameter Maximum Rating Power Dissipation 1W Peak Forward Current 1000mA (1/10 Duty Cycle, 0.1ms Pulse Width) Reverse Voltage 5V Operating Temperature Range -20℃ to + 75℃ Storage Temperature Range -30℃ to + 80℃ Lead Soldering Temperature 280℃ for 5 Seconds [1.6mm(.063") From Body] - Lifespan:
- 50000h
- Warranty:
- 3 years
Chip Quantity: 1pcs 40mil
Emitted Color: Infrared IR
Viewing angle: 140 degrees.
Applied for : Security CCTV IR Camera, Remote control, Mecidal, Computer & Office
