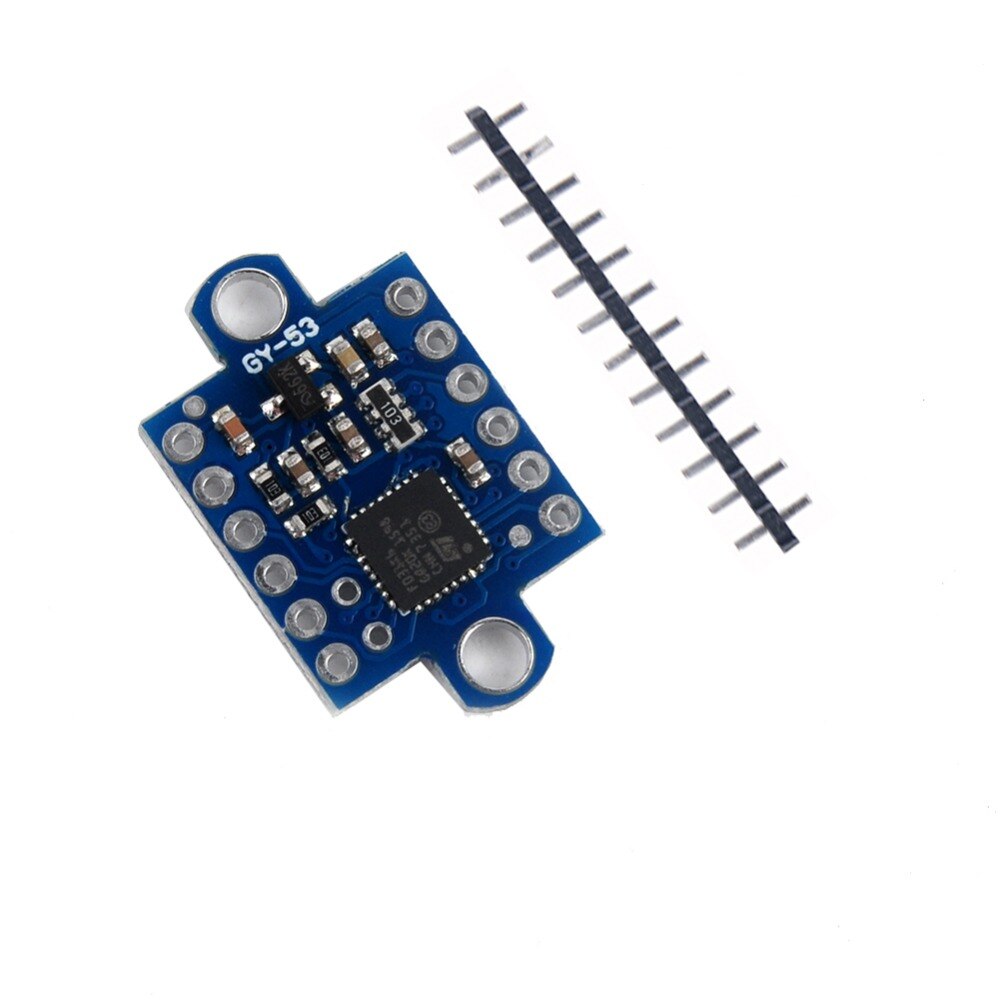

5Pcs GY-53 VL53L0X Laser Sensor Breakout Module for Arduino IOF Infrared IR Distance Module Serial PWM IIC VL53L0X+STM32
Description:
Chip: VL53L0X + STM32
Power supply: 3-5v (internal low dropout voltage regulator)
Range: 2 meters (dark light, long distance mode)
Size: 25mm*15.6mm (including mounting holes)

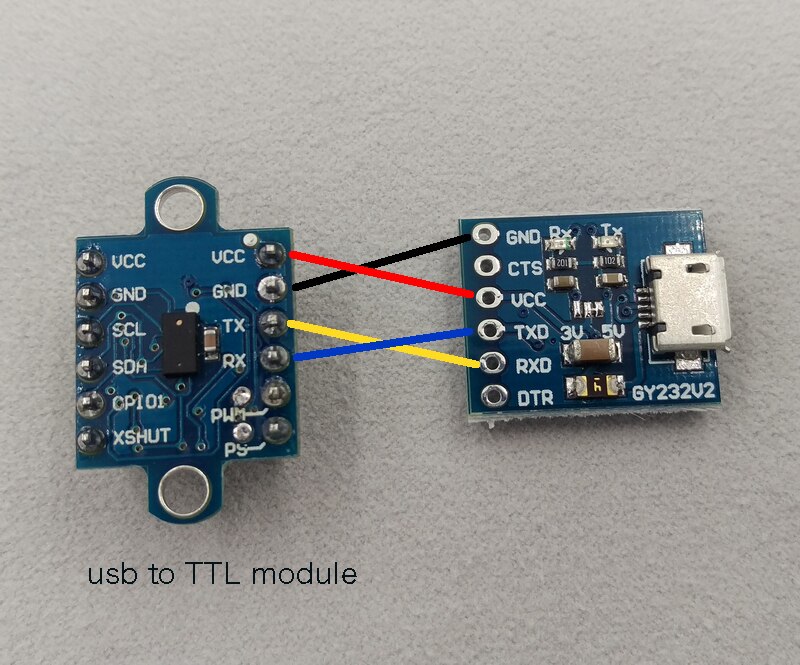

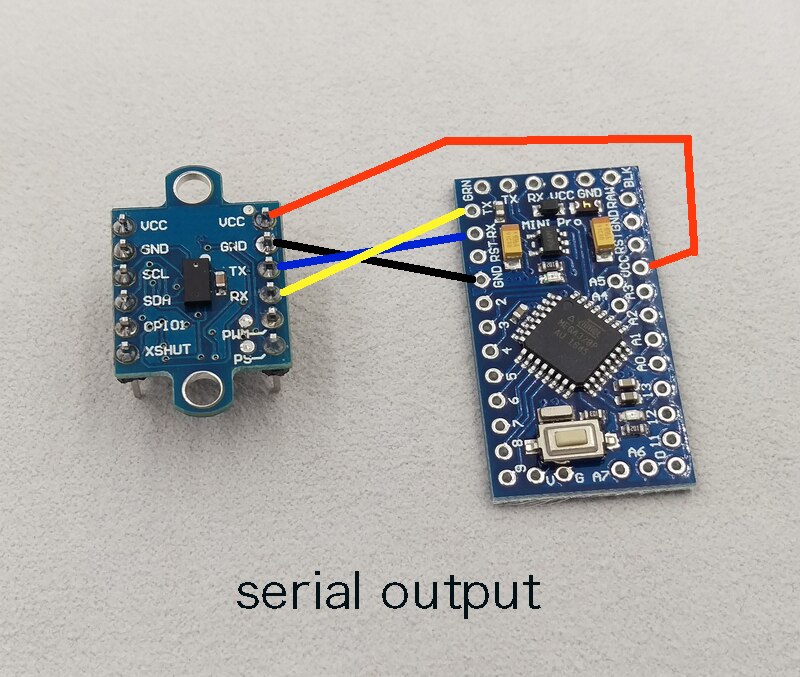

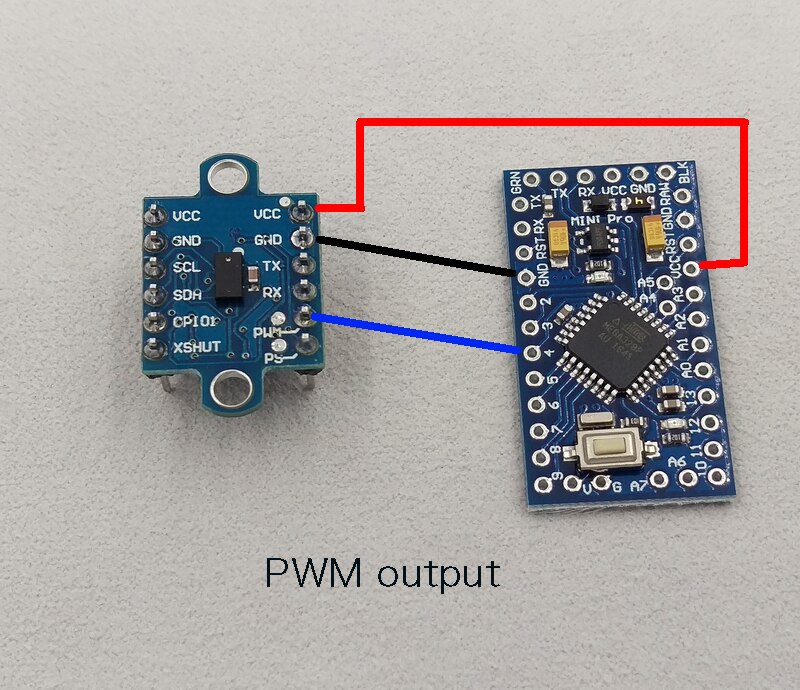

Communication method: serial output, PWM output, chip itself IIC output
Default configuration: serial port baud rate 9600, automatic output, high precision mode
Note: Since infrared light is affected by environment light, it will affect the maximum measurement range under strong light, but it will not affect the measurement accuracy.
Please remove the sensor film before using
Package Includes:
5 X VL53L0X Laser Sensor
![FZ3073 GY-53 VL53L0X Laser Sensor](https://ae01.alicdn.com/kf/HTB16COaeDZmx1VjSZFGq6yx2XXas.jpg)
![GY-53 VL53L0X Laser Sensor (4)](https://ae01.alicdn.com/kf/HTB1C9GuLSrqK1RjSZK9q6xyypXaM.jpg)
![GY-53 VL53L0X Laser Sensor (5)](https://ae01.alicdn.com/kf/HTB1shCELFzqK1RjSZFoq6zfcXXaf.jpg)
![GY-53 VL53L0X Laser Sensor (6)](https://ae01.alicdn.com/kf/HTB1GrGHLMHqK1RjSZFEq6AGMXXao.jpg)
