Description

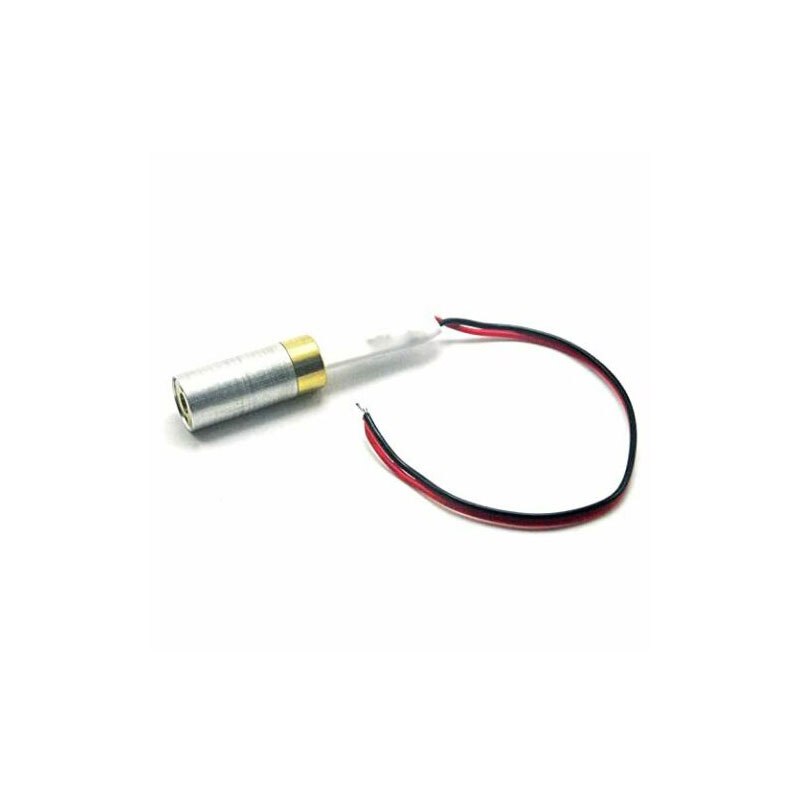

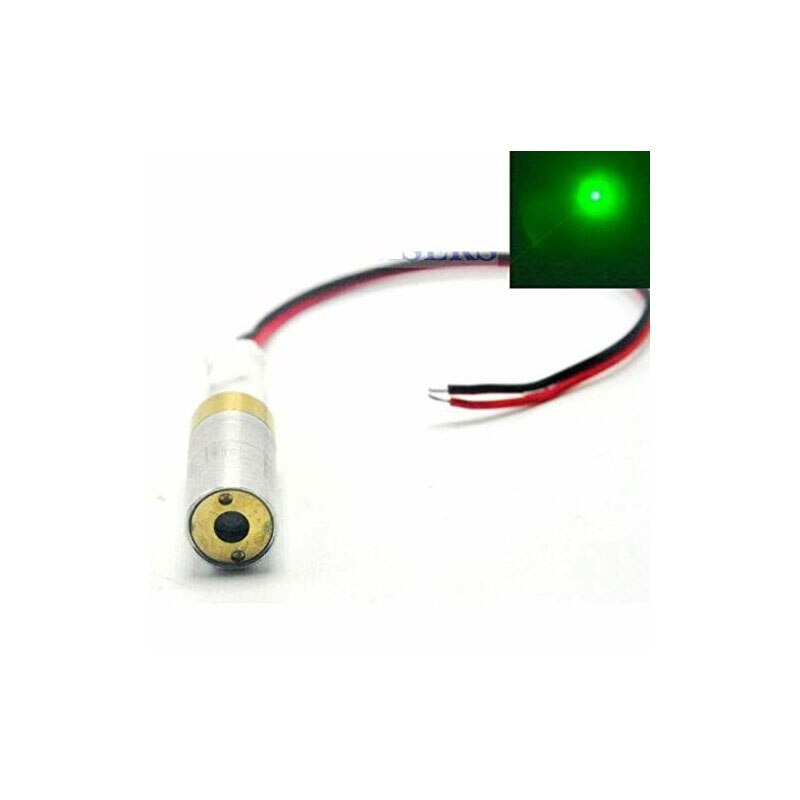

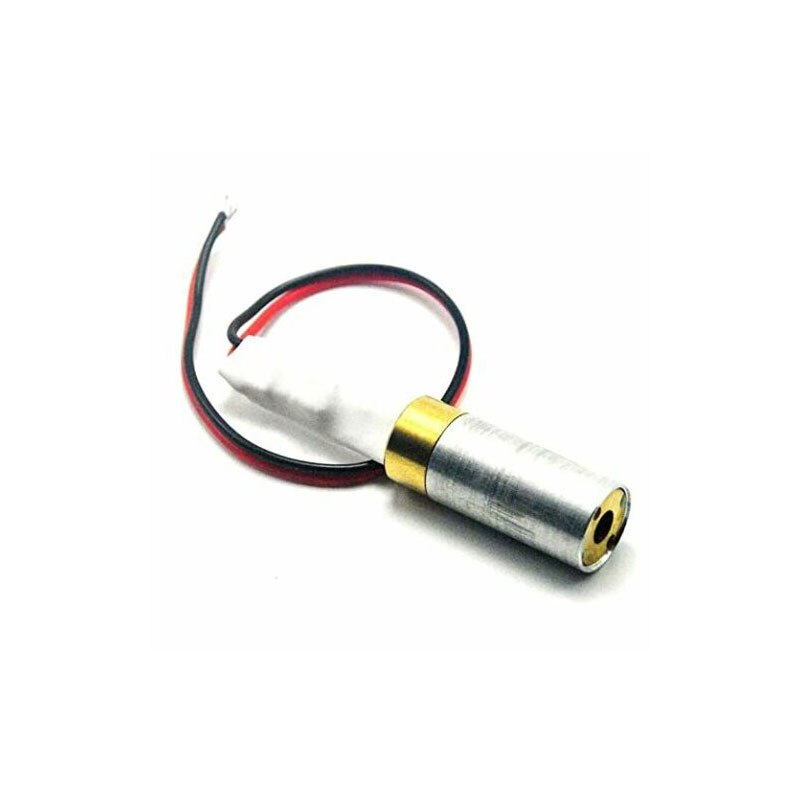

5pcs 5V 532nm 10mw Dot Green Laser Diode Module Copper 12x46mm

Parameters
Output Power 10mw
Wavelength 532nm
Working Voltage 5V
Working Temperature +10 ℃~＋40 ℃
Laser Shape Dot
Working Current 30mA
Focusable N/A
Material Brass
Dimensions ф12×46 (30mm + 16mm) Length: copper + PCB board

Features
The range :3000 meters
inout  voltage = DC 5V
(5V for the most suitable voltage,
Such as  use the battery power ,Voltage can  between 4.7-5V,
Such as use  the transformer.Make sure that the voltage between 4.7-5V)
The default focus is at 13 meters ,
That is at 13 meters can get the minimum point .10 * 10mm
Try to be placed in the thermal conductivity of the metal block can be ventilated environment when use the laser,
Turn off the laser if the laser heat
This is conducive to the life of the product.
By not adding the heat sink lit situations.
If the body heat.
It can not continuous lighting for more than 45 seconds

Package
5pcs Brass 10mW 532nm Green Laser Diode Dot Module DC5V
