Description
- Certification: None
- Origin: CN(Origin)
- Style: DMX Stage Light
- Power: 80mw
- Model Number: N/A
- Voltage: 2v
- Occasion: Home Entertainment
5.6mm SANYO DL-7140-211N 780nm 785nm CW 80mW (70mW at 60 centi-degree) Infrared IR Laser Diode LD TO18
Main Specifications:
size : 5.6 mm ( TO18 package)
service life : > 10000 hours
output wavelength : 785nm
output power : 80mW
working voltage : DC= 2V
working current : I < 100mA
Package: 785nm 80nm Laser diode Sanyo 7140-211N,

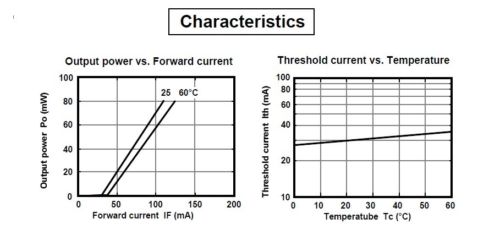

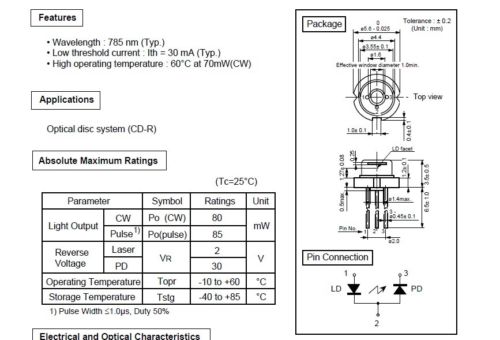

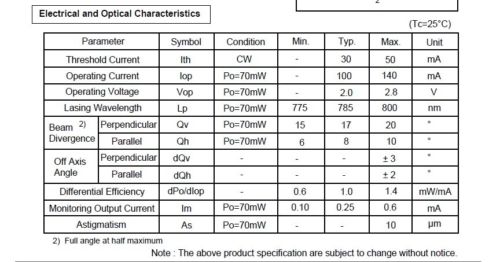

please find the title picture of the datasheet of it.
note:
1. only for professionals.
2. duty cycle without heatsink: 5 seconds on, 1 seconds off.
3. working life: testing life with heatsink.
4. warranty: no warranty because laser diode is consuming material.
5. datasheet: you can google a datasheet or contact me for it.
6. if buyer use it for longer time without heatsink, we do not take any responsibility.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
