Description

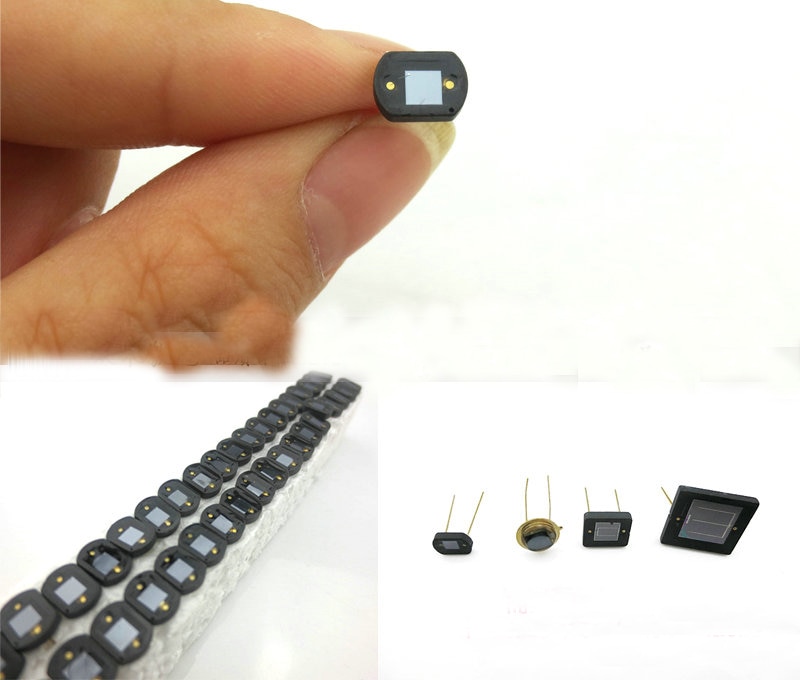

5pc Photodiode receiver 3*3mm Solar silicon photocell receiving surface ceramic Photoelectric sensor 2pin

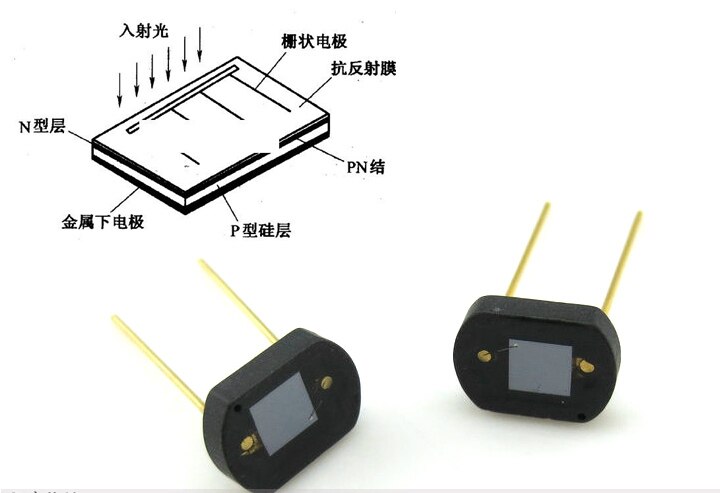

Product Name: 3*3mm silicon photocell
Product model: ZL-G003
Ceramic package size: 8*6*1.9mm
Back end pin length: 14mm
Receiving surface size: 3*3mm
Spectral range: 300–1000nm
Peak wavelength: 700nm
Short circuit current E=100Lx (uA):>20

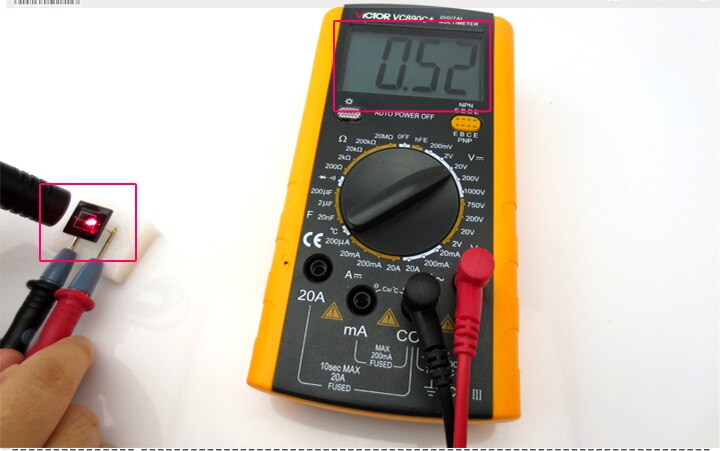

Open circuit voltage E=100Lx (mV): 300
Dark current VR = 100mV (A): <1 × 10-8
Package: This product is a black ceramic package, a flat glass window or a filter glass window.
