Description

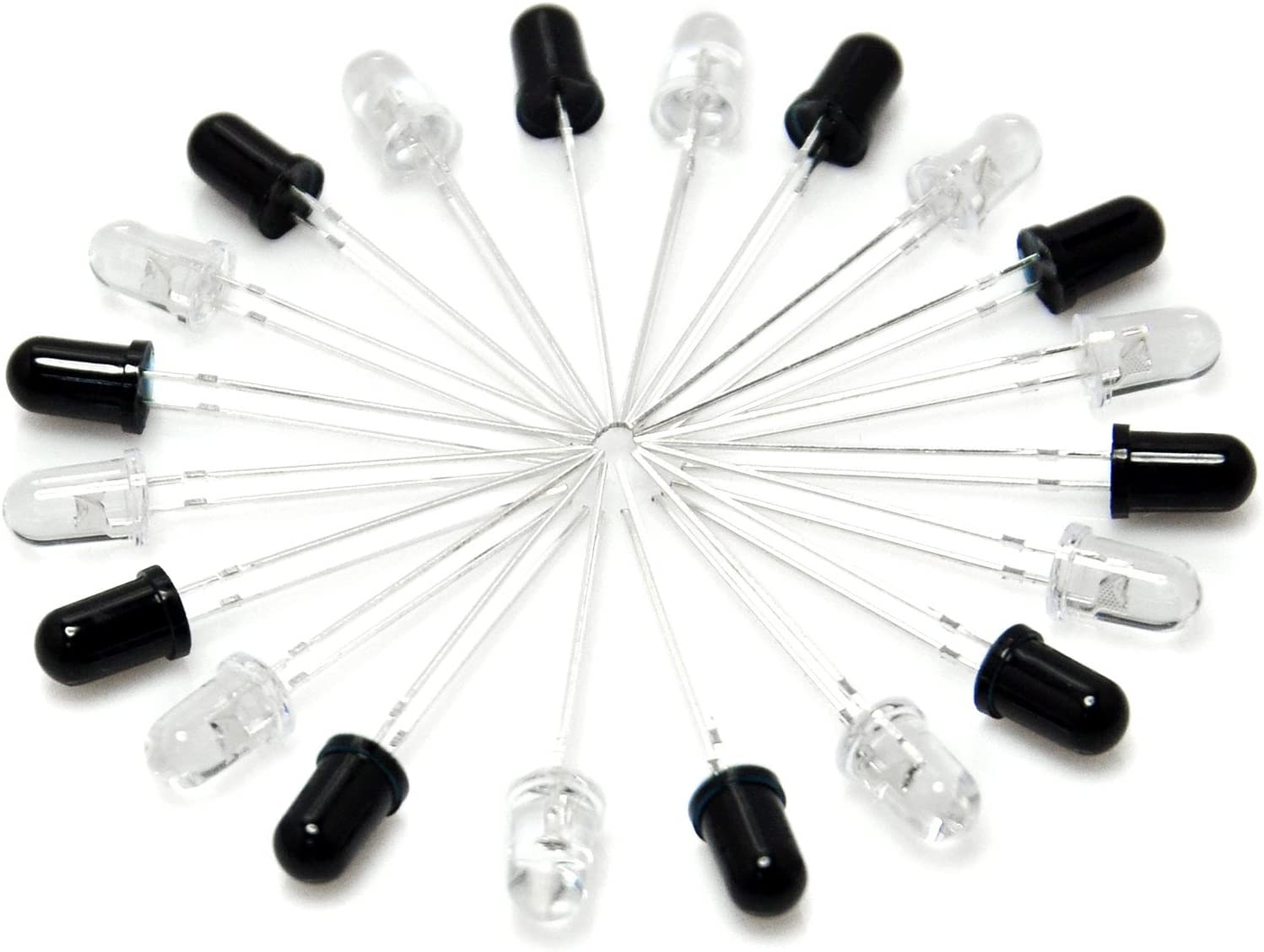

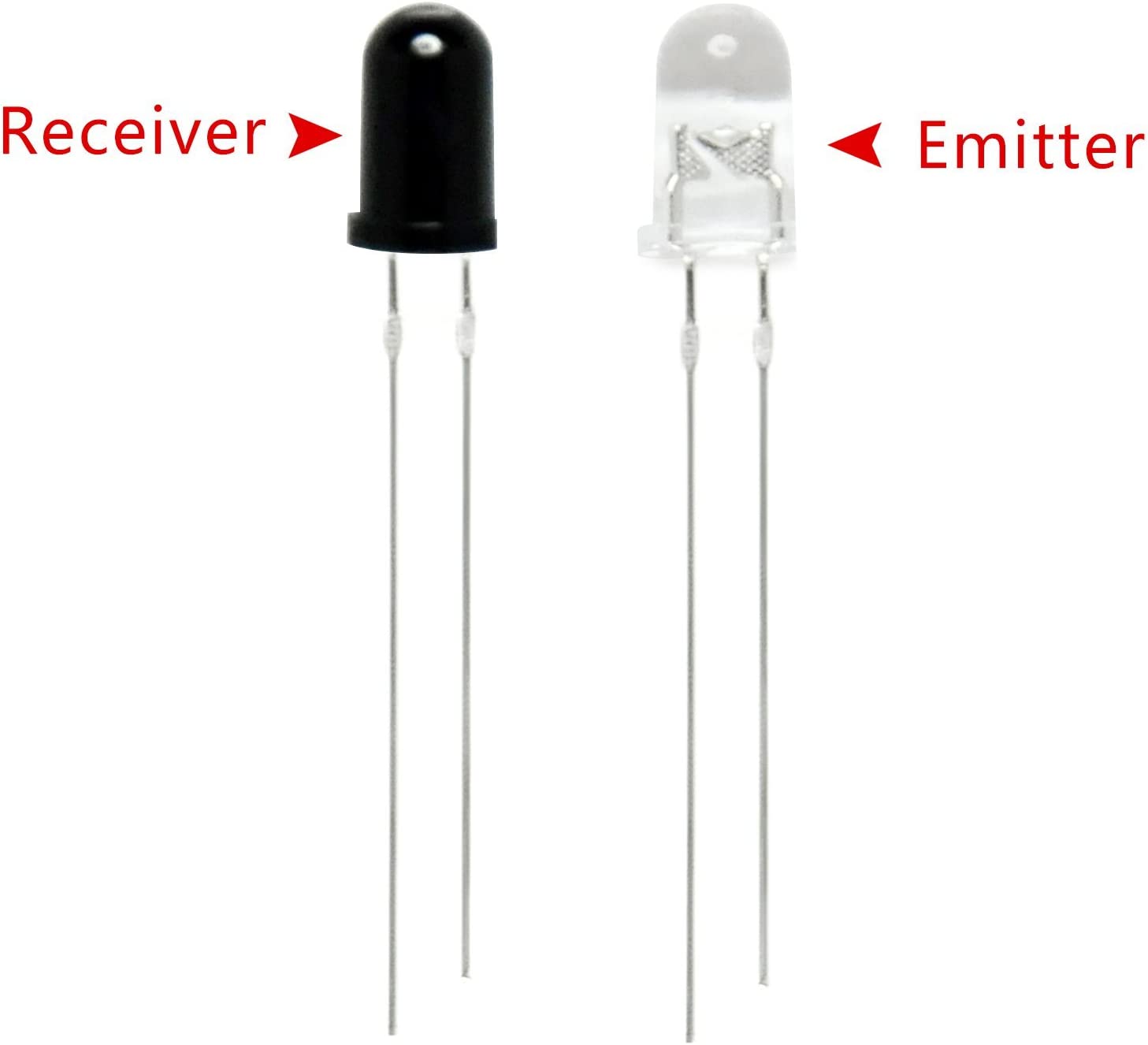

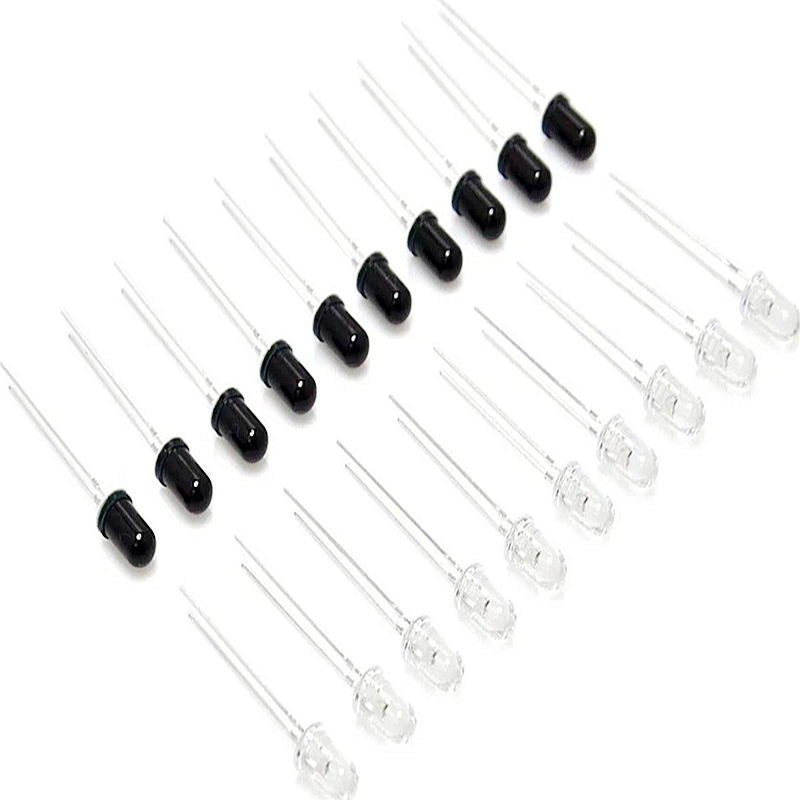

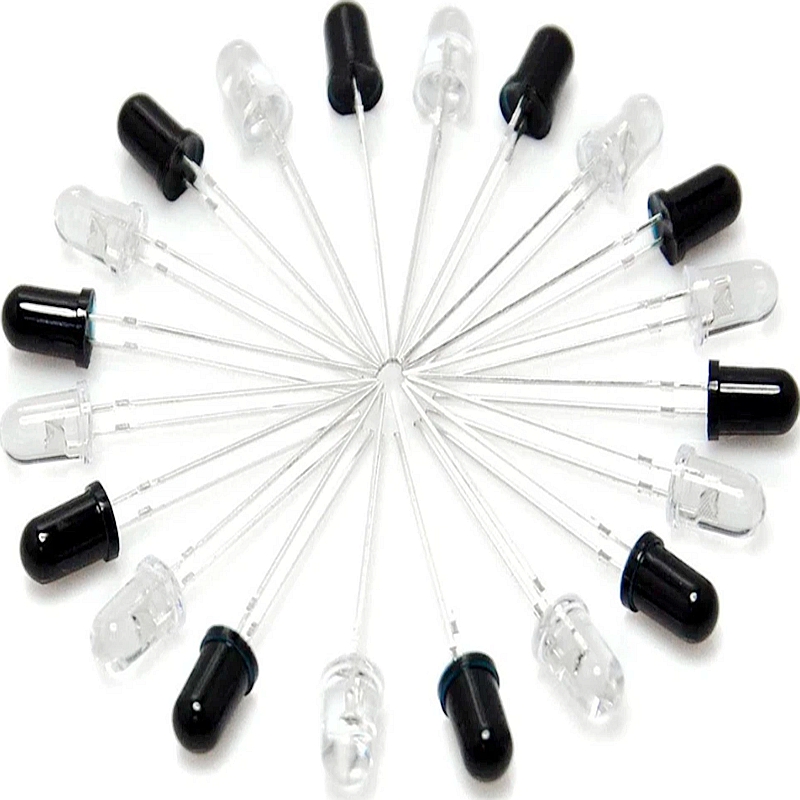

5mm 940nm LEDs Infrared Emitter and IR Receiver Diode for Arduino
Infrared diodes are characterized by strong structure, corrosion resistance, high reliability and long life.
5003MD is a high speed and high sensitive PIN
photodiode in a standard 5 plastic package.
The device is matched to infrared emitting diode.
Infrared emitter can be used for ordinary electronic devices, such as office equipment, communication equipment, and house decoration.
Diameter : 5MM
wavelength:940nm
Forward Voltage: 1.2-1.3V
Package content:
10pcs IR EMITTER
10pcs IR RECEIVER
Power: 0.15 W
Receiving Angle: 40 degrees
Voltage (VF) : 1.1-1.4 V (0.1 V each file)
Wave long (WD) : 940 nm
Receiving tube (limit parameters (Absolute Maximum Ratings) (Ta = 25 ).
Maximum power: 70 mw;
Maximum forward current: 30 ma;
Maximum reverse voltage: 5 v;
Maximum pulse current peak: 75 ma;
Welding temperature/time: 260 / acuities 5 S ;
Working environment: – 25 ~ + 70
Storage temperature: – 25 ~ + 80
Transmitting and receiving distance: about 7 – 8 M.
Manufacturer: Esooho
Item model number: LYSB01HGIQ8NG-ELECTRNCS
Product Dimensions: 12.7 x 5.33 x 0.05 cm; 9.07 g
Best Sellers Rank: 1 in Infrared Emitters
Brand: Gikfun
Light type: LED
Special feature: Long Lasting
Incandescent equivalent wattage: 0.15 Watts
Specific uses for product: Decoration
Is discontinued by manufacturer: No
Date First Available: 23 Jun. 2016
Country of origin: China
