Description
- Certification: None
- Accessory Type: Battery Accessories
- Origin: CN(Origin)
- Accessory Type: Battery Accessories
- Model Number: 3S4
- balance type: capacitor
- Balance current: High Current

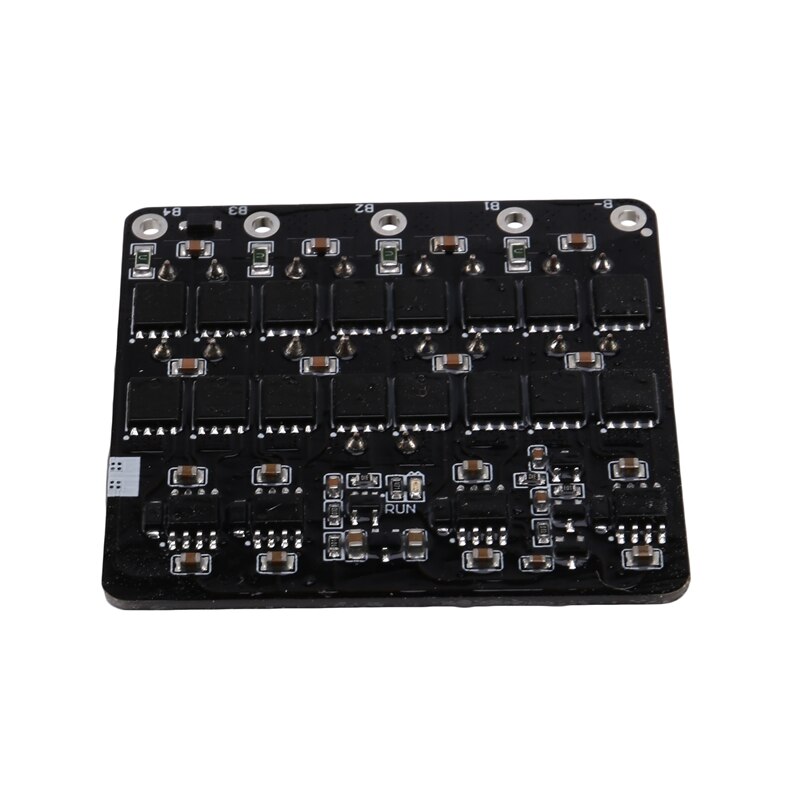

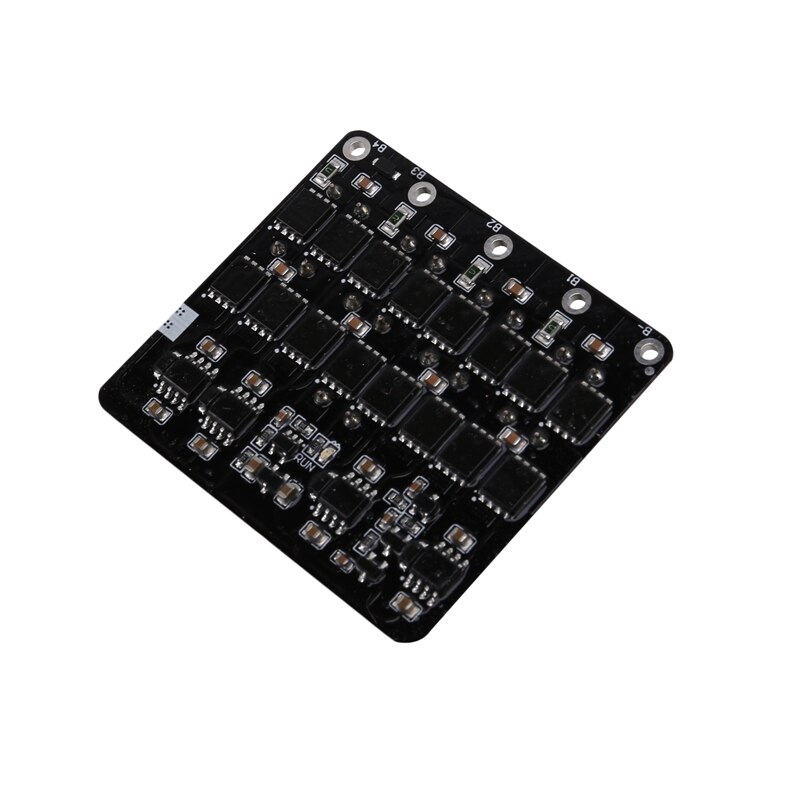

5A Balancer 4S LiFePo4 Li-Ion Ver Battery Active Equalizer Balancer Energy Transfer Board Balance
Lithium battery active balance energy transfer board Lithium battery active equalizer High efficiency energy transfer equalization
Inductive energy transfer equalization board (current 1.5A equalization current, slightly lower precision)
Lithium battery active balance energy transfer board technical parameters :
Working voltage 2.2V-4.5V, LiFePo4 Li-ion Ver Battery universal
Working principle, the inductor converts the transfer charge carrier. When the battery error voltage is above 0.1V, the balance work is started until the error is stopped at 30mv. The built-in improved ultra-low internal resistance MOS, the balance current is 0-1.2A, and the battery voltage difference is smaller. The smaller the current, the static power consumption does not exceed 20uA! With balance instructions! Balanced voltage accuracy within 30mv!
Wiring line length 30cm pure copper 22awg terminal wire!
High-precision energy transfer balance, exclusive balanced IC !
Balance indication:
When the balance indicator is on, the balance work is turned on.
The balance indicator goes out, the balance circuit sleeps,
The balance indicator flashes, it drop cells, or the circuit is faulty.
main color: black
Material: PC+Metal
Package Contents:
1 x Active Balancer
1 x Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Inductive energy transfer equalization board (current 1.5A equalization current, slightly lower precision)
Lithium battery active balance energy transfer board technical parameters :
Working voltage 2.2V-4.5V, LiFePo4 Li-ion Ver Battery universal
Working principle, the inductor converts the transfer charge carrier. When the battery error voltage is above 0.1V, the balance work is started until the error is stopped at 30mv. The built-in improved ultra-low internal resistance MOS, the balance current is 0-1.2A, and the battery voltage difference is smaller. The smaller the current, the static power consumption does not exceed 20uA! With balance instructions! Balanced voltage accuracy within 30mv!
Wiring line length 30cm pure copper 22awg terminal wire!
High-precision energy transfer balance, exclusive balanced IC !
Balance indication:
When the balance indicator is on, the balance work is turned on.
The balance indicator goes out, the balance circuit sleeps,
The balance indicator flashes, it drop cells, or the circuit is faulty.
main color: black
Material: PC+Metal
Package Contents:
1 x Active Balancer
1 x Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
