The laser can be install on CNC 3018pro, CNC2418, CNC1610 engraving machine and so on. you can contact us before make the order.

–Engraving distance:less than 3cm

–Wave length: 405NM-450NM

–Power : 500MW-5500MW

–Voltage: DC 12V

–Power supply: 12V 1A-5A

–Working temperature: +10 ~+40

–Driver module:TTL( 0-5V)

–5500mw and 15000mw laser can engrave on 304stainless steel and anodized aluminum.

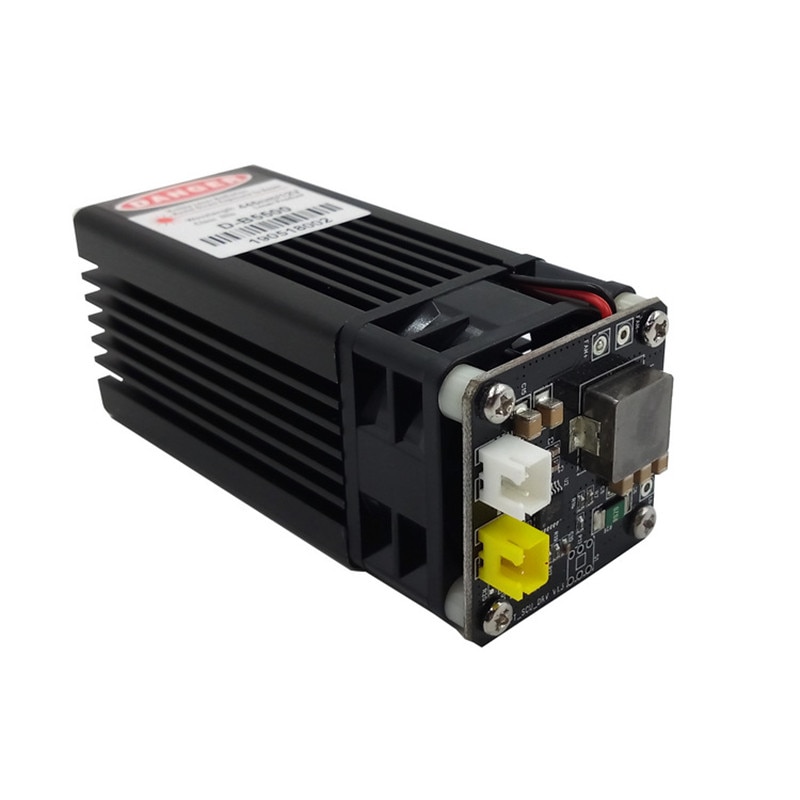

​ Red cable +, black cable -,yellow TTL/PWM , Please check it carefulely if you need to change the wire order

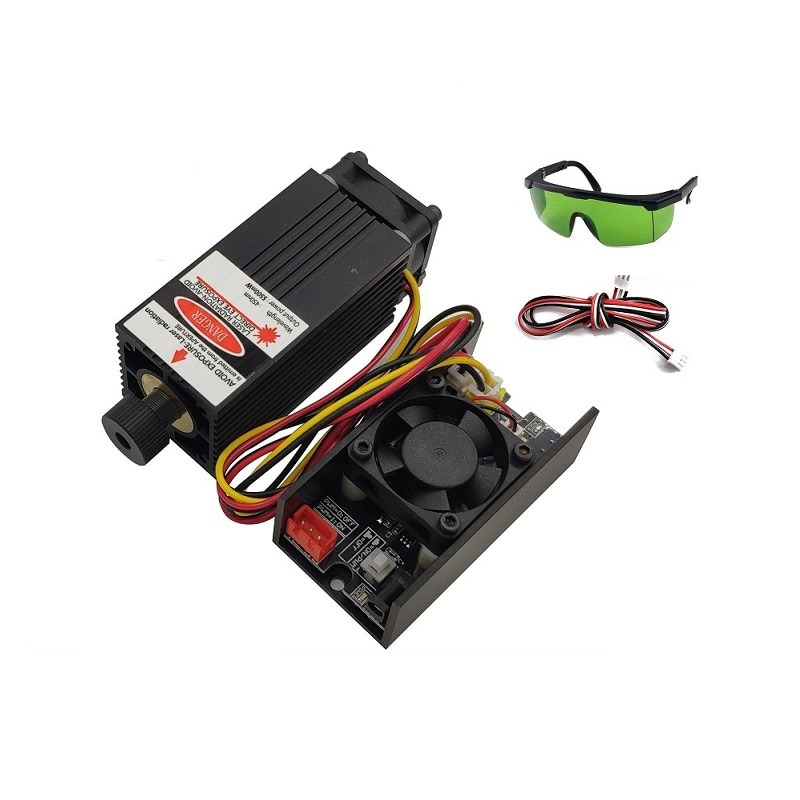

500mw laser : 1*500mw laser+ 3Pin cable+2Pin cable+test cable

2500mw laser : 1*2500mw laser + 3Pin cable+2Pin cable+test cable

3500mw laser : 1*3500mw laser + 3Pin cable+2Pin cable+test cable+red protection glasses

5500mw laser : 1*5500mw laser + 3Pin cable+2Pin cable+test cable+red protection glasses

15000mw laser : 1*15500mw laser + 3Pin cable+2Pin cable+test cable+red protection glasses
