Description

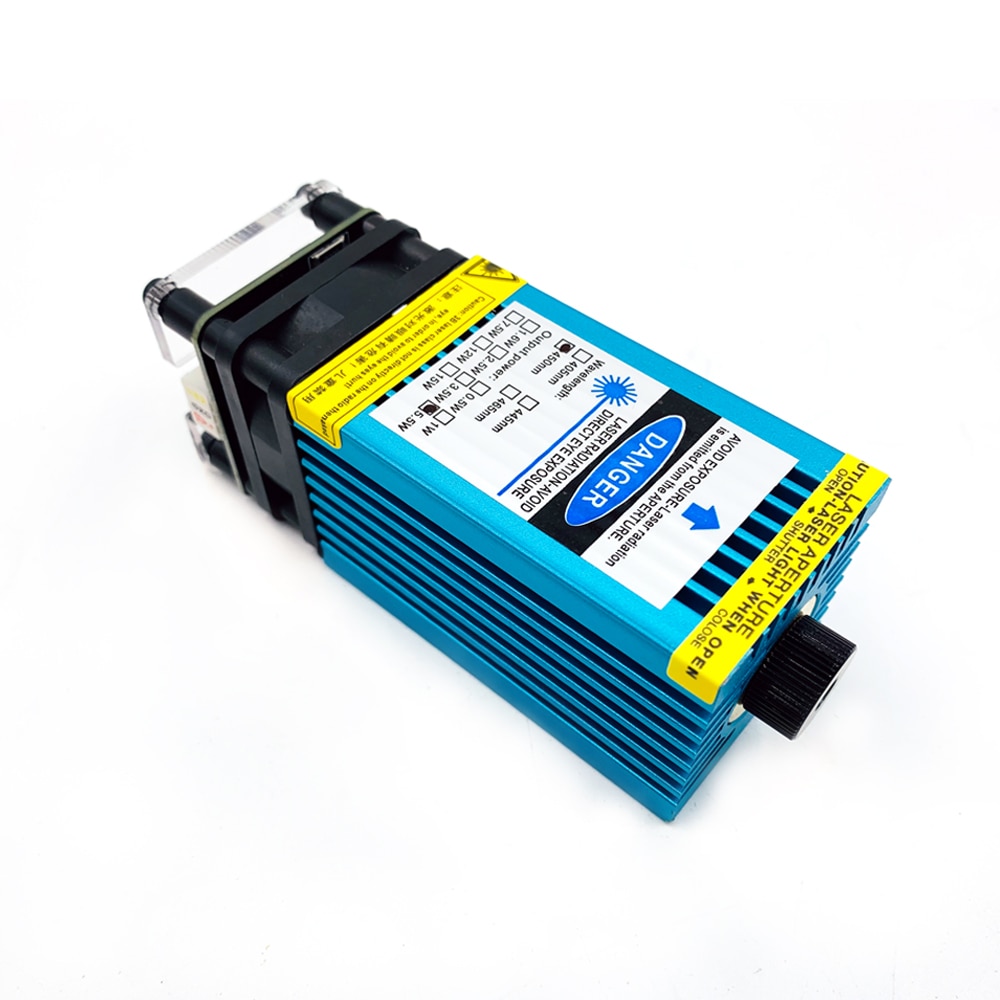

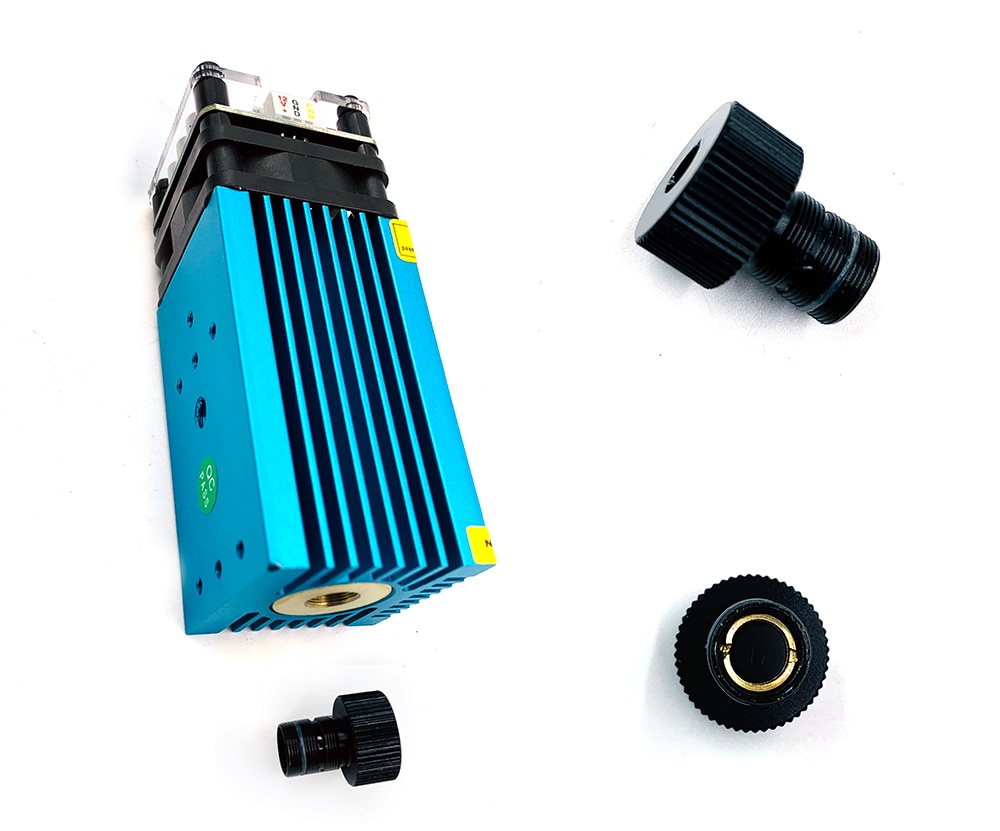

5500mw 2500mw 15000mw 33mm adjustable Blue Laser Module CNC Laser Engraving PWM/TTL Module Can Engrave on stainless steel
Specifications:
Engraving distance:less than 3cm
Wave length: 450NM
Power : 500mw-15w
Electric current: 3-5A
Voltage: DC 12V
Working temperature: +10 ~+40
Driver module:TTL
Can engrave on :wood,leather,bamboo,Painted anodized aluminum,Paper,card,MDF
Can cut :less than 3mm cork wood,0.5mm lather,less than 2mm MDF
Note:

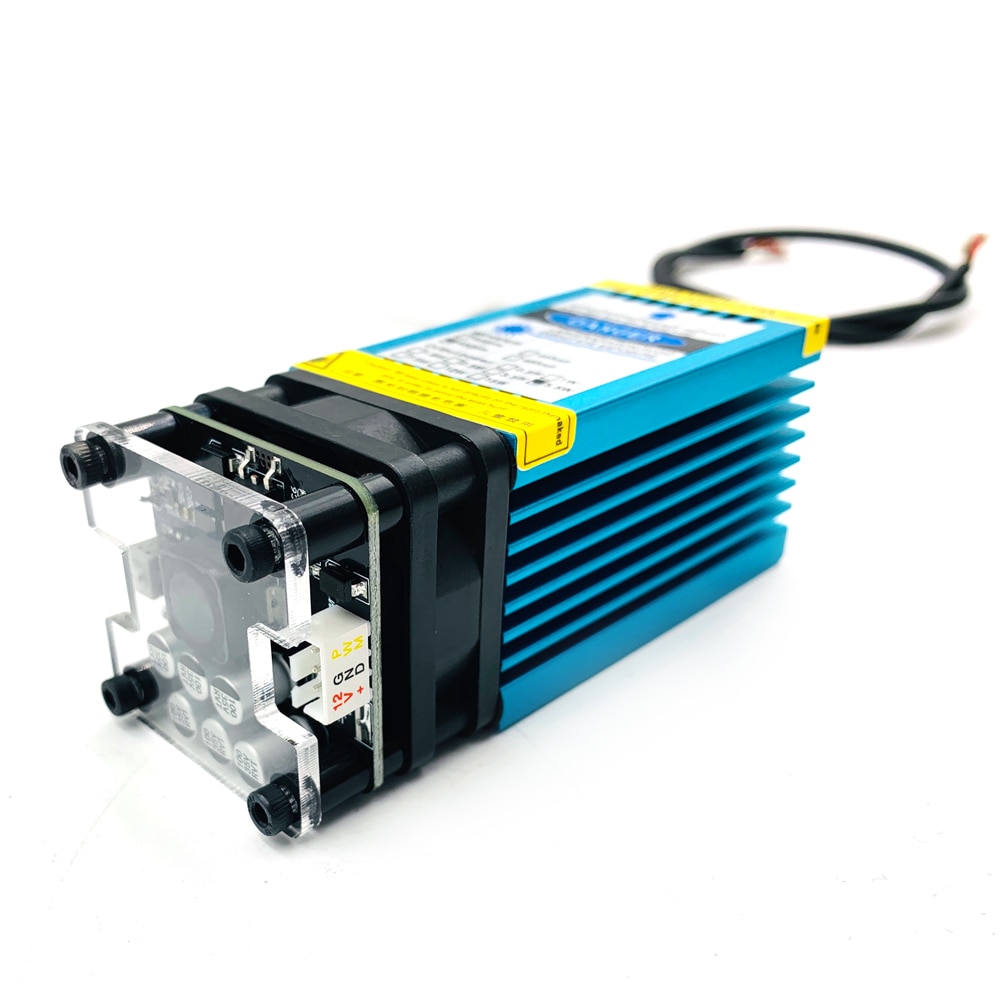

1.Beware of the connections of positive and negative poles + – (red positive black pay pwm yellow line).
2.If the focal length is less than 3cm, the engraving machine will not adjust the lifting module, and the lifting platform can be used.
Package Includes:
1.500mw laser : 1*500mw laser+ 3Pin cable+2Pin cable+test cable
2.2500mw laser : 1*2500mw laser + 3Pin cable+2Pin cable+test cable
3.5500mw laser : 1*5500mw laser + 3Pin cable+2Pin cable+test cable+red protection glasses
4.15000mw laser : 1*15500mw laser + 3Pin cable+2Pin cable+test cable+red protection glasses
