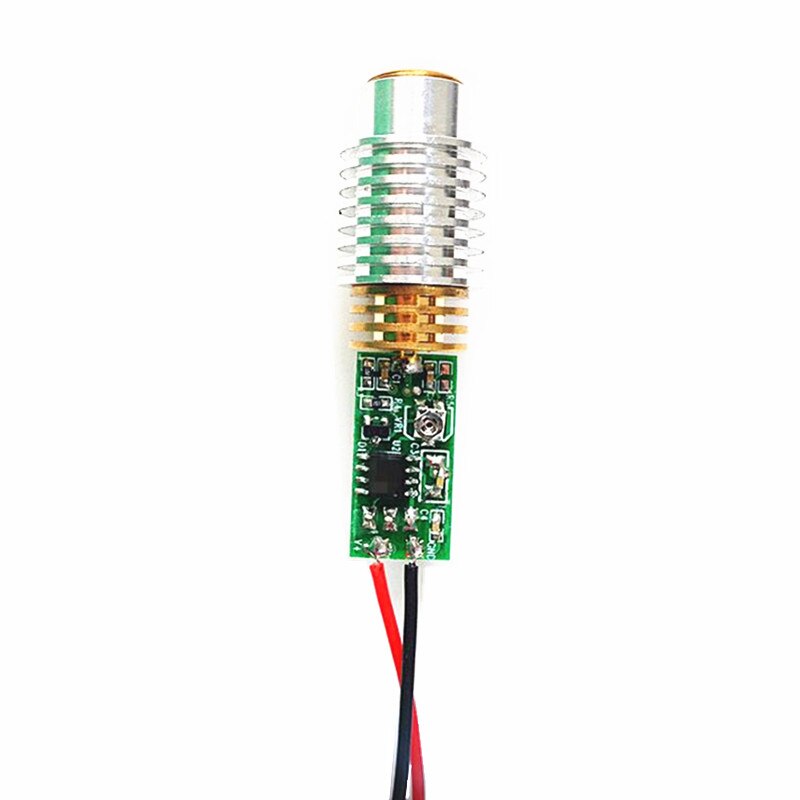

Free Shipping 532nm 650nm 635nm 780nm 808nm 830nm 850nm 980nm Red Blue Green Laser Diode Driver Circuit Board
INTRODUCTION
Laser diode tube driver circuit board, DC 3-6V wide voltage input, constant current output. Double layer fiber circuit board, voltage and current control precision.
Suitable for 532nm 650nm 635nm 780nm 808nm 830nm 850nm 980nm Red Blue Green laser diode tube (Lower than 300mw )
Current range: 10mA~350mA
Input voltage: 3-6VDC
Operating temperature: -10~75 degrees C
Efficiency: 99%
Over current protection: Yes
Short circuit protection: Yes
Size: 22*10*5mm

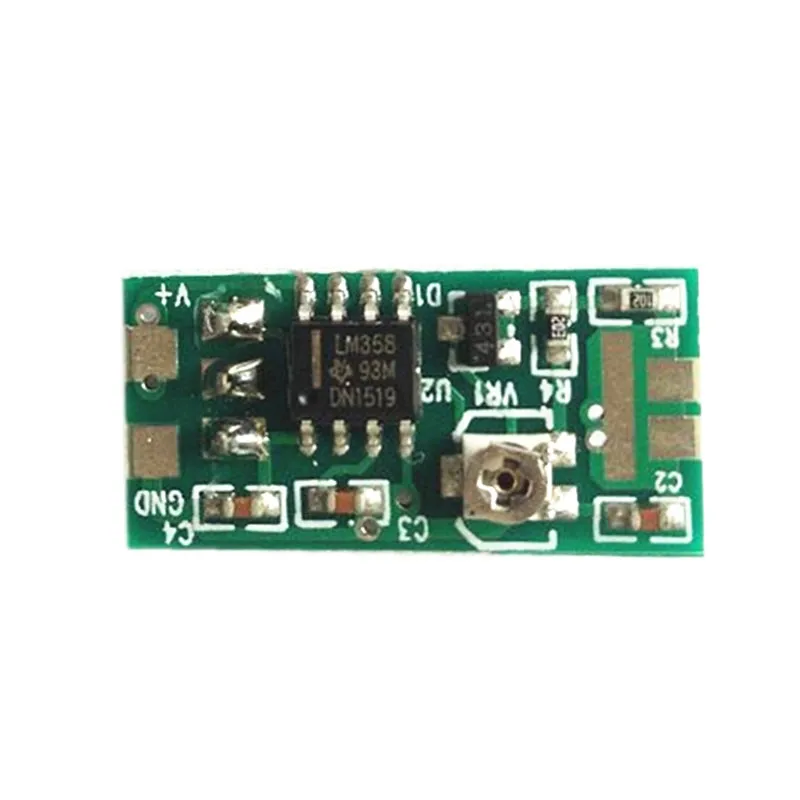

This drive board for the laser diode dedicated PCB board,
Suitable for 532nm green light module, 650nm red laser diode, 635nm red laser diode, 780nm infrared laser tube, 808nm red light laser diode and other laser tube.
Quantity: 1 piece
PACKAGE:
1 piece * Laser Diode Driver Circuit Board (No including the laser)
NOTE:
Need to take care about the laser diode output voltage , to avoid damage of the laser diode .
This item is sensitive for static,please keep in mind that DO NOT touch this item unless you Wear anti-static wrist strap when working with the laser.
Notice:
1 . This laser diode may do harm to human eyes, when the laser tube is working, pay no direct attention to it.
2, The laser tube requires a suitable power supply, transient reverse current can`t exceed 32mA, reverse voltage can`t exceed 4.7V, otherwise it will damage the laser tube.
Test the laser tube: insert or pull out the laser tube after the power off. Do not plug or unplug the laser tube when the power on, otherwise the laser tube will be damaged, invalid.
3, The laser tube should be kept or working in a dry environment to prevent condensation, condensation may damage the laser tube.
4, At high temperatures, it will increase the threshold current, lower the efficiency and accelerate the aging of the laser tube.
5,When the output power higher than the specified parameters, it will accelerate the aging of the laser tube.
6, The laser tube need to be used in fully heat or cooling conditions
7, Laser diodes are ESD sensitive device, anti-static measures should be prepared. Before pick up the case, make sure you get a good grounding condition, otherwise the laser tube will be easily to breakdown by the static electricity, resulting in the laser tube failure. Wear anti-static wrist strap when working with the laser.
