Description

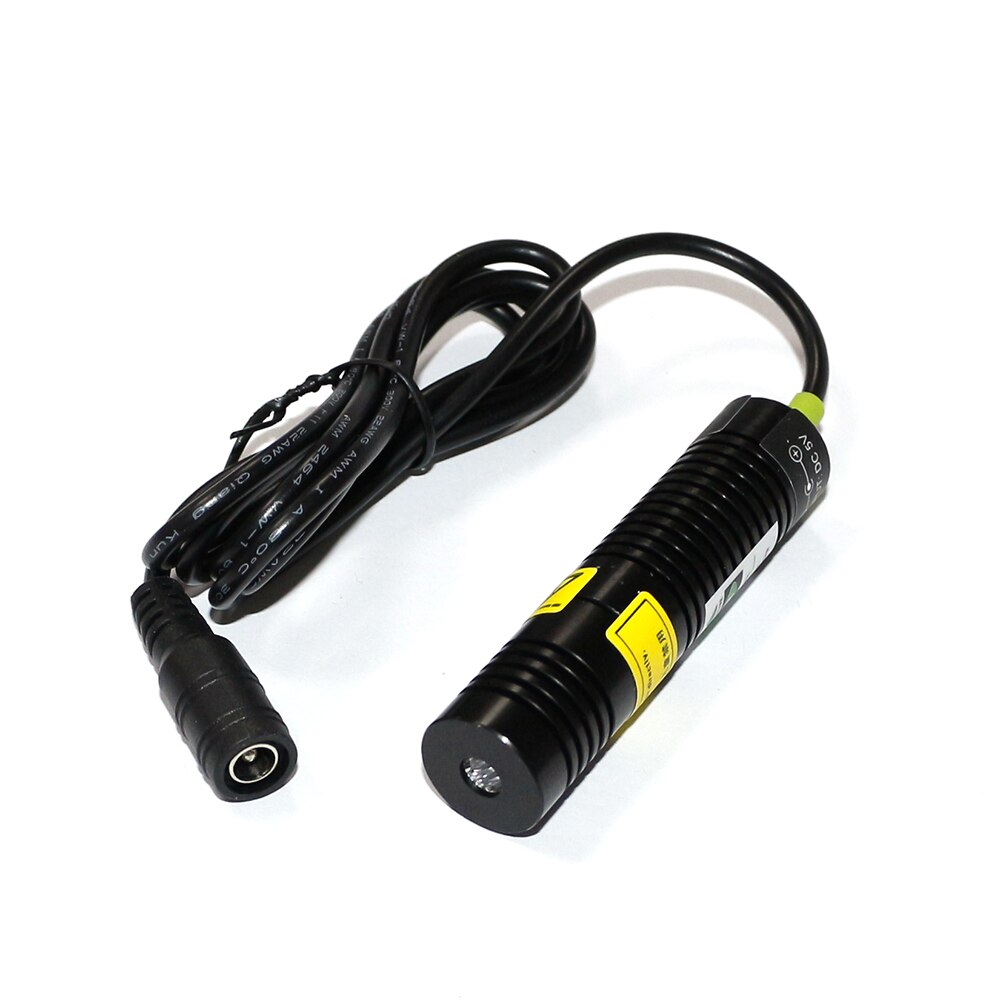

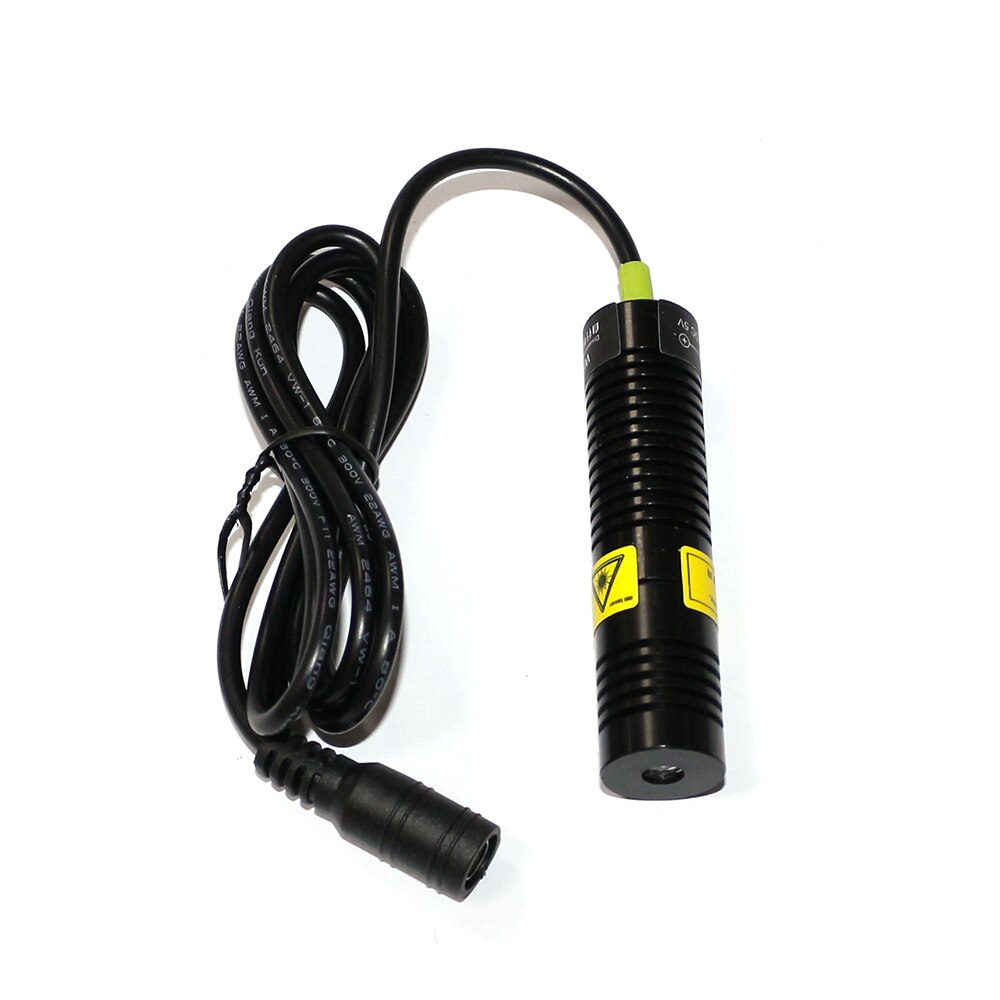

532nm 50mW Line Laser Module Locator 18x75mm + US-Plug AC Adapter + Holder/Mount/Heatsink

Specification:
Wavelength 532nm
Output Power 50mw
Working Voltage 3.0-5.0VDC
Laser Shape Line 110 degrees
Line thickness 2mm at 1m
Dimensions 18mmX75mm
Divergency 0.1-2mrad
Focusable None
Lens: Coated K9 Glass lens
Working Temperature: -40 degrees C-43 degrees C
Duty Cycle: 2 hours on, 10 minutes off

Feature
This laser locator/module has been widely used in clothes cutting, wood cutting, mechanical positioning. A clamp/holder and a 5.0V 1.0A US-plug AC/DC adapter are added for the user’s convenience. If you want to prolong the duty cycle, please add additional heatsink, otherwise the laser diode ‘s life will be shorten greatly, and the output of the laser will reduce very soon..

Package:

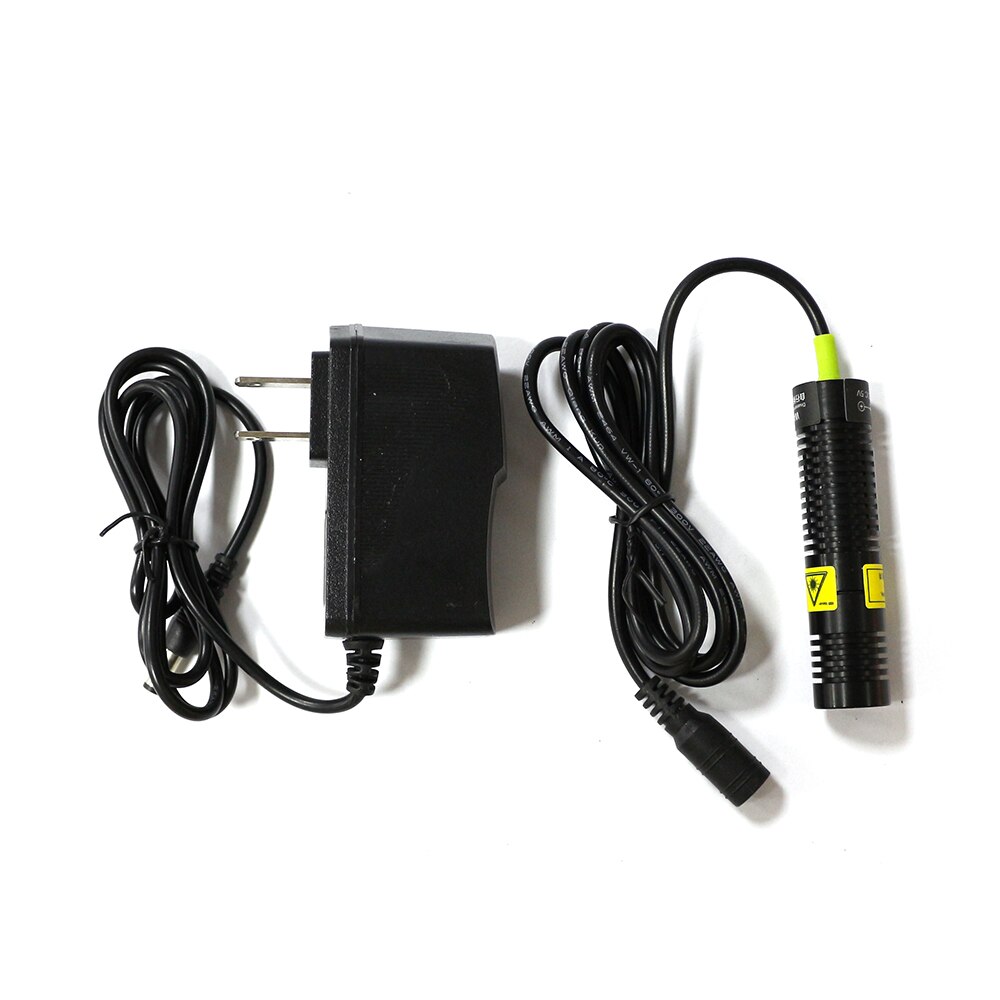

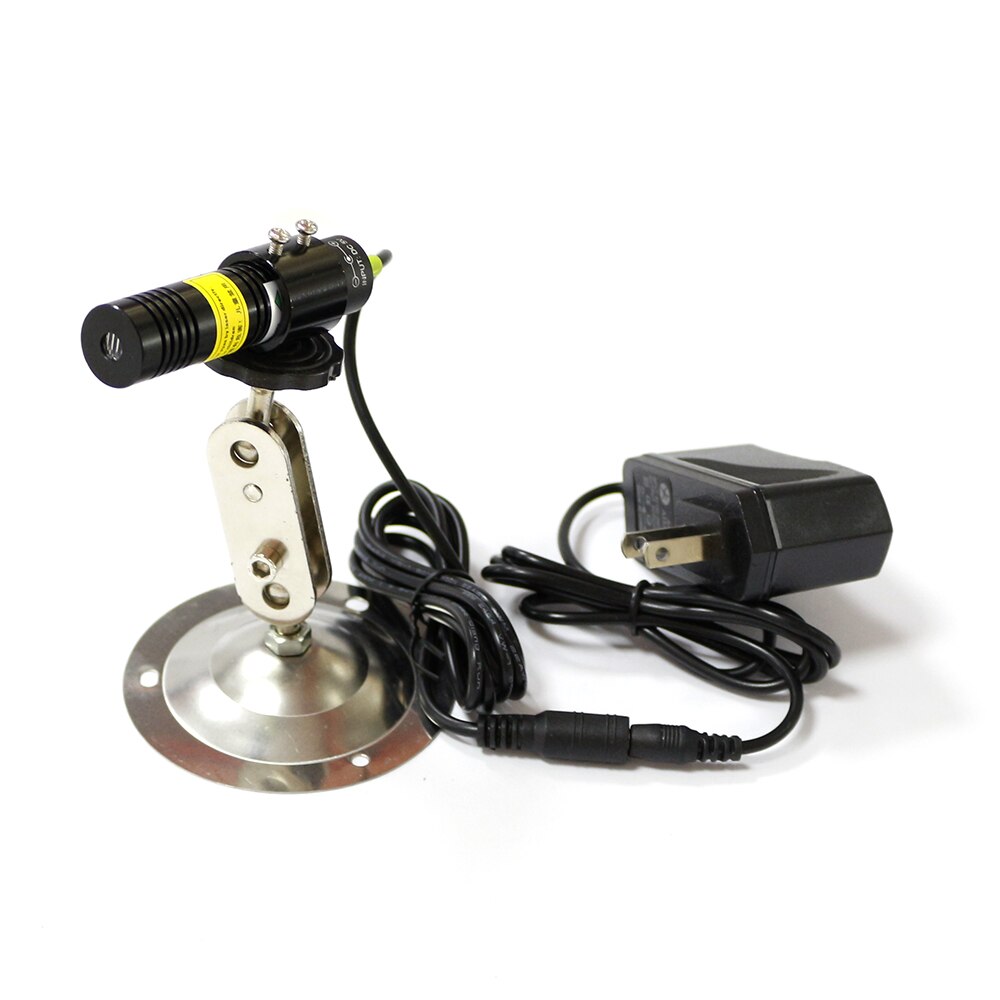

1 x 532nm 50mw Green Laser Line Module 18x75mm + 1x US-Plug AC Adapter + 1x 18mm Holder/Mount/Heatsink
