Description

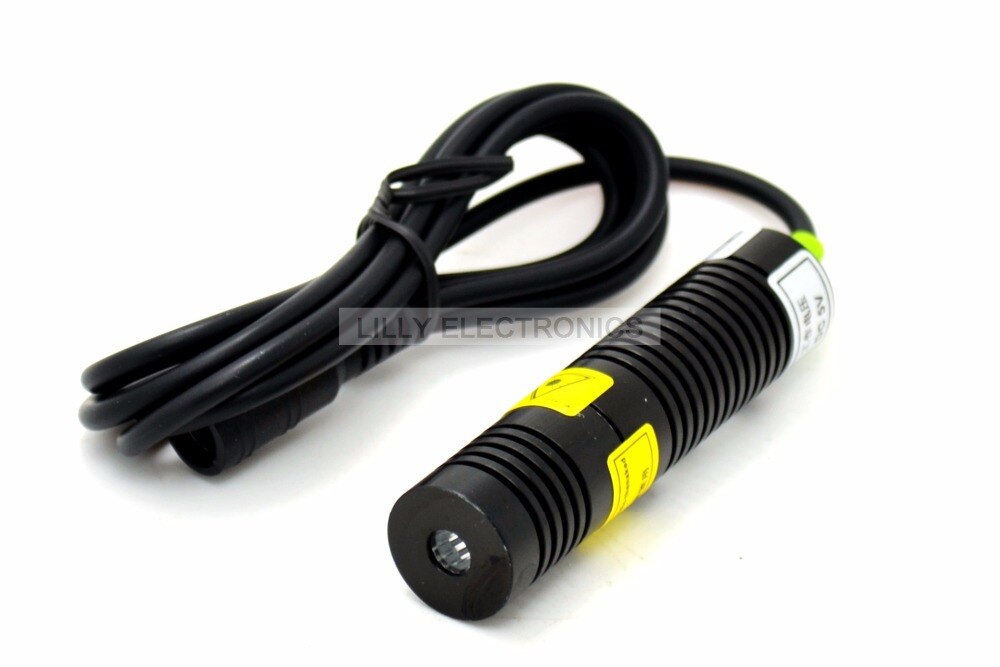

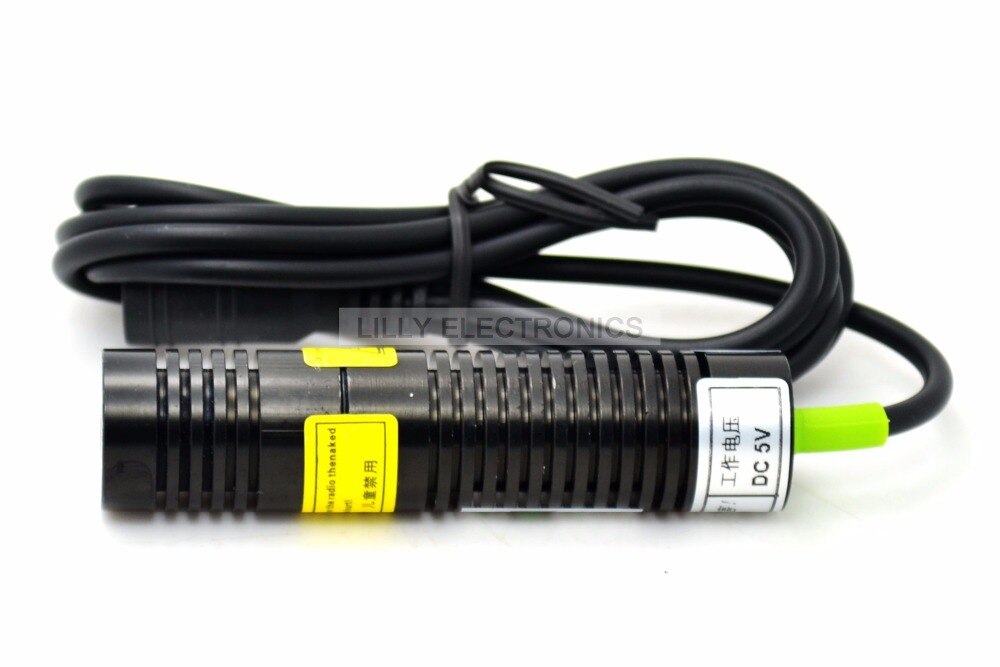

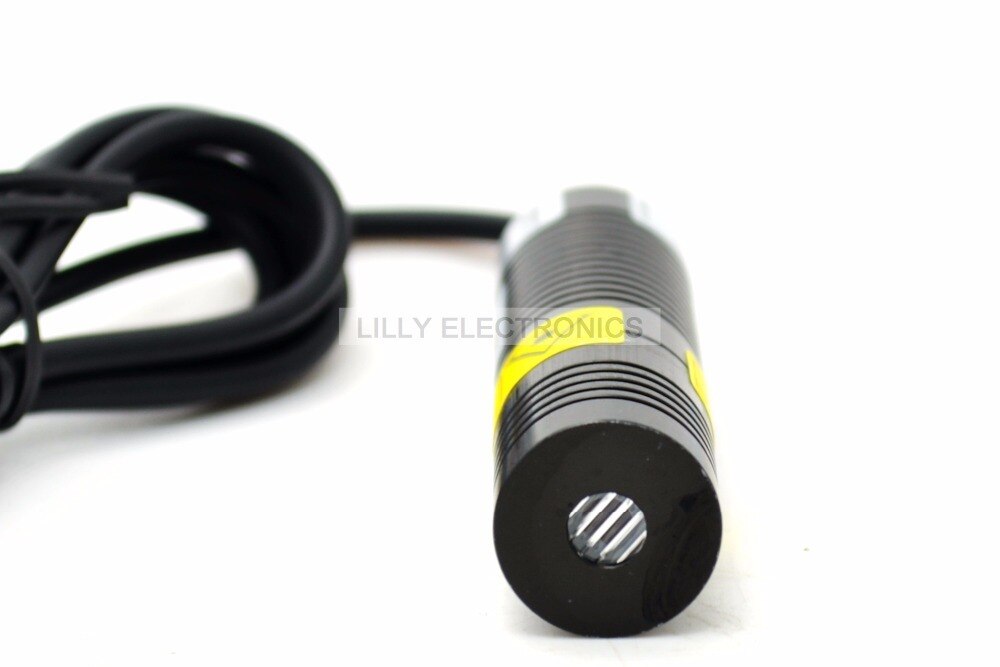

532nm 50mw Laser Line Module Locator for Cutting 18x75mm 3-5VDC
Features: .
Wavelength 532nm
Output Power 50mw
Working Voltage 3-5VDC
Laser Shape Line 110degree
Line thickness 2mm at 1m
Dimensions 18mmX75mm
Divergency 0.1-2mrad
Focusable None
Lens: Coated K9 Glass lens
Working Temperature: -40degree-43 degree
Duty Cycle: 30 minutes on, 5 minutes off
Detail:
This laser locator/module has is widely used in clothes cutting, wood cutting, mechanical positioning. A clamp/holder and a 3.3V 1.5A AC/DC adapter are added for the user’s options.
If you want to prolong the duty cycle, please add additional heatsink, otherwise the laser diode ‘s life will be shorten greatly, and the output of the laser will reduce very soon.
Package
1x 532nm 50mw Green Laser Line Module 18x75mm 3-5VDC
