Description

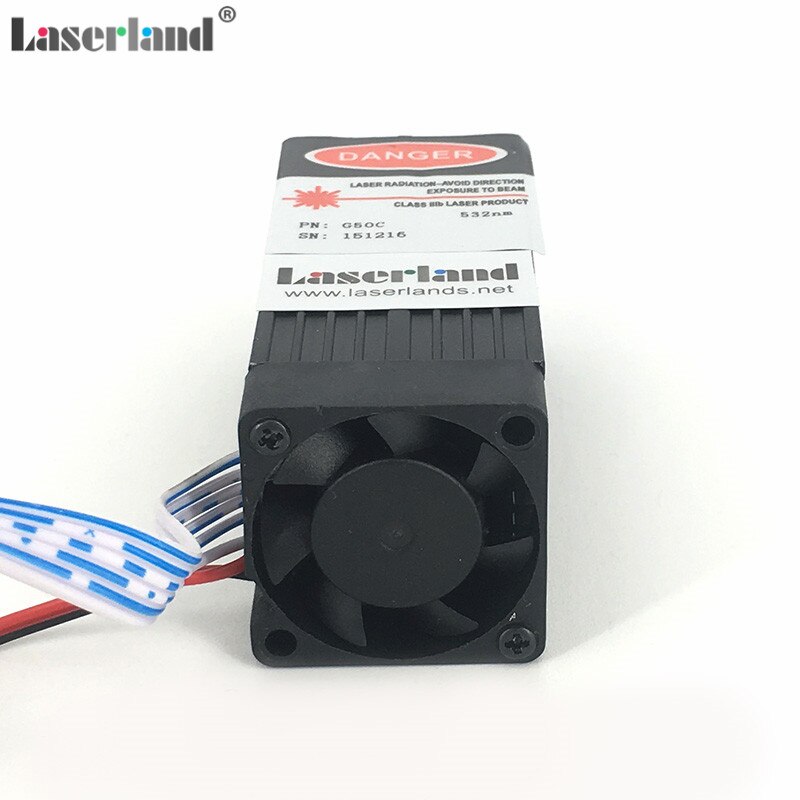

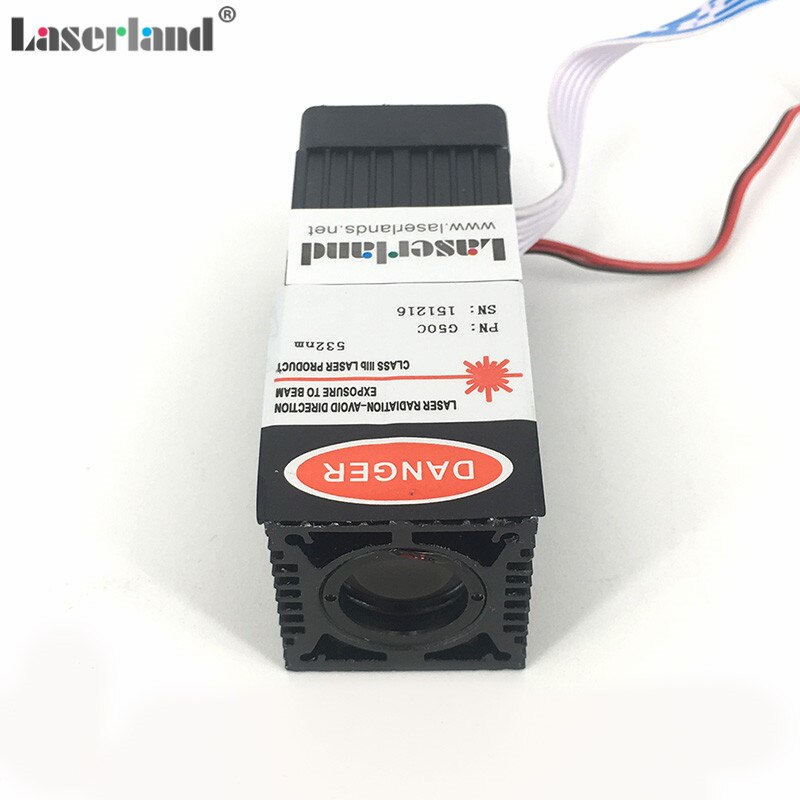

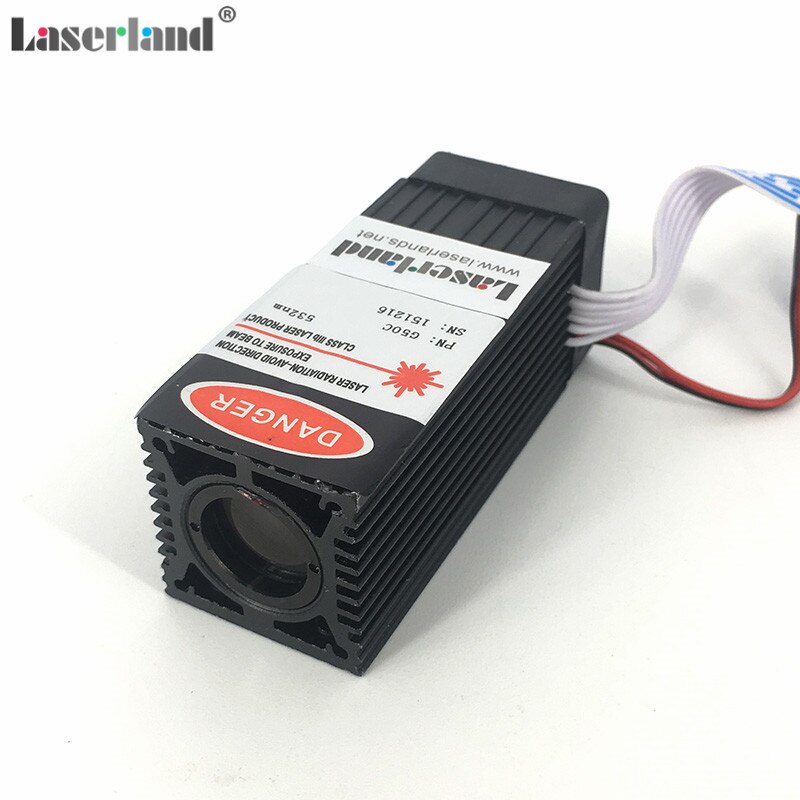

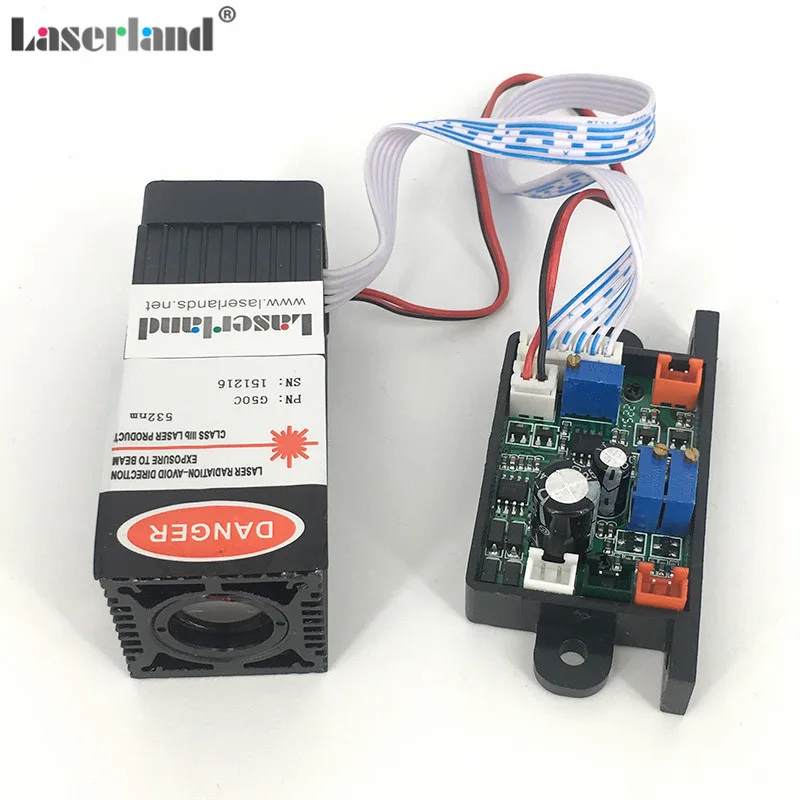

532nm 50mw big fat beam Green Laser Diode Module TTL 12V light show

wavelength(nm)   532

Output power(mw)   >50

Transverse mode   TEM00

Operating mode   CW

Power stability (rms, over 4 hours)  <5%

Warm-up time (minutes)  <15

M2 factor   <1.2

Beam divergence, full angle (mrad)  <1.5

Beam diameter at the aperture (mm)   ~13

Beam height from base plate (mm)   16

Polarization ratio   >100:1

Beam roundness   >90%

Operating temperature (℃)   10～35

Power supply (12VDC)   35.6(L)×72(W)×24(H)

Dimensions of Laser Head (mm)   85.5(L)×32(W)×32(H)

Modulation option   TTL/Analog modulation0-5V

Expected lifetime (hours)   5000

Warranty period    1year
