Description

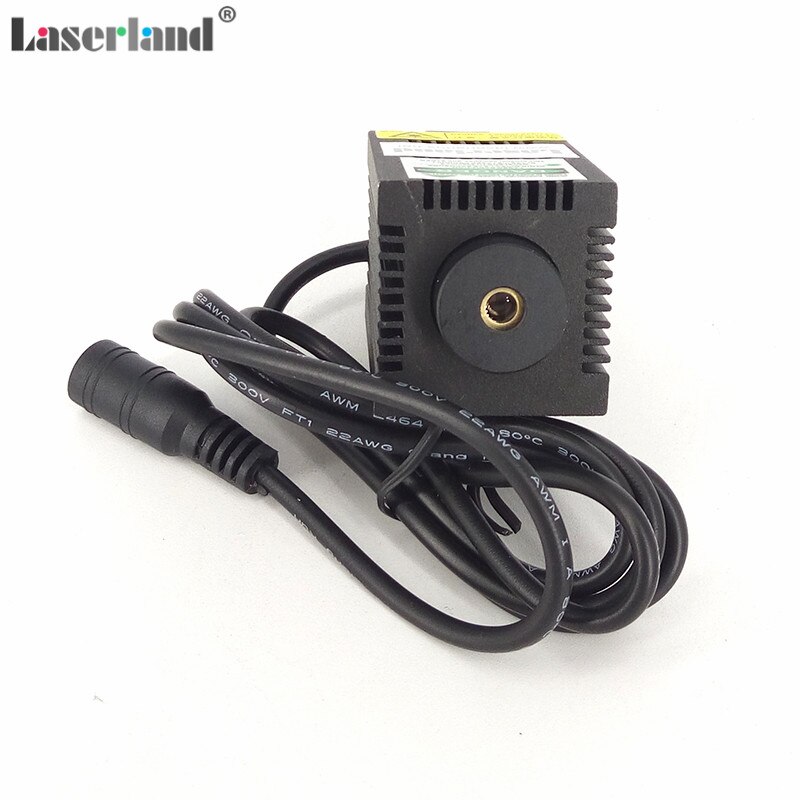

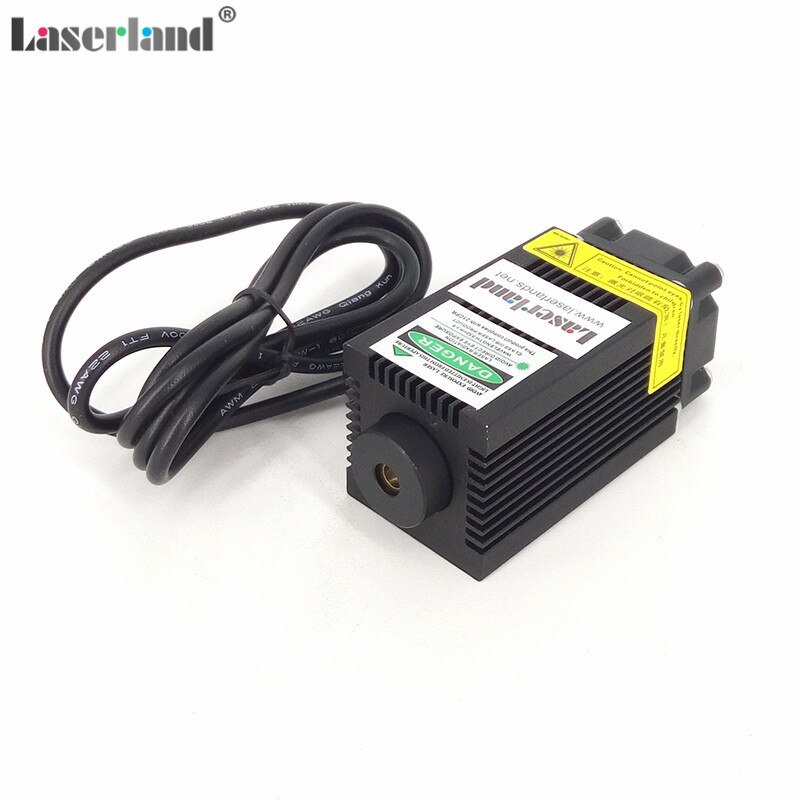

532nm 50mW-80mW Green Laser Diode Module with Fan Adapter 12VDC Stage Lighting

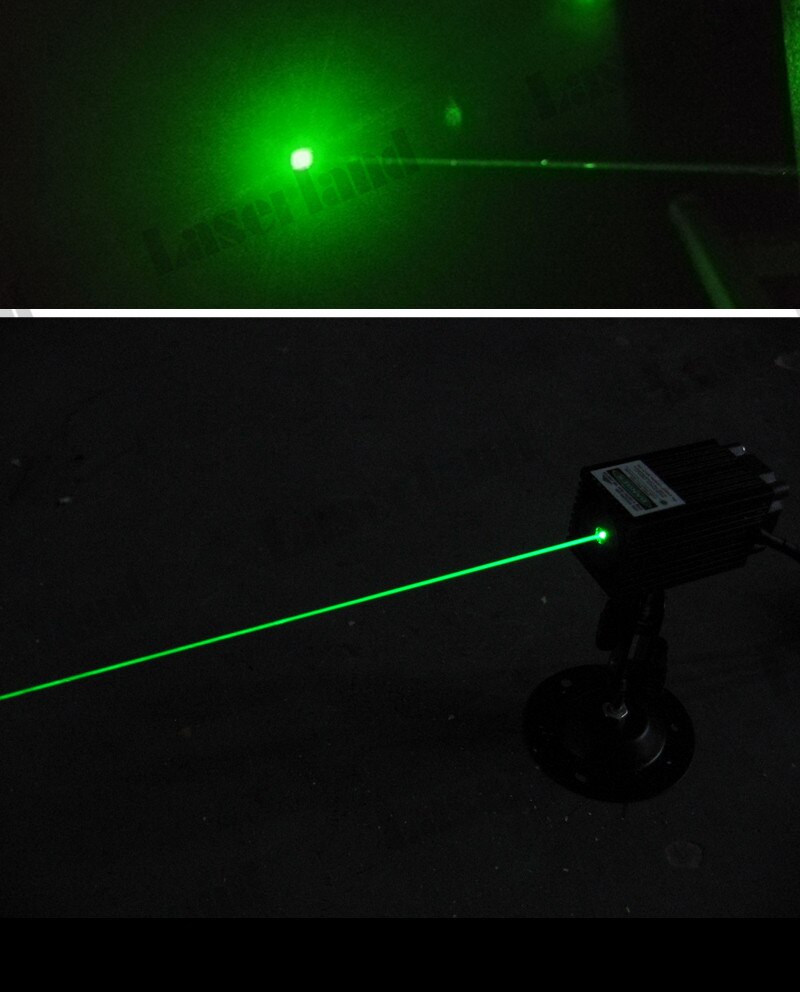

12VDC 532nm 50mw-80mw Green Ray Laser Dot Module w/ Adapter stage lighting
This laser module is an industrial electronic component and used for as Industrial test, Lab, DIY.
Comparing with 532nm green or 650nm red lasers, 405nm/450nm violet/blue laser is hard to be seen by human since the wavelength is on the range of spectrum by human eye sensibility. Not a handheld laser.
We highly suggest that you use good cooling for laser driver if you use it long time.
| Specification | |
| Model | 532MD-65-12V |
| Output Power | 65mw |
| Wavelength | 532nm |
| Working Voltage | 12v DC |
| TTL | N/A |
| Laser Shape | Dot (very close to TEM00) |
| Material | Metal |
| Lens | glass |
| Adapter | 12VDC (we send the adapter as bonus for free, we have us and eu standard only. but we cannot 100% guarurantee it can work in your country) |
| Dimension | head: 33X33X54mm |

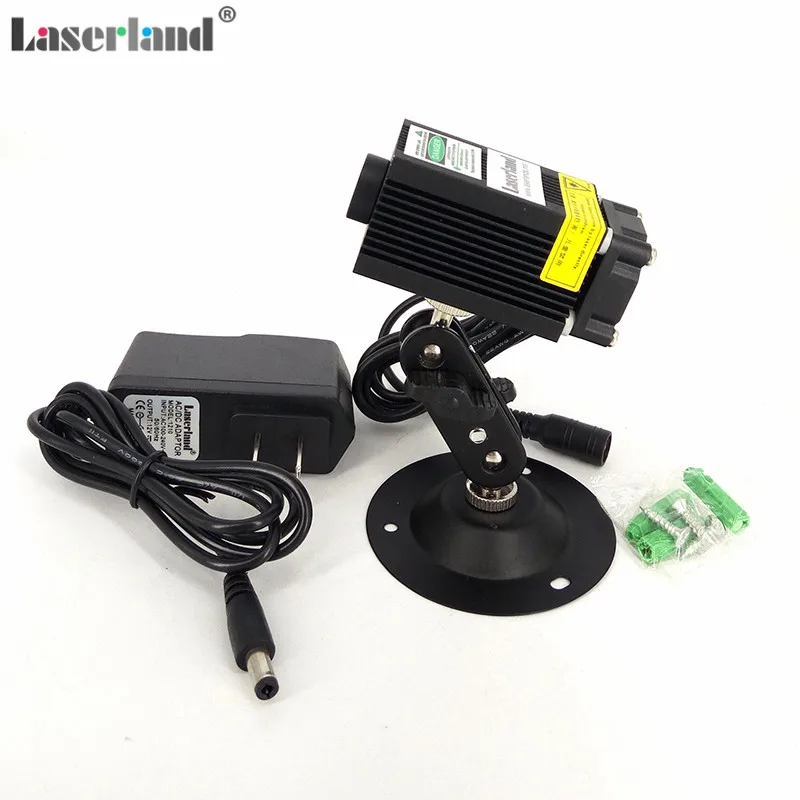

| Package | 532nm 65mw laser with adapter |
Note:
The modules are tested and the output power are measured by laser power meter before sending out.Please don’t compare the power of this one with a none-measured laser.If you doubt the output, please have the laser you recieved checked by laser power meter. If there is any problem, please feel free to contact us. We will solve the problem asap. Fan is temp control. so that it may not always turns on.
