Specifications:

Host size: length 55mm*width 30mm*height 30mm

Output wavelength: 532 nm

Output power: 95-120mW

Cooling method: air cooling

Modulation frequency: TTL 0-30K HZ

Working characteristics: continuous work

Surface treatment: black

Shell material: aluminum

Circuit control: constant current

Reverse connection
protection: with automatic identification of positive and negative poles

Working voltage: DC=12V

Working current: I<500mA

Warm-up time: none

Working temperature: -10℃～＋40℃

Storage temperature: -10℃～＋40℃

Structural features: laser tube + lens + heat dissipation shell

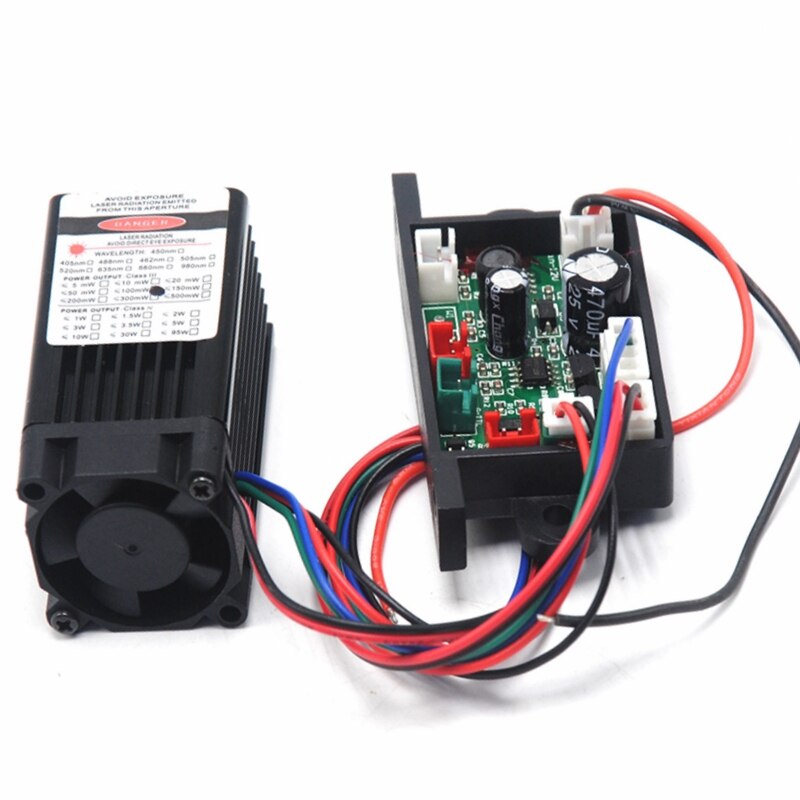

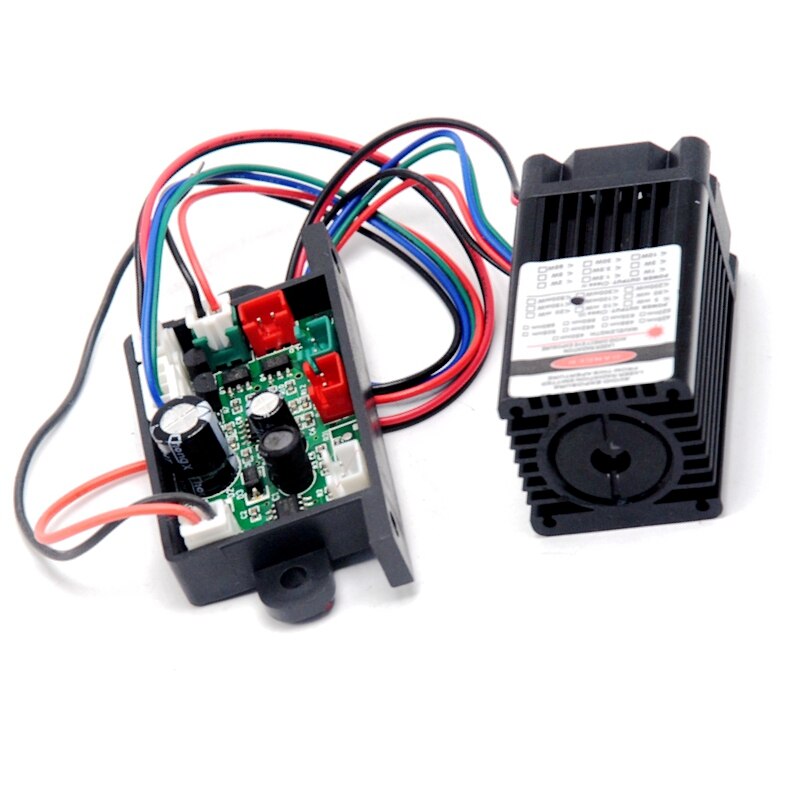

Remarks: The power supply and laser head are split, and the laser head is equipped with a fan for cooling.
