Description

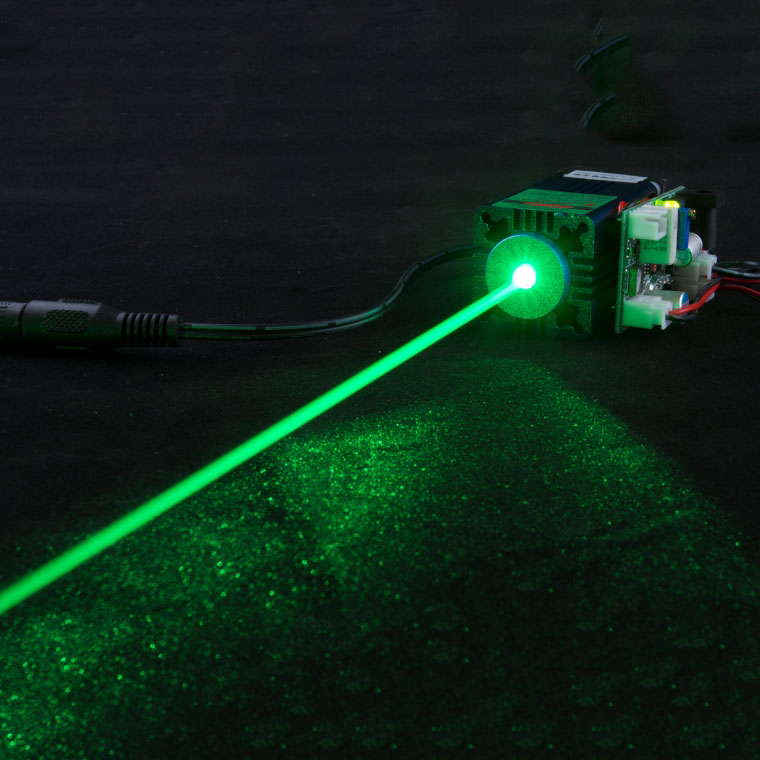

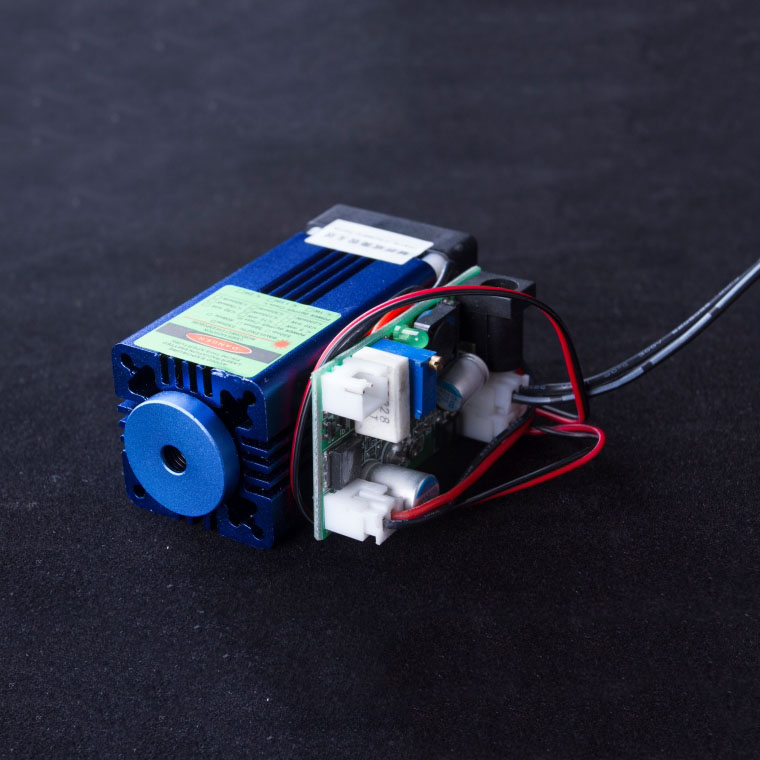

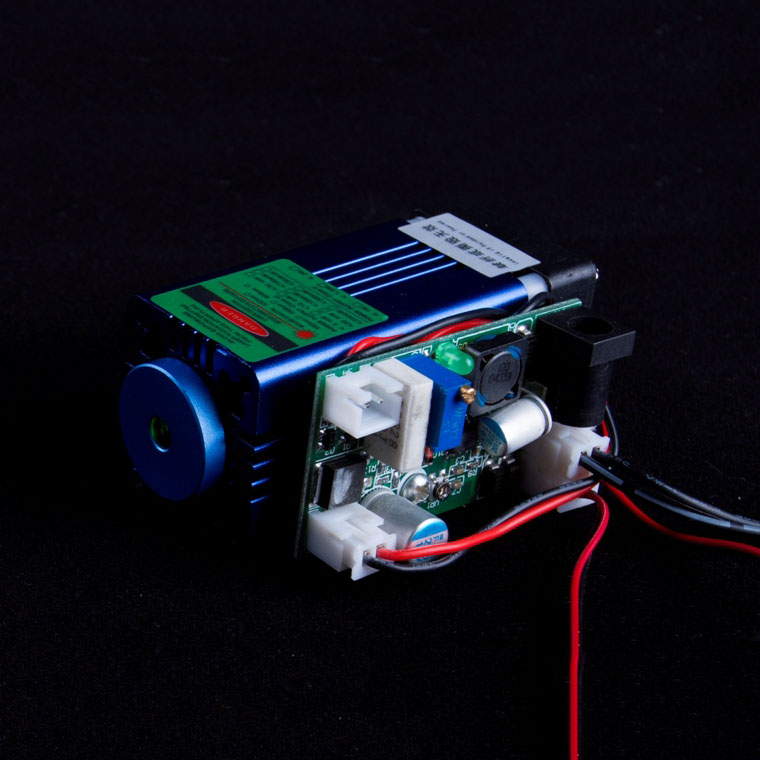

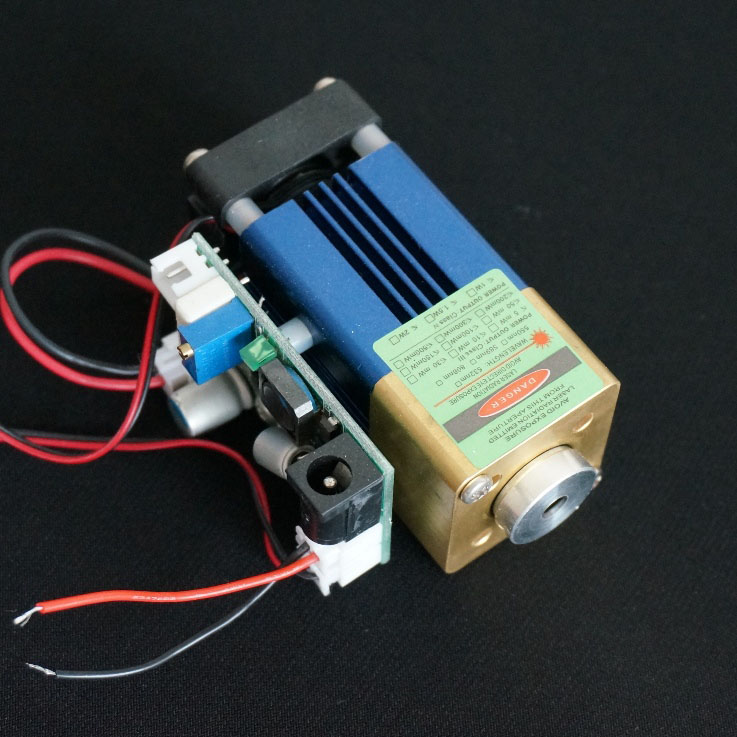

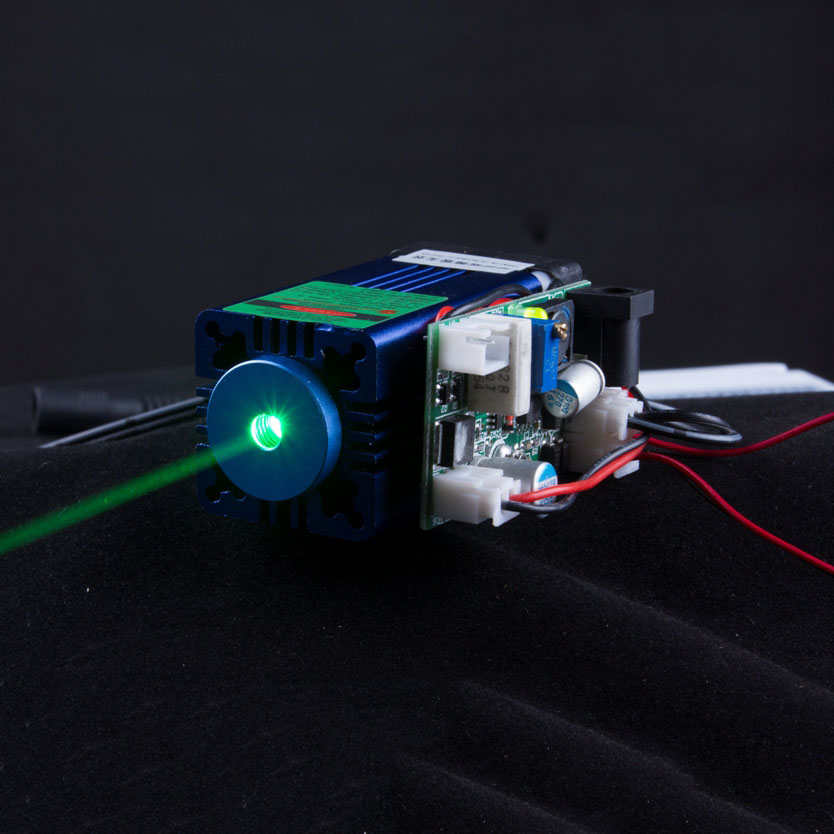

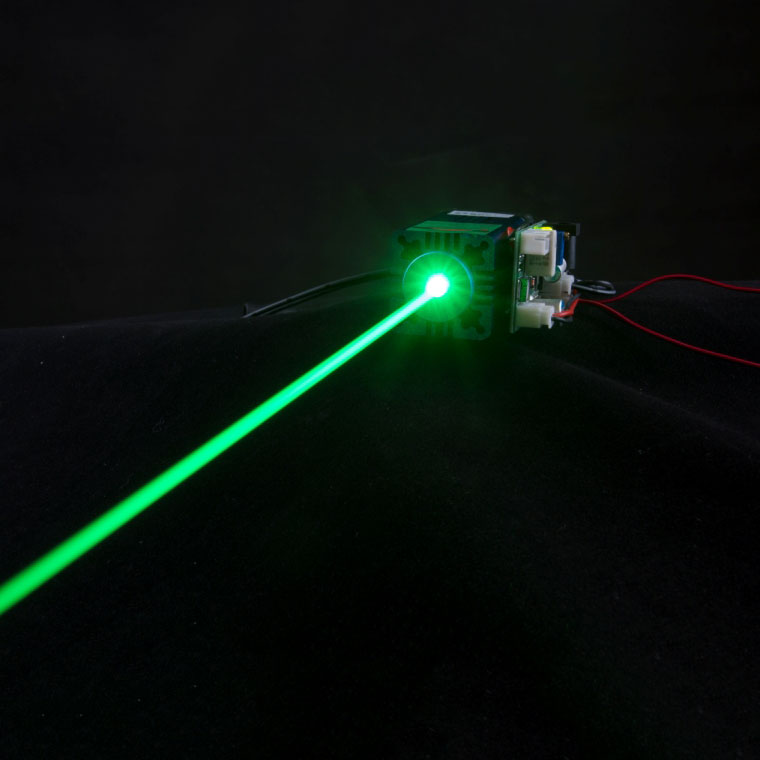

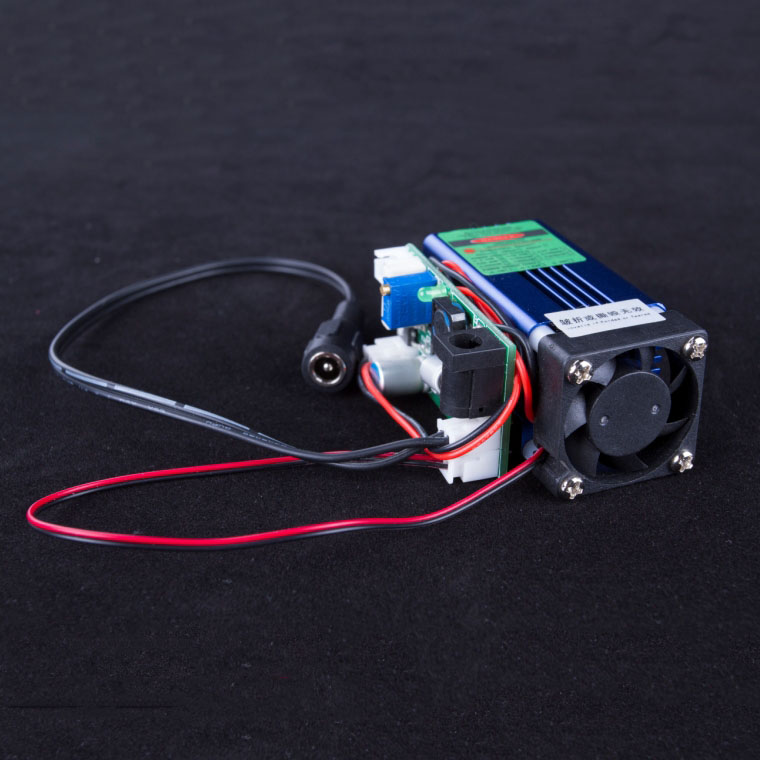

520nm Green Laser Module Green Laser 100mW Portable Laser ModuleFor Industry Medical

parameter:

Host size: length 69mm * width 30mm * height 30mm
Circuit size: length 47.5mm* width 31.5mm* height 16mm
Output wavelength: 520 nm
Output power: 100mW optional
Cooling method: aluminum heat dissipation
Modulation frequency: modulatable
Working characteristics: Can work continuously
Surface treatment: green
Shell material: aviation aluminum
Circuit Control: Buck Constant Current
Reverse connection protection: with automatic identification of positive and negative
Working voltage: DC=12V
Working current: 100mW<I<1.7A
Warm-up time: no
Working temperature: -10 ° C ~ +40 ° C
Storage temperature: -10 ° C ~ +40 ° C
Structural features: laser tube + lens + heat sink
