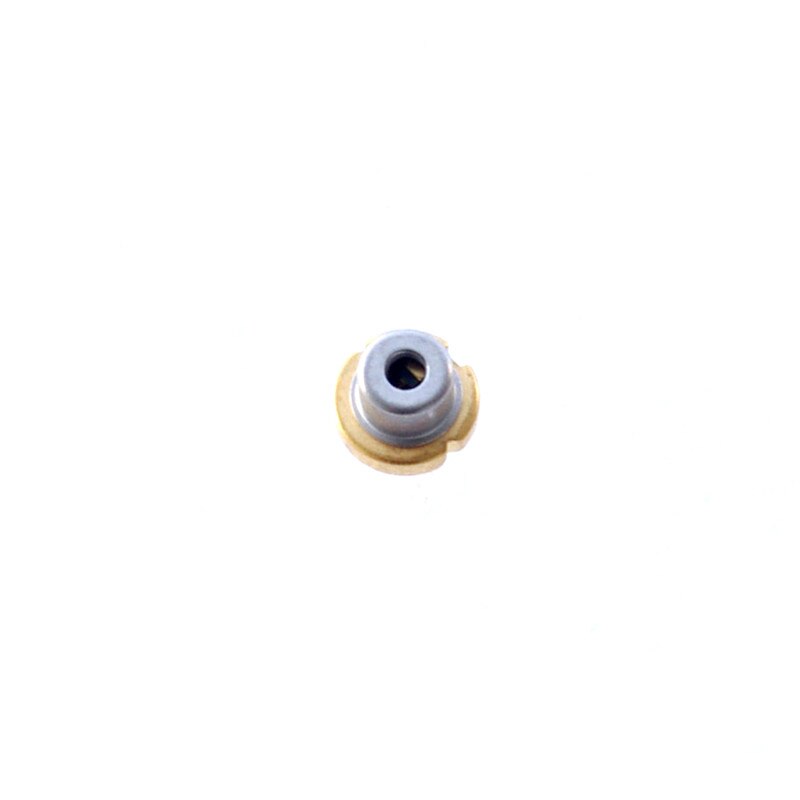

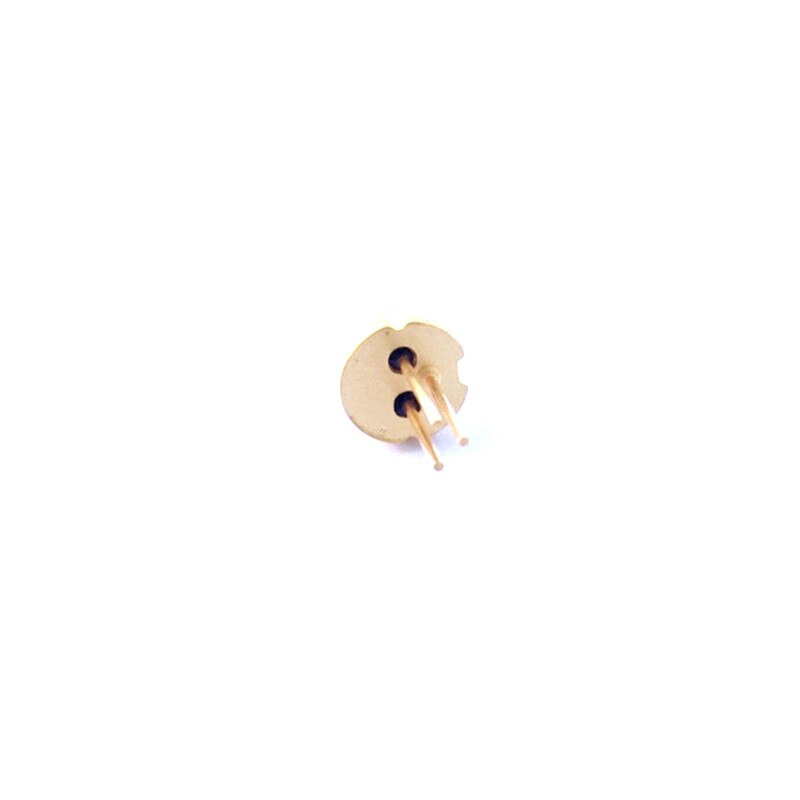

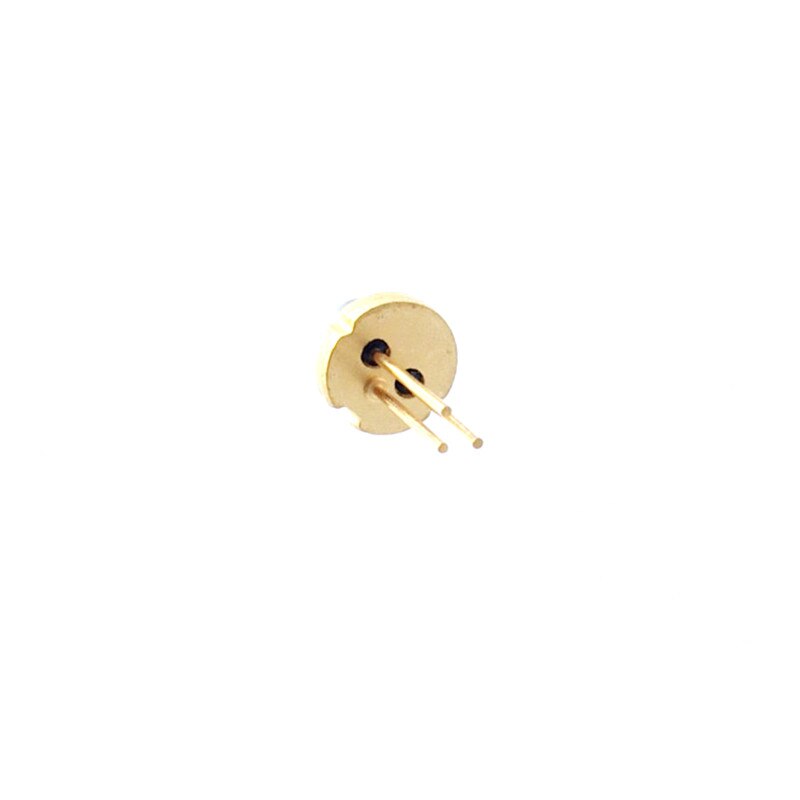

510nm 515nm 10mw PLT5 510 Green Laser Diode LD with PD for Laser Level with PD

Osram 510nm PLT5 510 with PD

Features

• Optical output power (continuous wave): 10 mW (T_case = 25 °C)

• Typical emission wavelength: 515 nm

• Efficient radiation source for cw and pulsed operation

• Single transverse mode semiconductor laser

• High modulation bandwidth

• TO56 package with photo diode



Applications

• Laser projection

• Laser shows

• Presenter

• Biomedical Applications

• Metrology



Safety Advice

Depending on the mode of operation, these devices emit highly concentrated visible light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions found in IEC 60825-1 “Safety of laser products”.





Type:	Optical Output Power Popt (Tcase = 25°C)	Ordering Code
PLT5 510_B1-3	10 mW	Q65111A6310



Maximum Ratings

Operation outside these conditions may damage the device. Operation at the maximum ratings influences lifetime.

Parameter	Symbol	Values		Unit
		min.	max.
Operating Current	IF		120	mA
Operating Temperature	Tcase	-20	+60	°C
Storage Temperature	Tstg	-40	+85	°C
Reverse Voltage	VR		2	V
Soldering Temperature max. 10 sec.	Tsolder		260	°C
Junction temperature	Tj		120	°C



Laser Characteristics (T_case = 25 °C)

Parameter	Symbol	Values			Unit
		min.	typ.	max.
Emission Wavelength 1) B1 B2 B3	λpeak	510 515 520	– – –	515 520 530	nm
Spectral Width (FWHM) 1)	Δλ	–	2	–	nm
Threshold Current	Ith	–	30	60	mA
Operating Current 1)	IF	–	60	100	mA
Operating Voltage 1)	VF	–	5.4	7.0	V
Beam Divergence (FWHM) 1)	θ∥ x θ⊥	5 x 19	6.6 x 21.4	9 x 25	deg
Polarization 1)	Pgr	–	100:1	–
Modulation Frequency	f	–	>100	–	MHz
Thermal resistance (junction to case)	Rth	–	34	–	K/W
Monitor current 1) 2)	Im	–	150	–	µA

1) Standard operating conditions refer to a continuous wave output power of P_opt = 10 mW.

2) Photo current refers to a reverse voltage of V_R = 5 V.
