Description

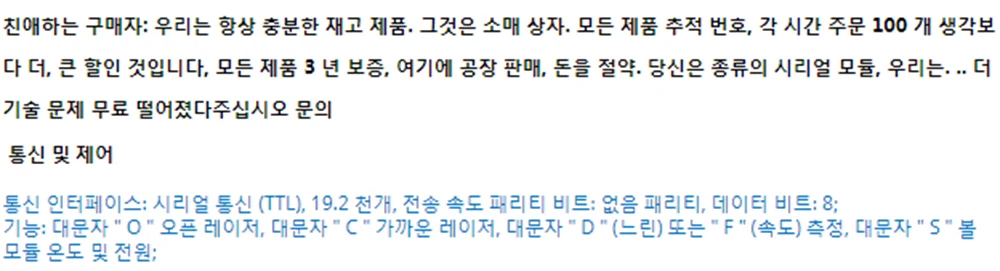

Dear buyer :We always have enough products in stock .it is with Retail box.all products with tracking number,if each time order 100pcs than more ,will be take big discount,all products 3year warranty, Here Factory for sales,save you money.if you need any kinds serial module,we can …more Techniques problem please fell free contact us



 Communication and control


Communication interface: serial communication (TTL), 19.2K, baud rate parity bit: no parity, data bits: 8;

Function: send capital letters "O" to open the laser, capital letters "C" to close the laser, capital letters "D" (Slow) or "F" (Speed) for measuring distance, capital letters "S" to view the module temperature and power supply;



3.0V/RS232 three wire serial interface ( the single chip microcomputer UART interface), 19.2 KHZ.Start bit 1 + 8 + 1 stop bit and no flow control
Power supply voltage: DC23.0V – 3.2 V.
2 ma electrical flow: DC3V, standby, measuring 120 ma;
Laser type: 635nm, 1 mw.(red)
Range: 0.03 to 50 meters;
Measurement speed: 0.1 s, 0.1 s, 0.3 s – 4 s, 4 s.
Typical accuracy: + / – 1 mm (0 to 40, indoor 20 meters white walls; through correction can be up to + / – 1.5 mm)
Storage temperature: – 20-60 use temperature: -10-40
module  size: Approx 45mm * 25 mm * 12mm
Instructions: open the laser, laser, a single measurement, gets to the power supply voltage and temperature.
Packet List:

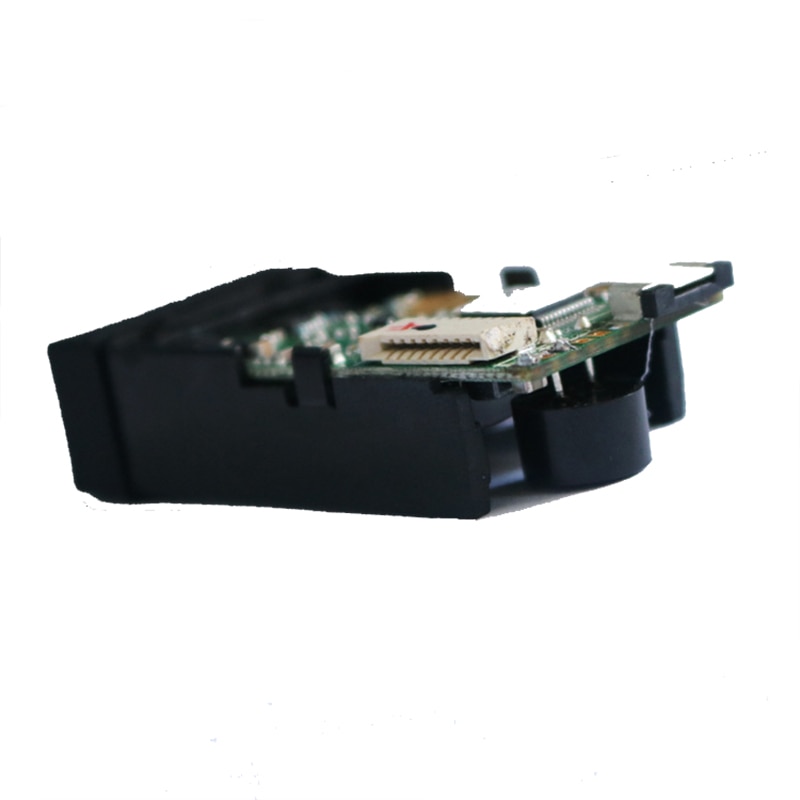

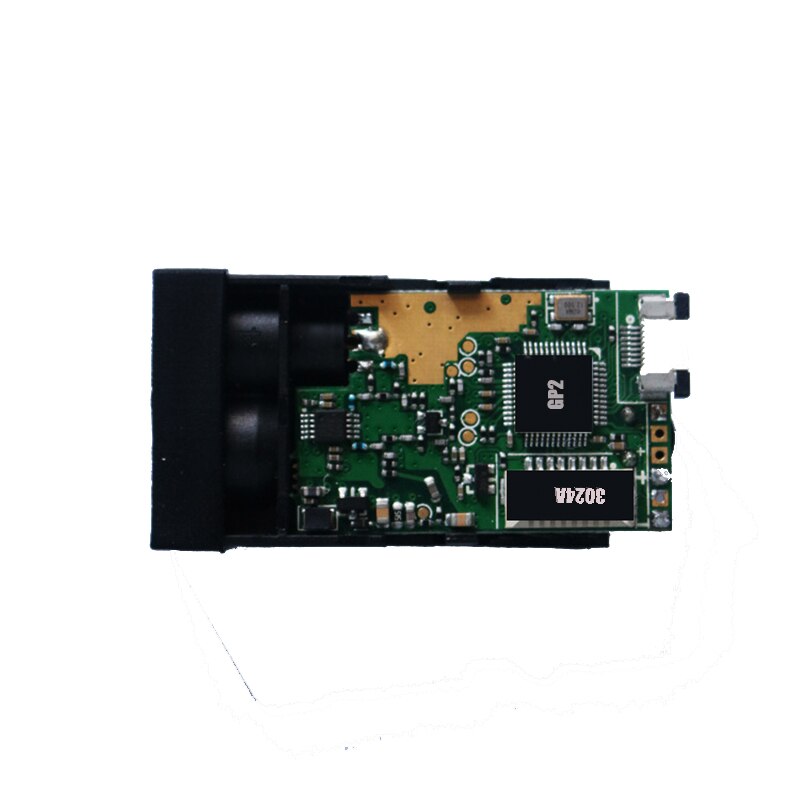

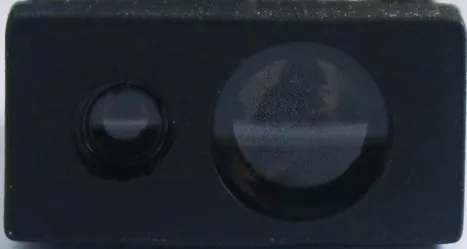

1 X Rangefiner module  without screen)
