Description
VS-MA-10-1.0-Model D 500W diode for 808nm laser hair removal device replacement
500W diode for 808nm laser hair removal device details:

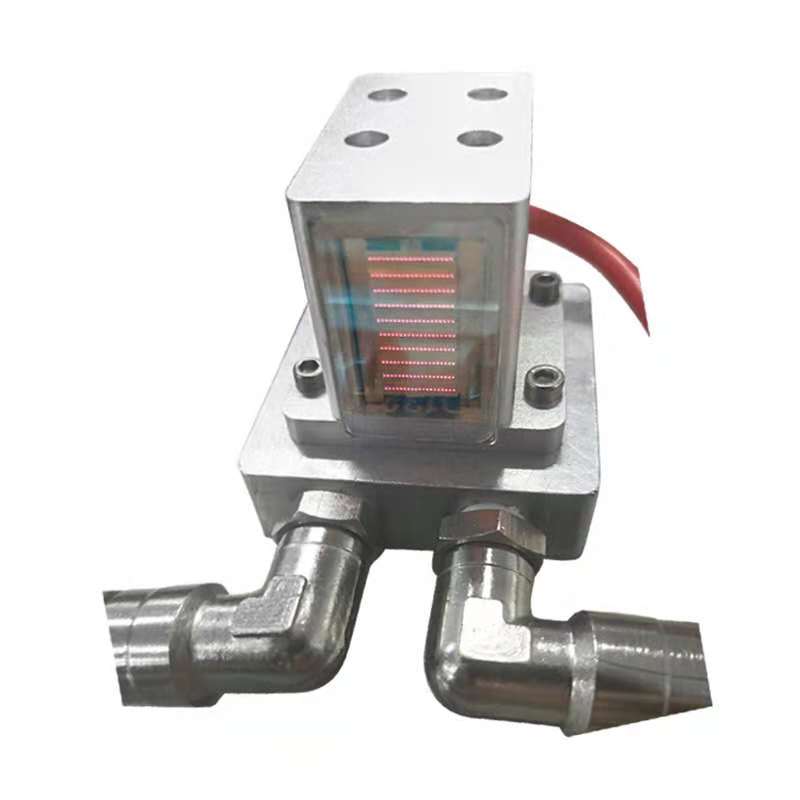

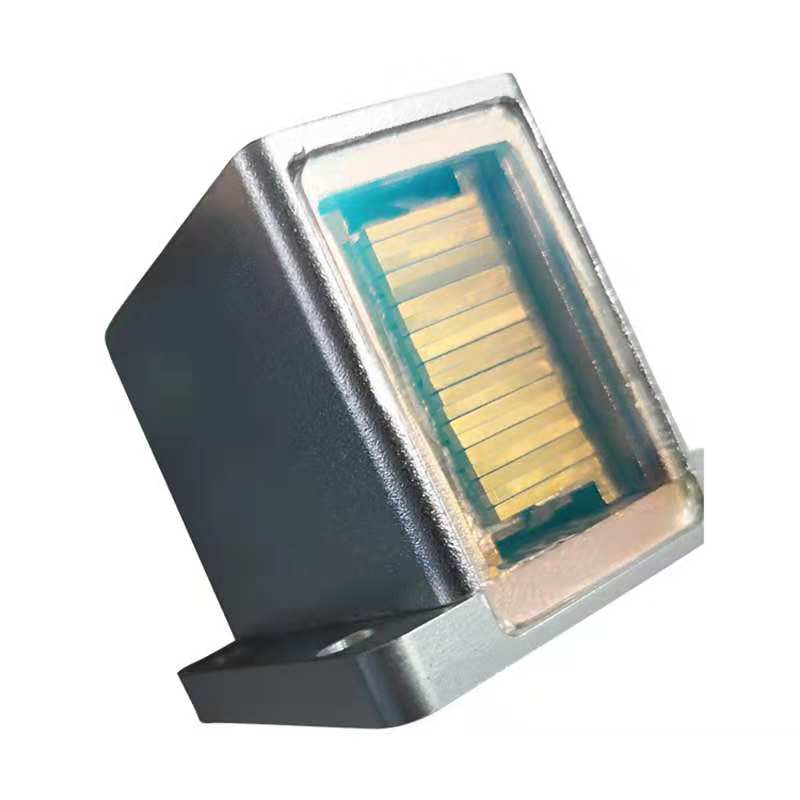

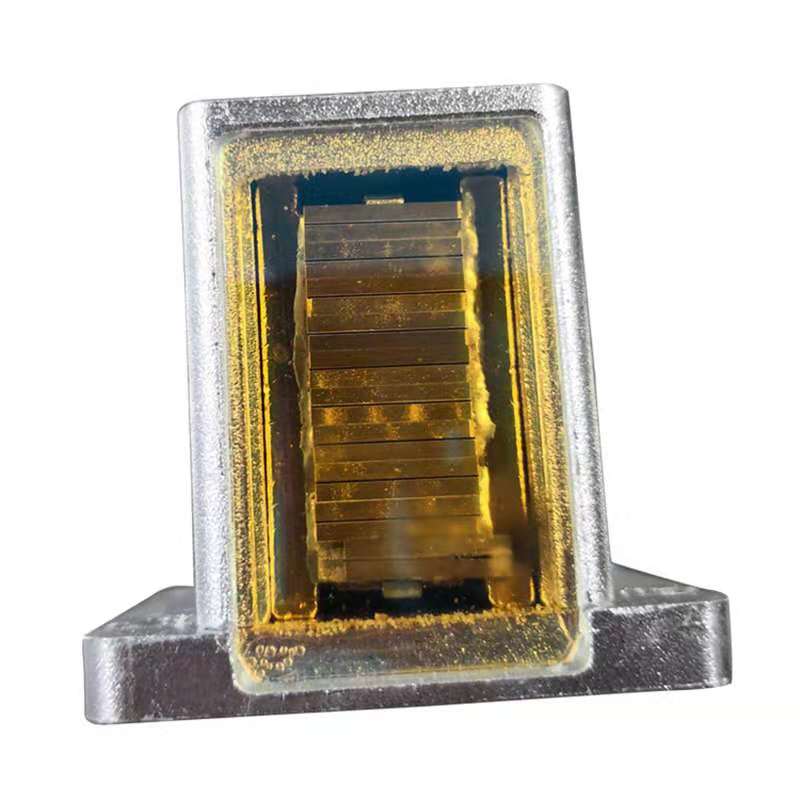

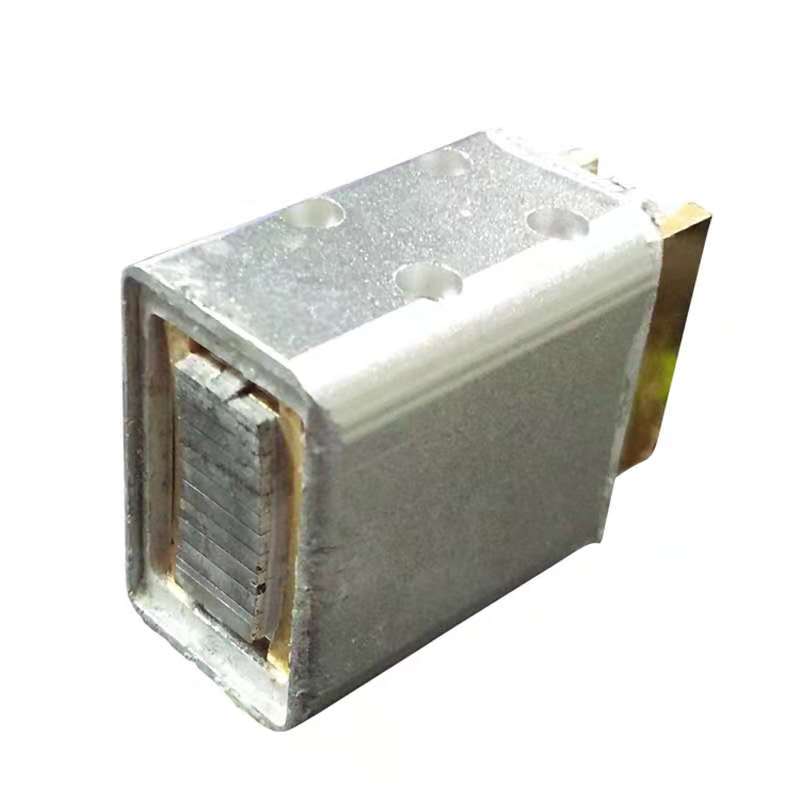

This diode laser stack 10bar Model D for hair removal which has 10bars with a aluminum shell. The water connectors are on the side. One is straight. another is right angle. One electrode is on the top. another electrode is on the bottom.
500W diode for 808nm laser hair removal device Repairing procedure

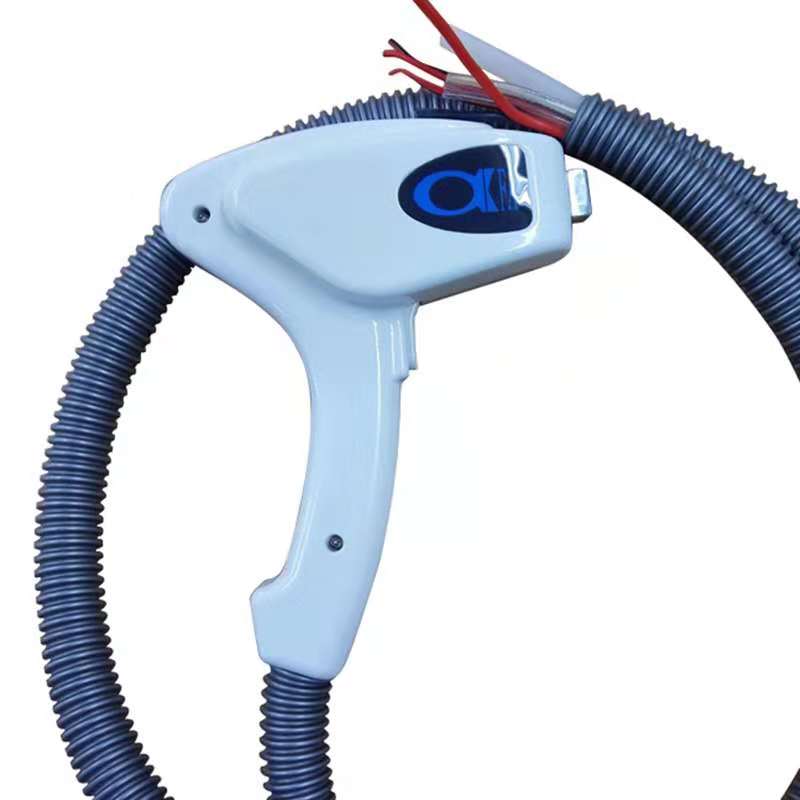

>Choice A: Send the old broken handpiece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new handpiece back to you.
>Choice B: if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.
>Choice C: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old handpiece.
500W diode for 808nm laser hair removal device Advantages
>Save Money. Replace the broken diode stack only. Low cost and convenient
>Long lifetime. we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
500W diode for 808nm laser hair removal device Specifications:
Model No.
|
VS-MA-50-10 Model D/GTHM-500
|
Application
|
laser hair removal handpiece Repair And Replacement
|
Operation Mode
|
CW
|
Power per submounts
|
50W
|
Number of submounts in one stack
|
10bars
|
Central wavelength at 25℃
|
808 ± 5nm
|
Typical Operation current
|
40A
|
Maximum Operating current
|
50A
|
Typical Threshold current
|
8A
|
Maximum Operating Voltage
|
<20V
|
Fast Axis Divergence (FWHM)
|
39º
|
Slow Axis Divergence (FWHM)
|
8º
|
Operation Condition
|
non-condensing atmosphere, cleaning room
|
Expected lifetime
|
10 millions shots
|
Typical pitch per bar
|
2mm
|
Cooling requirement
|
|
Flow rate
|
>3.5L/min
|
Water Temperature
|
27+-3°C
|
Water Quality
|
pure water
|
cooling system
|
Do not use any material that combination with copper would form galvanic elements
|
500W macro channel diode laser module Dimension:
