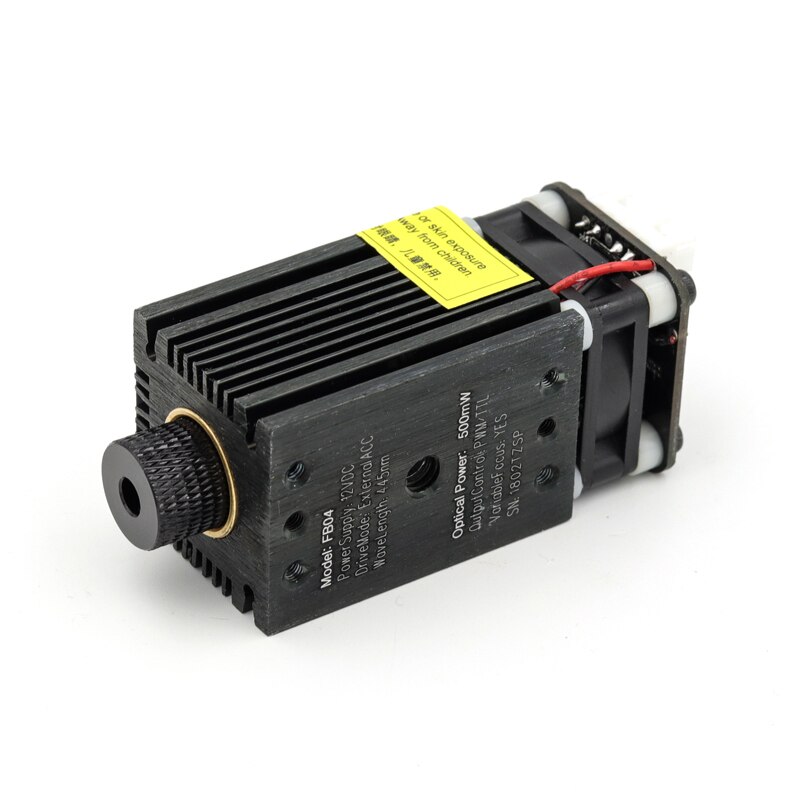

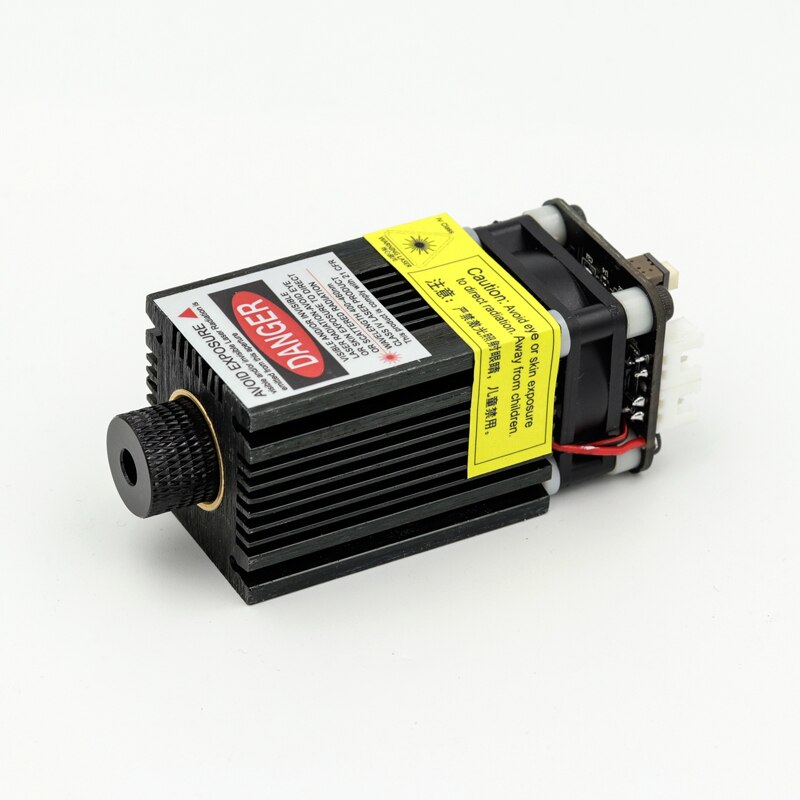

405nm 500mW Laser Cutter Blue Laser Head Module For DIY CNC Laser Engraver Support TTL/PWM Power Adjustable Focusable FB04-500mw

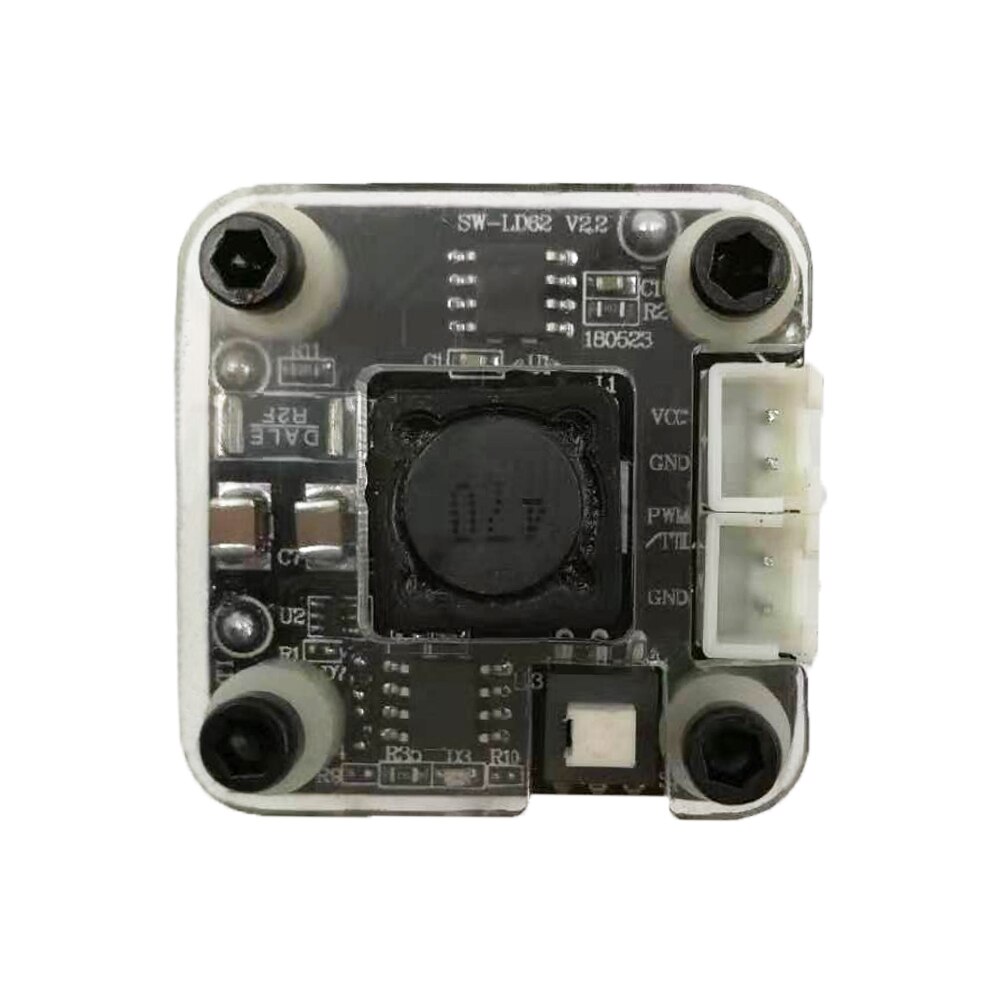

This 405nm 500mW focusable blue laser module is equipped with  constant-current driver board, aircraft aluminum heat sink and cooling fan ideal for DIY CNC laser cutter equipment usage with stable output power and long lifetime.



Specifications:

Wavelength: 405nm (blue violet)
Spot type: dot (focusable)
Laser power: 500 mW
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12V DC
Power supply interface: 2 * 2.54
Control interface: 2 * 2.54 (TTL control switch, PWM control power)
Shell material: Aircraft aluminum, surface anodized

Module material: copper



Notices:

1. Laser module power is relatively large, only for industrial use, to prohibit the exposure of the eyes, otherwise it will cause permanent blindness, the consequences at your own risk.

2. Do not use in flammable and gas atmospheres to avoid fire and explosion

​3. Prohibit children from exposure to this laser product.

Can Not process metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent material.
