Description

5 years warranty,24V dc Nichia edge light LED module Led strip bar for double sided light box, lightbox rigid led light bar:



Electrical characteristics:

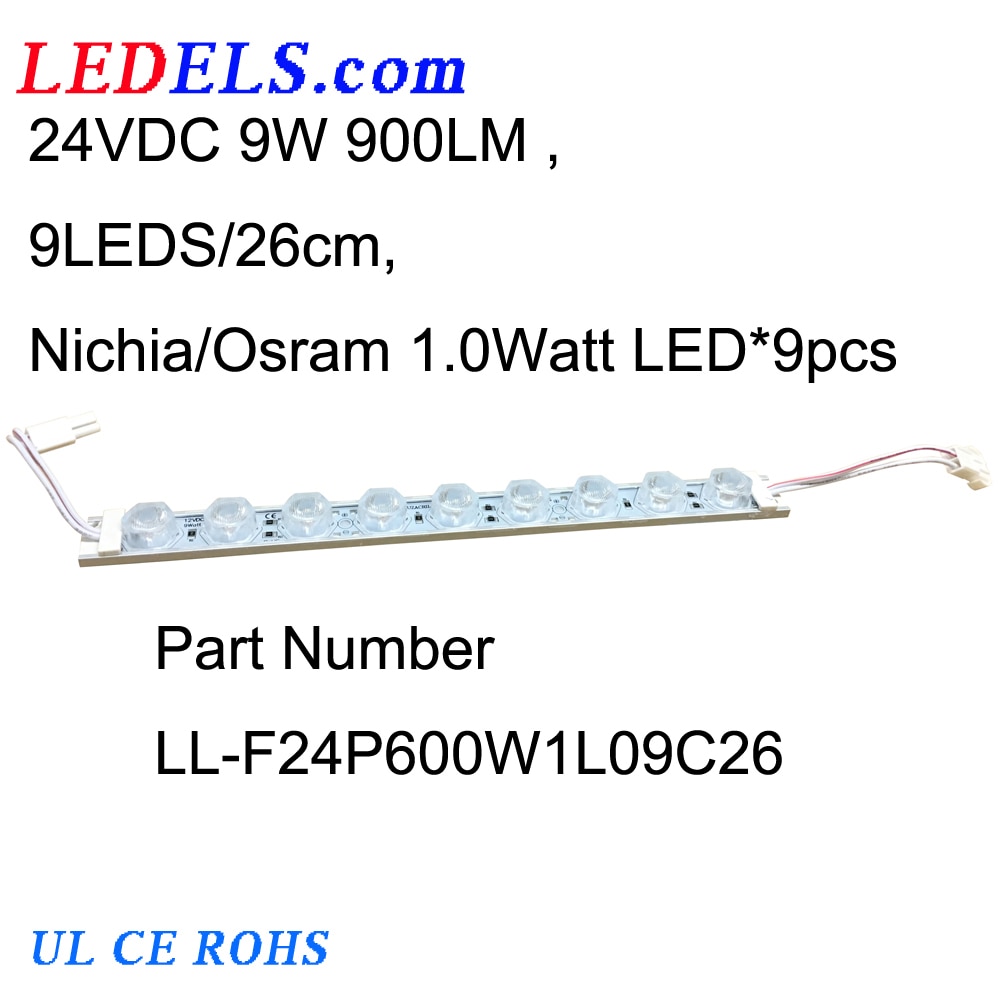

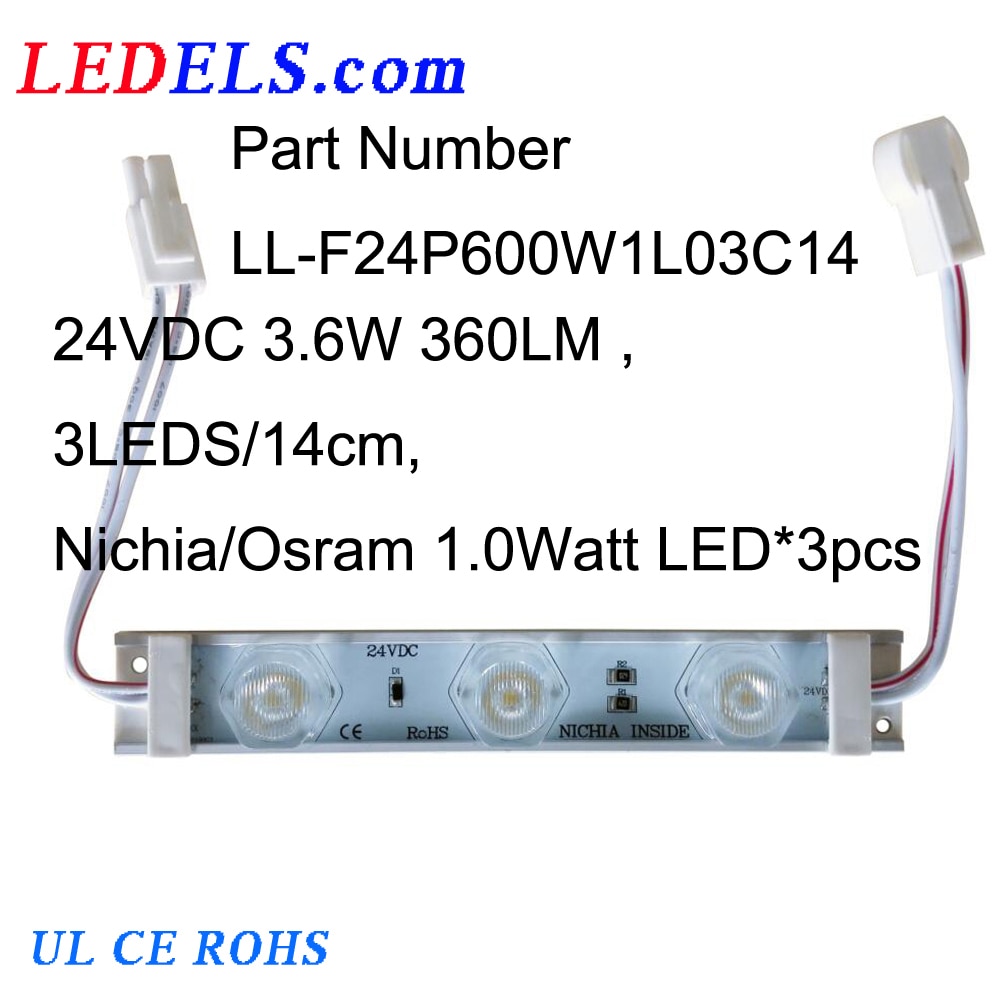

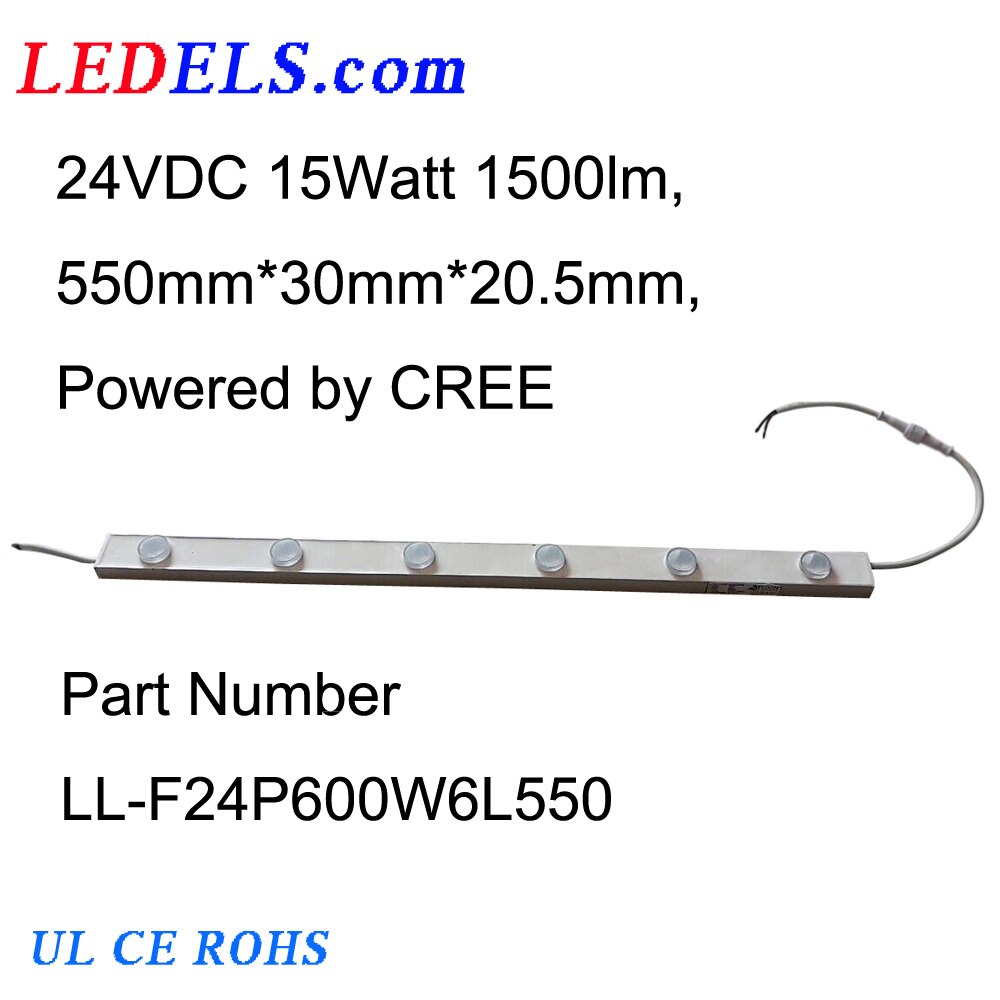

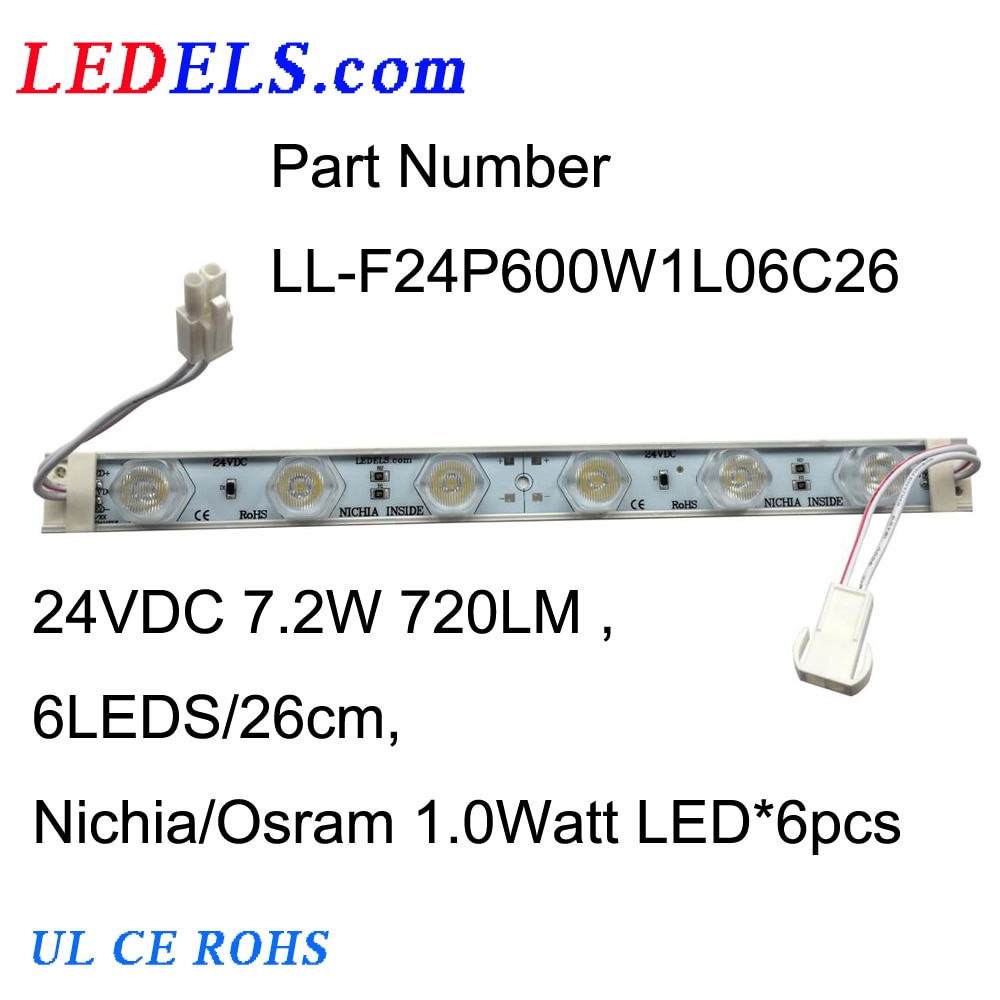

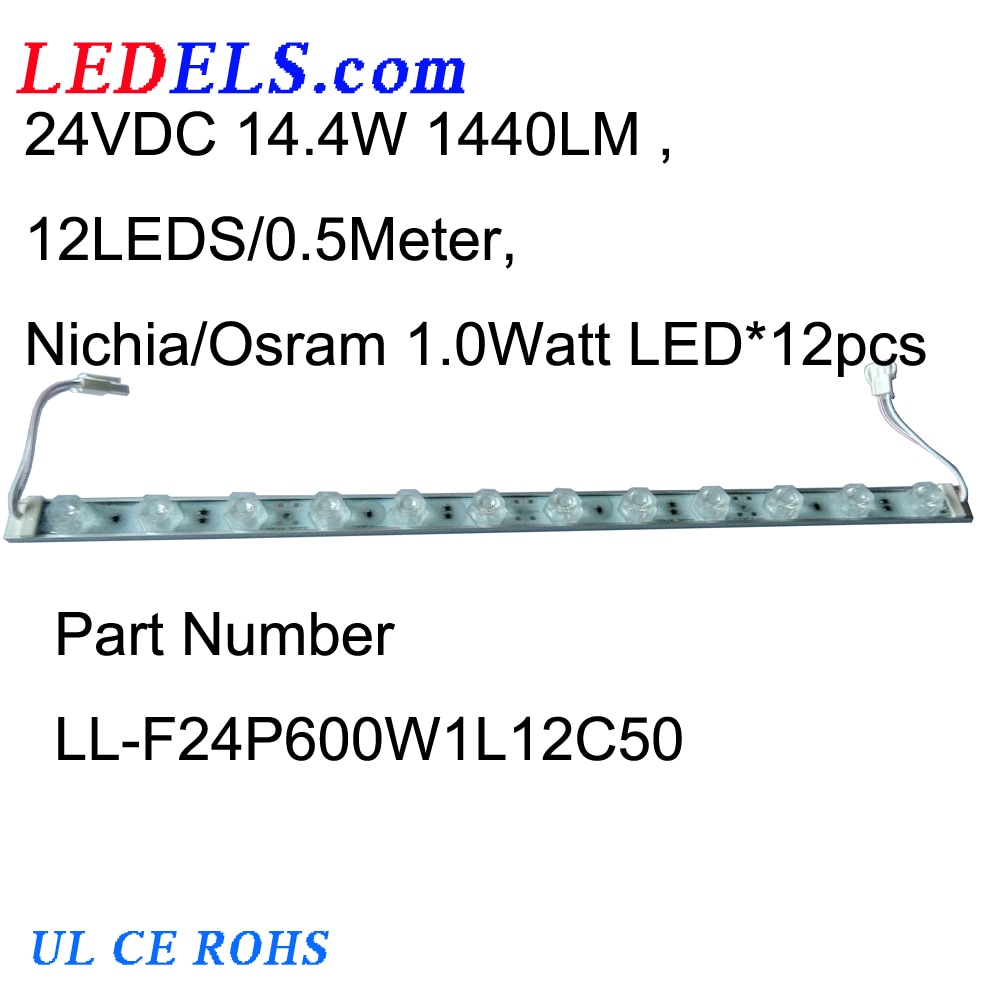

Model No.	LL-F24P600W1L18C50	LL-F24P600W1L12C50	LL-F24P600W1L09C26	LL-F24P600W1L06C26	LL-F24P600W1L03C14	LL-F24P600W6L550
LED Type	Nichia	Nichia	Nichia	Nichia	Nichia	Nichia
Beam angle	12*56 degree	12*56 degree	12*56 degree	12*56 degree	12*56 degree	12*56 degree
Emitting color	White	White	White	White	White	White
luminous flux	1800LM	1440LM	900LM	720LM	360LM	1500LM
Color temperature	3000k,4500k,6500k	3000k,4500k,6500k	3000k,4500k,6500k	3000k,4500k,6500k	3000k,4500k,6500k	3000k,4500k,6500k
Operating Temperature	24vDC	24vDC	24vDC	24vDC	24vDC	24vDC
WARRANTY	5 YEARS	5 YEARS	5 YEARS	5 YEARS	5 YEARS	5 YEARS
Power	18Watt	14.4Watt	9Watt	7.2Watt	3.6att	15Watt

Physical Parameter:

LED number	18pcs/12pcs/9pcs/6pcs/3pcs/3pcs
APPLICATION	for two-side-illuminated sign box with depth from 80mm to 120mm
IP Grade	IP65
Shell material	Aluminun PCB+clearly epoxy cover waterproof
Driven by	constant current
Positioning	Screw&Autoadhesive Tape
Operating temperature	-30°c —+60 °c
Storage Temperature	-40°c —+60 °c

Product characteristics:

1.Powered by Nichia 1W  led

2.Aluminium base for good heat sinking

3.Brightness:1800LM

4.Driven by constant voltage

5.If powered maximun 12 hours a day,5 years warranty

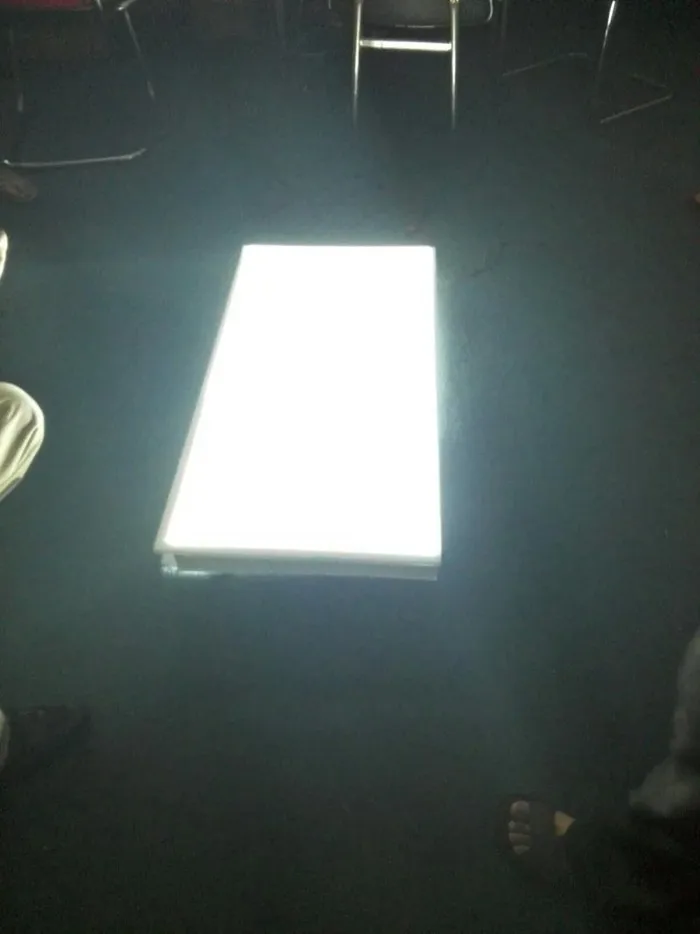

6.Application:EDGE LIGHT for display case,double sided light box whose depth is 80-120mm

Application
a. Widely Used in Household Lighting.
b. edge light/Backlighting for Advertisement ,Signboard and Billboard.
c. edge light/Backlighting for Lightingbox .poster box,banner etc
d. Signal Lamp for Letter Channel.
e. Emergency / rescue signs
f. Edge lighting of transparent diffused materials











Why Choose  LEDELS Lighting CO.,LTD ?

Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

 Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

Over 12 years experience in this industry,own lots of customer in home and abroad.good quality and innovation win good reputation.

Feature:

1. Has wide viewing angle
2. High intensity of each module, suitable for big & medium-sized LOGO & signage
3. Quick heat diffusion could prolong chips’ lifespan
4. each strip is not more than 30 pieces if series connection is adopted
5. with hole on both ends, can be fixed by screw
6. Input: DC24V
7. IP rate: IP65
8. lifespan: 50,000hrs
9.Excellent Design:Graceful appearance. All Electronic components fully covered by high transparency PC are protected against terrible outdoor environments

Order infomation:

MOQ: 100pcs

Trade term: FOB Shenzhen

Delivery time: 3-5 working days for sample order, 7-10 working days for mass order

Warranty

Three years since the date of purchase

Trade Terms:

1. Lead time : normally in 5~10 days after deposit received

2. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .

4. Shipping port: Shenzhen , China

5. Discounts : We offer discount for big quantity .

Delivery detail: We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours

2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language

3. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Quality control

1) All  the  led  sign  lighting  modules  delivered from LEDELS LIGHTING are 100% aging-tested before  release  and CE-certified, RoHS compliant, and UL-listed.

2)  The ratio of defectiveness of  LEDELS  leds  is  to  be  less  than  0.1%.  If  powered  10  to  12 hours a day, the warranty of

LEDELS leds  is 5 years since delivery (or its lifespan is supposed to be more than 35,000 hours)
