Description

Features:

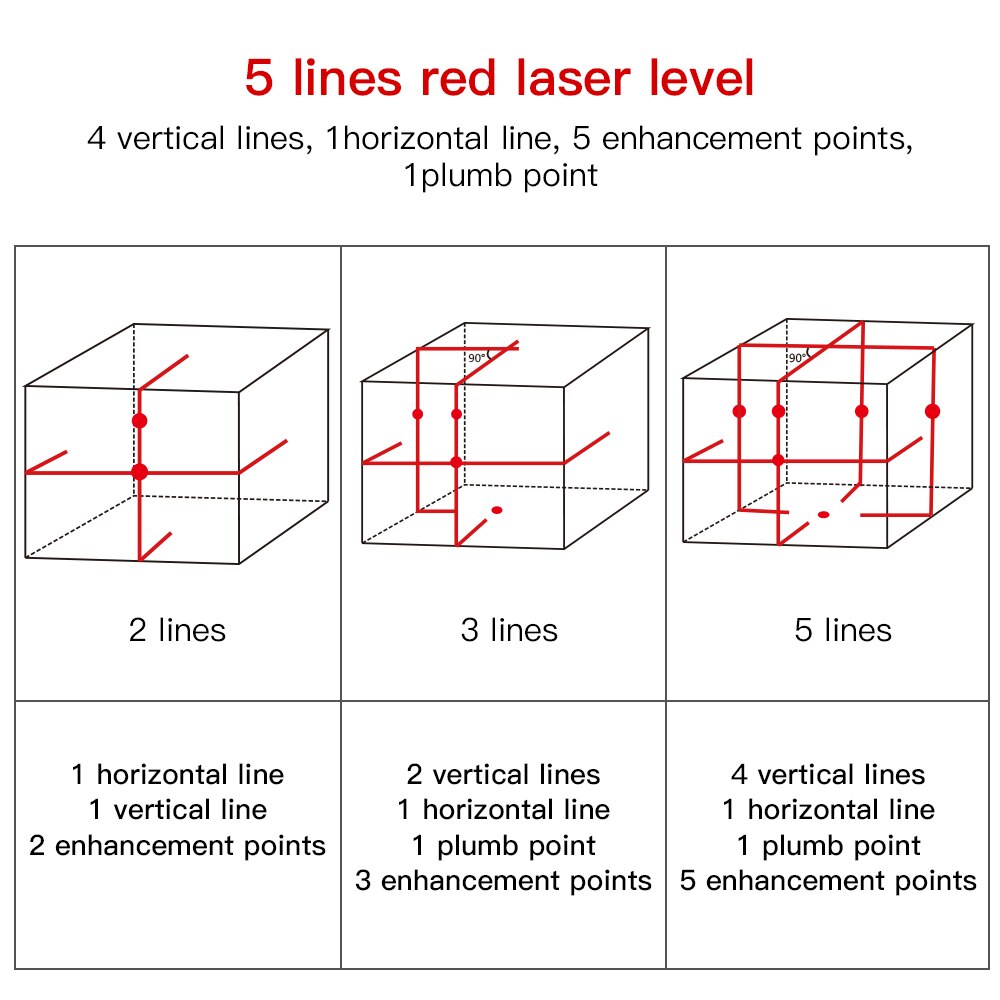

● [5-line laser marking device] The structure of 4 vertical lines, 1 horizontal line, and ground marking points illuminates lines with high visibility even in a bright environment. Each time you press the button, horizontal lines, vertical lines, cross lines, etc. can be used to efficiently print out swords and large squares (right angles).

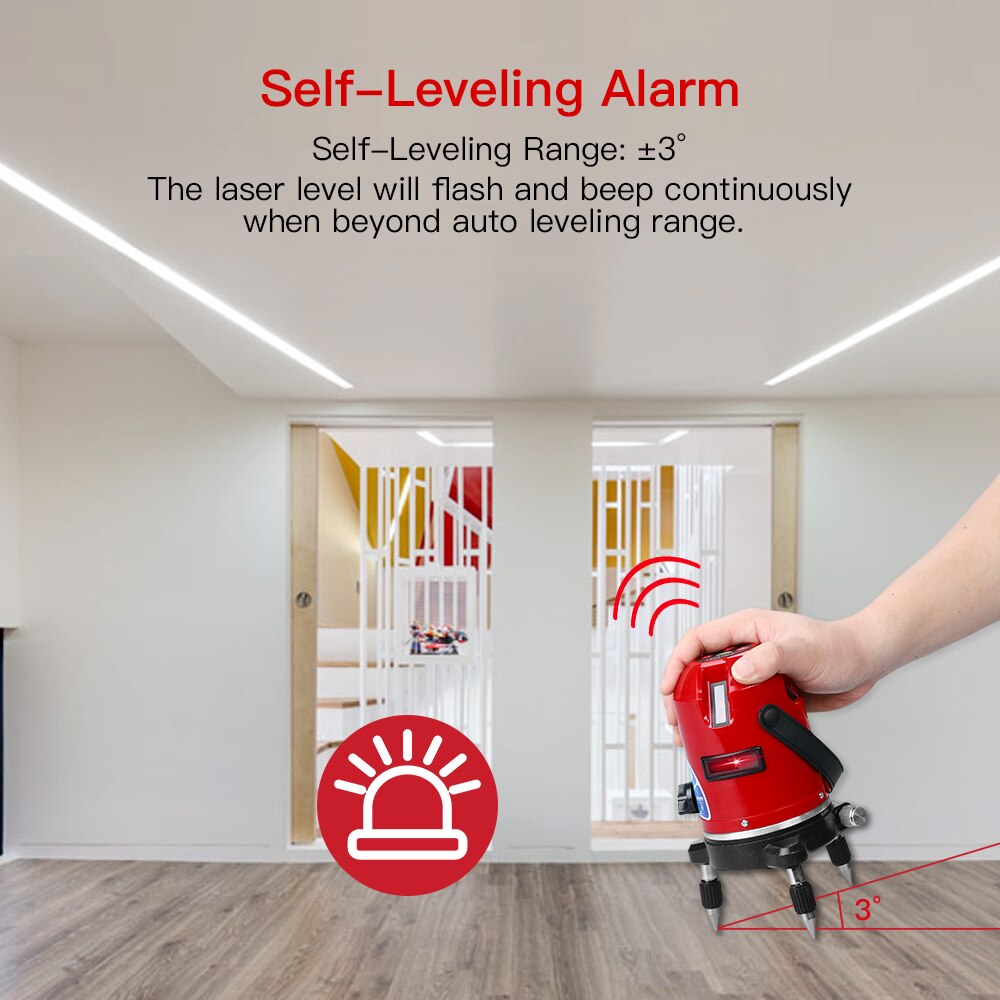

● [Automatic adjustment function] The tilt of the main unit can be adjusted within 3 °. The position of the line can be adjusted arbitrarily by rotating the 360-degree tripod chassis. Error is reduced and work efficiency is improved (tilt angle is ≥3 ° or more, laser light automatically turns off after a few seconds of sloping, and a beeping buzzer sounds) ● [Fine adjustment switch function] Target position Turn the aircraft until it fits exactly. The fine adjustment switch can adjust the target position more accurately.
● [360 degree rotation adjustment] The position of the line can be adjusted arbitrarily by rotating the 360 ​​degree tripod chassis. Reduce error and improve work efficiency.
● [3 types of power supply method] The laser marking device is lightweight, compact and easy to use! Three types of power supply methods: AA batteries * 3 (not included), lithium battery (included), AC adapter (included).

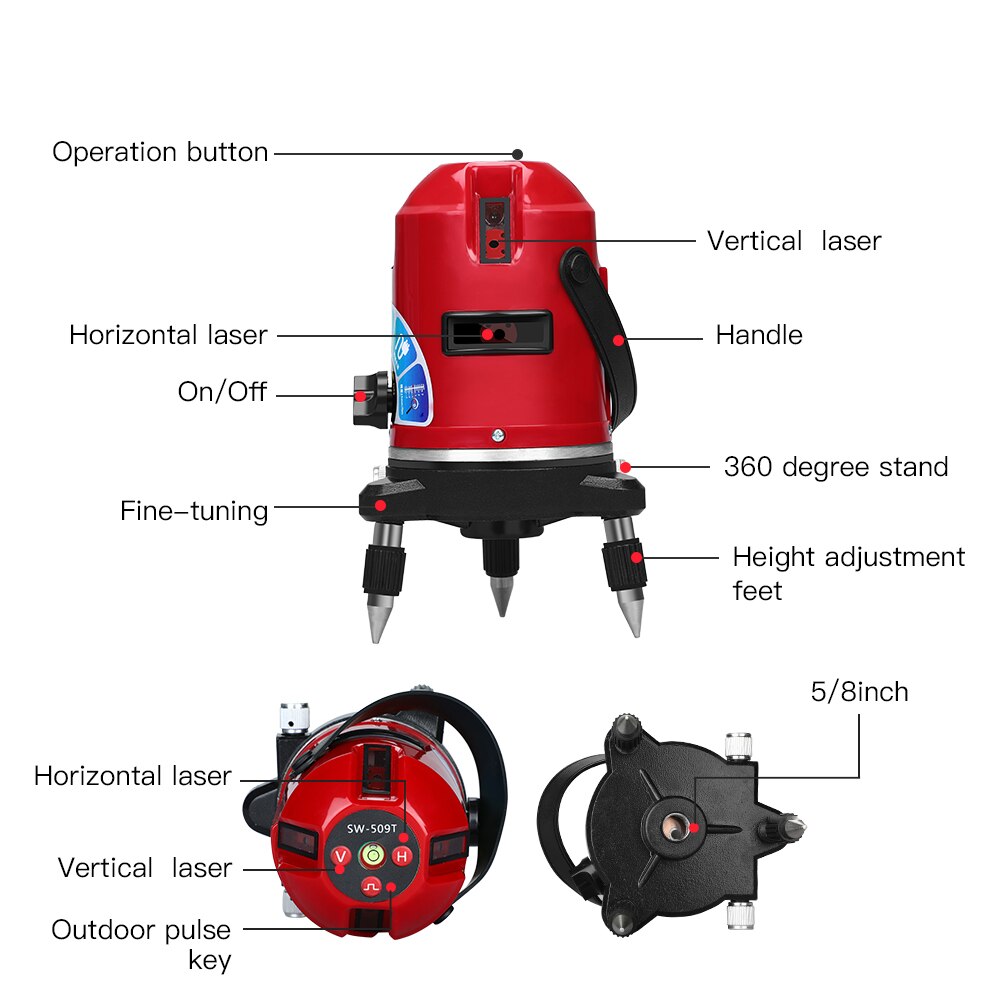

● [H / V button function] The H button turns the horizontal line on / off. The V button turns the vertical line on / off.
● [OUTDOOR model] The function of the OUTDOOR button is to create diagonal lines within 180 degrees. How to use: Fix the aircraft on a tripod, adjust the angle, turn on the machine, press and hold the outdoor button, the indicator light in the middle will blink, and it will be in tilt mode. Tilt mode used, machine off. Remove the machine from the tripod while it is locked.
The tilt mode can be used at any angle and the tilt warning buzzer will not sound.

【Product Specifications】

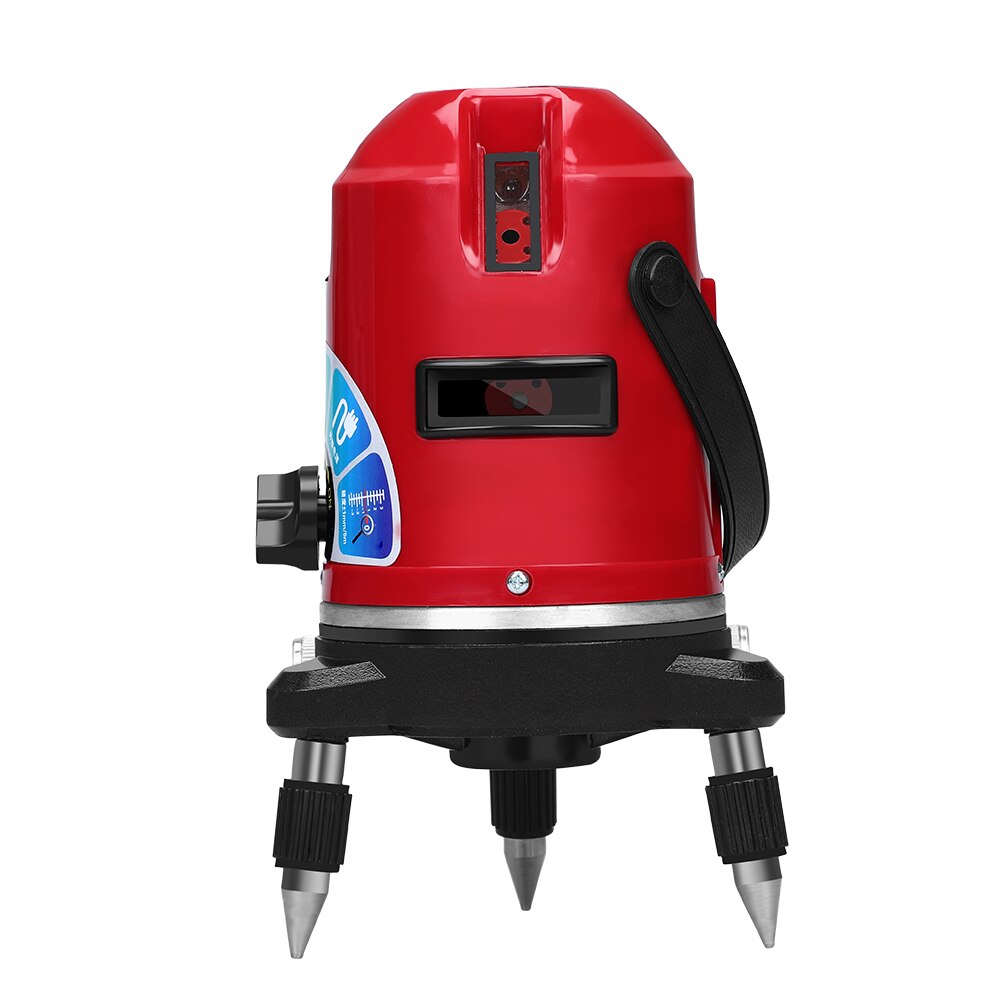

Product: EP-5R 5 Linelet Laser Marker
Wavelength: Red visible 5 semiconductor laser 635nm / Chinese ink 650nm
Laser safety standard: 1mw or less, class 2
Optical output: 1mW or less
Horizontal accuracy: ± 2mm / 10m
Vertical accuracy: ± 2mm / 10m
Line width: 2mm / 5m 3mm / 10m
Braking method: pendulum type
Automatic correction range: ± 3 °
Body rotation range: 360 °
Dustproof / Splashproof: Equivalent to IP54
Power supply: 3 AA batteries, thium battery, AC adapter

【Please note】
1. The blinking indicator light in the middle is normal, and it is a signal to enter the tilt mode.
2. Adjust the outriggers or tripod chassis if the laser lines are flashing or if the warning buzzer is sounding.
3. If the laser line is blurry or not bright, replace the new battery or charge the lithium battery.
4. If the laser lines are blurry, wipe the glass shell with a clean cotton cloth.
5.Tripods are not included and need to be prepared or purchased

【Notes 】
Although this machine has been rigorously tested for accuracy before shipment, a basic accuracy test is recommended on first use to avoid unnecessary mistakes.
To use this product, wear the supplied protective glasses.
Do not leave the battery inside the machine when not using this product.
Do not put the battery into a fire.

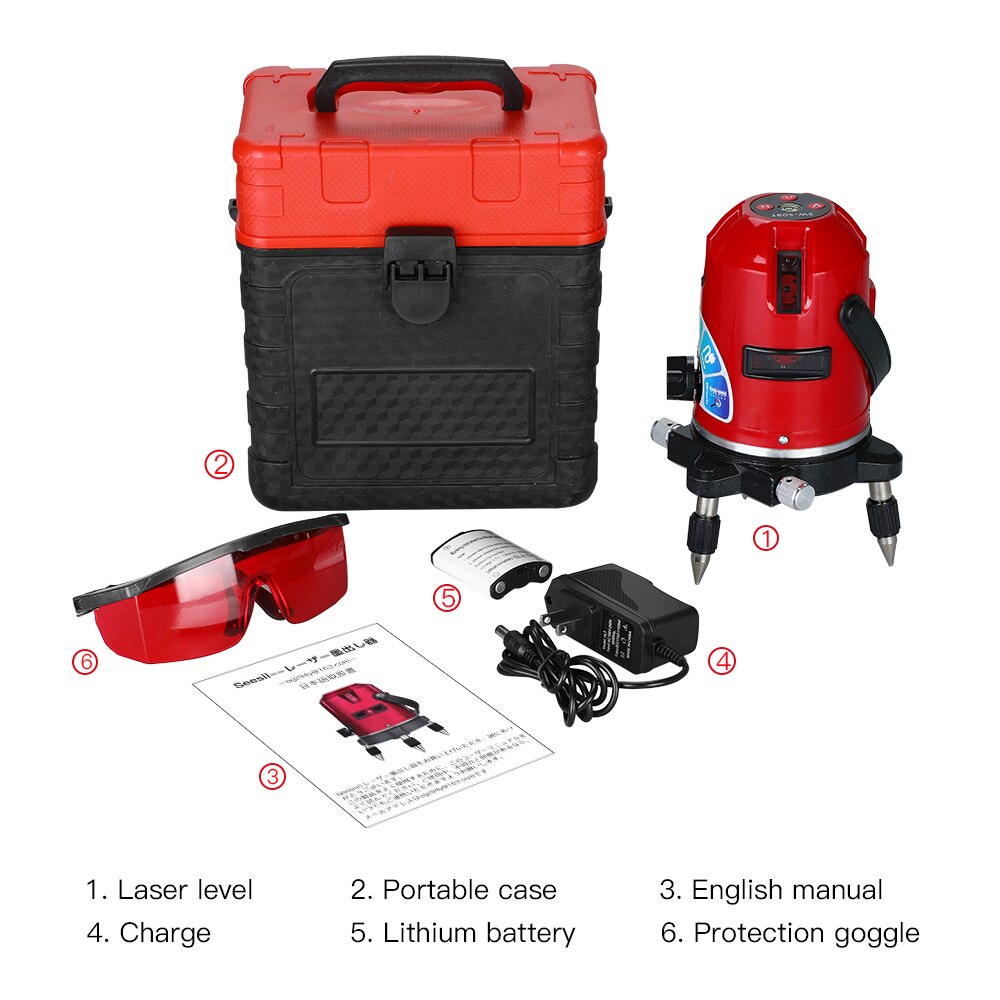

Package include：
1xlaser level machine
1xportable case
1xenglish manual
1xcharge
1xLithium battery
1xprotection goggle
