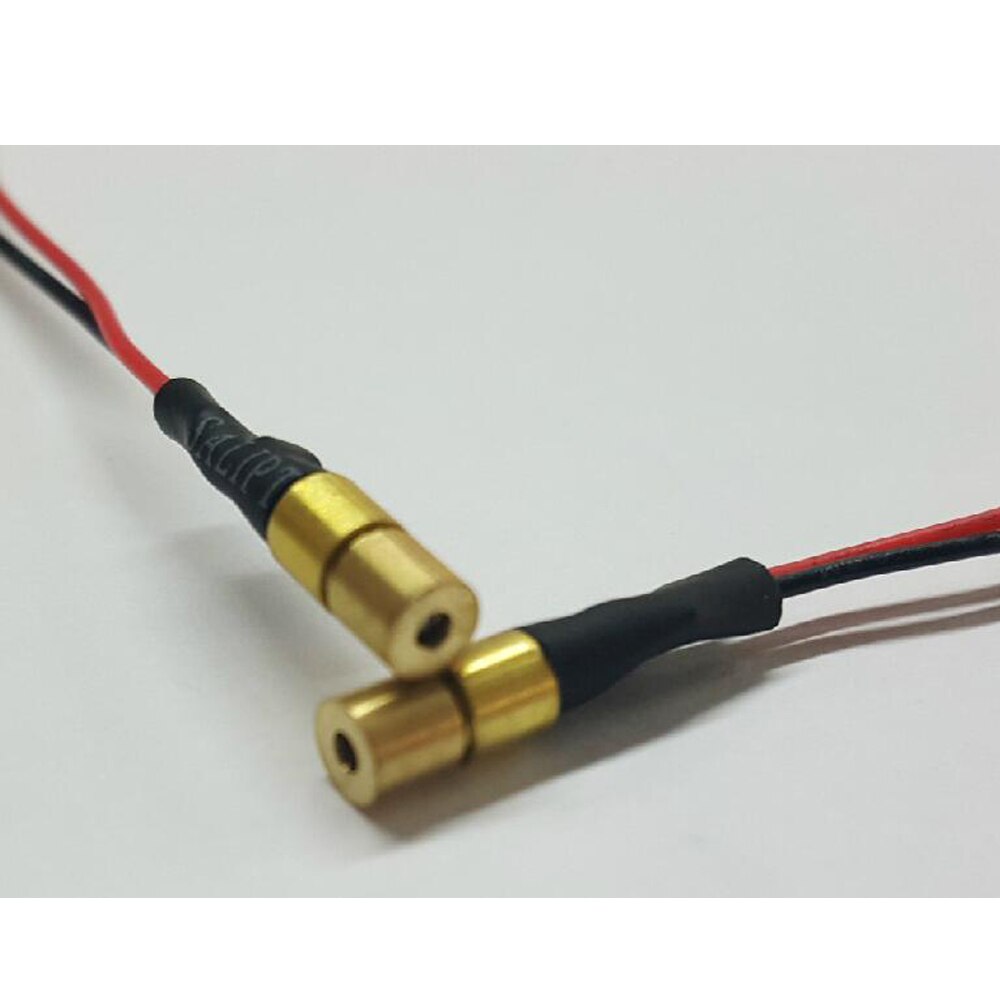

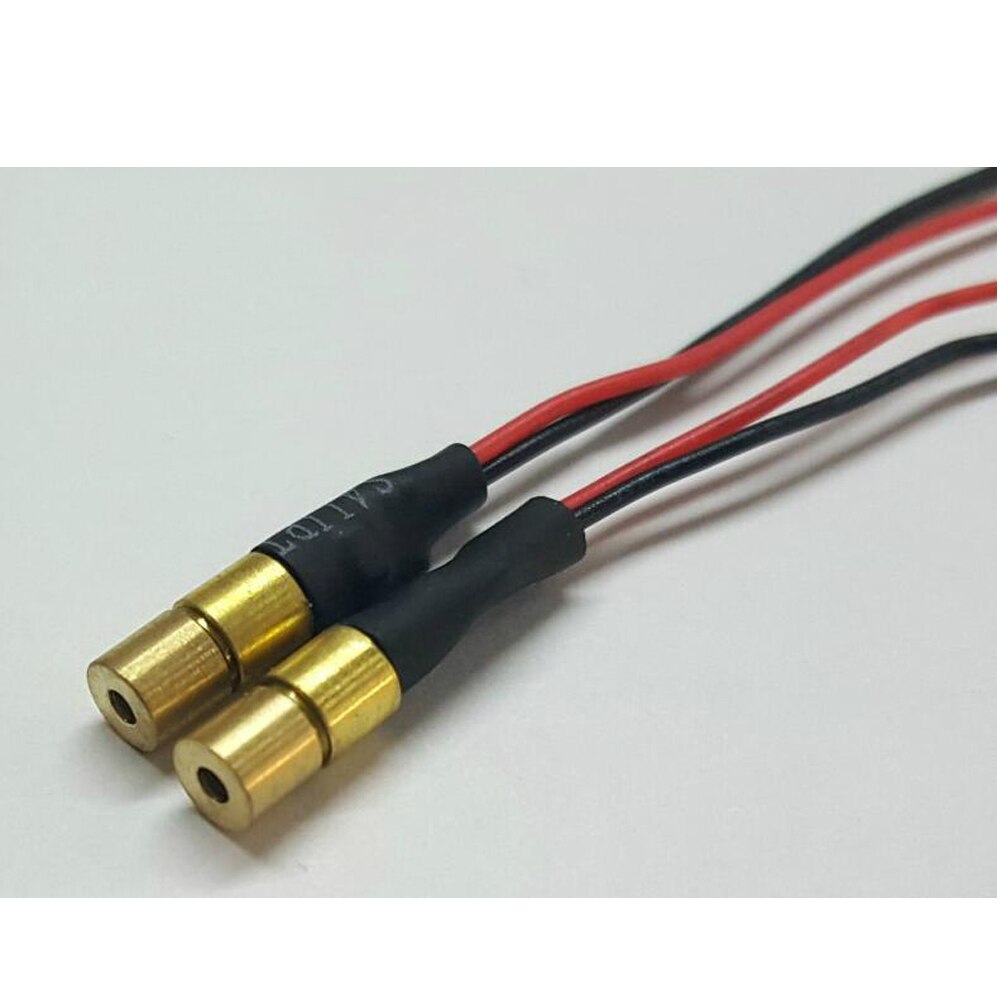

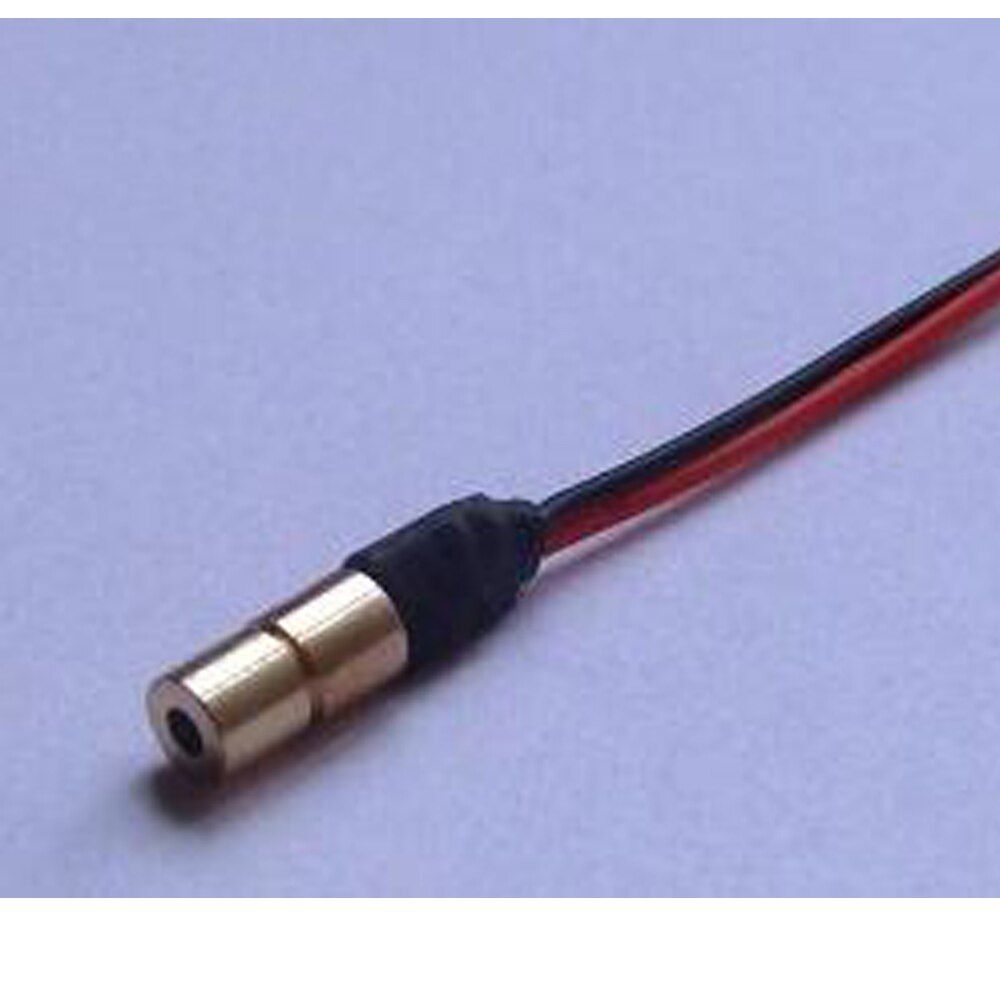

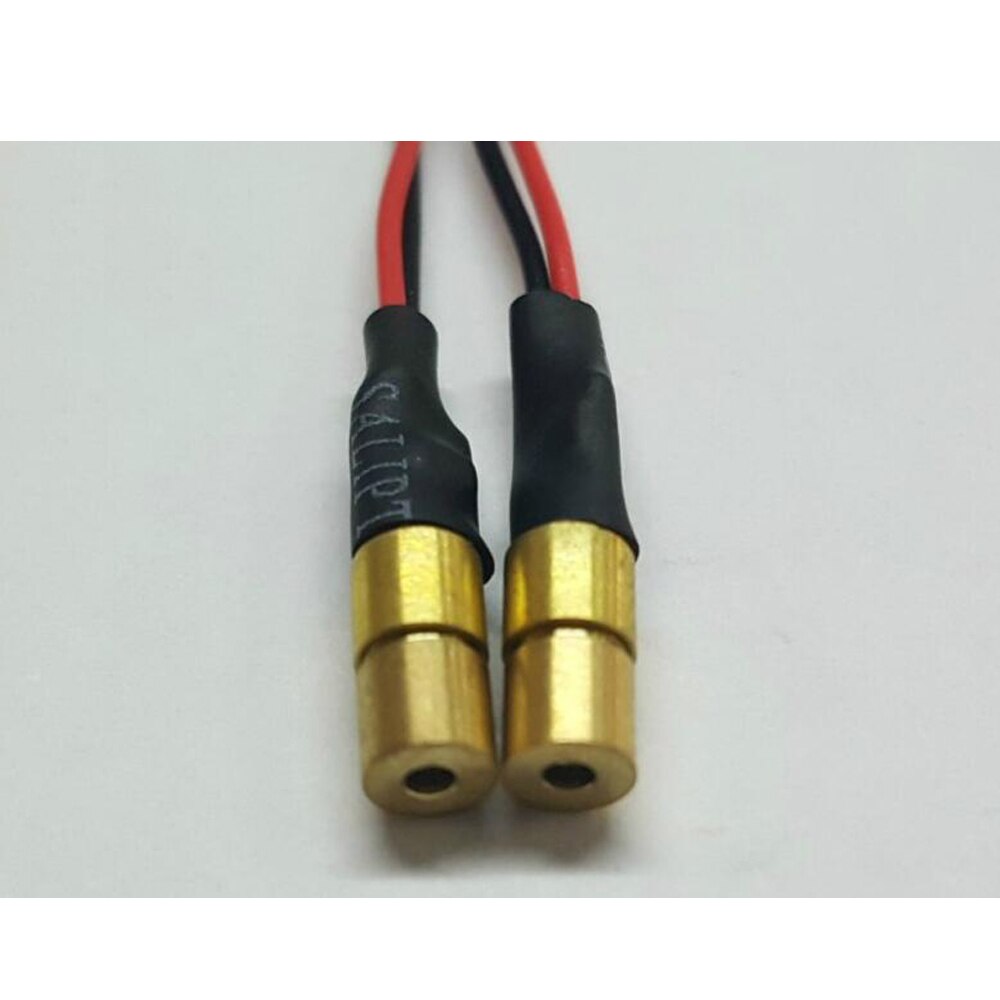

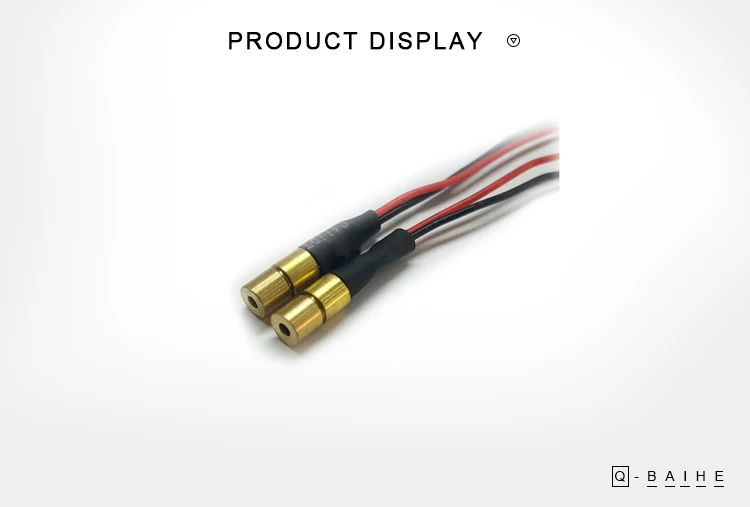

Class Ⅲ A  4mm635nm5mw Mini Red Spot Positioning Laser Module Emitting Diode Lamp

Product Specification:
1. Size: φ4*13.8mm (including PCB board), other sizes can be customized
2. Material: Environmental Protection Copper
3. Surface Treatment /Color: Primary Color
4. Service Life: Continuous Output, Service Life > 10000 hours
5. Output Wavelength: 635nm +/- 5nm
6. Output Power: <5mw
7. Range: <300M
8. Spot Shape / Diameter: 10M Light Spot 10*20mm
9. Circuit Control: APC Line
10. Working Voltage: 3V (two 7-cell batteries, the best choice for alkaline batteries)
11. Working Current: <45mA
12. Working Temperature: -10 ℃ to +40 ℃
13. Storage Temperature: -40 ℃ to +70℃

Package:
1*Laser Module
