Description

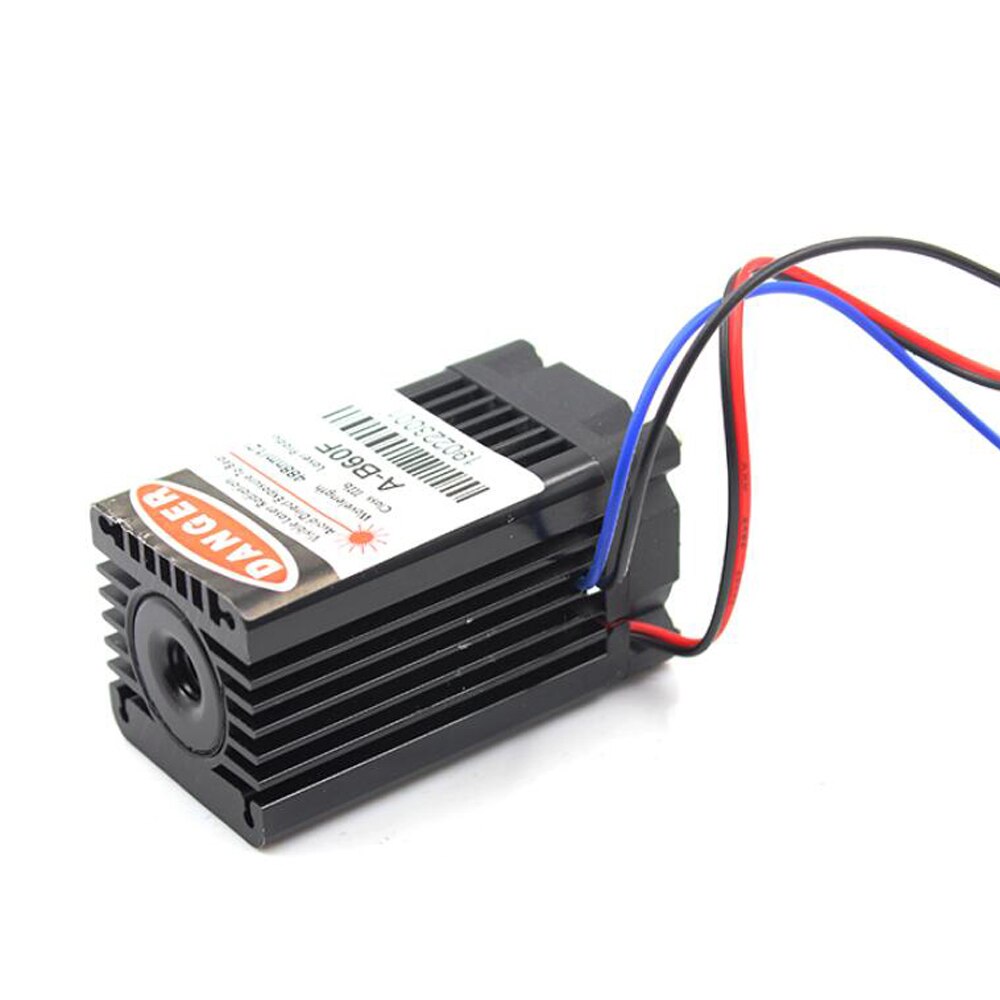

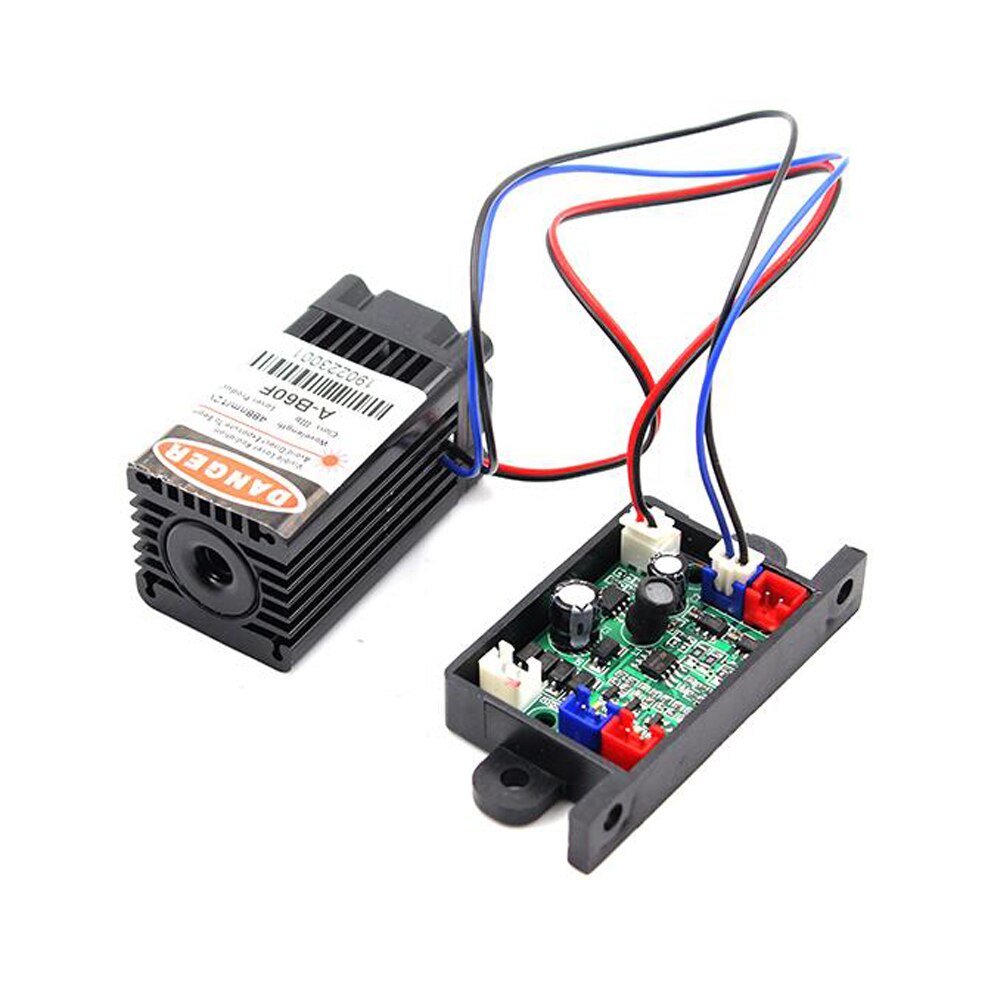

488nm 80mW 12V Sky Blue Dot Laser Diode Module With Fan TTL Modulation DIY
| Titleļ¼ | 488nm 80mW 12V Sky Blue Dot Laser Diode Module With Fan TTL Modulation DIY | ||
| Wavelength: | 488nm | Output Power: | 80-100mW |
| Spot Pattern: | Round Spot | Divergence Angle: | ≤1mrad |

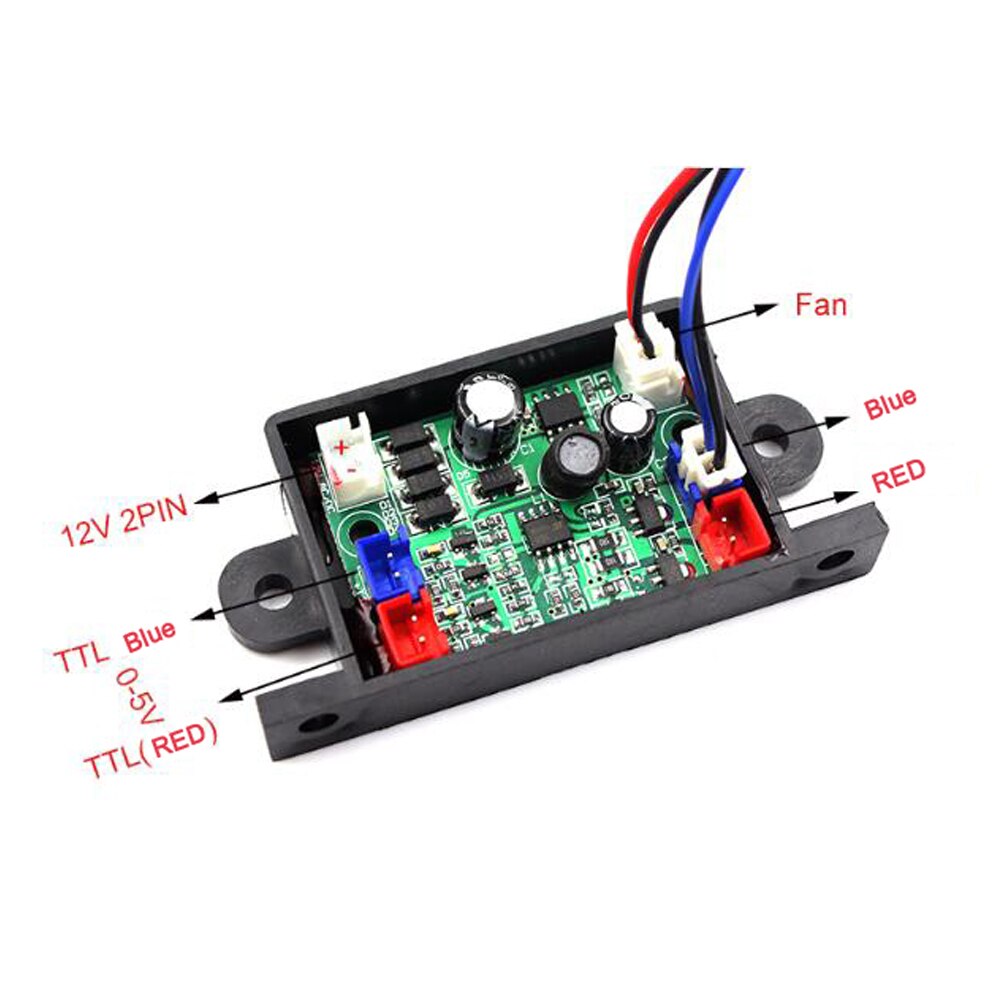

| Laser Rating: | Class3 | Modulation Mode: | TTL modulation |
| Input Stability | ± 5% | LD Input Current: | 180mA |
| Rated Power Consumption: | 2.1W | Recommended Ambient Temperature: | -10~40°C |
| Life Expectancy: | 10000h | Wire Length: | 100mm |

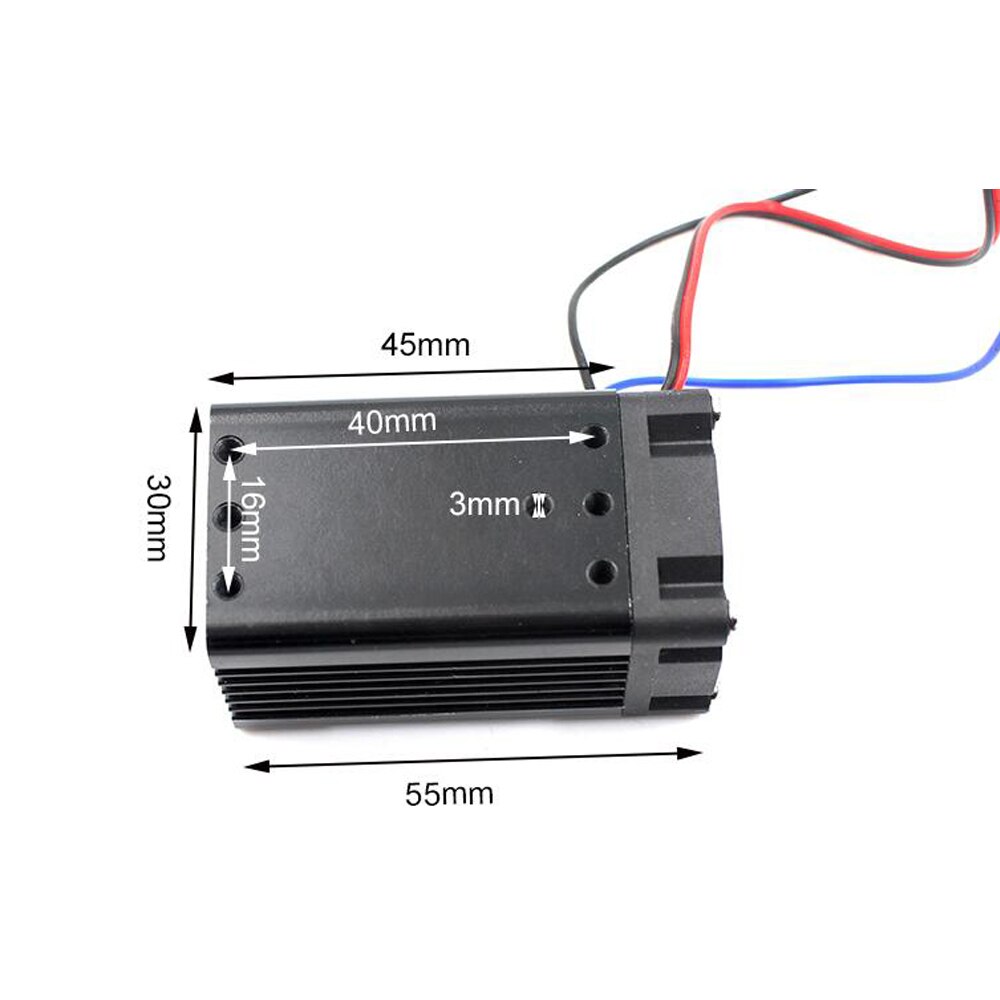

| Size: | 30*30*45mm | ||

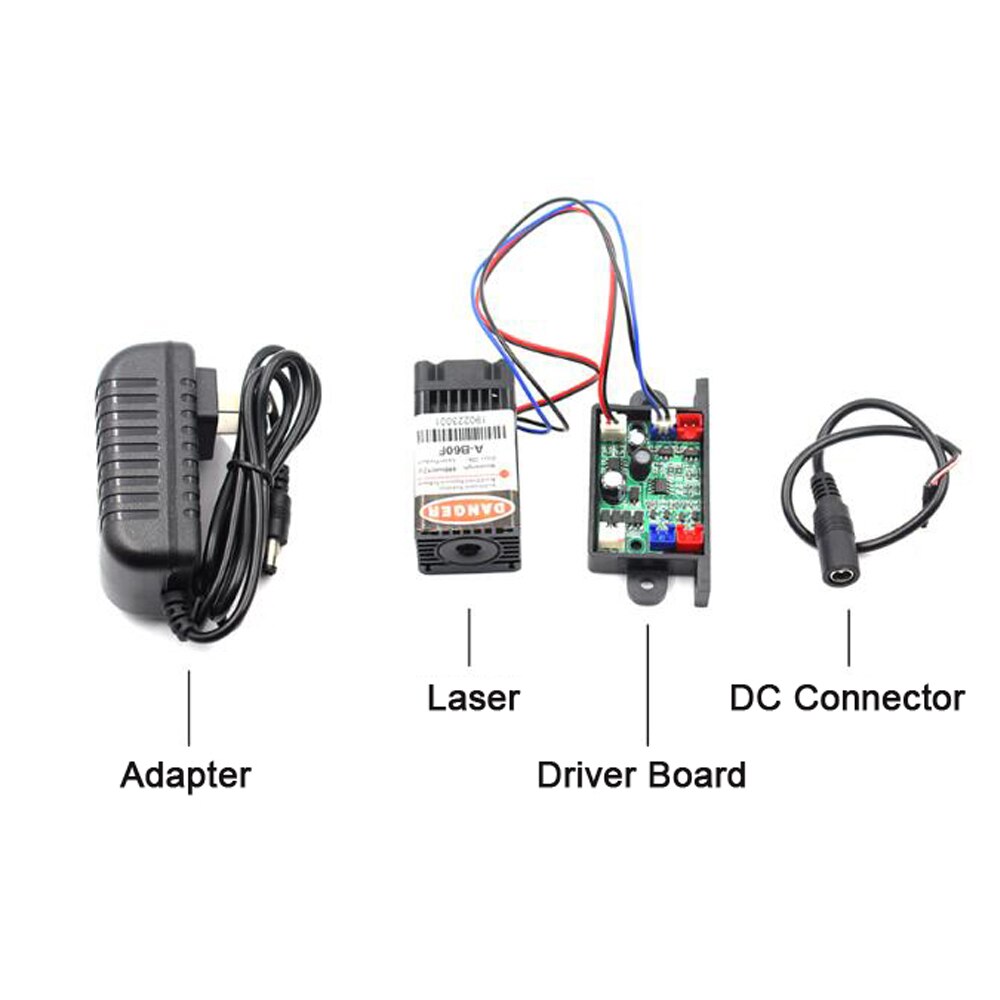

| Package: |
1*488nm 100mW 12V Sky Blue Laser Module Laser Head With Fan TTL Modulation DIY |
||
